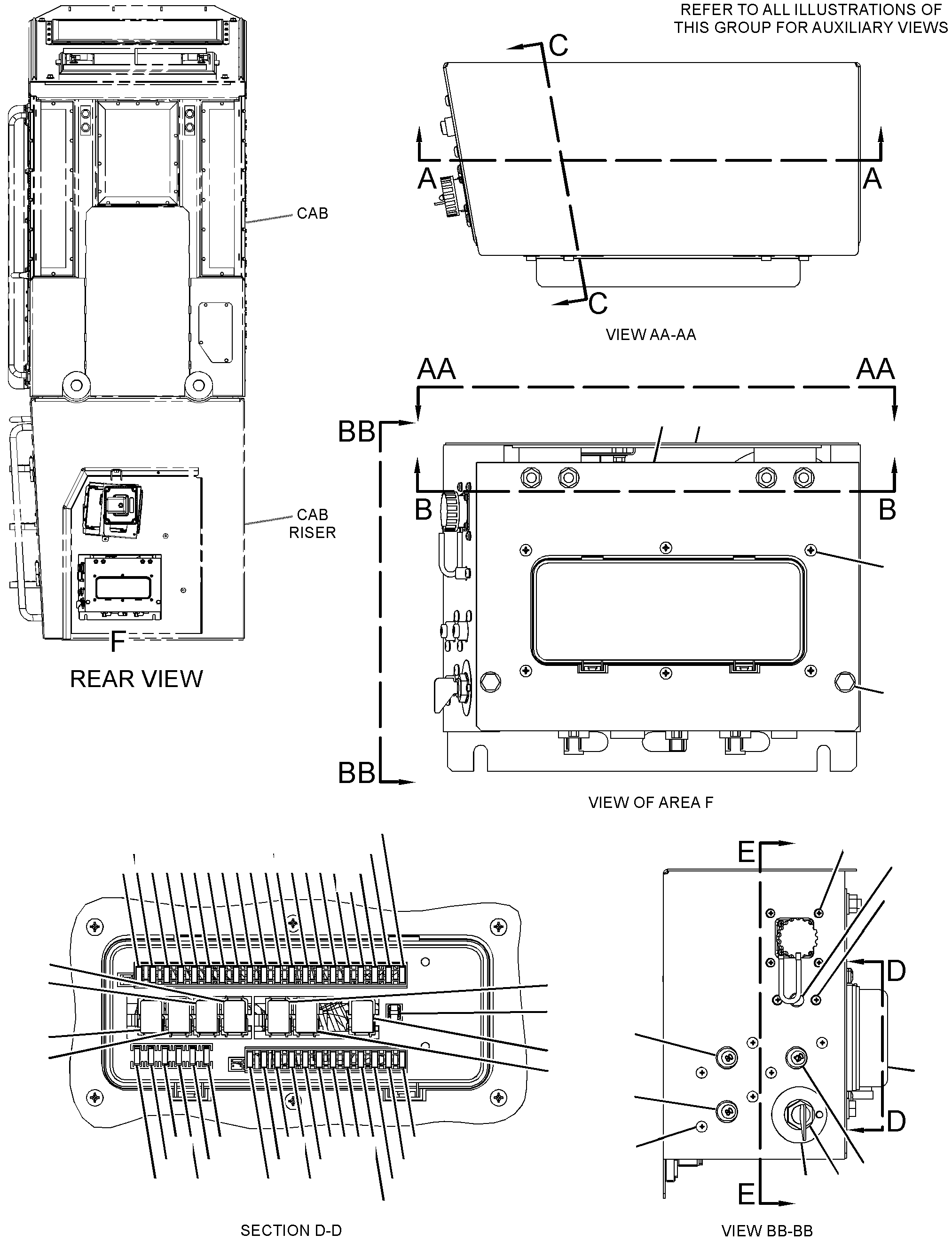

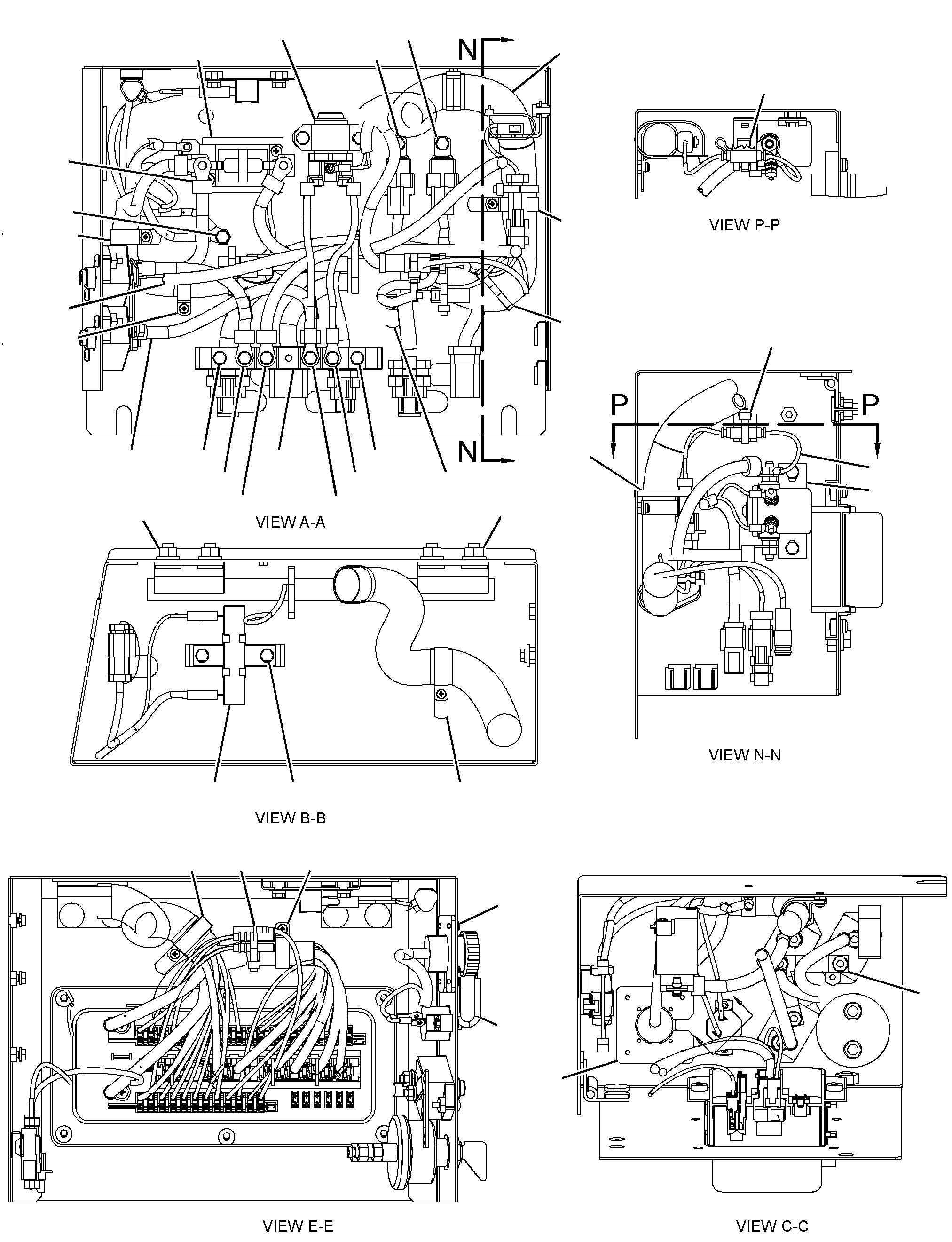

377-8101 PANEL GP-CIRCUIT BREAKERS/N CYZ277-UP

Group No: 377-8101
Part NumberPart NameQty
3E83201 PLATE-INSTRUCTION (BATTERY)1
6T36432 CIRCUIT BREAKER AS (15-AMPERE)(ALTERNATOR)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
7K11813 STRAP-CABLE8
7N07194 SWITCH GP-DISCONNECT (BATTERY)(BATTERY)1
08573295 SPACER (9X19X30-MM THK)2
10280166 RESISTOR AS (BACKUP)1
10599857 CLIP3
10599868 CLIP4
11384909 FUSE (10-AMPERE)20
113849110 FUSE (15-AMPERE)7
113849311 FUSE (25-AMPERE)2
121102312 BLOCK-TERMINAL1
124354813 FUSE (30-AMPERE)2
136405514 STRIP1
141275915 FUSE (5-AMPERE)8
149505016 RELAY (24-VOLT)(CAB RISER LIGHT)1
149505016A RELAY (24-VOLT)(WORK LIGHTS, REAR)1
161312817 RELAY (24-VOLT)(HORN)1
161312817A RELAY (24-VOLT)(NEUTRAL START)1
161312817B RELAY (24-VOLT)(TRAVEL ALARM)1
161312817C RELAY (24-VOLT)(CAB FLOODLIGHT)1
161312817D RELAY (24-VOLT)(CAB LIGHT)1
161312817E RELAY (24-VOLT)(CHASSIS FLOODLIGHT)1
161312817F RELAY (24-VOLT)(BOOM LIGHTS)1
167359318 STRAP1
170688819 PULLER-FUSE1
171221020 CIRCUIT BREAKER AS (80-AMPERE)(ALTERNATOR, MAIN)2
4E5724WASHER (7X12X1-MM THK)2
8T0122NUT-FULL (1/4-28-THD)2
2532111LOCKWASHER2
209558221 SWITCH GP-MAGNETIC (24-VOLT)(HEATER)1
213077222 SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY)1
216497023 CIRCUIT BREAKER AS (120-AMPERE)(HEATER)1
4E5724WASHER (7X12X1-MM THK)2
8T0122NUT-FULL (1/4-28-THD)2
2532111LOCKWASHER2
238227924 BAR-BUS1
238252625 COVER1
259527426 SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)1
267806527 CABLE AS1
6V2369CABLE (4-GA, BLACK)(0.2-M)
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)1
267806628 CABLE AS1
6V2369CABLE (4-GA, BLACK)(0.3-M)
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)2
267806829 WIRE AS (8-GA)1
267806930 WIRE AS (8-GA)1
267807031 CABLE AS1
6V2369CABLE (4-GA, BLACK)(0.2-M)
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)2
283297332 COVER AS-PANEL1
5C8312NUT (M4X0.7-THD)2
324580833 HOLDER AS-FUSE1
8T8737PLUG-SEAL1
9W0852PIN-CONNECTOR (14-GA TO 16-GA)1
2L8078TERMINAL-RING (14-GA TO 16-GA, 5/16-IN SCREW)1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)1
328016734 CABLE AS1
6V2369CABLE (4-GA, BLACK)(0.4-M)
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)1
5P3454TERMINAL-RING (4-GA, 5/16-IN SCREW)1
328016835 CABLE AS1
6V2369CABLE (4-GA, BLACK)(0.5-M)
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)1
5P3454TERMINAL-RING (4-GA, 5/16-IN SCREW)1
376657236 BRACKET AS1
3D9143HINGE-BUTT2
5C8312NUT (M4X0.7-THD)1
6V9632NUT-WELD (M6X1-THD)13
8T3490NUT-WELD (M10X1.5-THD)2
9X2032NUT-WELD (M4X0.7-THD)4
1211029CLIP6
377802937 HARNESS AS-PANEL1
1028803KIT-RECEPTACLE (3-PIN)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)11
3S2093STRAP-CABLE31
7Y3951TERMINAL-BLADE (14-GA)4
7Y3952PLUG-CONNECTOR (2-PIN)3
7Y3967TERMINAL AS5
7Y3963TERMINAL-BULLET (FEMALE)1
7Y3965TUBE1
7Y3993TERMINAL-BLADE (12-GA)2
8C6354CAP-RECEPTACLE (ET CONNECTOR)1
8T8737PLUG-SEAL14
9W1951RECEPTACLE AS-CONNECTOR (9-PIN)1
9W0852PIN-CONNECTOR (14-GA TO 16-GA)13
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)16
1160255TERMINAL-BLADE (10-GA TO 20-GA)1
1211022DIODE3
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(15-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)3
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)3
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)4
2L8065TERMINAL-RING (10-GA TO 12-GA, NO. 8 SCREW)2
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)2
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
2L8077TERMINAL-RING (14-GA TO 16-GA, 1/4-IN SCREW)1
1769299KIT-RECEPTACLE (3-PIN)1
1343296HOUSING-PLUG1
1343297SEAL1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)13
1261767PIN-CONNECTOR (14-GA TO 16-GA)13
1495051CONNECTOR-RECEPTACLE9
1495069TERMINAL-BLADE (14-GA TO 20-GA)10
1495070TERMINAL-BLADE (16-GA TO 20-GA)18
1495071TERMINAL-BLADE (12-GA TO 14-GA)8
1532602RECEPTACLE-CONNECTOR (1-PIN)2
1532631TERMINAL (14-GA TO 20-GA)2
1552270KIT-CONNECTING PLUG (2-PIN)1
1706890TERMINAL-BLADE (14-GA)8
1706891TERMINAL-BLADE (16-GA TO 18-GA)23
1743016PLUG AS-RESISTOR (3-PIN, 120 OHM)1
1831000PANEL AS-FUSE1
9X8256WASHER (6.6X12X2-MM THK)2
0950742SCREW-MACHINE (M6X1X16-MM)2
1709394TERMINAL32
2304009PLUG AS-CONNECTOR (12-PIN)2
2647034SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)2
2647029SEAL-CONNECTOR1
2312295PLUG AS-CONNECTOR (8-PIN)1
2647033SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)1
2434509RECEPTACLE AS-CONNECTOR (8-PIN)1
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
096596238 WASHER-HARD (3.4X7X0.8-MM THK)4
096616639 WASHER-HARD (4.5X9X1-MM THK)8
156617540 CLIP (LADDER)1
180745141 WASHER-HARD (5.3X8.8X2-MM THK)3
3E804842 SCREW-MACHINE (M3X0.5X6-MM)4
5C955343 BOLT (M6X1X16-MM)4
6V564544 SCREW-MACHINE (10-32X0.87-IN)6
7X261945 BOLT (M6X1X10-MM)5
8C758146 SCREW-MACHINE (M4X0.7X8-MM)11
8C845147 BOLT (M6X1X40-MM)2
8T032848 WASHER-HARD (5.5X10X1-MM THK)10
8T412149 WASHER-HARD (11X21X2.5-MM THK)6
8T412750 SCREW-MACHINE (M5X0.8X20-MM)2
8T413351 NUT (M10X1.5-THD)4
8T417152 BOLT (M6X1X12-MM) (M6X1X12-MM)5
8T419153 BOLT (M10X1.5X16-MM)2
8T641154 SCREW-MACHINE (M6X1X12-MM) (M6X1X12-MM)6
9X825655 WASHER (6.6X12X2-MM THK)22
9X848656 SCREW-MACHINE (8-32X0.75-IN)2
