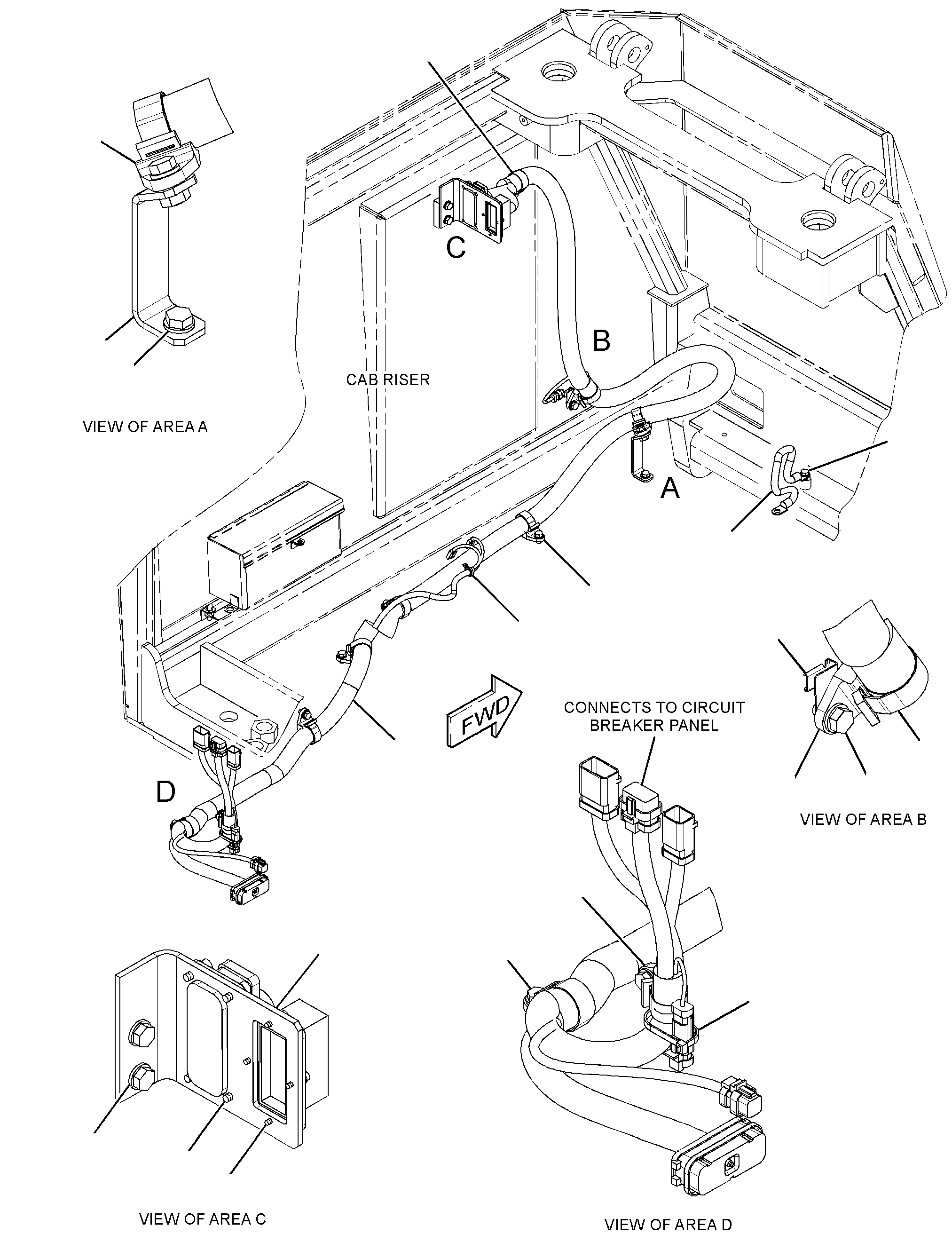

267-7604 WIRING GP-CAB RISERS/N CYZ1-292

Group No: 267-7604
Part NumberPart NameQty
3S20931 STRAP-CABLE1
7K11812 STRAP-CABLE1
11148383 CLIP9
11148394 STRAP9
11601185 CLIP1
16735836 STRAP AS-GROUND1
15166677 SUPPORT AS1
8T3490NUT-WELD (M10X1.5-THD)1
19742738 BRACKET1
26776679 HARNESS AS-PLATFORM1
9W0852PIN-CONNECTOR (14-GA TO 16-GA)28
1441636PIN-CONNECTOR (14-GA TO 18-GA)45
8T8729PIN-CONNECTOR (16-GA TO 20-GA)34
1532620PLUG AS-CONNECTOR (54-PIN, BLACK)1
1636759SEAL1
2304009PLUG AS-CONNECTOR (12-PIN)1
2647034SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)2
2647029SEAL-CONNECTOR1
2305010PLUG AS-CONNECTOR (6-PIN)1
2647032SEAL-CONNECTOR1
8T8737PLUG-SEAL16
9X1343RECEPTACLE AS-CONNECTOR (40-PIN)1
1636637RECEPTACLE AS-CONNECTOR (54-PIN, BLACK)1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)1
2434509RECEPTACLE AS-CONNECTOR (8-PIN)1
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
1261766SOCKET-CONNECTOR (14-GA TO 18-GA)44
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)12
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)13
3S2093STRAP-CABLE8
9X0196TERMINAL AS (16-GA)2
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
096616610 WASHER-HARD (4.5X9X1-MM THK)4
162216511 BOLT-SOCKET HEAD (M4X0.7X16-MM)4
5C788312 BOLT-SOCKET HEAD (M6X1X16-MM)4
8T412113 WASHER-HARD (11X21X2.5-MM THK)13
8T413614 BOLT (M10X1.5X25-MM)1
8T413715 BOLT (M10X1.5X20-MM)10
8T419116 BOLT (M10X1.5X16-MM)2
9X825617 WASHER (6.6X12X2-MM THK)4
