System And Components

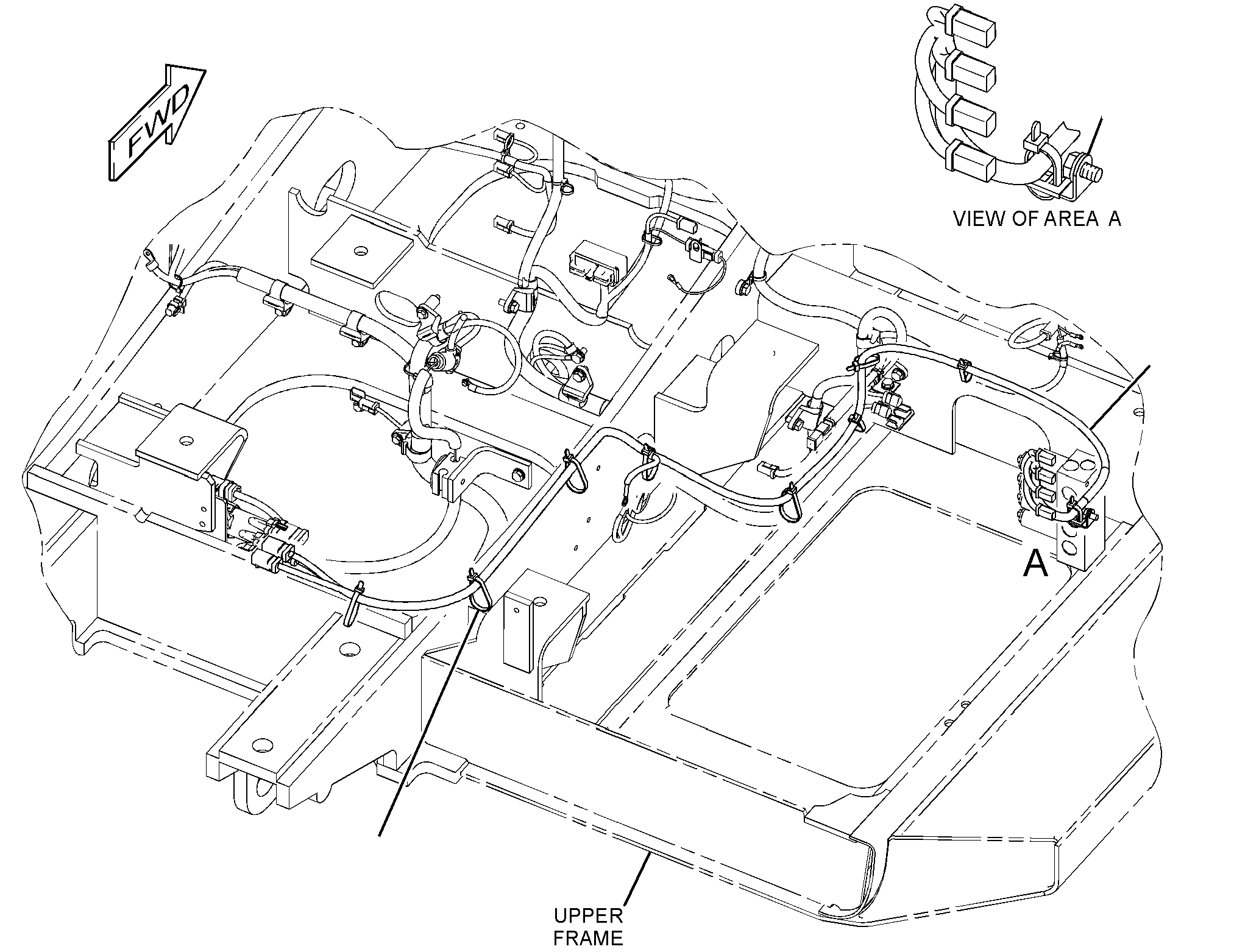

319-5815 WIRING GP-CHASSISS/N CYZ1-UP
Group No: 319-5815
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP-CABLE | 9 | |
| 3195816 | 2 HARNESS AS-VALVE | 1 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 6 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 4 | |
| 8T8737 | PLUG-SEAL | 8 | |
| 2434505 | RECEPTACLE AS-CONNECTOR (2-PIN) | 1 | |
| 2434508 | RECEPTACLE AS-CONNECTOR (6-PIN) | 1 | |
| 2434509 | RECEPTACLE AS-CONNECTOR (8-PIN) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 8 | |
| 2L8079 | TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW) | 1 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM) | ||
| 1325789 | 3 CLIP (LADDER) | 1 | |
| 8T4121 | 4 WASHER-HARD (11X21X2.5-MM THK) | 1 | |
| 8T4191 | 5 BOLT (M10X1.5X16-MM) | 1 |
