System And Components

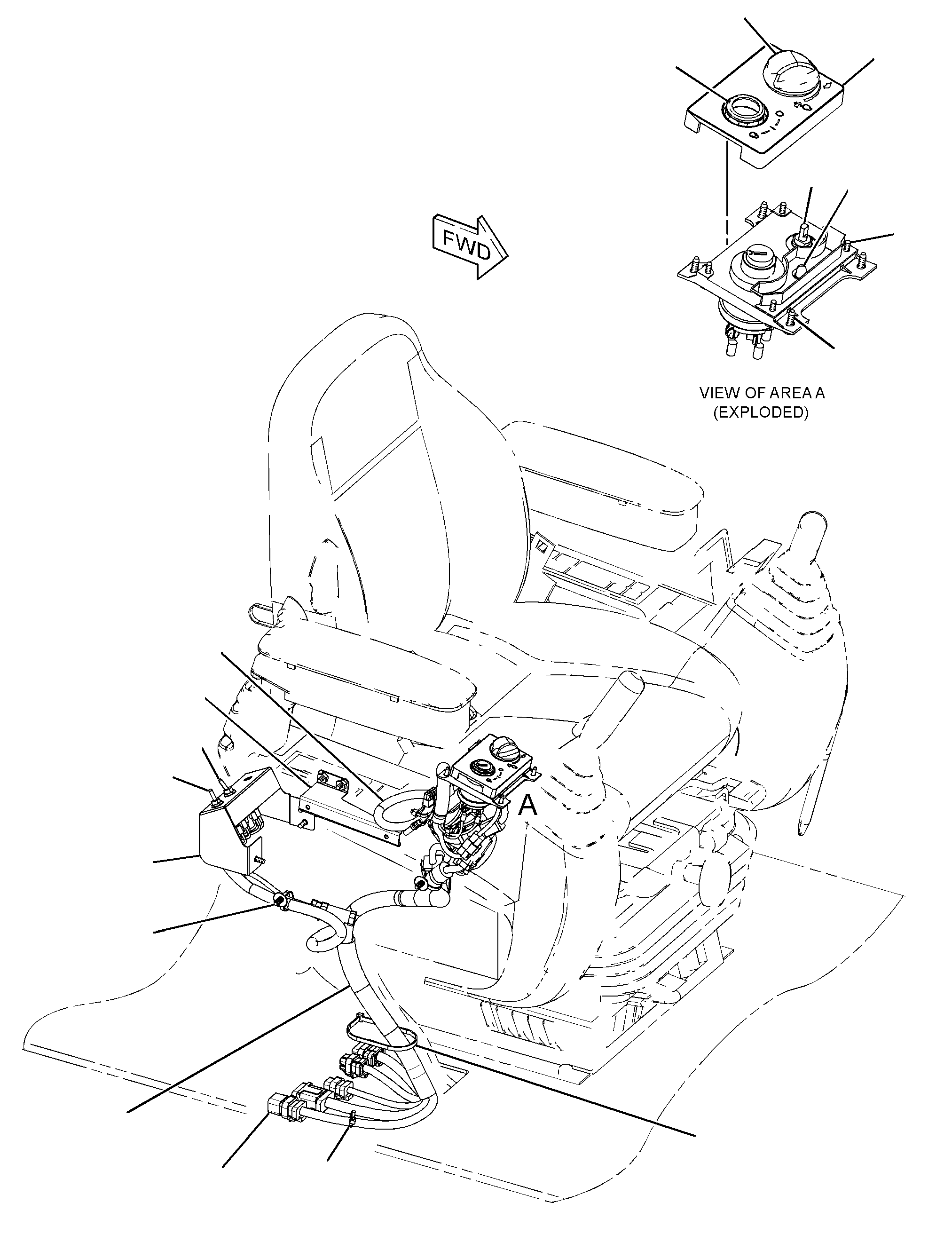

276-5335 WIRING GP-CONSOLE -RHS/N CYZ1-UP
Group No: 276-5335
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 3 | |
| 7K1181 | 2 STRAP-CABLE | 1 | |
| 9G7641 | 3 SWITCH GP-START (ENGINE, KEY) | 1 | |
| 1060107 | 4 SWITCH GP-ROTARY (ENGINE SPEED) | 1 | |
| 2833074 | 5 SWITCH AS-TOGGLE (AUTO/MANUAL ENG SPEED CONTROL) | 1 | |
| 1636711 | 6 SWITCH AS-TOGGLE (BACKUP TRAVEL, RH, LH) | 1 | |
| 1636795 | 7 STRAP-CABLE | 3 | |
| 1709324 | 8 LAMP AS-INDICATOR (24-VOLT, 3-WATT) | 1 | |
| 1859208 | 9 KNOB AS | 1 | |
| 2341156 | 10 COVER | 1 | |
| 2341158 | 11 COVER | 1 | |
| 2381438 | 12 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 3 | |
| 2510543 | 13 HARNESS AS-CONSOLE (ENGINE SPEED, START) | 1 | |
| 7Y3952 | PLUG-CONNECTOR (2-PIN) | 1 | |
| 1532541 | PLUG-CONNECTOR (10-PIN) | 1 | |
| 1211168 | CONNECTOR-RECEPTACLE | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 8T8737 | PLUG-SEAL | 3 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 7 | |
| 3S2093 | STRAP-CABLE | 3 | |
| 7Y3967 | TERMINAL AS | 1 | |
| 7Y3963 | TERMINAL-BULLET (FEMALE) | 1 | |
| 7Y3965 | TUBE | 1 | |
| 2L8075 | TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 4 | |
| 7Y3966 | TERMINAL AS | 1 | |
| 7Y3962 | TERMINAL-BULLET (MALE) | 1 | |
| 7Y3964 | TUBE | 1 | |
| 7Y3951 | TERMINAL-BLADE (14-GA) | 2 | |
| 1532540 | TERMINAL (FEMALE) | 10 | |
| 1211173 | TERMINAL (MALE) | 14 | |
| 2382366 | TERMINAL (MALE) | 7 | |
| 2510602 | 14 BRACKET | 1 | |
| 2594877 | 15 HARNESS AS-CONSOLE (BACKUP TRAVEL, RH, LH) | 1 | |
| 1027964 | PLUG-CONNECTOR (16-PIN) | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 1 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 9 | |
| 1552265 | KIT-CONNECTING PLUG (8-PIN) | 1 | |
| 2304009 | PLUG AS-CONNECTOR (12-PIN) | 1 | |
| 2647034 | SEAL-CONNECTOR | 1 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 2647029 | SEAL-CONNECTOR | 1 | |
| 2305008 | PLUG AS-CONNECTOR (4-PIN) | 1 | |
| 2647031 | SEAL-CONNECTOR | 1 | |
| 2397352 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 2305010 | PLUG AS-CONNECTOR (6-PIN) | 1 | |
| 2647032 | SEAL-CONNECTOR | 1 | |
| 2312295 | PLUG AS-CONNECTOR (8-PIN) | 1 | |
| 2647033 | SEAL-CONNECTOR | 1 | |
| 8T8737 | PLUG-SEAL | 20 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 2434505 | RECEPTACLE AS-CONNECTOR (2-PIN) | 1 | |
| 2434510 | RECEPTACLE AS-CONNECTOR (12-PIN) | 1 | |
| 2472693 | RECEPTACLE AS-CONNECTOR (6-PIN) | 1 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 26 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 9 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 7 | |
| 3S2093 | STRAP-CABLE | 10 | |
| 7Y3967 | TERMINAL AS | 2 | |
| 7Y3963 | TERMINAL-BULLET (FEMALE) | 1 | |
| 7Y3965 | TUBE | 1 | |
| 2L8074 | TERMINAL-RING (14-GA TO 16-GA, NO. 6 SCREW) | 2 | |
| 5P2766 | TERMINAL-RING (18-GA TO 22-GA, NO. 6 SCREW) | 12 | |
| 1027965 | TERMINAL (14-GA TO 20-GA) | 14 | |
| 2382363 | TERMINAL (FEMALE) | 7 | |
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(20-CM) | ||
| 2677976 | 16 PANEL | 1 | |
| 0966166 | 17 WASHER-HARD (4.5X9X1-MM THK) | 4 | |
| 1195026 | 18 SCREW-PAN HEAD (10-16X0.63-IN) | 4 | |
| 6V9491 | 19 SCREW-MACHINE (M4X0.7X20-MM) | 4 | |
| 9X2043 | 20 SCREW-TRUSS HEAD (M6X1X14-MM) | 3 | |
| 9X2044 | 21 SCREW-TRUSS HEAD (M6X1X16-MM) | 3 | |
| 2743784 | 22 CAP-SEAL | 1 |
