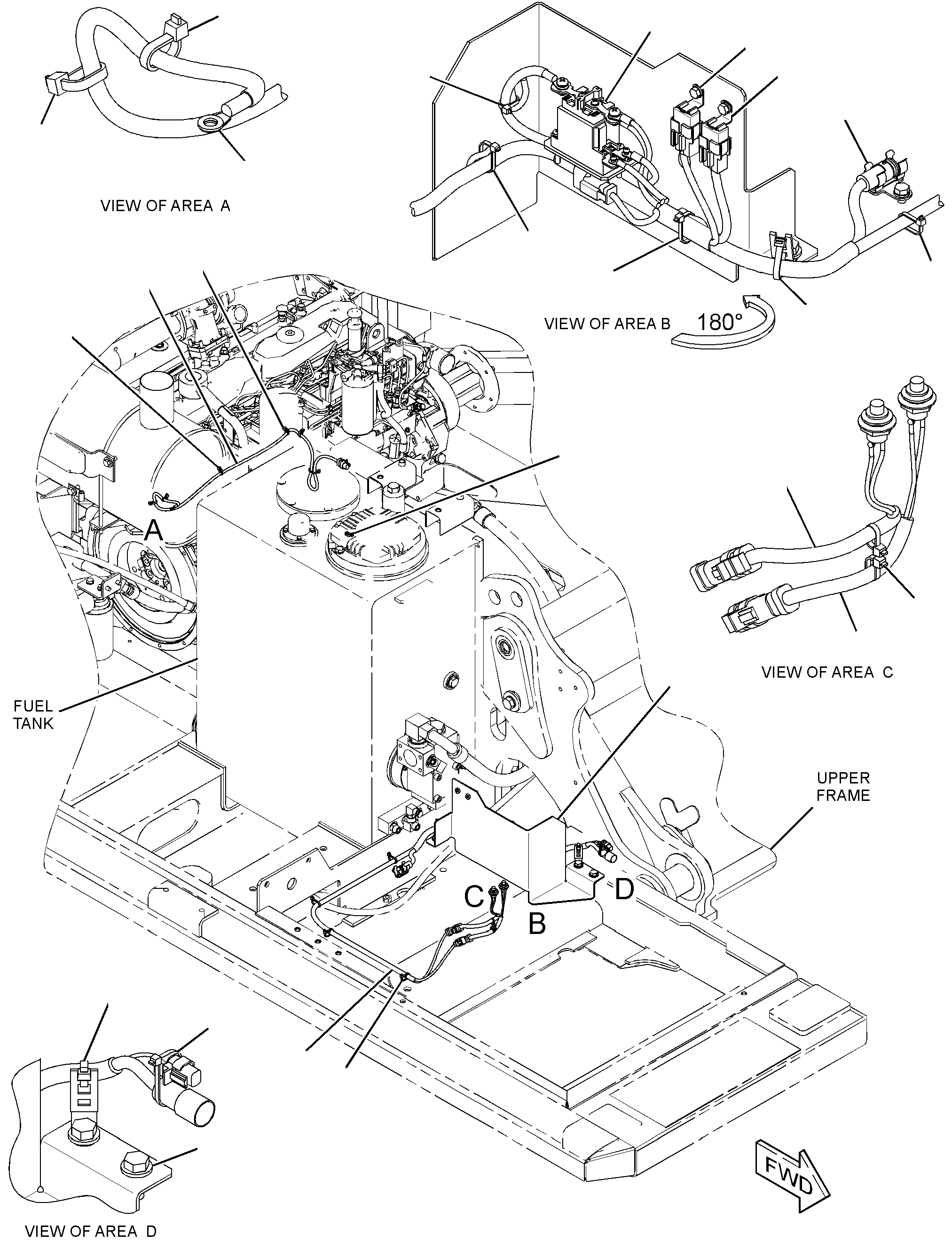

Assembly
100%

283-2790 WIRING GP-FUEL SYSTEM -REFUELINGS/N CYZ1-UP

Group No: 283-2790
Part NumberPart NameQty
3S20931 STRAP-CABLE18
7K11812 STRAP-CABLE2
9X34953 CLIP AS1
14950504 RELAY (24-VOLT)(REFUELING PUMP, START)1
14950504A RELAY (24-VOLT)(REFUELING PUMP, STOP)1
21307725 SWITCH AS-MAGNETIC (24-VOLT)(REFUELING POWER RELAY)1
23815936 WIRE AS1
23815947 SWITCH GP-PUSH BUTTON (REFUELING PUMP, START)1
23815968 SWITCH GP-PUSH BUTTON (REFUELING PUMP, STOP)1
28330349 HARNESS AS-PUMP (REFUELING PUMP)1
1495051CONNECTOR-RECEPTACLE2
1974385DIODE1
1160126HOUSING-PLUG1
1211038HOUSING-RECEPTACLE1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
1552270KIT-CONNECTING PLUG (2-PIN)1
2304011PLUG AS-CONNECTOR (2-PIN)2
2647029SEAL-CONNECTOR1
8T8737PLUG-SEAL1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)1
1160128SEAL2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)5
3S2093STRAP-CABLE3
2L8065TERMINAL-RING (10-GA TO 12-GA, NO. 8 SCREW)1
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)2
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)1
2L8077TERMINAL-RING (14-GA TO 16-GA, 1/4-IN SCREW)1
1160255TERMINAL-BLADE (10-GA TO 20-GA)2
1495069TERMINAL-BLADE (14-GA TO 20-GA)4
1495070TERMINAL-BLADE (16-GA TO 20-GA)4
1211039TERMINAL (MALE)2
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
283305910 BRACKET AS1
096259111 SCREW-MACHINE (M5X0.8X35-MM)2
4P742912 CLIP (LADDER)2
7X261913 BOLT (M6X1X10-MM)2
8T032814 WASHER-HARD (5.5X10X1-MM THK)3
8T413915 BOLT (M12X1.75X30-MM)2
8T417916 BOLT (M12X1.75X20-MM)1
8T419917 BOLT (M8X1.25X12-MM)1
8T422318 WASHER-HARD (13.5X25.5X3-MM THK)3
8T422419 WASHER-HARD (8.8X16X2-MM THK)1
9X825620 WASHER (6.6X12X2-MM THK)2
