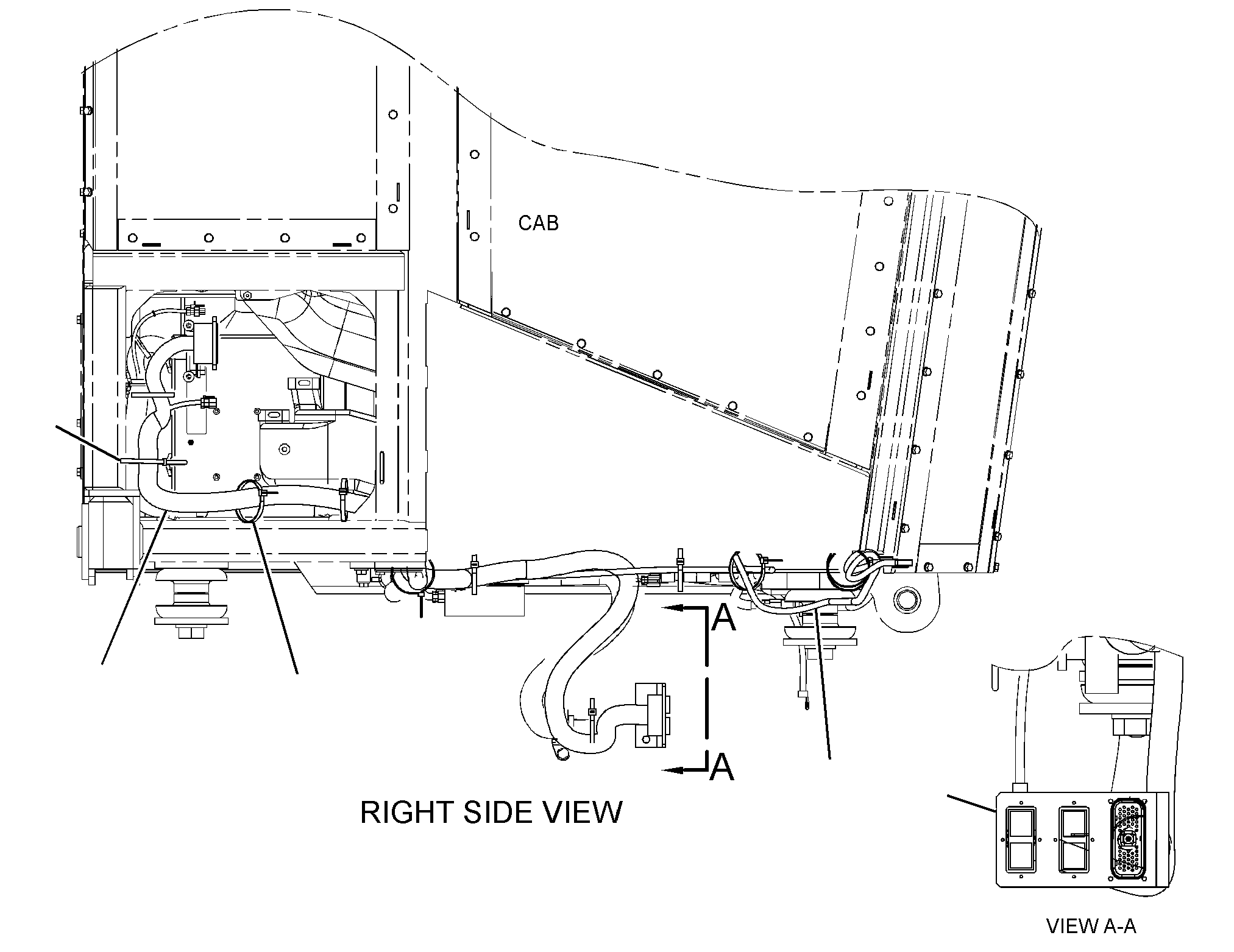

Assembly
100%

283-2572 WIRING GP-PLATFORMS/N CYZ1-UP

Group No: 283-2572
Part NumberPart NameQty
28405361 HARNESS AS-CONTROL (HARVESTER HEAD)1
1441636PIN-CONNECTOR (14-GA TO 18-GA)29
8T9834PLUG AS-CONNECTOR (40-PIN)1
3E8557BOLT (M5X0.8X39.37-MM)1
3E4367RING-RETAINING1
9X3132SEAL-CONNECTOR (40-PIN)2
1552260KIT-CONNECTING PLUG (3-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
8T8737PLUG-SEAL18
9X1343RECEPTACLE AS-CONNECTOR (40-PIN)1
1261766SOCKET-CONNECTOR (14-GA TO 18-GA)36
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)2
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
28405372 HARNESS AS-SWITCH (TRAVEL)1
1441636PIN-CONNECTOR (14-GA TO 18-GA)2
1552270KIT-CONNECTING PLUG (2-PIN)2
1028802KIT-RECEPTACLE (2-PIN)1
1261766SOCKET-CONNECTOR (14-GA TO 18-GA)4
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
29905813 BRACKET1
7K11814 STRAP-CABLE12
