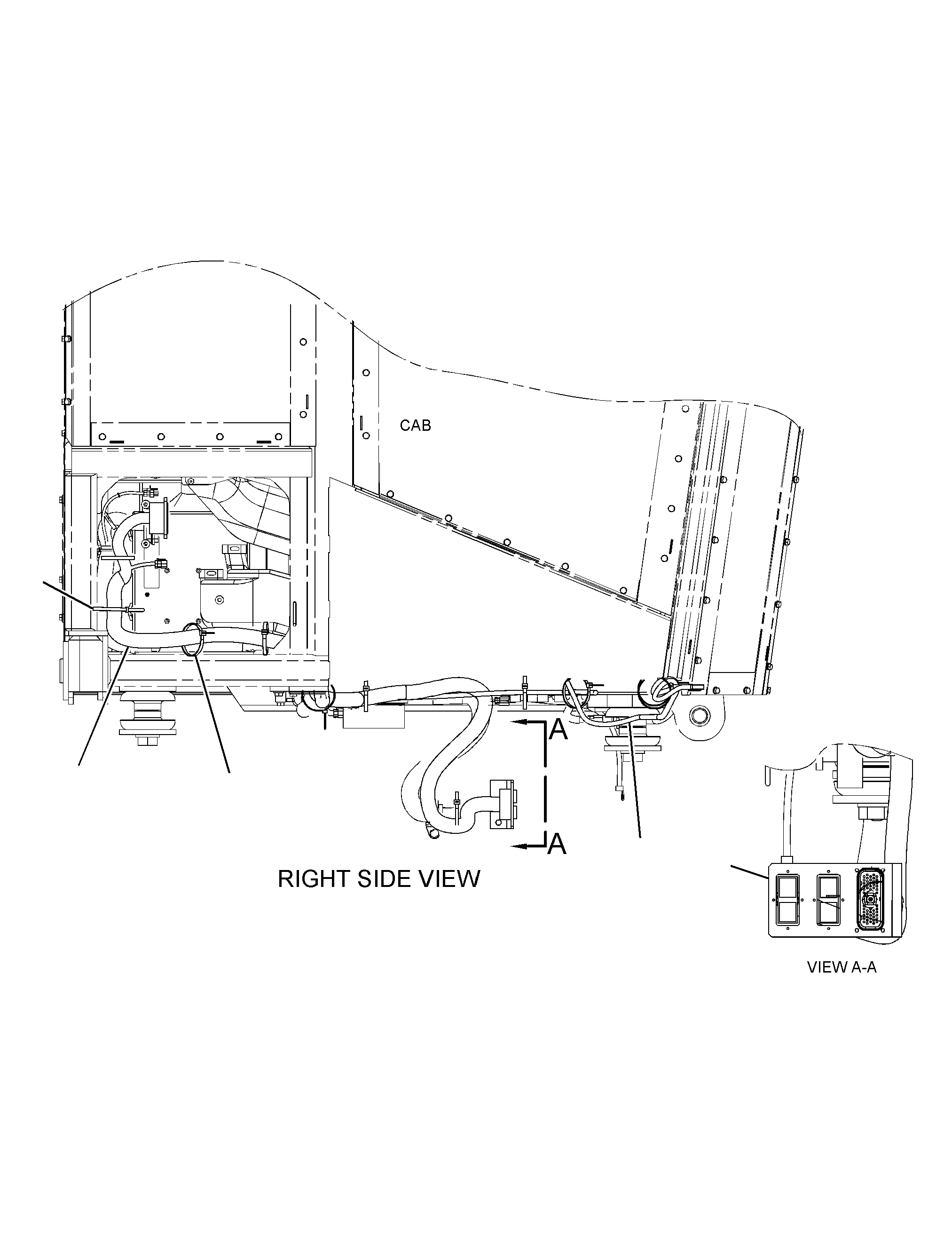

Assembly
100%

283-2572 WIRING GP-PLATFORMS/N CYZ1-312

Group No: 283-2572
Part NumberPart NameQty
28405361 HARNESS AS-CONTROL1
8T8737PLUG-SEAL18
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)36
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)2
1441636PIN-CONNECTOR (14-GA TO 18-GA)29
8T9834PLUG AS-CONNECTOR (40-PIN)1
3E4367RING-RETAINING1
3E8557BOLT (M5X0.8X39.37-MM)1
9X3132SEAL-CONNECTOR (40-PIN)2
9X1343RECEPTACLE AS-CONNECTOR (40-PIN)1
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
1552260KIT-CONNECTING PLUG (3-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
29905812 BRACKET1
34422203 HARNESS AS-SOLENOID (IMPLEMENT)1
1028802KIT-RECEPTACLE (2-PIN)1
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)2
1441636PIN-CONNECTOR (14-GA TO 18-GA)2
1552270KIT-CONNECTING PLUG (2-PIN)1
7K11814 STRAP-CABLE11
