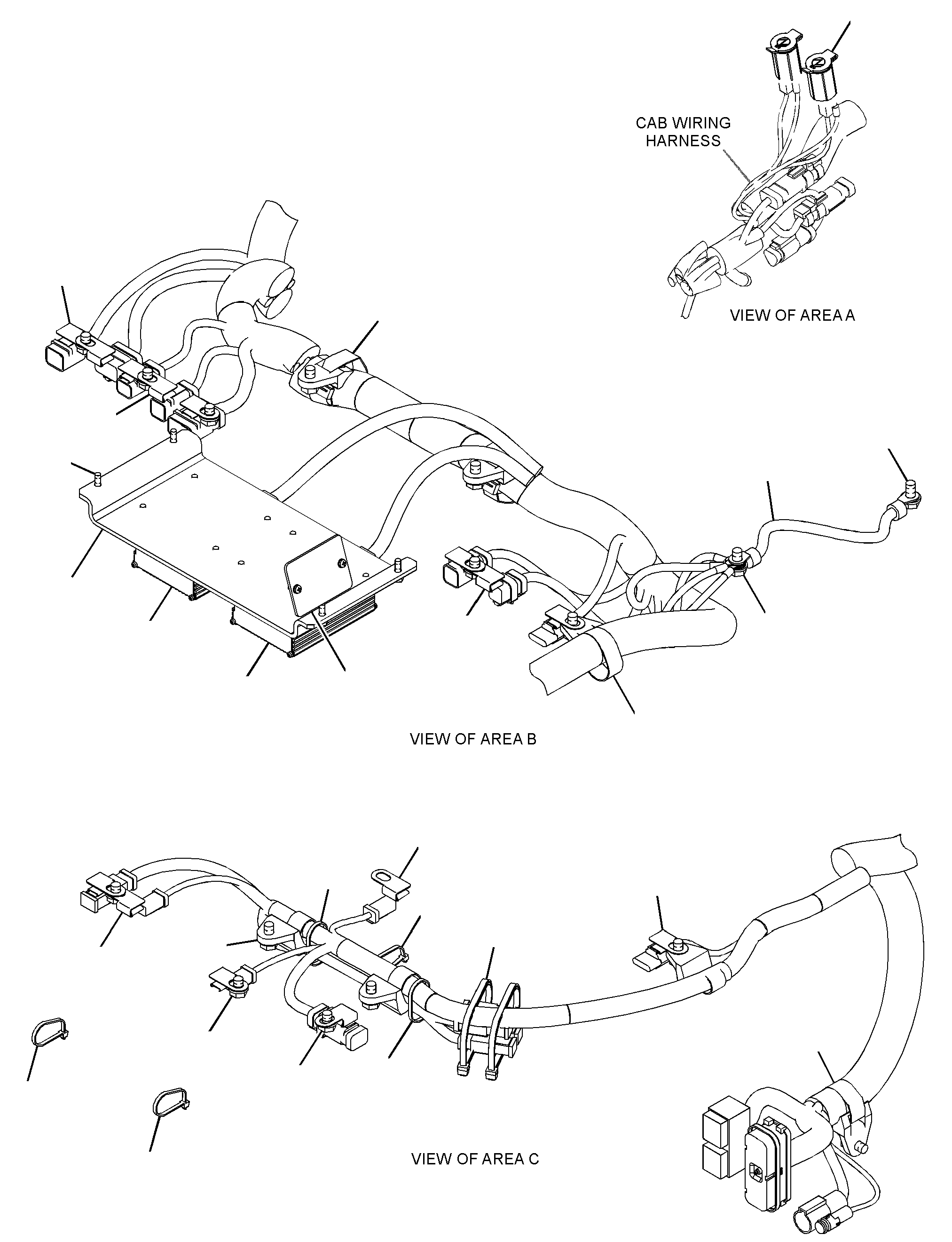

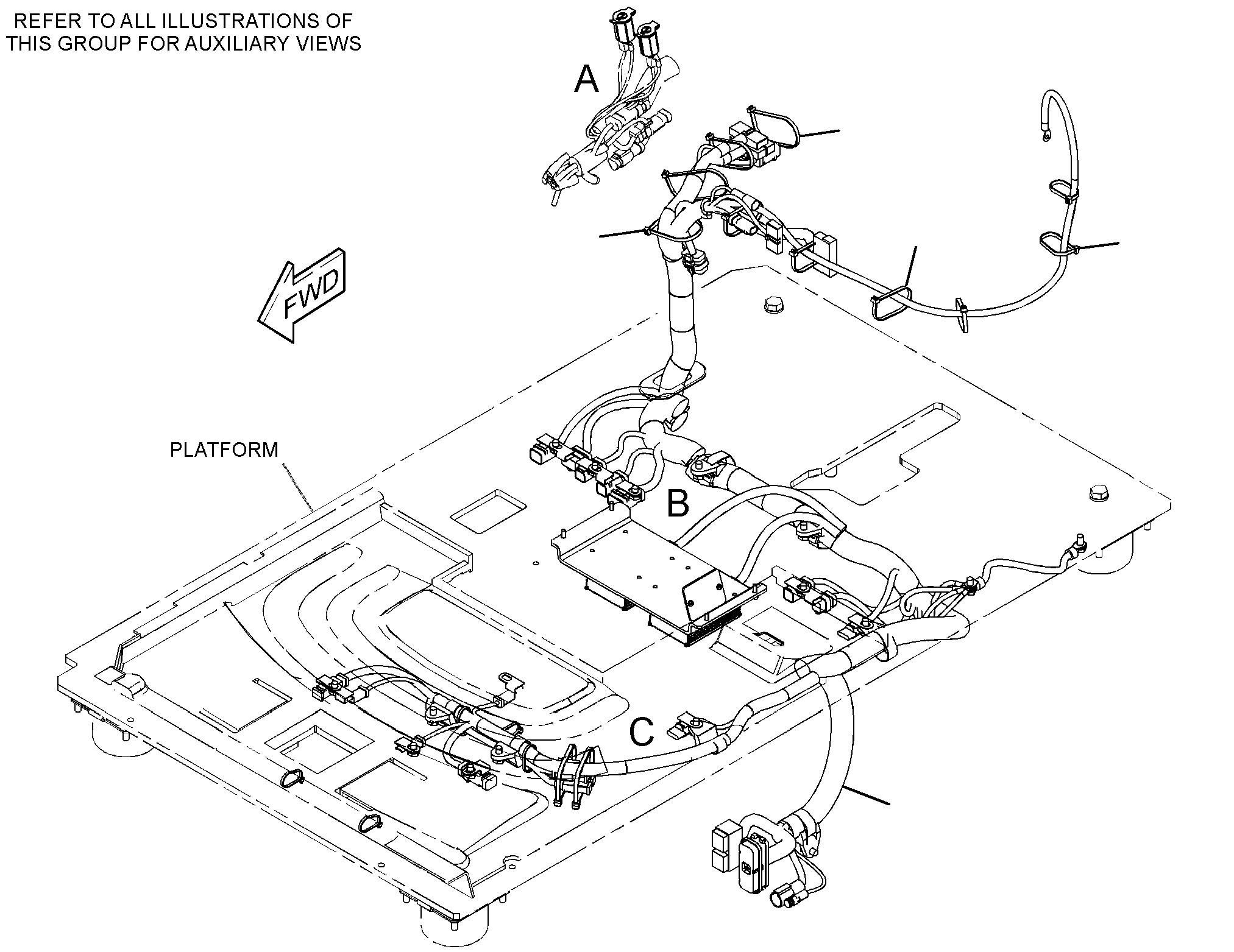

306-8614 WIRING GP-PLATFORMS/N CYZ1-235

Group No: 306-8614
Part NumberPart NameQty
3S20931 STRAP-CABLE5
7G10602 STRAP AS-GROUND1
7K11813 STRAP-CABLE12
11148374 CLIP3
11148385 CLIP4
11148396 STRAP4
11601187 CLIP14
12109878 SOCKET-AUXILIARY POWER (12-VOLT, 7-AMPERE)2
27895759 COVER1
306869610 HARNESS AS-PLATFORM1
1027964PLUG-CONNECTOR (16-PIN)1
1254766PLUG-CONNECTOR (17-PIN)1
1211168CONNECTOR-RECEPTACLE2
1974385DIODE2
1343296HOUSING-PLUG1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)7
8N1548PIN-CONNECTOR (4-GA)1
9W0852PIN-CONNECTOR (14-GA TO 16-GA)10
1441636PIN-CONNECTOR (14-GA TO 18-GA)21
9X0141PLUG AS-CONNECTOR (40-PIN)1
3E8557BOLT (M5X0.8X39.37-MM)1
3E4367RING-RETAINING1
9X3490SEAL-CONNECTOR (40-PIN)2
1532620PLUG AS-CONNECTOR (54-PIN, BLACK)1
1636759SEAL1
1552270KIT-CONNECTING PLUG (2-PIN)9
1552271KIT-CONNECTING PLUG (4-PIN)1
2304009PLUG AS-CONNECTOR (12-PIN)2
2647034SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)1
2647029SEAL-CONNECTOR1
2305010PLUG AS-CONNECTOR (6-PIN)3
2397352PLUG AS-CONNECTOR (6-PIN)1
2647032SEAL-CONNECTOR1
8T8737PLUG-SEAL61
1028802KIT-RECEPTACLE (2-PIN)4
1028804KIT-RECEPTACLE (4-PIN)1
1275484RECEPTACLE AS-CONNECTOR (1-PIN)1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)1
2434507RECEPTACLE AS-CONNECTOR (4-PIN)1
2434508RECEPTACLE AS-CONNECTOR (6-PIN)3
2434509RECEPTACLE AS-CONNECTOR (8-PIN)1
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
2472693RECEPTACLE AS-CONNECTOR (6-PIN)1
1343297SEAL2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)32
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)31
1261766SOCKET-CONNECTOR (14-GA TO 18-GA)66
3S2093STRAP-CABLE23
1311488TERMINAL AS-RING (6-GA TO 8-GA)1
1311490TERMINAL AS (6-GA TO 8-GA)1
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)3
1027965TERMINAL (14-GA TO 20-GA)11
1160255TERMINAL-BLADE (10-GA TO 20-GA)1
2382363TERMINAL (FEMALE)10
1211039TERMINAL (MALE)1
1211173TERMINAL (MALE)30
2382366TERMINAL (MALE)6
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(30-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(35-CM)
319087411 BRACKET1
096616612 WASHER-HARD (4.5X9X1-MM THK)2
283278313 CONVERTER-POWER (24-VOLT TO 12-VOLT)2
7X262114 BOLT (M10X1.5X12-MM)7
8T033715 SCREW-MACHINE (M4X0.7X12-MM)2
8T412116 WASHER-HARD (11X21X2.5-MM THK)16
8T413717 BOLT (M10X1.5X20-MM)9
8T413818 BOLT (M6X1X20-MM)4
8T417119 BOLT (M6X1X12-MM) (M6X1X12-MM)8
9X825620 WASHER (6.6X12X2-MM THK)12
