System And Components

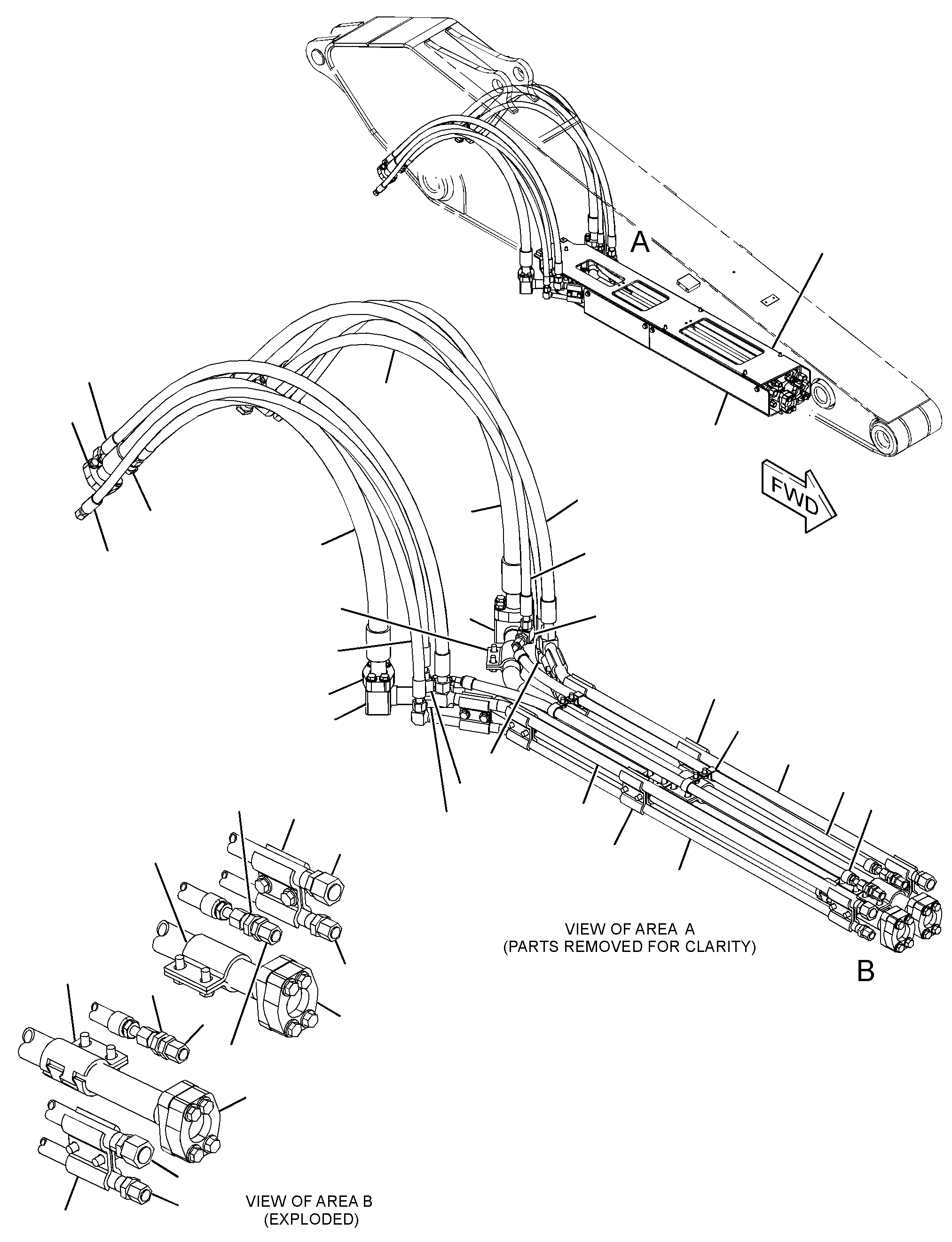

428-9407 LINES GP-STICKS/N CYZ1-UP
Group No: 428-9407
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7I8323 | 1 HOSE AS | 2 | |
| 1136677 | 2 HOSE AS | 2 | |
| 1737895 | 3 CLIP | 16 | |
| 1864017 | 4 HOSE AS | 2 | |
| 2005663 | 5 GUARD GP-CYLINDER (STICK) | 1 | |
| 2472904 | 6 TUBE AS | 1 | |
| 2472905 | 7 TUBE AS | 1 | |
| 2472908 | 8 TUBE AS | 1 | |
| 2536430 | 9 HOSE AS | 2 | |
| 3030012 | 10 TUBE AS | 1 | |
| 3030013 | 11 TUBE AS | 1 | |
| 3593630 | 12 HOSE AS | 2 | |
| 4289408 | 13 TUBE AS | 1 | |
| 4289409 | 14 PLATE AS | 1 | |
| 8X5147 | BLOCK (M10X1.5-MM) | 2 | |
| 2166578 | PLATE | 6 | |
| 1488375 | 15 ELBOW AS | 2 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V8981 | ELBOW | 1 | |
| 1488414 | 16 REDUCER AS | 2 | |
| 6V8943 | REDUCER | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488457 | 17 UNION AS (STRAIGHT) | 2 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V8995 | UNION (STRAIGHT) | 1 | |
| 1P3704 | 18 SEAL-RECTANGULAR | 6 | |
| 1P5767 | 19 FLANGE-HALF | 12 | |
| 5P0048 | 20 COVER | 2 | |
| 6V8398 | 21 SEAL-O-RING | 2 | |
| 6V9169 | 22 NUT (13/16-16-THD) | 4 | |
| 6V9746 | 23 SEAL-O-RING | 4 | |
| 6V9830 | 24 CAP (ORFS) | 4 | |
| 6V9832 | 25 CAP (ORFS) | 2 | |
| 7C4354 | 26 CLIP | 4 | |
| 7J9108 | 27 SEAL-O-RING | 2 | |
| 7Y4038 | 28 CLAMP-HALF | 12 | |
| 8T4121 | 29 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4139 | 30 BOLT (M12X1.75X30-MM) | 28 | |
| 8T4191 | 31 BOLT (M10X1.5X16-MM) | 4 | |
| 8T4192 | 32 BOLT (M12X1.75X25-MM) | 6 | |
| 8T4194 | 33 BOLT (M12X1.75X50-MM) | 24 | |
| 8T4223 | 34 WASHER-HARD (13.5X25.5X3-MM THK) | 58 |
