System And Components

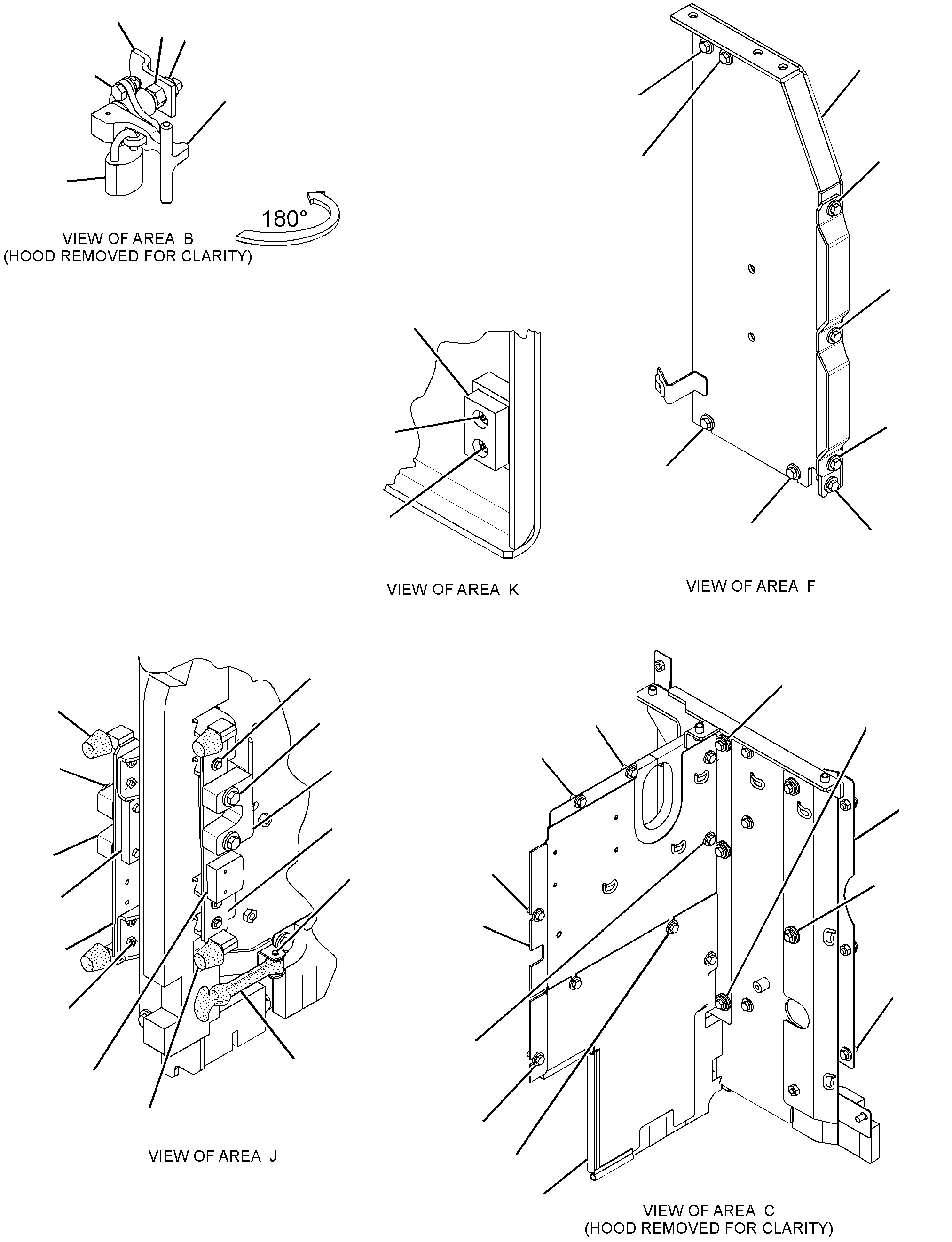

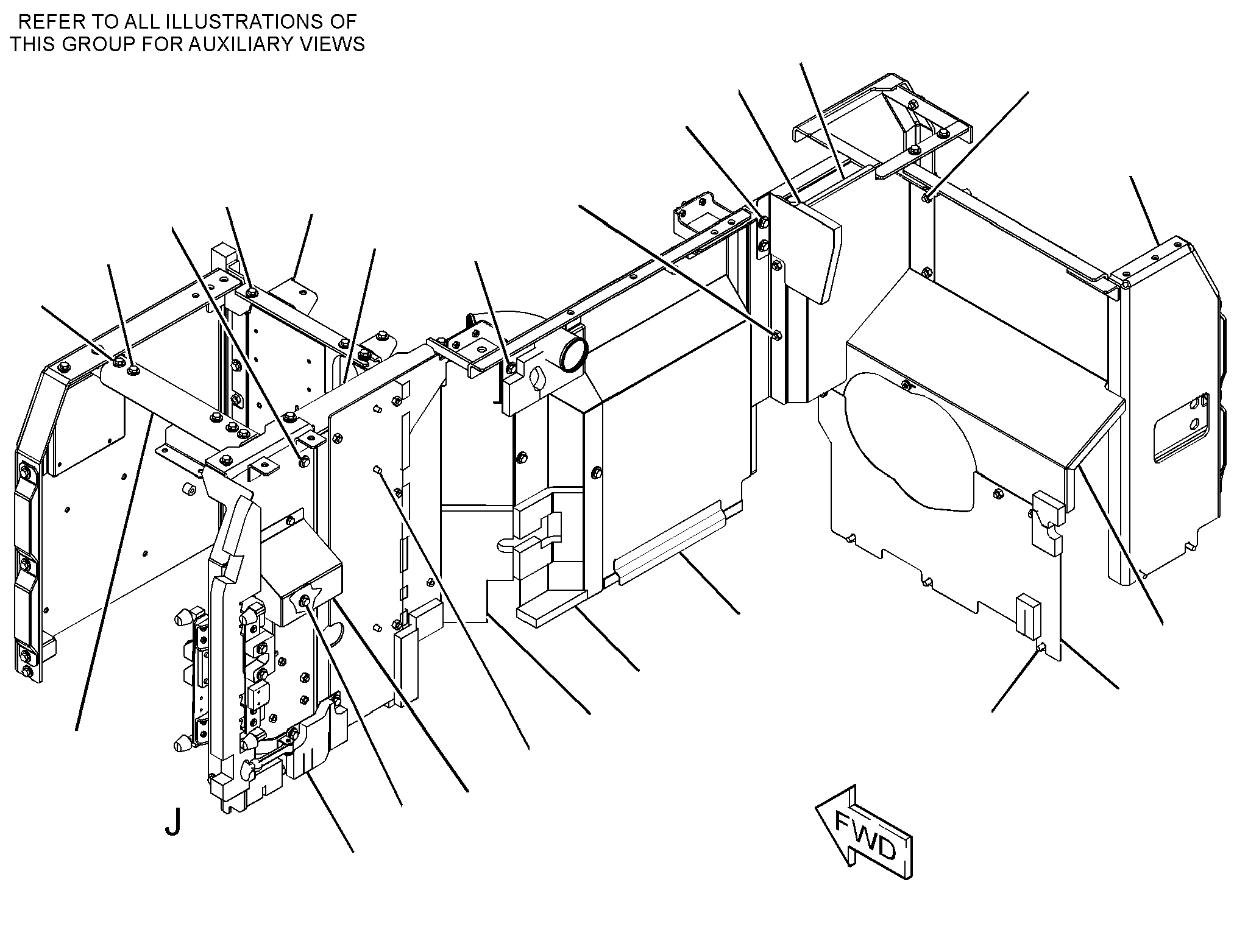

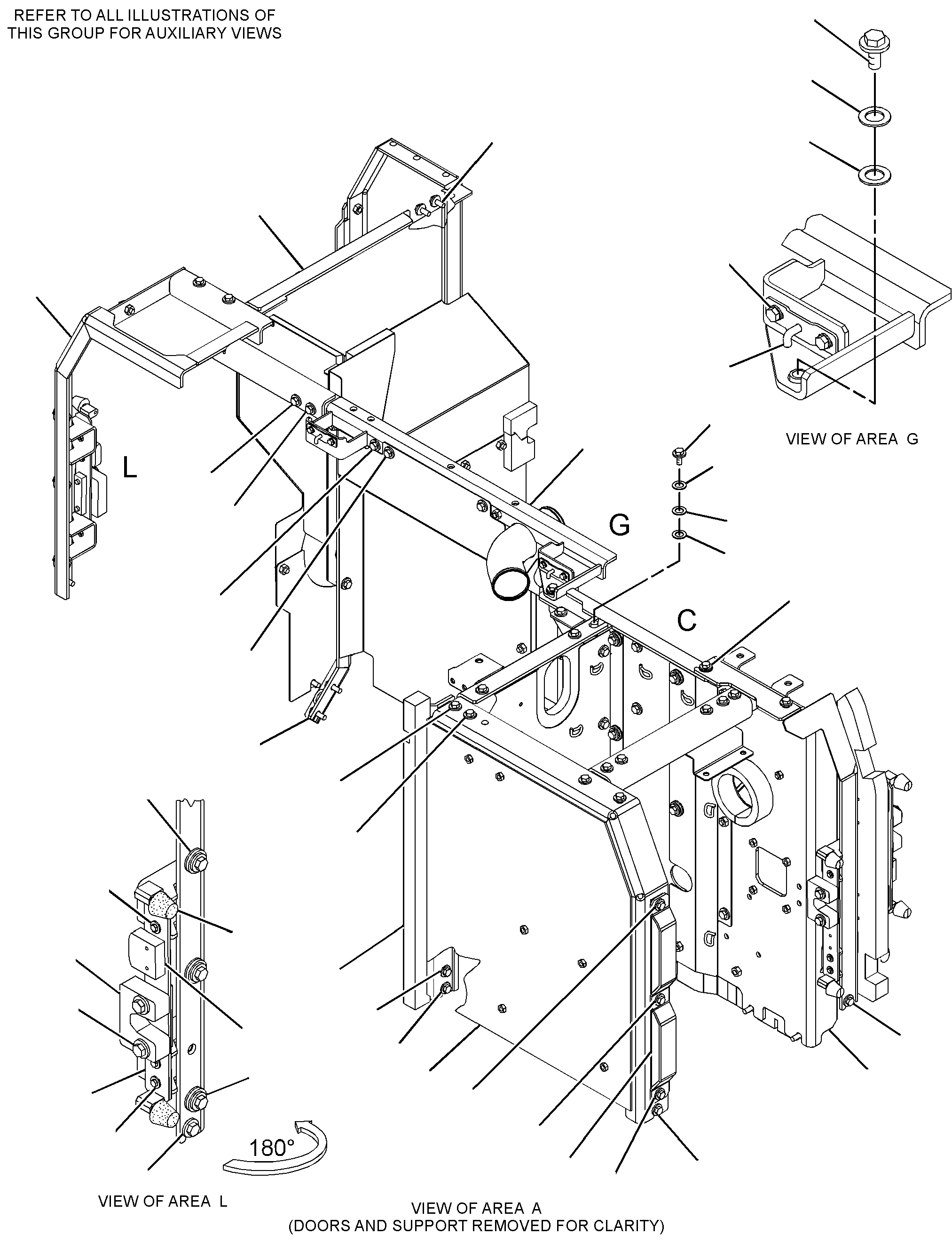

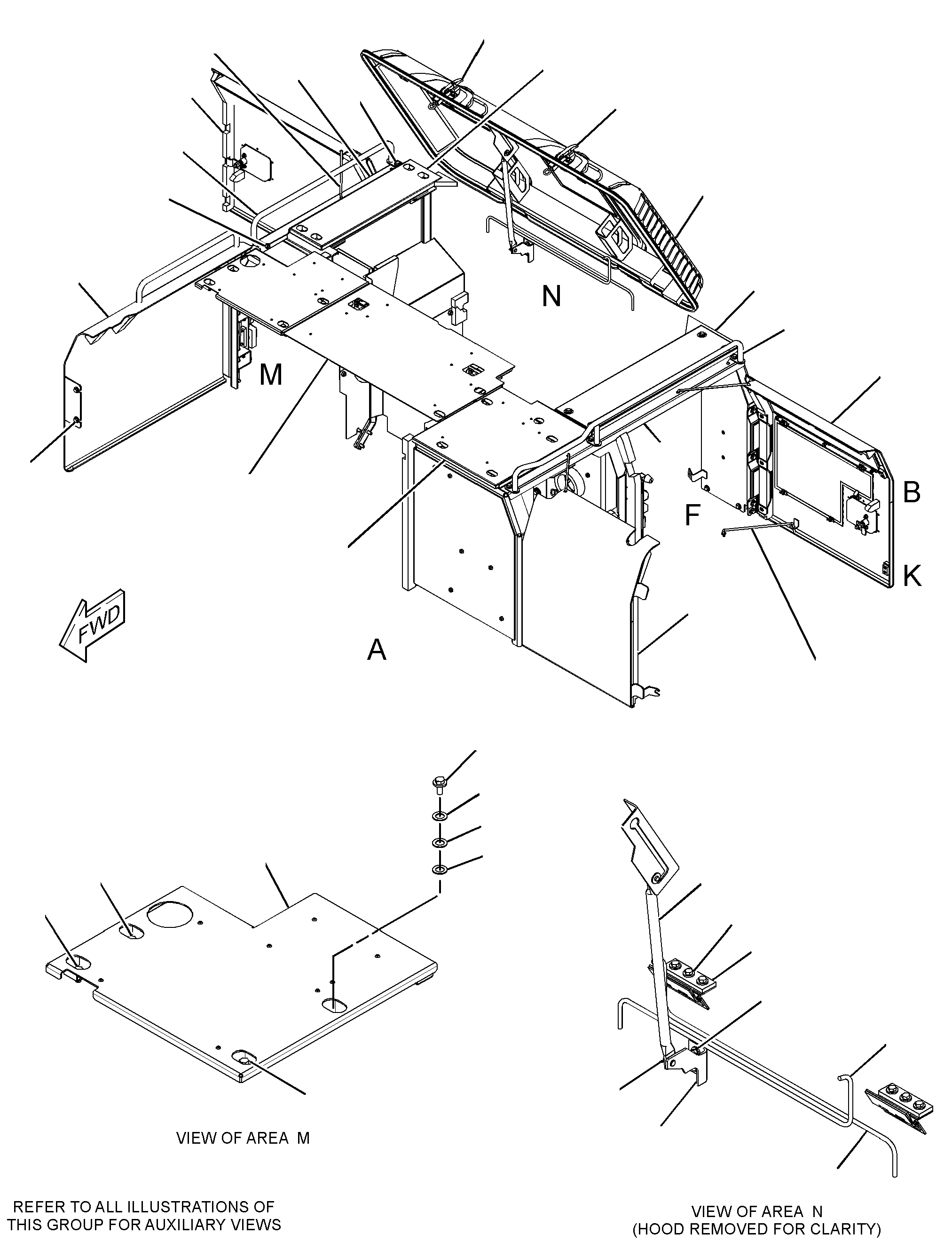

286-6285 HOOD & GUARD GPS/N BWW107-113
Group No: 286-6285
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1R9958 | 1 LATCH AS | 1 | |
| 4E1384 | 2 BUMPER-CONICAL | 6 | |
| 4I0117 | 3 LATCH AS | 1 | |
| 4I0118 | 4 HOOK AS | 2 | |
| 4I2599 | 5 SOCKET | 3 | |
| 5P0540 | 6 NUT-HEX FULL (9/16-18-THD) | 4 | |
| 2462641 | 7 PADLOCK GP | 2 | |
| 5P8500 | KEY | 1 | |
| 7Y2853 | 8 SPACER (13X38X5-MM THK) | 8 | |
| 8T1578 | 9 PAWL (LATCH) | 2 | |
| 8Y4000 | 10 LATCH AS (T-BAR, COMPARTMENT) | 2 | |
| 9M3835 | 11 LATCH-RUBBER | 1 | |
| 0964129 | 12 CUSHION | 2 | |
| 1161628 | 13 SUPPORT AS | 1 | |
| 1224120 | 14 ROD | 6 | |
| 1313954 | 15 BRACKET AS | 3 | |
| 1313957 | 16 BAR | 2 | |
| 1358573 | 17 BOLT AS | 50 | |
| 1358575 | 18 BOLT AS | 27 | |
| 1358577 | 19 BOLT AS | 36 | |
| 1358578 | 20 BOLT AS | 6 | |
| 1703016 | 21 SPACER (19X32X2-MM THK) | 13 | |
| 1848423 | 22 SUPPORT AS | 1 | |
| 7Y2916 | PIN-CLEVIS | 1 | |
| 1848424 | PLATE | 1 | |
| 2034889 | 23 SPRING | 1 | |
| 2034890 | 24 SPRING | 1 | |
| 2265929 | 25 SHIM (3-MM THK) | 1 | |
| 2448207 | 26 COVER AS | 1 | |
| 2622324 | 27 COVER AS | 1 | |
| 2866220 | 28 SHEET AS | 1 | |
| 2866276 | LINER | 1 | |
| 2866298 | 29 COVER GP-ACCESS (HYDRAULIC TANK) | 1 | |
| 2896475 | 30 SUPPORT AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 4 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 6 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 9 | |
| 9R2060 | BOSS (M10X1.5X21-MM) | 2 | |
| 2896479 | 31 SUPPORT AS | 1 | |
| 1021173 | GUARD (15-CM) | ||
| 2448198 | LINER | 1 | |
| 2896491 | 32 SUPPORT AS | 1 | |
| 2488943 | LINER | 1 | |
| 2896497 | 33 SUPPORT AS | 1 | |
| 2896501 | 34 SUPPORT AS | 1 | |
| 2896503 | 35 SUPPORT AS | 1 | |
| 2896512 | 36 SUPPORT AS | 1 | |
| 2783832 | LINER | 1 | |
| 2896522 | 37 SUPPORT AS | 1 | |
| 2896529 | 38 SUPPORT AS | 1 | |
| 2896531 | 39 SUPPORT AS | 1 | |
| 2896535 | 40 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3589701 | 41 SHEET AS-SOUND SUPPRESSION | 1 | |
| 2896566 | LINER | 1 | |
| 3558231 | LINER | 1 | |
| 2896542 | 42 SHEET AS | 1 | |
| 2896544 | 43 SHEET AS-SOUND SUPPRESSION | 1 | |
| 2896547 | 44 SHEET AS-SOUND SUPPRESSION | 1 | |
| 2896549 | 45 SHEET AS | 1 | |
| 2622365 | LINER | 1 | |
| 2896556 | 46 HANDRAIL AS | 1 | |
| 2896559 | 47 HANDRAIL AS | 1 | |
| 2896562 | 48 SHIM (1-MM THK) | 2 | |
| 2896572 | 49 SHEET AS-SOUND SUPPRESSION | 1 | |
| 2936982 | 50 SHEET AS | 1 | |
| 2937056 | 51 SHEET AS | 1 | |
| 2983044 | 52 COVER AS | 1 | |
| 3077700 | 53 SHEET AS-SOUND SUPPRESSION | 1 | |
| 6P2216 | CAP (PUSH ON) | 3 | |
| 3077702 | INSULATION | 1 | |
| 3138249 | 54 COVER AS | 1 | |
| 3185928 | 55 COVER AS | 1 | |
| 2770823 | COVER AS | 1 | |
| 3253984 | INSULATION | 1 | |
| 3273107 | 56 DOOR GP-ACCESS (AIR CLEANER, RADIATOR) | 1 | |
| 3273122 | 57 SUPPORT AS-SOUND SUPPRESSION | 1 | |
| 2448278 | LINER | 1 | |
| 2448288 | LINER | 1 | |
| 3273130 | LINER | 1 | |
| 3273123 | 58 SUPPORT AS | 1 | |
| 3273126 | 59 SUPPORT | 1 | |
| 3273127 | 60 SUPPORT AS | 1 | |
| 3273159 | 61 DOOR AS-ACCESS (BATTERY COMPARTMENT) | 1 | |
| 3273162 | 62 DOOR AS-ACCESS (MAIN HYDRAULIC PUMP) | 1 | |
| 2896464 | 63 HOOD GP-ENGINE | 1 | |
| 3364485 | 64 SUPPORT AS | 1 | |
| 3B4618 | 65 PIN-COTTER | 7 | |
| 1146285 | 66 BAR | 2 | |
| 1331371 | 67 BAR | 3 | |
| 2M5795 | 68 PIN-CLEVIS | 1 | |
| 3B4607 | 69 PIN-COTTER | 1 | |
| 5C7261 | 70 NUT (M8X1.25-THD) | 6 | |
| 5P1076 | 71 WASHER-HARD (13.5X30X4-MM THK) | 10 | |
| 5P4115 | 72 WASHER-HARD (7.2X19X2-MM THK) | 12 | |
| 6V7744 | 73 LOCKNUT (M10X1.5-THD) | 4 | |
| 7Y2854 | 74 SPACER (24X38X3-MM THK) | 8 | |
| 8T0328 | 75 WASHER-HARD (5.5X10X1-MM THK) | 4 | |
| 8T4121 | 76 WASHER-HARD (11X21X2.5-MM THK) | 12 | |
| 8T4136 | 77 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4138 | 78 BOLT (M6X1X20-MM) | 16 | |
| 8T4189 | 79 BOLT (M8X1.25X20-MM) | 4 | |
| 8T4223 | 80 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4224 | 81 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 8T4908 | 82 BOLT (M8X1.25X25-MM) | 4 | |
| 8T4910 | 83 BOLT (M12X1.75X60-MM) | 10 | |
| 8T6693 | 84 SCREW-MACHINE (M5X0.8X16-MM) | 4 | |
| 9X8256 | 85 WASHER (6.6X12X2-MM THK) | 4 | |
| 2983282 | SCREEN AS (HOOD, LH) | 1 | |
| 2896567 | BRACKET | 1 | |
| 0964034 | BOLT-WING (M6X1X15-MM) | 1 |
