System And Components

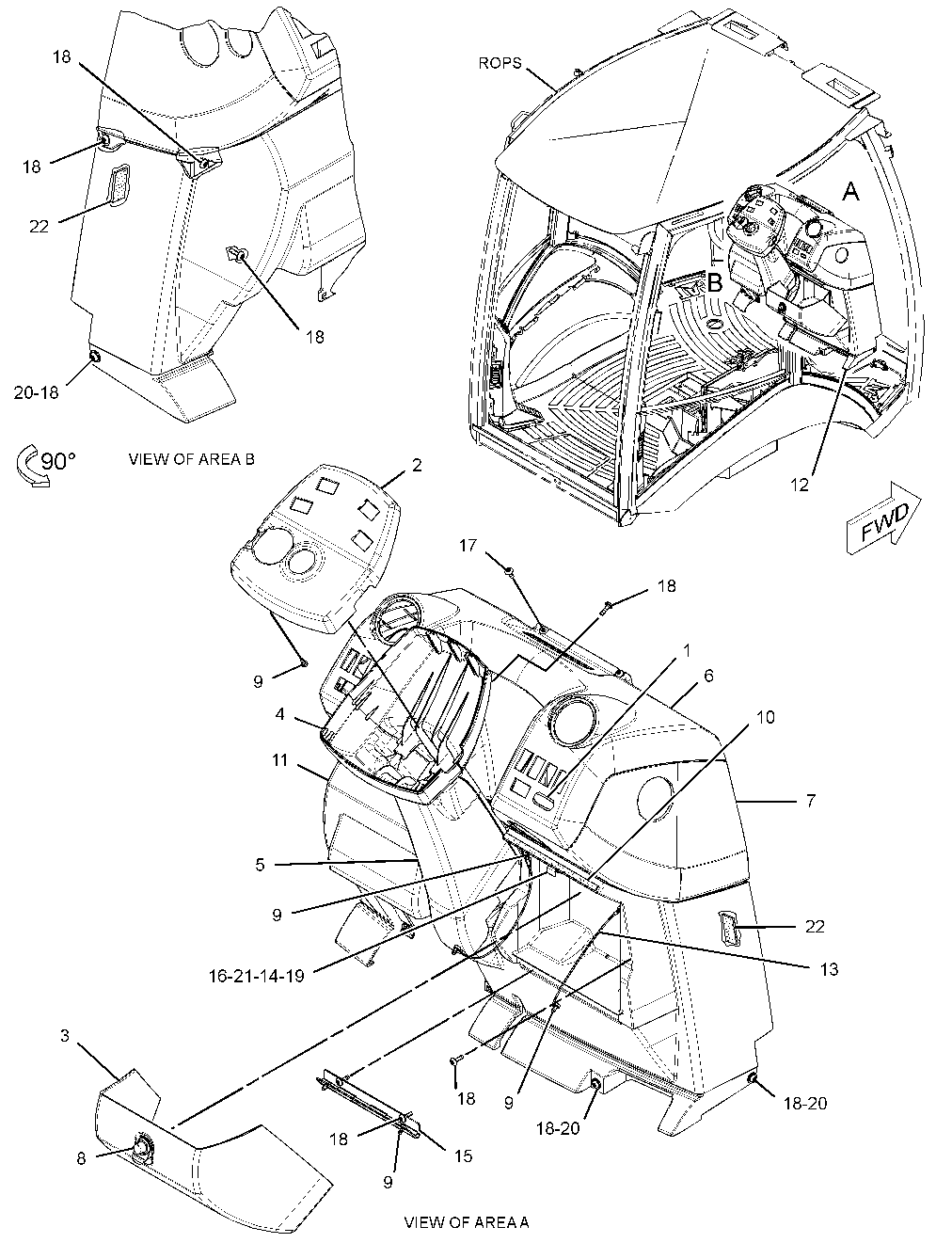

206-1703 CONSOLE GP-OPERATOR -FRONTS/N RBA269-UP
Group No: 206-1703
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2271057 | 1 PLUG | 1 | |
| 2061658 | 2 COVER AS-STEERING COLUMN (UPPER) | 1 | |
| 2061667 | CLIP (TRIM) | 2 | |
| 2061659 | 3 DOOR-STORAGE | 1 | |
| 2061660 | 4 COVER AS-STEERING COLUMN (FRONT) | 1 | |
| 2061661 | 5 COVER AS-STEERING COLUMN (REAR) | 1 | |
| 2061667 | CLIP (TRIM) | 4 | |
| 2061662 | 6 CONSOLE AS-FRONT (UPPER) | 1 | |
| 2061667 | CLIP (TRIM) | 8 | |
| 2061663 | 7 CONSOLE-FRONT (MIDDLE) | 1 | |
| 2061708 | 8 LOCK AS | 1 | |
| 2619639 | 9 SCREW-PAN HEAD (12.0X0.5-IN) | 10 | |
| 2200738 | 10 SEAL (22-CM) | ||
| 2242147 | 11 CONSOLE AS-FRONT (LOWER, LH) | 1 | |
| 1728591 | NUT-CLIP (M6X1-THD) | 1 | |
| 2021667 | ROD | 2 | |
| 2242149 | 12 CONSOLE AS-FRONT (LOWER, RH) | 1 | |
| 1728591 | NUT-CLIP (M6X1-THD) | 2 | |
| 2335260 | 13 LANYARD | 2 | |
| 1209027 | 14 SCREW-PAN HEAD (M3X0.5X16-MM) | 2 | |
| 2061854 | 15 HINGE | 1 | |
| 8T2658 | 16 LOCKNUT (M3X0.5-THD) | 2 | |
| 9X2044 | 17 SCREW-TRUSS HEAD (M6X1X16-MM) | 2 | |
| 9X2045 | 18 SCREW-TRUSS HEAD (M6X1X20-MM) | 16 | |
| 2582354 | 19 BRACKET-LATCH | 1 | |
| 9X2038 | 20 WASHER (7X19X2-MM THK) | 3 | |
| 4I3038 | 21 WASHER (3.3X8X0.5-MM THK) | 2 | |
| 5P7070 | 22 INSULATION-STRIP (0.03-M EACH) |
