System And Components

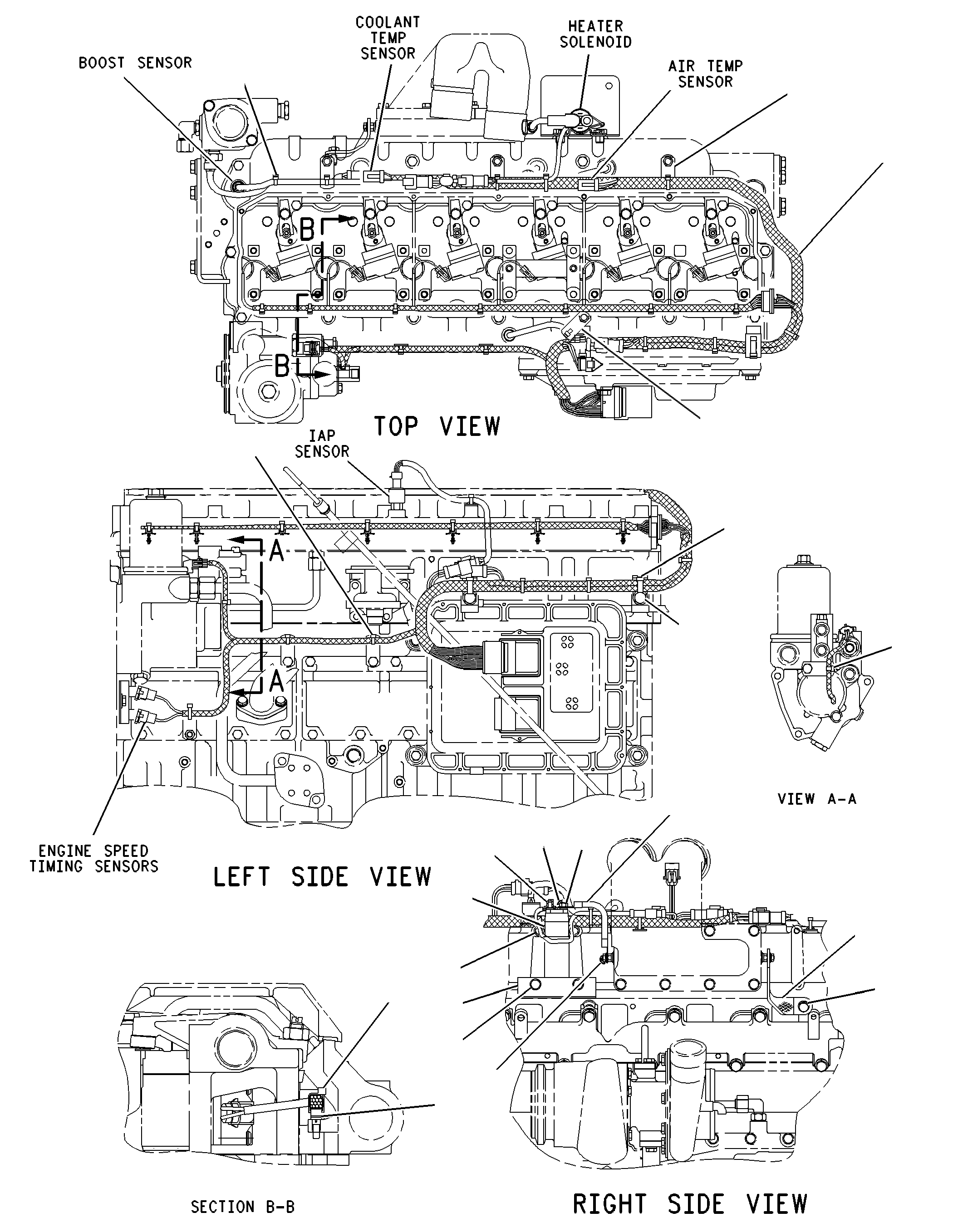

105-1796 WIRING GP-ELECTRONIC CONTROLFOR USE WITH 1.1L ENGINE
Group No: 105-1796
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4P5918 | 1 CLIP | 4 | |
| 3S2093 | 2 STRAP-CABLE | 18 | |
| 1051797 | 3 MOUNT | 7 | |
| 1108457 | 4 BOOT | 1 | |
| 8T4121 | 5 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 1567105 | 6 HARNESS AS-WIRING | 1 | |
| 1752301 | 7 SWITCH AS-MAGNETIC (12-VOLT)(HEATER) | 1 | |
| 5C2890 | NUT (M6X1-THD) | 2 | |
| 0120380 | LOCKWASHER (6.5X12.5X1.6-MM THK) | 2 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1H3338 | LOCKWASHER (EXTERNAL TOOTH) | 2 | |
| 9X1813 | SLEEVE (16-CM) | ||
| 4P1826 | 8 WIRE AS | 1 | |
| 8T4200 | 9 BOLT (M8X1.25X16-MM) | 1 | |
| 8T4224 | 10 WASHER-HARD (8.8X16X2-MM THK) | 3 | |
| 7E8828 | 11 SHIELD-HEAT | 1 | |
| 8T4970 | 12 BOLT (M6X1X14-MM) | 2 | |
| 9X8256 | 13 WASHER (6.6X12X2-MM THK) | 2 | |
| 7E5714 | 14 STRAP-GROUNDING | 1 | |
| 7X2536 | 15 BOLT (M8X1.25X14-MM) | 2 | |
| 4P8134 | 16 CLIP (LADDER) | 2 | |
| 8T4137 | 17 BOLT (M10X1.5X20-MM) | 2 | |
| 7K1181 | 18 STRAP-CABLE | 2 | |
| 0039835 | 19 PROTECTOR | 2 | |
| 1126646 | 20 LOCKNUT (M6X1-THD) | 1 |
