System And Components

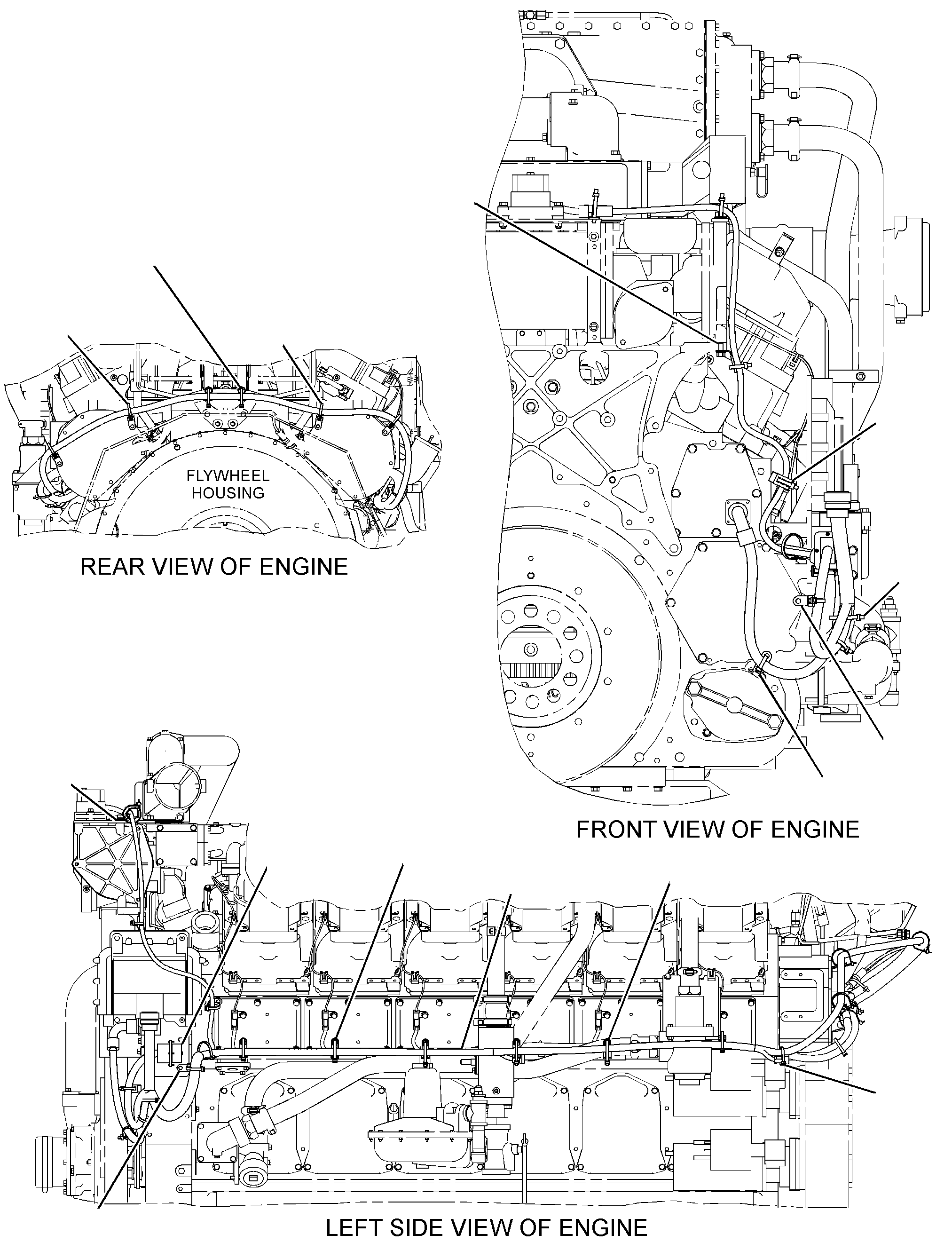

147-8177 WIRING GP-ENGINES/N 7NJ520-UP
Group No: 147-8177
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4P7429 | 1 CLIP (LADDER) | 2 | |
| 4P7581 | 2 CLIP (LADDER) | 3 | |
| 4P8134 | 3 CLIP (LADDER) | 17 | |
| 1478178 | 4 HARNESS AS-SENSOR | 1 | |
| 2L2063 | SPLICE-WIRE | 1 | |
| 3S2093 | STRAP-CABLE | 1 | |
| 6I4347 | BOOT (4-PIN) | 2 | |
| 7R3029 | CAP-DUST | 1 | |
| 8T6342 | TUBE-HEAT SHRINK (3.2-MM DIA)(36-CM) | ||
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 29 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 2 | |
| 8T8737 | PLUG-SEAL | 1 | |
| 9X0145 | RECEPTACLE AS-CONNECTOR (24-PIN) | 1 | |
| 9X0482 | PLUG AS-CONNECTOR (3-PIN) | 2 | |
| 9X3467 | CAP-PLUG | 1 | |
| 9X8243 | TUBE-HEAT SHRINK (39.9-MM DIA)(10-CM) | ||
| 0928226 | SPLICE | 7 | |
| 0977404 | TUBE-HEAT SHRINK (19.1-MM DIA)(1-DM) | ||
| 1080335 | PLUG AS-CONNECTOR (37-PIN) | 1 | |
| 1269424 | TUBE-HEAT SHRINK (3.2-MM DIA)(64-CM) | ||
| 1352942 | PLUG AS-CONNECTOR (54-PIN) | 1 | |
| 1355010 | TUBE-HEAT SHRINK (52-MM DIA)(12-CM) | ||
| 0S0509 | 5 BOLT (3/8-16X0.75-IN) | 10 | |
| 1411848 | 6 PLUG AS-CONNECTOR (24-PIN) | 1 | |
| 9X6772 | 7 STRAP-CABLE | 27 | |
| 9X6258 | 8 SCREW-MACHINE (6-32X0.5-IN) | 4 | |
| 1F7958 | 9 NUT-FULL (1/2-13-THD) | 2 | |
| 5P8245 | 10 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 6H1717 | 11 BOLT (1/2-13X1.125-IN) | 2 | |
| 5M2894 | 12 WASHER-HARD (10.2X18.5X2.5-MM THK) | 10 |
