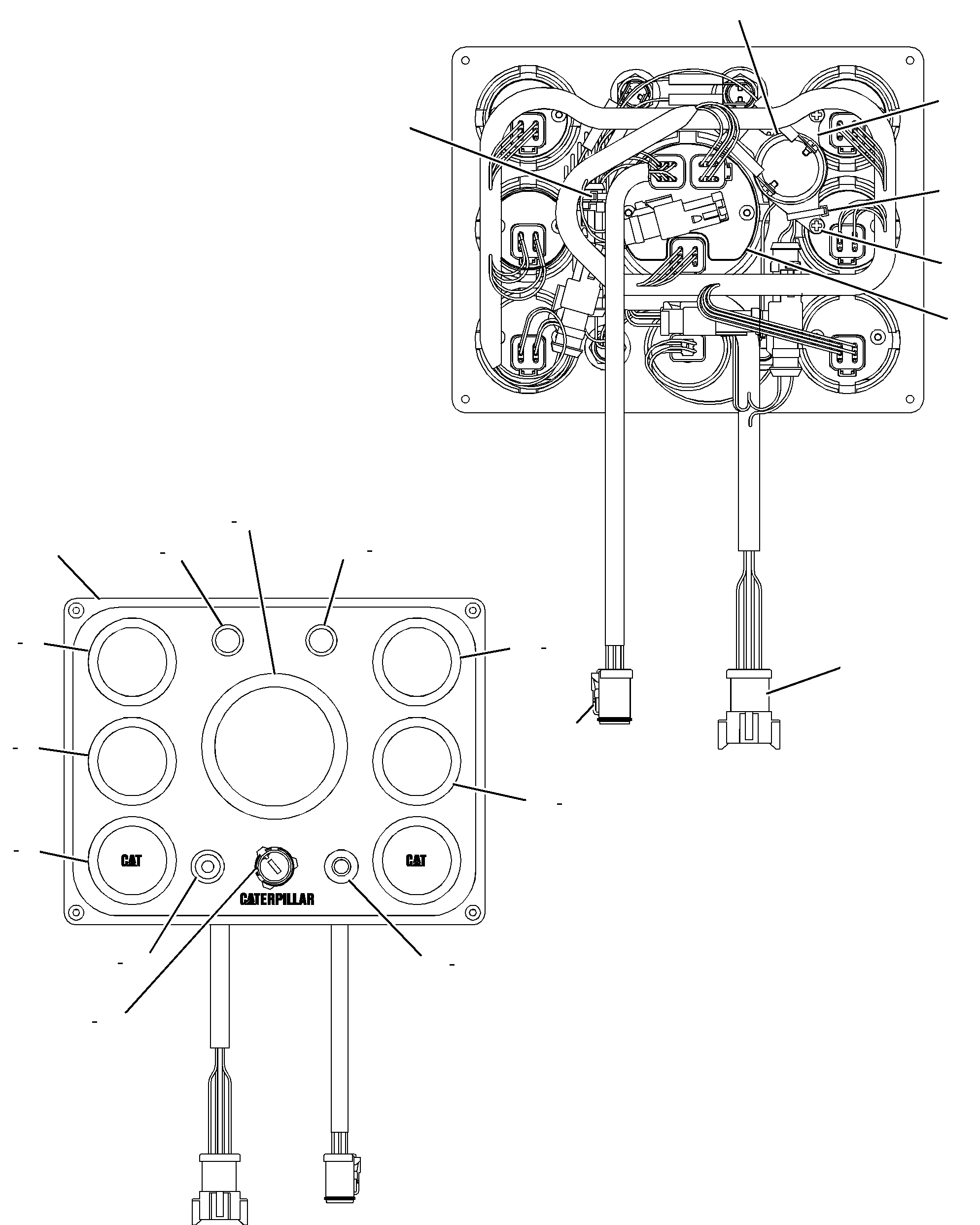

214-1731 PANEL GP-INSTRUMENTType 1

Group No: 214-1731
Part NumberPart NameQty
25085791 PLUG AS (GAUGE)2
4B2043NUT (8-32-THD)1
9B7233LOCKWASHER1
13423052 SEAL6
20728223 VOLTMETER GP1
20728244 GAUGE GP-ENGINE OIL PRESSURE1
21417305 PANEL1
2N23716 LAMP AS-INDICATOR (RED)1
2V7088LENS-RED1
6V8367LOCKWASHER1
6V8382NUT-HEX (11/16-27-THD)1
6V8817SCREW-MACHINE (4-36X4.76-IN)2
8L98017 LAMP (12-VOLT)(CLEAR)2
20728258 TACHOMETER GP-ELECTRIC1
13114249 SEAL1
141922810 LAMP AS (INDICATOR)1
2V7087LENS-AMBER1
6V8367LOCKWASHER1
6V8382NUT-HEX (11/16-27-THD)1
6V8817SCREW-MACHINE (4-36X4.76-IN)2
207282311 GAUGE GP-COOLANT TEMPERATURE1
211074812 GAUGE GP-MANIFOLD AIR TEMP1
227212713 SWITCH AS-PUSH BUTTON (BACKLIGHT)1
6F0253LOCKWASHER1
1723511NUT (5/8-24-THD)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)3
110788714 SWITCH AS-START (KEY)(ENGINE)1
7T6799NUT-MOUNTING (1-32-THD)1
1028804KIT-RECEPTACLE (4-PIN)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)4
1A992015 GASKET-CAP1
227212816 SWITCH AS (ENGINE STOP)1
6F0253LOCKWASHER1
1723511NUT (5/8-24-THD)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)3
3K036017 SEAL-O-RING2
216955618 HORN1
230807519 PLATE-MOUNTING1
1S959320 STRAP-CABLE2
8C851421 SCREW-MACHINE (8-32X0.375-IN)2
247082522 HARNESS AS-PANEL (GAUGE DISPLAY)1
1028806KIT-RECEPTACLE (8-PIN)1
8T8737PLUG-SEAL7
1552272PLUG AS-CONNECTOR (4-PIN)1
1552274KIT-CONNECTING PLUG (6-PIN)2
1740503KIT-CONNECTING PLUG (3-PIN)2
241048923 HARNESS AS-PANEL (GAUGE DISPLAY)1
1552274KIT-CONNECTING PLUG (6-PIN)9
1740503KIT-CONNECTING PLUG (3-PIN)2
8T8737PLUG-SEAL18
210430924 MODULE GP-INTERFACE1
