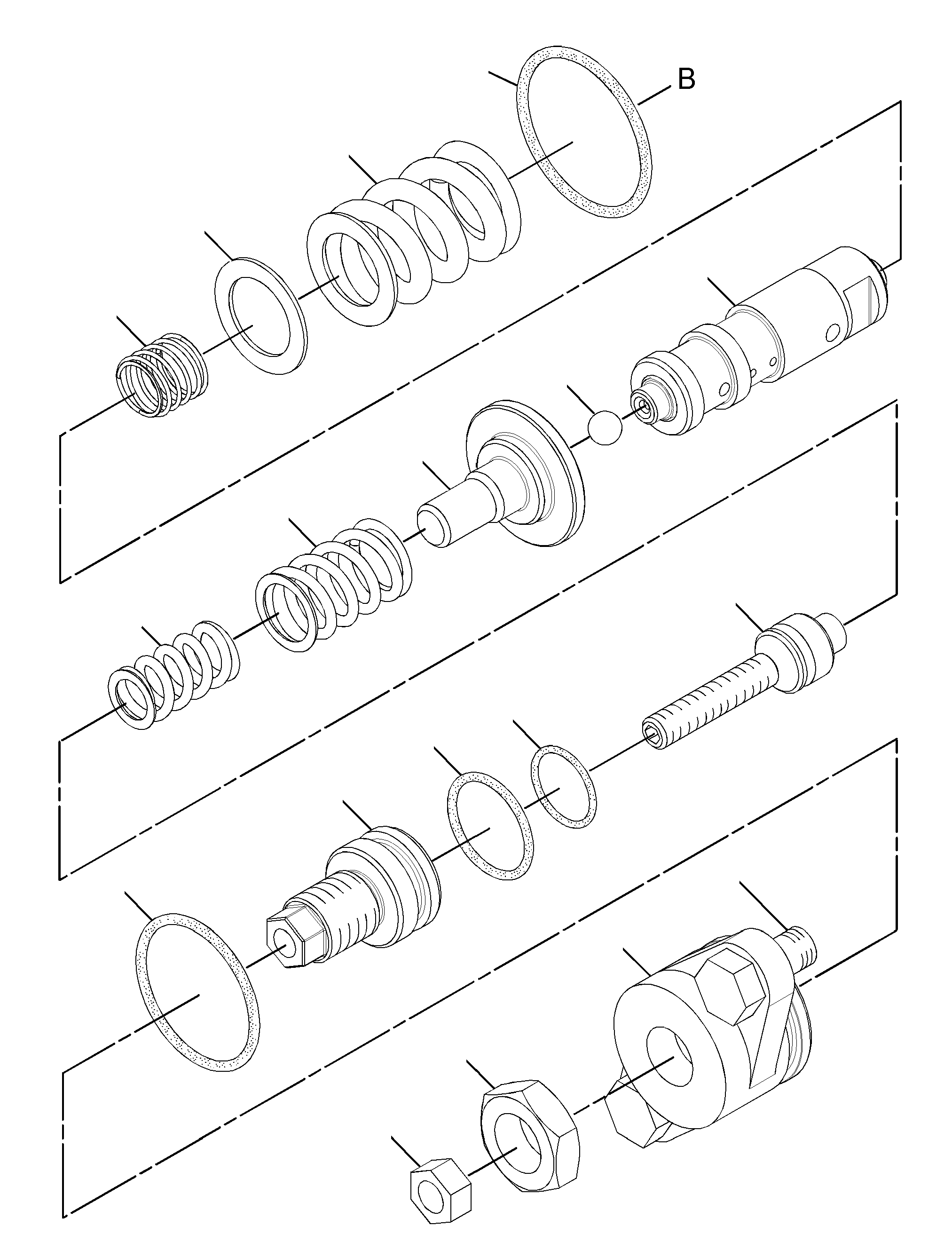

Assembly
100%

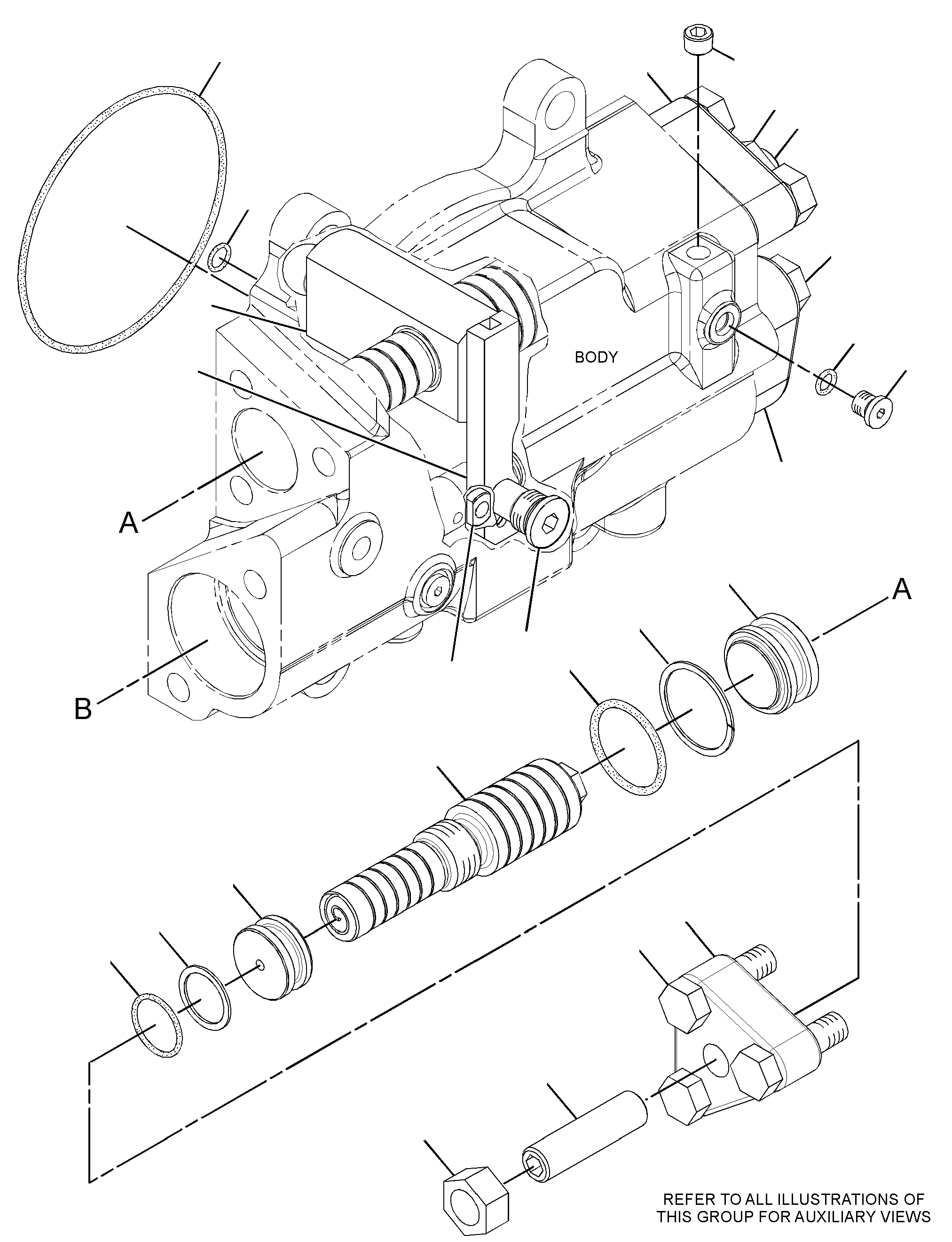

174-7212 ACTUATOR GP-PUMPS/N PAD377-385

Group No: 174-7212
Part NumberPart NameQty
09936691 SHIM (1-MM THK)2
0996109SHIM (1.05-MM THK)2
0996110SHIM (1.1-MM THK)2
0996111SHIM (1.15-MM THK)2
0996112SHIM (1.2-MM THK)2
0996113SHIM (1.25-MM THK)2
0996115SHIM (1.3-MM THK)2
29512588 ADJUSTER1
17333899 STOPPER2
174721310 PISTON1
174722011 COVER2
174722112 COVER1
174722213 COVER1
176057814 SPOOL AS1
183808115 SPRING1
183808216 SPRING1
183808317 SPRING1
295125718 RETAINER1
190489619 PLUG2
192237620 PIN AS1
1920573PIN-DOWEL1
225022422 SETSCREW (M16X2X55-MM)1
225022523 SETSCREW (M16X2X45-MM)1
268420125 LEVER AS1
268420326 PIN1
273831627 SEAL-O-RING1
273831728 SEAL-O-RING1
273831829 SEAL-O-RING1
094188130 PLATE-SLIDE1
095178831 RING-BACKUP2
099367132 SPRING1
185016933 GUIDE1
190767434 SEAL-O-RING2
8T413335 NUT (M10X1.5-THD)1
200325536 NUT (M20X1.5-THD)1
3D289137 BALL1
3J190738 SEAL-O-RING1
4J753339 SEAL-O-RING7
6V539140 SEAL-O-RING1
8T413241 NUT (M16X2-THD)2
8T418342 BOLT (M12X1.75X40-MM)8
8T419243 BOLT (M12X1.75X25-MM)2
9S800144 PLUG (5/16-24-THD)7
2H924745 SEAL-O-RING1
189976346 SEAL-O-RING3
