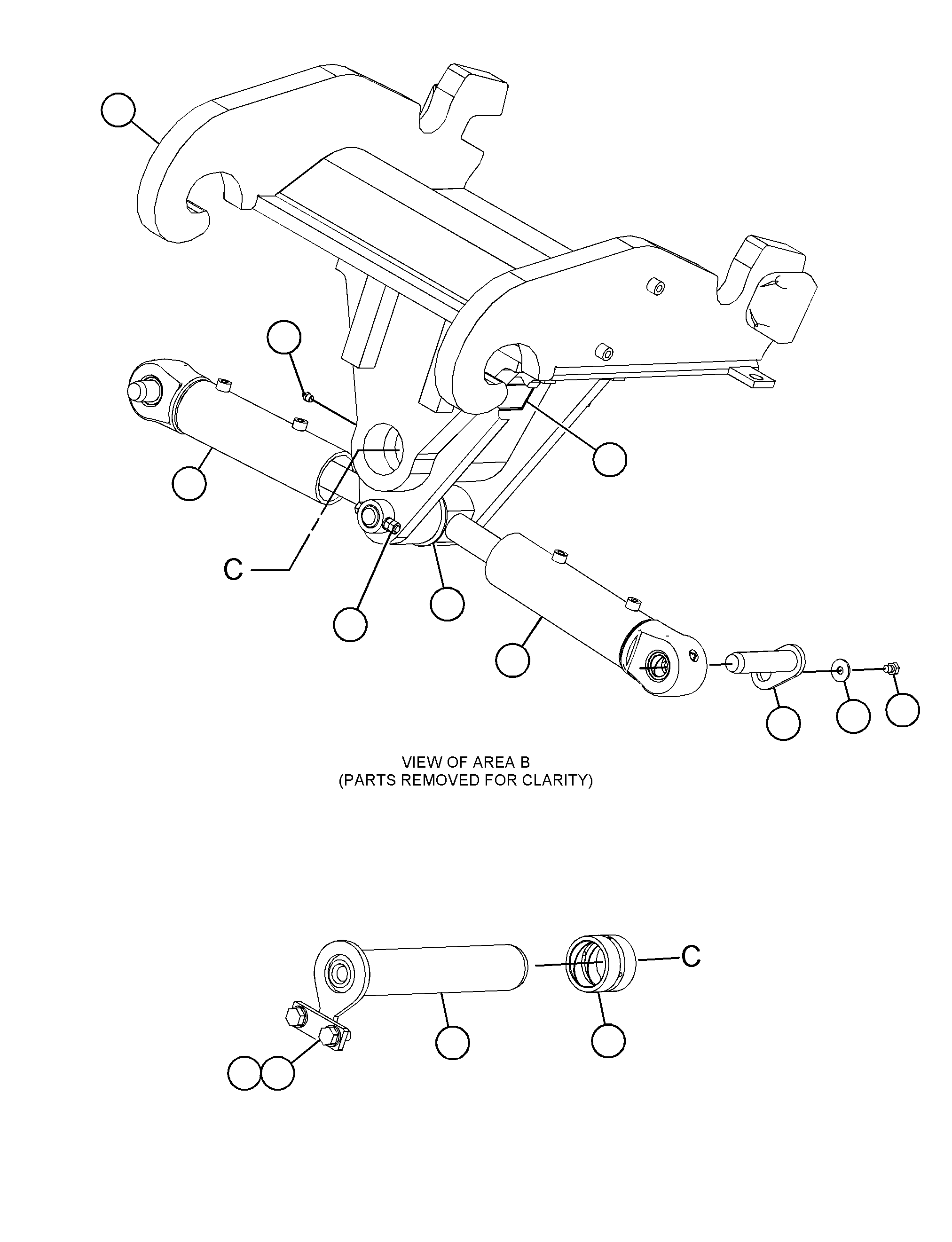

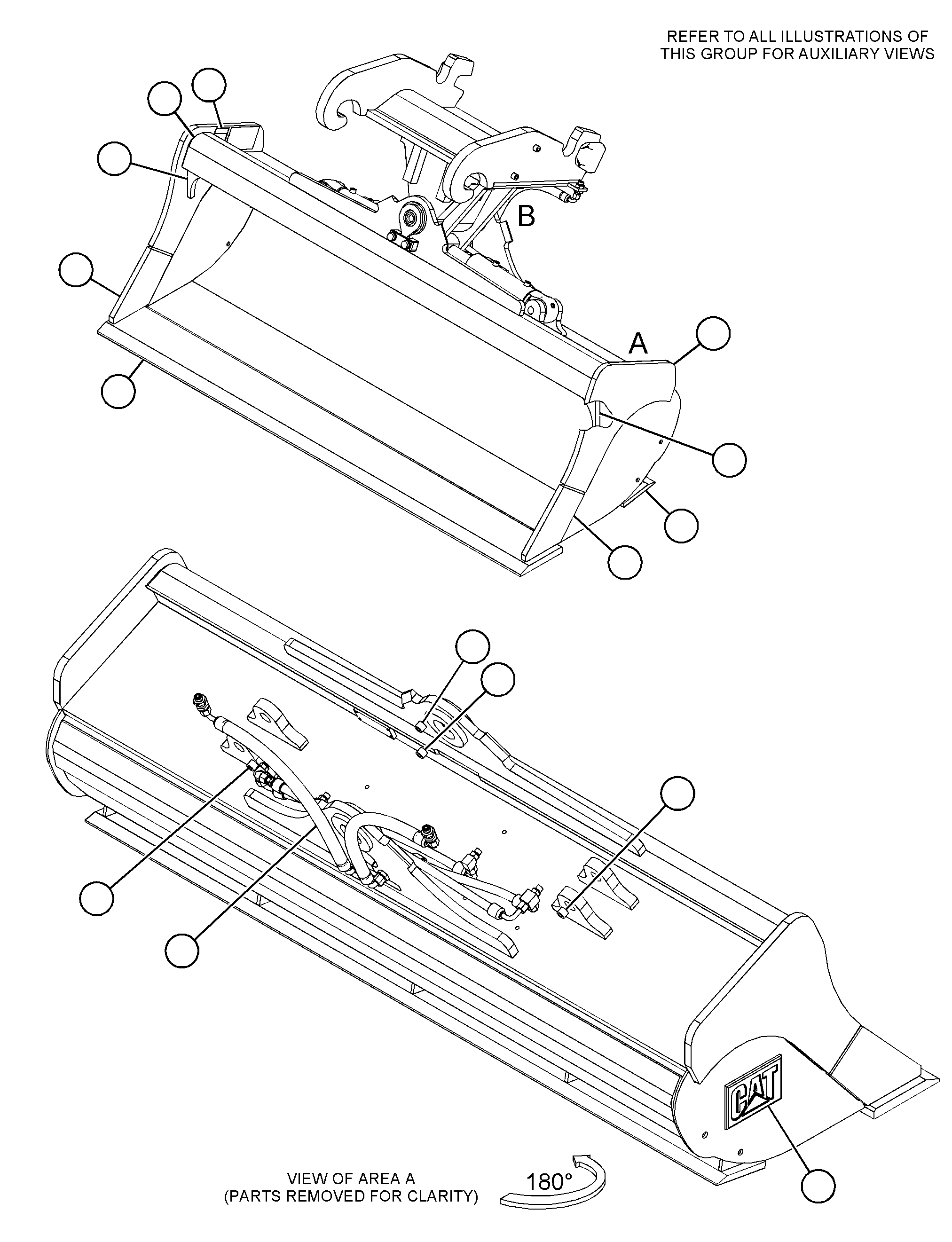

484-0199 BUCKET GP-DITCH CLEANINGS/N GJD1-UP

Group No: 484-0199 · Commonality
Part NumberPart NameQty
9X82571 WASHER (17.5X30X3.5-MM THK)2
48548622 PIVOT AS1
48450912A BUSHING2
3B84893 FITTING-GREASE (1/8-27 PTF)2
15980354 FILM-WARNING (CRUSH HAZARD, STAY BACK)2
15980365 FILM-WARNING (READ OMM)1
48413817 PIN AS1
48413828 PIN AS2
48413839 PIN GP-BUCKET1
484210210 CYLINDER GP-BUCKET (LH)1
484210311 CYLINDER GP-BUCKET (RH)1
484812712 SPACER (35X90X3-MM THK)1
488478614 LINES GP-BUCKET TILT CYLINDER1
7X262115 BOLT (M10X1.5X12-MM)2
8T422216 WASHER-PLATED (11X32X2.5-MM THK)2
8T477917 BOLT (M16X2X35-MM)2
476238718 BUCKET AS-DITCH CLEANING1
482757719 GUSSET (LH)1
482757820 GUSSET (RH)1
485971021 EDGE1
490281622 EDGE-BASE1
490493423 PLATE AS-HINGE1
9R282124 BOSS (M10X1.5X15-MM)4
2C925925 PLATE-IDENTIFICATION (CAT)1
442179526 PLATE (CORNER)2
