System And Components

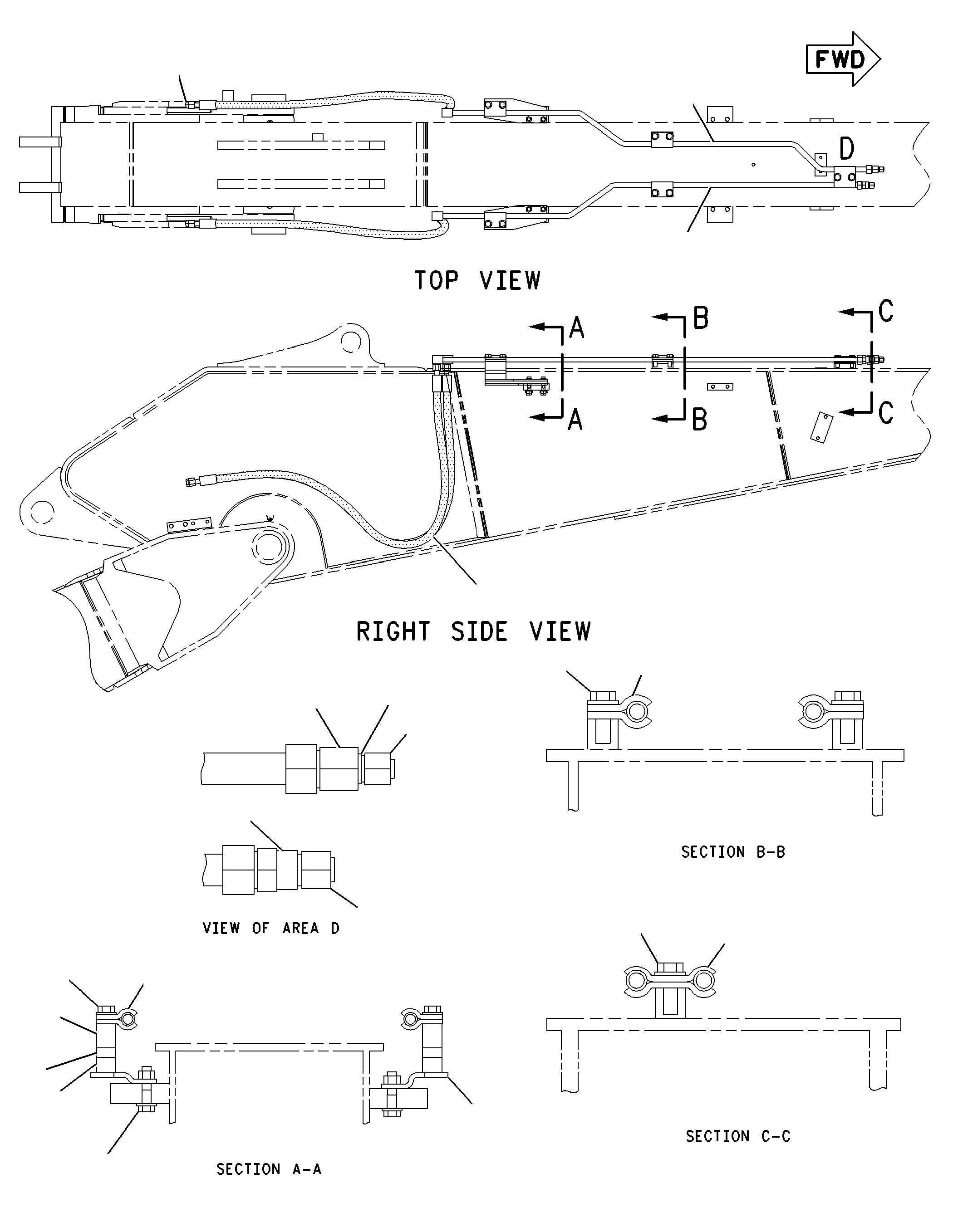

216-6517 LINES GP-COUPLERS/N MAB1-UP; PAB1-UP
Group No: 216-6517
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1538839 | 1 PLATE | 2 | |
| 1737877 | 2 SUPPORT AS | 1 | |
| 1778407 | 3 HOSE AS | 2 | |
| 1980787 | 4 PLATE | 2 | |
| 2166518 | 5 TUBE AS | 1 | |
| 2166522 | 6 TUBE AS | 1 | |
| 1353980 | 7 CLIP | 2 | |
| 1488415 | 8 REDUCER AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8936 | REDUCER | 1 | |
| 1737875 | 9 SUPPORT AS | 1 | |
| 4J5477 | 10 SEAL-O-RING | 1 | |
| 5Q4212 | 11 CLIP | 8 | |
| 6V8398 | 12 SEAL-O-RING | 4 | |
| 9X6582 | 13 NUT (13/16-16-THD) | 1 | |
| 6V8935 | 14 REDUCER | 1 | |
| 7Y7992 | 15 BOLT (M12X1.75X75-MM) | 4 | |
| 8T4194 | 16 BOLT (M12X1.75X50-MM) | 4 | |
| 8T4223 | 17 WASHER-HARD (13.5X25.5X3-MM THK) | 14 | |
| 8T4956 | 18 BOLT (M12X1.75X35-MM) | 6 |
