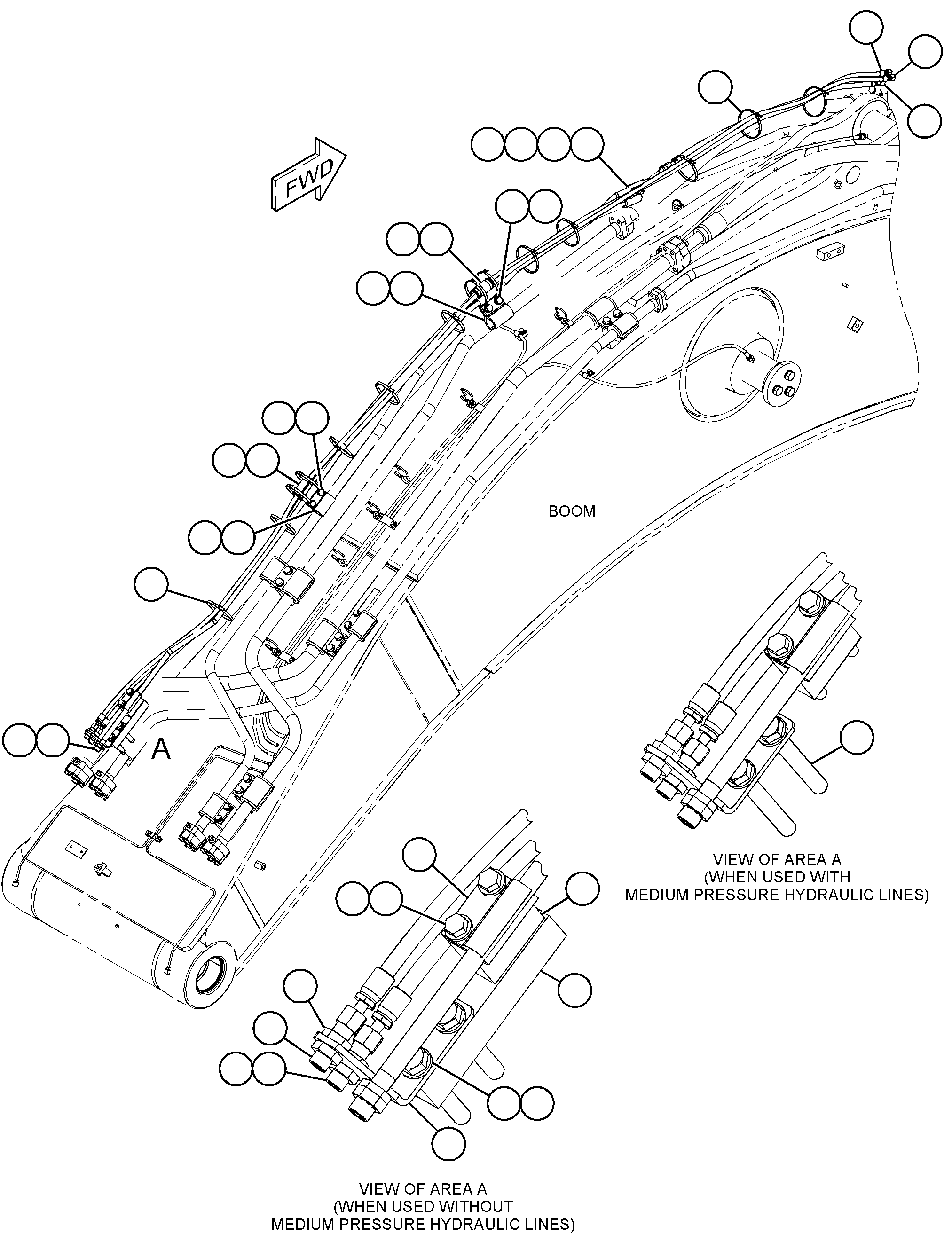

458-8265 LINES GP-BOOMS/N SD21-UP

Group No: 458-8265
Part NumberPart NameQty
7K11811 STRAP-CABLE14
13195162 HOSE AS1
15793383 PLATE1
21254194 HOSE AS2
21665335 PLATE1
28257416 CLAMP AS-LOWER2
8T4244NUT (M12X1.75-THD)2
1795235CLIP1
28271067 GROMMET2
30295648 PLATE1
44717039 BOLT (M16X2X120-MM)2
451217510 WASHER-HARD (17.5X30X3.5-MM THK)4
451218011 BOLT (M16X2X35-MM)2
451218312 NUT (M16X2-THD)2
453125613 BOLT (M16X2X110-MM)2
460096014 TUBE AS1
149545215 UNION AS (STRAIGHT)2
6V8397SEAL-O-RING2
6V8994UNION (STRAIGHT)1
179523516 CLIP2
216651517 CLIP2
5Q421218 CLIP2
6V839819 SEAL-O-RING2
6V916820 NUT (11/16-16-THD)2
7X254921 BOLT (M12X1.75X100-MM)2
8T413922 BOLT (M12X1.75X30-MM)4
8T422323 WASHER-HARD (13.5X25.5X3-MM THK)6
