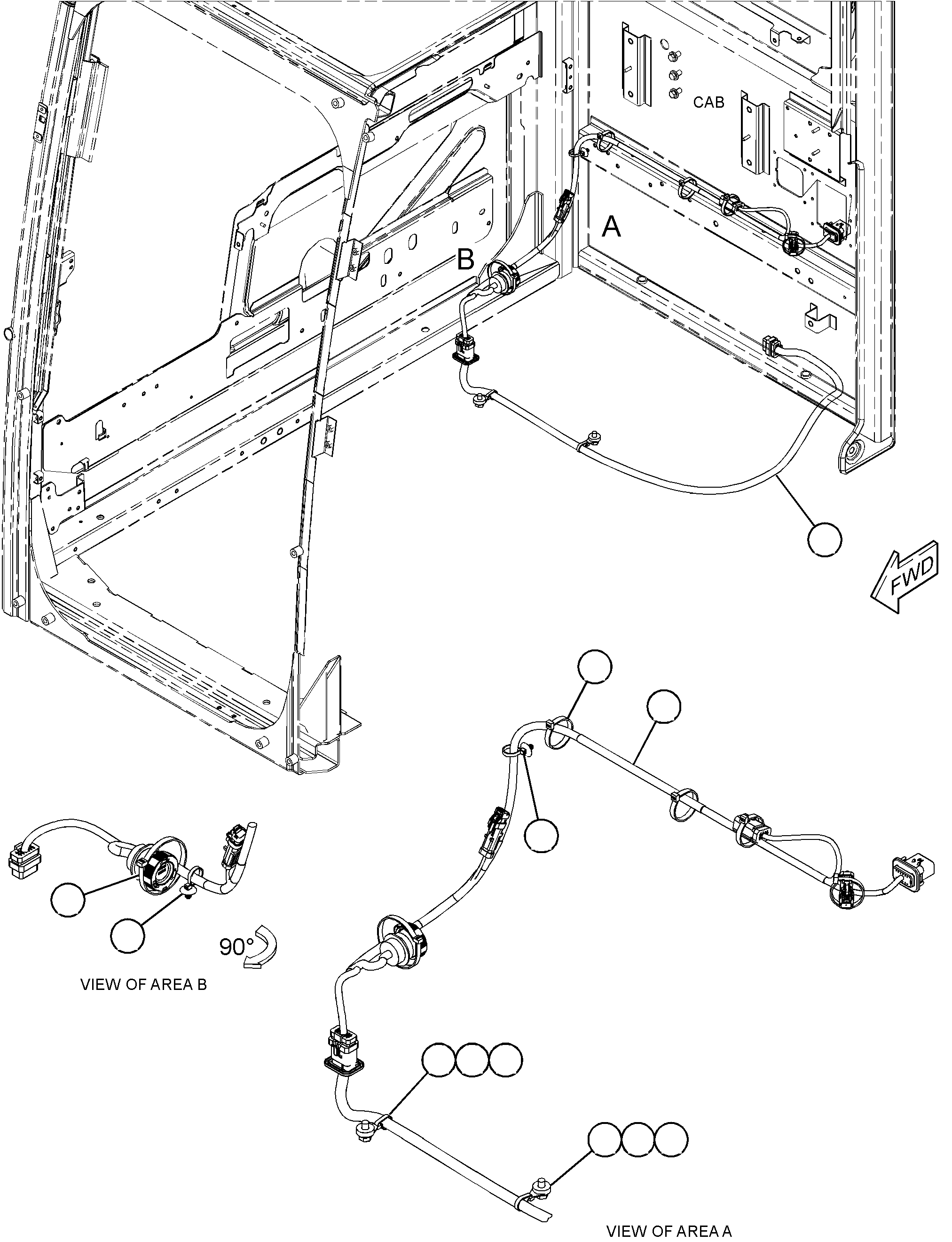

388-6724 WIRING GP-CAB -GRADE CONTROLS/N FEH1-UP

Group No: 388-6724 · Commonality
Part NumberPart NameQty
11148361 CLIP2
47863872 HARNESS AS-PLATFORM1
9W0852PIN-CONNECTOR (14-GA TO 16-GA)2
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)2
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)10
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)10
9X3401PIN-CONNECTOR (16-GA TO 18-GA)10
1261767PIN-CONNECTOR (14-GA TO 16-GA)10
2304009PLUG AS-CONNECTOR (12-PIN)1
2647034SEAL-CONNECTOR1
3280076RECEPTACLE AS-CONNECTOR (12-PIN)1
47062953 HARNESS AS-CAB1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)1
3S2093STRAP-CABLE12
8T8737PLUG-SEAL21
9W0852PIN-CONNECTOR (14-GA TO 16-GA)2
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)1
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(20-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)28
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)28
9X3401PIN-CONNECTOR (16-GA TO 18-GA)12
1261767PIN-CONNECTOR (14-GA TO 16-GA)12
2813395PLUG AS-CONNECTOR (12-PIN)1
2647034SEAL-CONNECTOR1
3132495RECEPTACLE AS-CONNECTOR (2-PIN)2
3245678RESISTOR AS (120-OHM)2
2647029SEAL-CONNECTOR1
3245684RECEPTACLE AS-CONNECTOR (12-PIN)1
3259571RECEPTACLE AS-CONNECTOR (8-PIN)1
3313595RECEPTACLE (31-PIN)1
4167158COVER-CONNECTOR1
16367954 STRAP-CABLE2
7K11815 STRAP-CABLE11
8T41216 WASHER-HARD (11X21X2.5-MM THK)2
8T41377 BOLT (M10X1.5X20-MM)2
