System And Components

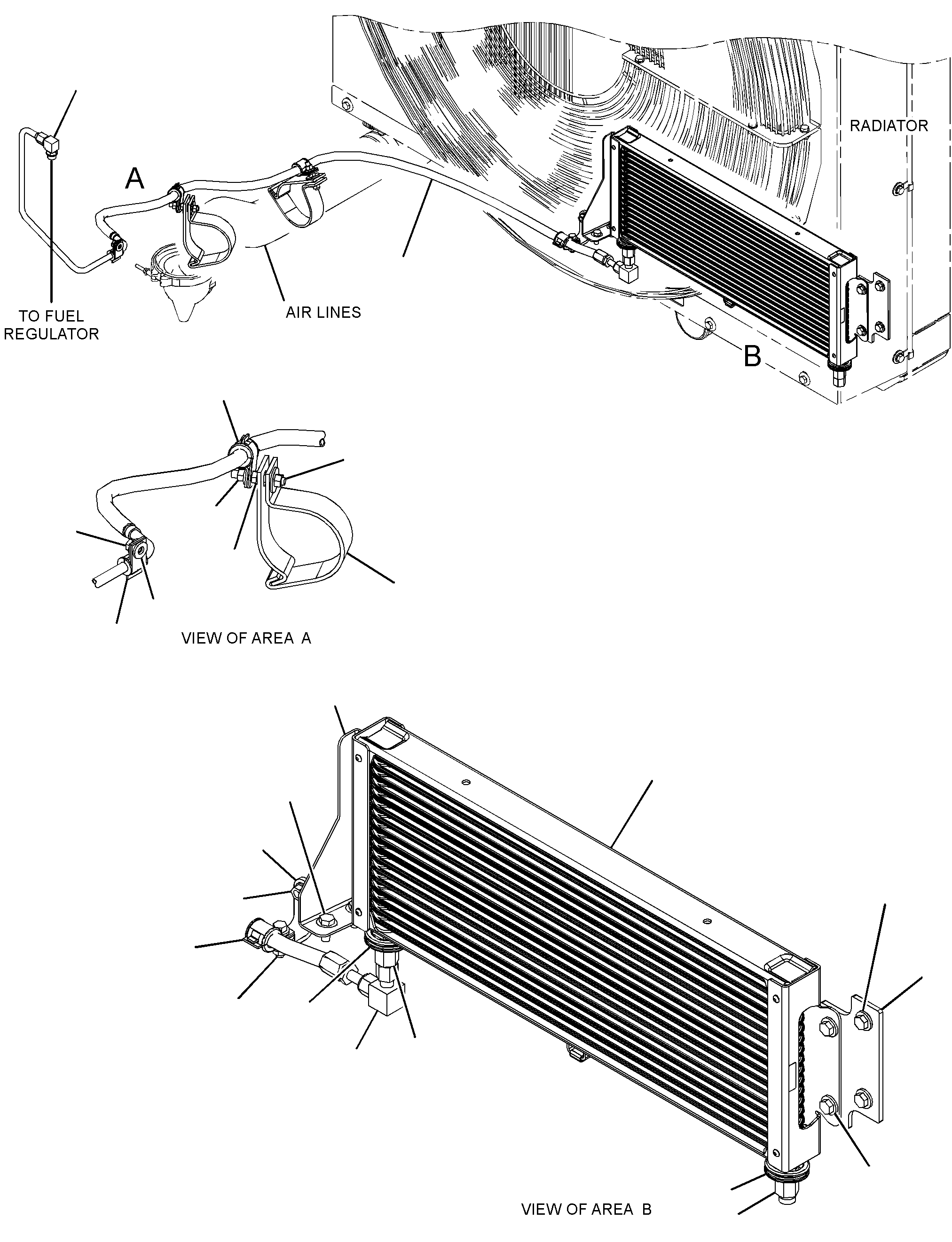

375-7969 COOLER GP-FUELS/N BDN1-UP
Group No: 375-7969
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4D3100 | 1 GROMMET | 2 | |
| 4P7233 | 2 GROMMET | 1 | |
| 3960424 | 3 CONNECTOR AS | 2 | |
| 1049054 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 3339745 | 4 BRACKET | 1 | |
| 3535134 | 5 ELBOW AS | 1 | |
| 1184728 | ELBOW | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3542850 | 6 CORE AS-FUEL COOLER | 1 | |
| 3569988 | 7 PLATE AS | 1 | |
| 3613168 | 8 BRACKET AS | 1 | |
| 3792187 | 9 HOSE AS | 1 | |
| 2492943 | 13 STUD (3/8-16-THD) | 2 | |
| 3196227 | 14 ELBOW AS | 1 | |
| 6V9851 | ELBOW | 1 | |
| 2287096 | SEAL-O-RING | 1 | |
| 3537953 | 15 GROMMET | 3 | |
| 4L9337 | 16 BOLT (3/8-16X1.5-IN) | 1 | |
| 5P1075 | 18 WASHER-HARD (10.2X22.5X3-MM THK) | 6 | |
| 6V6782 | 20 CLIP (SLOT) | 2 | |
| 6V6783 | 21 CLIP (TAB) | 2 | |
| 6V8801 | 22 NUT (3/8-16-THD) | 6 | |
| 7X0563 | 23 WASHER-HARD (12X35X8-MM THK) | 1 | |
| 7X7729 | 24 WASHER (11X25X3-MM THK) | 8 | |
| 8T1887 | 25 CLIP (SLOT) | 1 | |
| 8T1888 | 26 CLIP (TAB) | 1 | |
| 8T1889 | 27 CLIP (SLOT) | 3 | |
| 8T1890 | 28 CLIP (TAB) | 3 | |
| 8T4136 | 29 BOLT (M10X1.5X25-MM) | 8 | |
| 8T4222 | 30 WASHER-PLATED (11X32X2.5-MM THK) | 4 | |
| 8T4133 | 31 NUT (M10X1.5-THD) | 1 | |
| 8T4121 | 32 WASHER-HARD (11X21X2.5-MM THK) | 1 |
