System And Components
542-2644 LINES GP-HOISTS/N HRZ508-UP
Group No: 542-2644

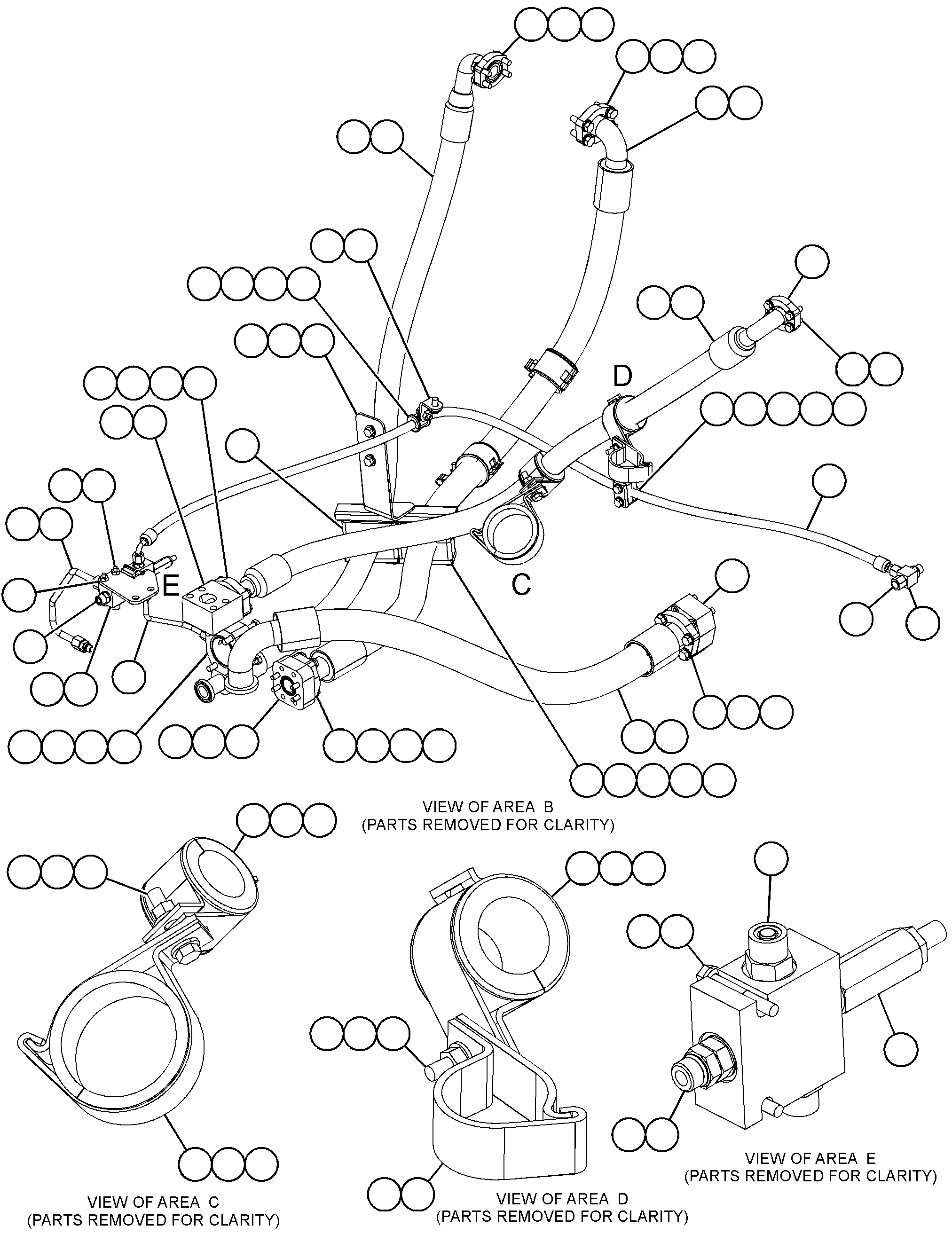

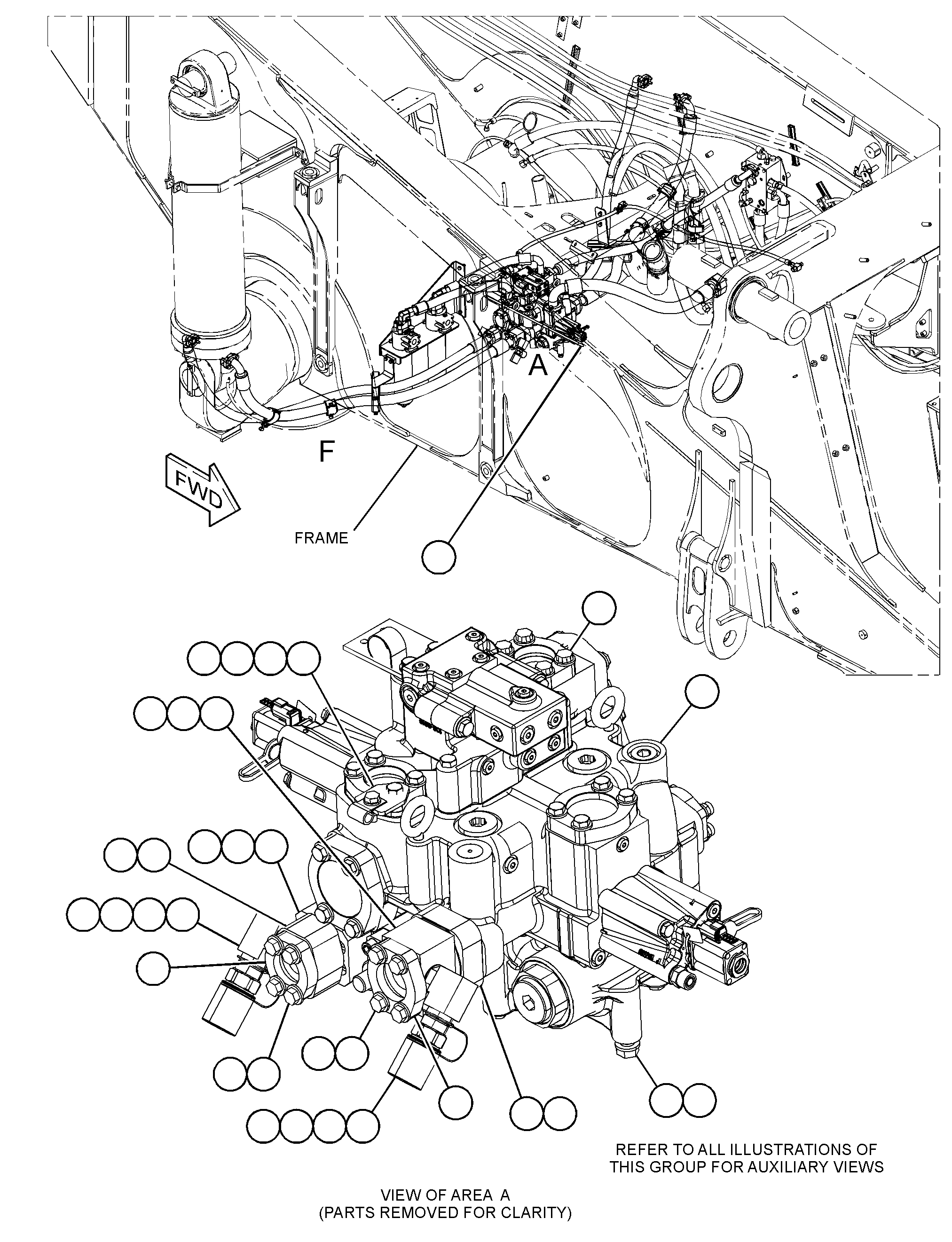

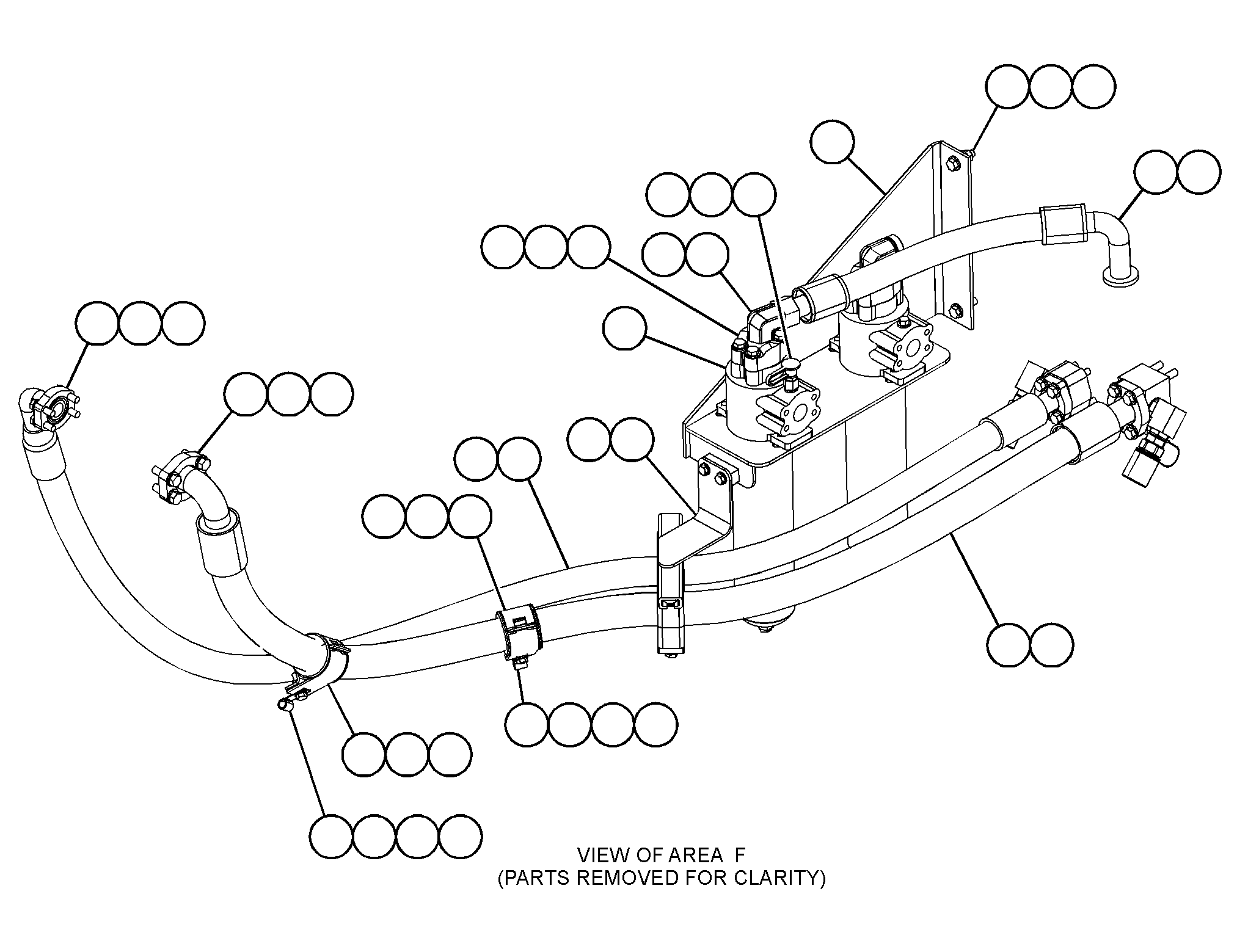

| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5C9762 | 1 MANIFOLD | 1 | |
| 5P4272 | 2 UNION | 1 | |
| 6V3482 | 3 CAP AS | 2 | |
| 8W2273 | 4 ADAPTER | 1 | |
| 2067013 | 5 FASTENER | 2 | |
| 2147568 | 6 SEAL-O-RING | 2 | |
| 2177742 | 7 GROMMET | 1 | |
| 2260835 | 8 VALVE GP-PRESSURE REDUCING (HOIST PILOT OIL) | 1 | |
| 2428024 | 9 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 2428023 | BRACKET | 1 | |
| 2638522 | 10 SPACER | 1 | |
| 3069216 | 11 BLOCK | 1 | |
| 3170799 | 12 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 4329443 | 13 PLATE | 2 | |
| 4350692 | 14 PLATE-COVER | 1 | |
| 4350693 | 15 PLATE-COVER | 4 | |
| 4423390 | 16 BRACKET AS | 1 | |
| 9C6809 | BLOCK (M10X1.5-MM) | 1 | |
| 4423505 | 17 FLANGE & MOUNTING GP | 1 | |
| 4532601 | 18 ADAPTER AS | 2 | |
| 2287094 | SEAL-O-RING | 1 | |
| 4345383 | ELBOW | 1 | |
| 4635810 | 19 BRACKET AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 2 | |
| 0914537 | BOSS-THREADED (M6X1X12-MM) | 2 | |
| 4635813 | 20 TUBE AS | 1 | |
| 4635816 | 21 TUBE AS | 1 | |
| 4635867 | 22 HOSE AS | 1 | |
| 4689695 | 23 CLAMP-HALF | 4 | |
| 4689700 | 24 CLAMP-HALF | 2 | |
| 4727058 | 25 FILTER AS-OIL (HYDRAULIC) | 2 | |
| 4176162 | FILTER-OIL | 1 | |
| 4538935 | COVER AS-FILTER (CARTRIDGE, OIL) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 3603692 | PLUG (9/16-18-THD) | 1 | |
| 4784756 | 26 FLANGE-SPACER | 1 | |
| 4934313 | 27 BRACKET AS | 1 | |
| 4934314 | 28 BRACKET AS | 1 | |
| 4327911 | RAIL-MOUNTING (26-CM) | ||
| 5175461 | 29 CLAMP-HALF | 4 | |
| 5426551 | 30 HOSE AS | 2 | |
| 5426554 | 31 ADAPTER | 2 | |
| 1017398 | 32 BOLT-SOCKET HEAD (M10X1.5X40-MM) | 12 | |
| 1313025 | 33 FLANGE-SPLIT | 4 | |
| 1358573 | 34 BOLT AS | 1 | |
| 1645567 | 35 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1686890 | 36 CLIP (SLOT) | 1 | |
| 1686891 | 37 CLIP (TAB) | 1 | |
| 1833399 | 38 CONNECTOR AS | 3 | |
| 6V8636 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 1907673 | 39 SEAL-O-RING | 3 | |
| 1912962 | 40 SEAL-O-RING | 7 | |
| 1P4578 | 41 FLANGE-HALF | 8 | |
| 1P4579 | 42 FLANGE-HALF | 10 | |
| 1P4582 | 43 FLANGE-HALF | 2 | |
| 2343544 | 44 SEAL-O-RING | 8 | |
| 2352475 | 45 SEAL-RECTANGULAR | 4 | |
| 2352476 | 46 SEAL-RECTANGULAR | 2 | |
| 2977968 | 47 FITTING | 2 | |
| 3048037 | 48 CONNECTOR AS | 1 | |
| 6V9872 | CONNECTOR | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3107300 | 49 CLIP (LOOP) | 4 | |
| 3196233 | 50 TEE AS | 1 | |
| 6V8782 | TEE | 1 | |
| 2287090 | SEAL-O-RING | 2 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196240 | 51 CONNECTOR AS | 4 | |
| 6V9873 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3196248 | 52 UNION AS | 2 | |
| 5P9560 | UNION | 1 | |
| 2385082 | SEAL-O-RING | 2 | |
| 3293356 | 53 NUT (M12X1.75-THD) | 4 | |
| 3295518 | 54 ADAPTER AS | 1 | |
| 8T2353 | ADAPTER | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 3309735 | 55 ELBOW AS | 2 | |
| 8T3491 | ELBOW | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 3445675 | 56 NUT (M10X1.5-THD) | 5 | |
| 3D8908 | 57 COVER | 1 | |
| 4423395 | 58 BLOCK GP-HYDRAULIC (ADAPTER) | 1 | |
| 8B7997 | BOLT-SOCKET HEAD (1/2-13X2-IN) | 4 | |
| 8T0568 | SEAL-O-RING | 1 | |
| 4423394 | BLOCK-ADAPTER | 1 | |
| 4652347 | 59 HOSE AS | 2 | |
| 4792171 | 60 BOLT AS | 2 | |
| 4792172 | 61 BOLT AS | 1 | |
| 5031358 | 62 NUT (M12X1-THD) | 8 | |
| 5426552 | 63 HOSE AS | 2 | |
| 5426553 | 64 HOSE AS | 1 | |
| 5558050 | 65 VALVE GP-CONTROL (BRAKE COOLING, HOIST) | 1 | |
| 5703586 | 66 HOSE AS | 1 | |
| 5885202 | 67 TUBE AS | 1 | |
| 5P8939 | 68 GROMMET | 1 | |
| 5P9299 | 69 CLIP (LOOP) | 1 | |
| 6V0852 | 70 CAP-DUST | 1 | |
| 6V1572 | 71 CLIP (SLOT) | 5 | |
| 6V1573 | 72 CLIP (TAB) | 5 | |
| 6V1574 | 73 GROMMET | 4 | |
| 6V1581 | 74 CLIP (SLOT) | 1 | |
| 6V1582 | 75 CLIP (TAB) | 1 | |
| 6V1875 | 76 GROMMET | 2 | |
| 6V4590 | 77 SEAL-O-RING | 2 | |
| 6V9830 | 78 CAP (ORFS) | 1 | |
| 7X0315 | 79 BOLT (7/16-14X3.25-IN) | 4 | |
| 7X2549 | 80 BOLT (M12X1.75X100-MM) | 4 | |
| 7X2550 | 81 BOLT (M12X1.75X110-MM) | 12 | |
| 7X2553 | 82 BOLT (M16X2X40-MM) | 5 | |
| 7X7729 | 83 WASHER (11X25X3-MM THK) | 4 | |
| 7X7910 | 84 CLIP (SLOT) | 1 | |
| 7X7911 | 85 CLIP (TAB) | 1 | |
| 8C8451 | 86 BOLT (M6X1X40-MM) | 2 | |
| 8T1889 | 87 CLIP (SLOT) | 1 | |
| 8T1890 | 88 CLIP (TAB) | 1 | |
| 8T4121 | 89 WASHER-HARD (11X21X2.5-MM THK) | 17 | |
| 8T4176 | 90 BOLT (M12X1.75X90-MM) | 4 | |
| 8T4182 | 91 BOLT (M10X1.5X45-MM) | 2 | |
| 8T4184 | 92 BOLT (M12X1.75X45-MM) | 7 | |
| 8T4185 | 93 BOLT (M10X1.5X50-MM) | 1 | |
| 8T4186 | 94 BOLT (M10X1.5X40-MM) | 8 | |
| 8T4192 | 95 BOLT (M12X1.75X25-MM) | 10 | |
| 8T4194 | 96 BOLT (M12X1.75X50-MM) | 8 | |
| 8T4195 | 97 BOLT (M10X1.5X30-MM) | 1 | |
| 1837121 | 98 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4223 | 99 WASHER-HARD (13.5X25.5X3-MM THK) | 58 | |
| 8T4224 | 100 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 8T4910 | 101 BOLT (M12X1.75X60-MM) | 1 | |
| 8T5360 | 102 WASHER (12X22.5X2.5-MM THK) | 8 | |
| 8T6870 | 103 BOLT (M8X1.25X70-MM) | 2 | |
| 8T8916 | 104 BOLT (7/16-14X1.5-IN) | 8 | |
| 8T8919 | 105 BOLT (1/2-13X1.75-IN) | 12 | |
| 9X8256 | 106 WASHER (6.6X12X2-MM THK) | 2 | |
| 9X8257 | 107 WASHER (17.5X30X3.5-MM THK) | 5 |
