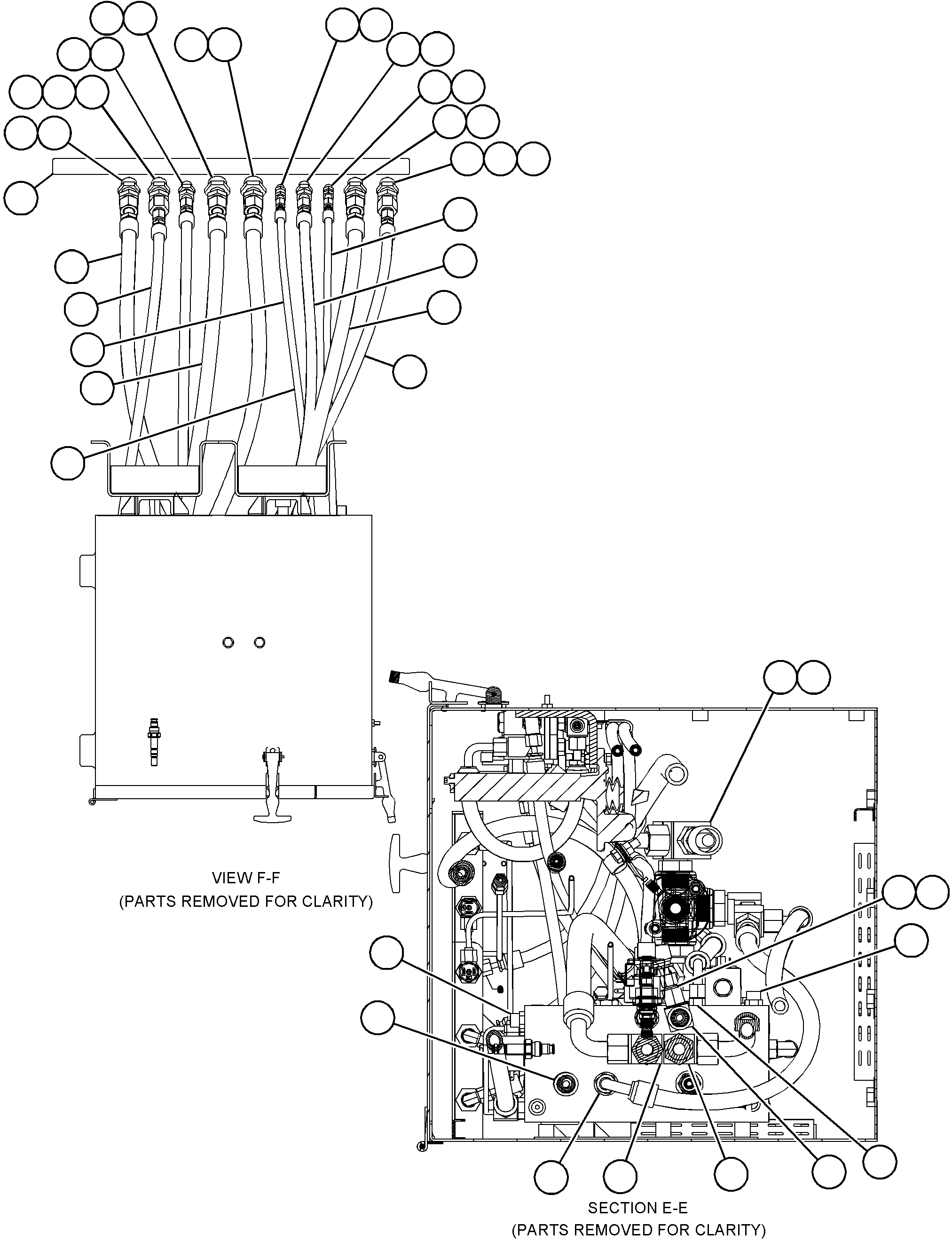

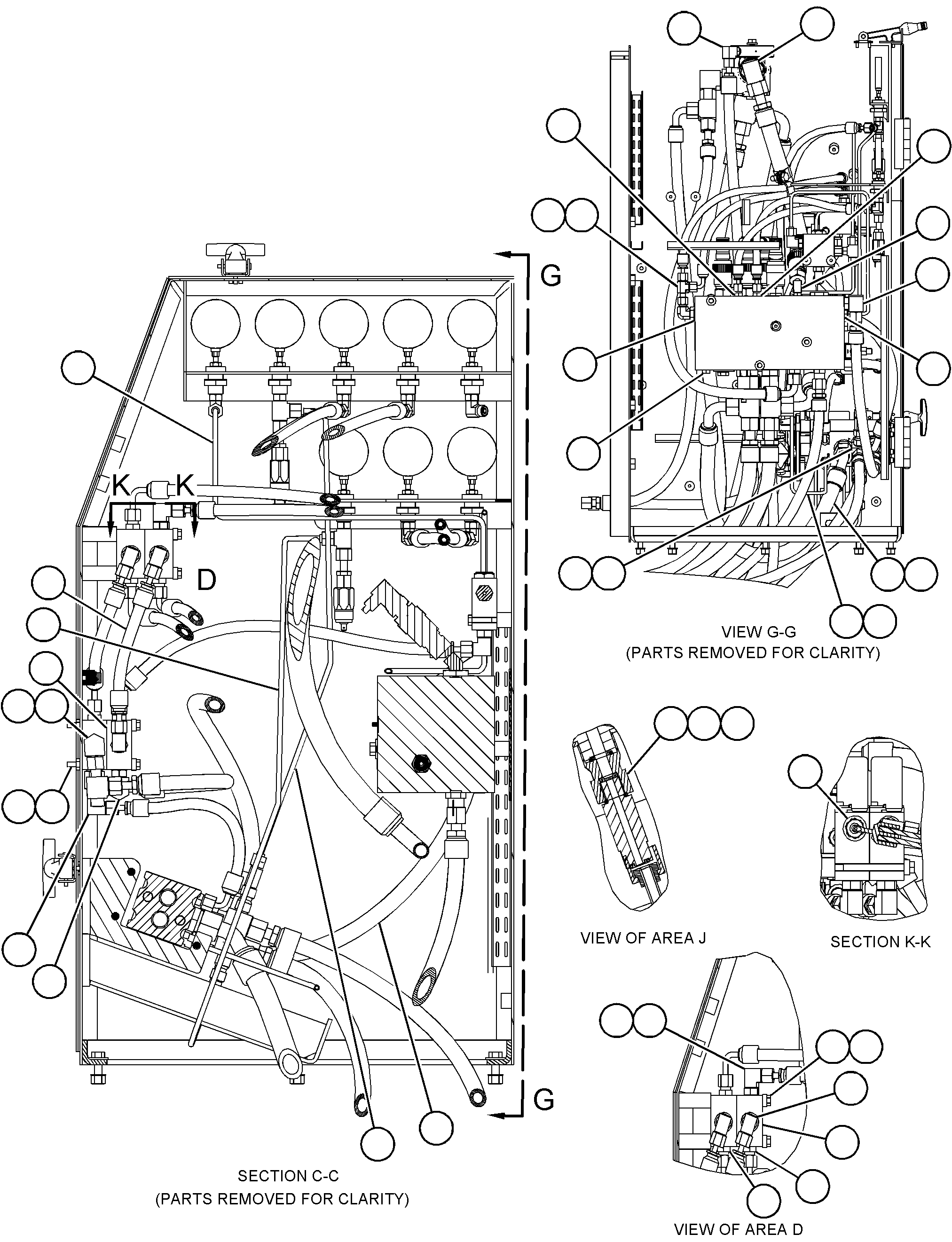

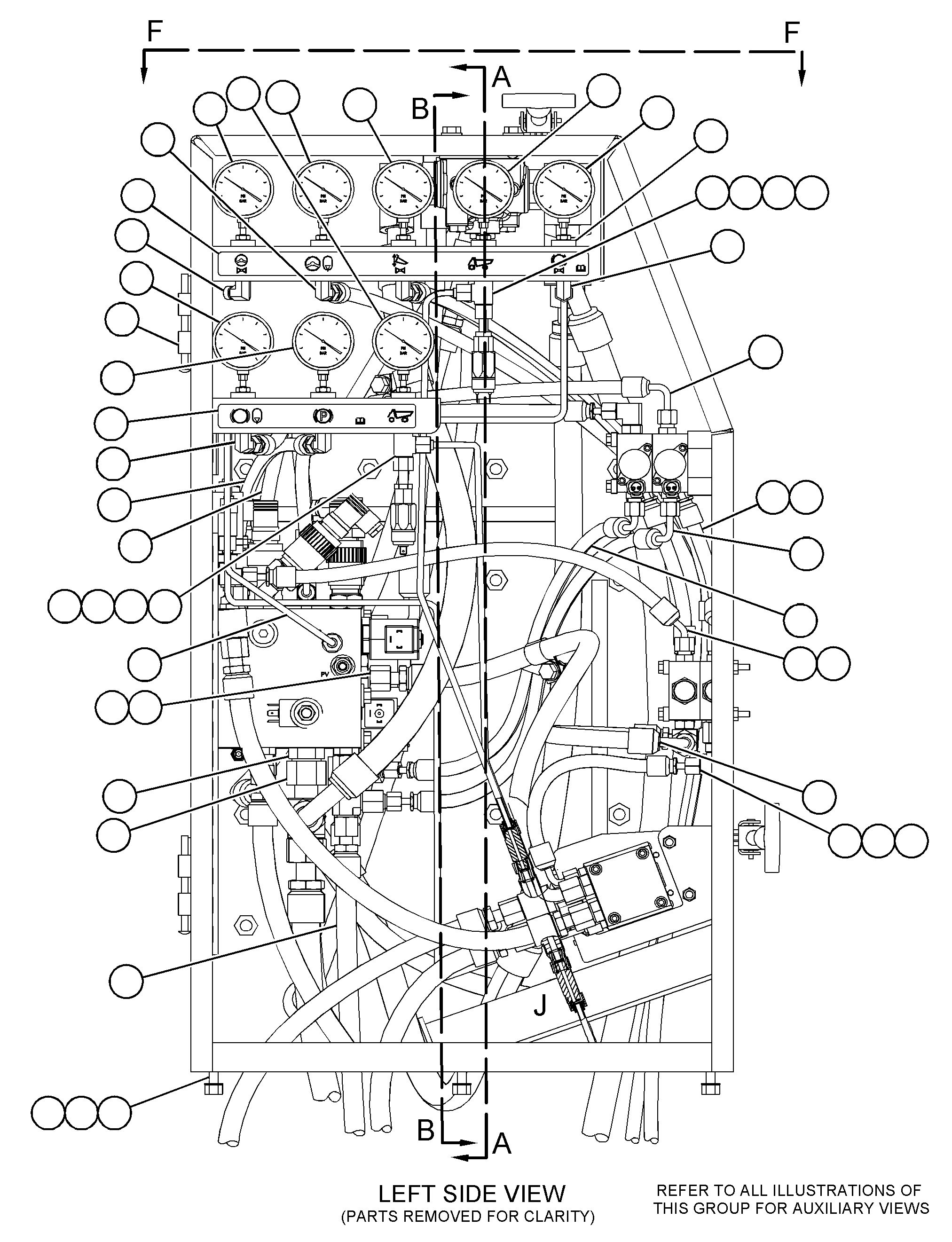

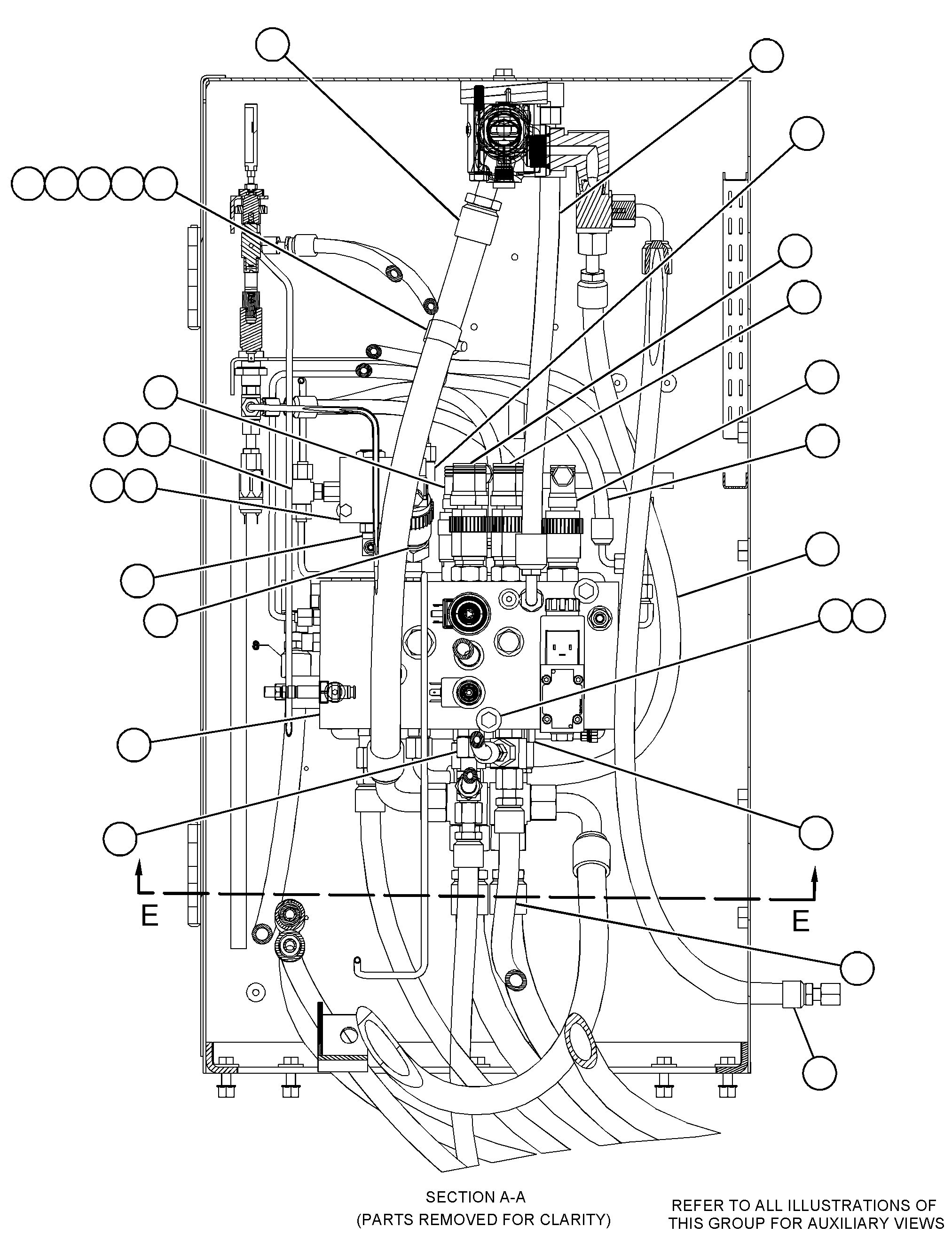

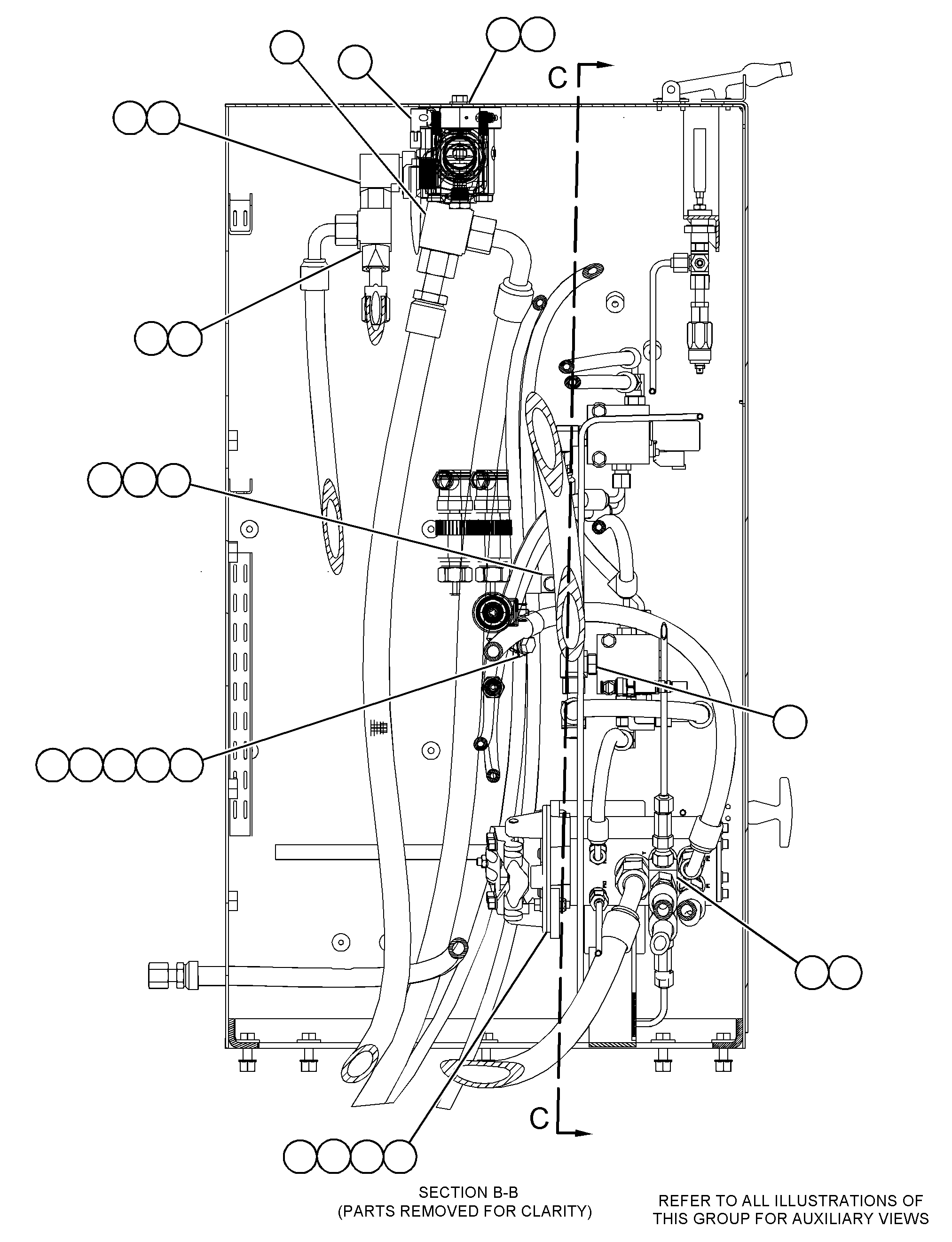

System And Components
566-4040 ENCLOSURE GP-SERVICE CENTERS/N HRZ505-507
Group No: 566-4040
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7J2773 | 1 WASHER (0.438X0.875X1.046-IN THK) | 11 | |
| 1546832 | 2 VALVE GP-RELAY (SERVICE, PARKING BRAKE) | 1 | |
| 2501424 | 3 ELBOW AS | 2 | |
| 6V8724 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2815932 | 4 TEE AS | 1 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 2287090 | SEAL-O-RING | 2 | |
| 3196217 | 5 CONNECTOR AS | 8 | |
| 6V8639 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3218675 | 6 CONNECTOR AS | 6 | |
| 6V8641 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 3295473 | 7 UNION AS | 4 | |
| 6V8997 | UNION | 1 | |
| 2287092 | SEAL-O-RING | 2 | |
| 3309774 | 8 UNION AS | 2 | |
| 6V8995 | UNION (STRAIGHT) | 1 | |
| 2287090 | SEAL-O-RING | 2 | |
| 3574605 | 9 ADAPTER AS | 1 | |
| 8T0151 | ADAPTER | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3855772 | 10 ELBOW AS | 6 | |
| 6V8628 | ELBOW | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 3950807 | 11 HOSE AS | 1 | |
| 3960376 | 12 ADAPTER AS | 2 | |
| 6V8993 | UNION | 1 | |
| 2287088 | SEAL-O-RING | 2 | |
| 4328142 | 13 VALVE AS-SHUTTLE | 3 | |
| 4328999 | 14 SWITCH-PRESSURE (FRONT BRAKE SLACK ADJUSTER) | 1 | |
| 4328999 | 14A SWITCH-PRESSURE (REAR BRAKE SLACK ADJUSTER) | 1 | |
| 4329368 | 15 ADAPTER AS | 2 | |
| 6V8780 | TEE | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 2287088 | SEAL-O-RING | 2 | |
| 4329408 | 16 ADAPTER | 8 | |
| 4329500 | 17 TUBE AS | 1 | |
| 4329501 | 18 TUBE AS | 1 | |
| 4329506 | 19 TUBE AS | 1 | |
| 4329520 | 20 PLATE-ORIFICE | 2 | |
| 4329529 | 21 HOSE AS | 1 | |
| 4329549 | 22 ELBOW AS | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 4489002 | ADAPTER-ELBOW | 1 | |
| 4329640 | 23 PLATE | 1 | |
| 4345513 | 24 ADAPTER | 2 | |
| 4391826 | 25 CONNECTOR AS | 1 | |
| 6V8647 | CONNECTOR | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 4423406 | 26 HOSE AS | 2 | |
| 4491397 | 27 ADAPTER AS | 4 | |
| 6V8647 | CONNECTOR | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 4491413 | 28 ADAPTER AS | 2 | |
| 6V8556 | NUT (1-3/16-12-THD) | 1 | |
| 6V8942 | REDUCER-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 4492597 | 29 FILM-IDENTIFICATION (BRAKE ACCUM, PARK BRAKE, REAR BRAKE) | 1 | |
| 4501744 | 30 MANIFOLD GP-CONTROL | 1 | |
| 4502480 | 31 HOSE AS | 1 | |
| 4511742 | 32 ADAPTER AS | 1 | |
| 6V8773 | TEE-FACE SEAL | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 2287088 | SEAL-O-RING | 2 | |
| 4511744 | 33 HOSE AS | 3 | |
| 4511745 | 34 HOSE AS | 2 | |
| 4511786 | 35 TUBE AS | 1 | |
| 4511787 | 36 TUBE AS | 1 | |
| 4511798 | 37 ADAPTER AS | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 4511759 | ADAPTER | 1 | |
| 4520423 | 38 PLUG AS | 1 | |
| 9S4182 | PLUG (7/16-20-THD) | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 4520425 | 39 ADAPTER AS | 2 | |
| 7X3162 | ADAPTER-SWIVEL | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 4641030 | 40 ADAPTER AS | 2 | |
| 2065122 | TEE | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 4641032 | 41 ADAPTER AS | 2 | |
| 7I8663 | CONNECTOR | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 4687497 | 42 HOSE AS | 1 | |
| 4727009 | 43 FILM-IDENTIFICATION (SERVICE POINTS) | 1 | |
| 4742617 | 44 TEE AS | 1 | |
| 6V9835 | TEE | 1 | |
| 2287088 | SEAL-O-RING | 2 | |
| 4779352 | 45 VALVE GP-SOLENOID (BRAKES) | 2 | |
| 5376063 | VALVE GP-SOLENOID | 1 | |
| 4818981 | 46 HOSE AS | 2 | |
| 5010557 | 47 HOSE AS | 1 | |
| 5208171 | 48 HOSE AS | 1 | |
| 5210918 | 49 HOSE AS | 1 | |
| 0314155 | 50 LOCKNUT (5/16-18-THD) | 3 | |
| 1536229 | 51 ELBOW | 1 | |
| 1730064 | 52 ELBOW | 1 | |
| 1833399 | 53 CONNECTOR AS | 3 | |
| 6V8636 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 1984775 | 54 WASHER-HARD (6.6X15X6-MM THK) | 4 | |
| 2287091 | 55 SEAL-O-RING | 3 | |
| 2385084 | 56 SEAL-O-RING | 2 | |
| 2815972 | 57 CONNECTOR AS | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385082 | SEAL-O-RING | 1 | |
| 2815982 | 58 CONNECTOR AS | 2 | |
| 6V9874 | CONNECTOR | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 2P1279 | 59 LOCKNUT (9/16-18-THD) | 2 | |
| 2P1293 | 60 LOCKNUT (1-3/16-12-THD) | 6 | |
| 3072673 | 61 PLUG AS | 1 | |
| 9S8005 | PLUG (3/4-16-THD) | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196208 | 62 ADAPTER AS | 3 | |
| 5P9617 | ADAPTER | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3196221 | 63 ELBOW AS | 1 | |
| 6V9182 | ELBOW | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3196222 | 64 ELBOW AS | 1 | |
| 6V9200 | ELBOW | 1 | |
| 2147566 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3196225 | 65 ELBOW AS | 1 | |
| 6V8625 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196233 | 66 TEE AS | 1 | |
| 6V8782 | TEE | 1 | |
| 2287090 | SEAL-O-RING | 2 | |
| 2385080 | SEAL-O-RING | 1 | |
| 3196236 | 67 TEE AS | 2 | |
| 6V9839 | TEE-SWIVEL | 1 | |
| 2287092 | SEAL-O-RING | 2 | |
| 3218636 | 68 UNION AS | 2 | |
| 8C8493 | UNION | 1 | |
| 2287092 | SEAL-O-RING | 1 | |
| 2287093 | SEAL-O-RING | 1 | |
| 3295469 | 69 REDUCER AS | 2 | |
| 6V8935 | REDUCER | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 3295517 | 70 TEE AS | 1 | |
| 8T1685 | TEE | 1 | |
| 2287092 | SEAL-O-RING | 2 | |
| 2385084 | SEAL-O-RING | 1 | |
| 3353971 | 71 TEE AS | 1 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 2287089 | SEAL-O-RING | 2 | |
| 3353982 | 72 ELBOW AS | 7 | |
| 6V8627 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287088 | SEAL-O-RING | 1 | |
| 3445675 | 73 NUT (M10X1.5-THD) | 2 | |
| 3912167 | 74 LOCKNUT-FLANGE (3/8X16-THD) | 8 | |
| 3B4505 | 75 LOCKWASHER | 3 | |
| 4329379 | 76 SWITCH AS-PRESSURE (BRAKE PRESSURE WARNING) | 1 | |
| 1667656 | CONNECTOR-SOCKET | 1 | |
| 4329384 | 77 GAUGE-PRESSURE | 5 | |
| 4329556 | 78 SWITCH AS-PRESSURE (BRAKE ACCUMULATOR) | 1 | |
| 1667656 | CONNECTOR-SOCKET | 1 | |
| 4345640 | 79 SWITCH AS-PRESSURE (PARKING BRAKE) | 1 | |
| 1667656 | CONNECTOR-SOCKET | 1 | |
| 4479207 | 80 HOSE AS | 1 | |
| 4479229 | 81 HOSE AS | 1 | |
| 4511741 | 82 SWITCH (PRESSURE TEST) | 2 | |
| 4511761 | 83 BOX AS | 1 | |
| 4544464 | 84 HOSE AS | 1 | |
| 4D6466 | 85 CLIP | 3 | |
| 5160957 | 86 GAUGE-PRESSURE | 3 | |
| 5208170 | 87 HOSE AS | 1 | |
| 5605057 | 88 VALVE AS-BRAKE | 1 | |
| 5638135 | 89 HOSE AS | 1 | |
| 5638136 | 90 HOSE AS | 1 | |
| 5638137 | 91 HOSE AS | 1 | |
| 5638138 | 92 HOSE AS | 1 | |
| 5638139 | 93 HOSE AS | 1 | |
| 5638141 | 94 HOSE AS | 1 | |
| 5638142 | 95 HOSE AS | 1 | |
| 5638143 | 96 HOSE AS | 1 | |
| 5638144 | 97 HOSE AS | 1 | |
| 5P2675 | 98 BOLT (1/4-20X1.75-IN) | 2 | |
| 6D4246 | 99 CLIP (LOOP) | 1 | |
| 6V1889 | 100 CLIP (LOOP) | 1 | |
| 6V8554 | 101 NUT (13/16-16-THD) | 2 | |
| 6V8790 | 102 TEE-FACE SEAL | 1 | |
| 6V8918 | 103 BOLT (5/16-18X1.25-IN) | 3 | |
| 6V9169 | 104 NUT (13/16-16-THD) | 2 | |
| 7X0268 | 105 BOLT (1/4-20X3.5-IN) | 4 | |
| 7X0300 | 106 BOLT (3/8-16X6.5-IN) | 3 | |
| 8T4121 | 107 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4137 | 108 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4195 | 109 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4224 | 110 WASHER-HARD (8.8X16X2-MM THK) | 1 | |
| 8T5391 | 111 BOLT (5/16-18X0.5-IN) | 1 | |
| 9B7237 | 112 BOLT (3/8-16X1.25-IN) | 8 | |
| 1961893 | KIT-SEAL | 1 | |
| 4538924 | KIT-BOOT | 1 | |
| 1628408 | KIT-REPAIR (RELAY VALVE) | 1 |
