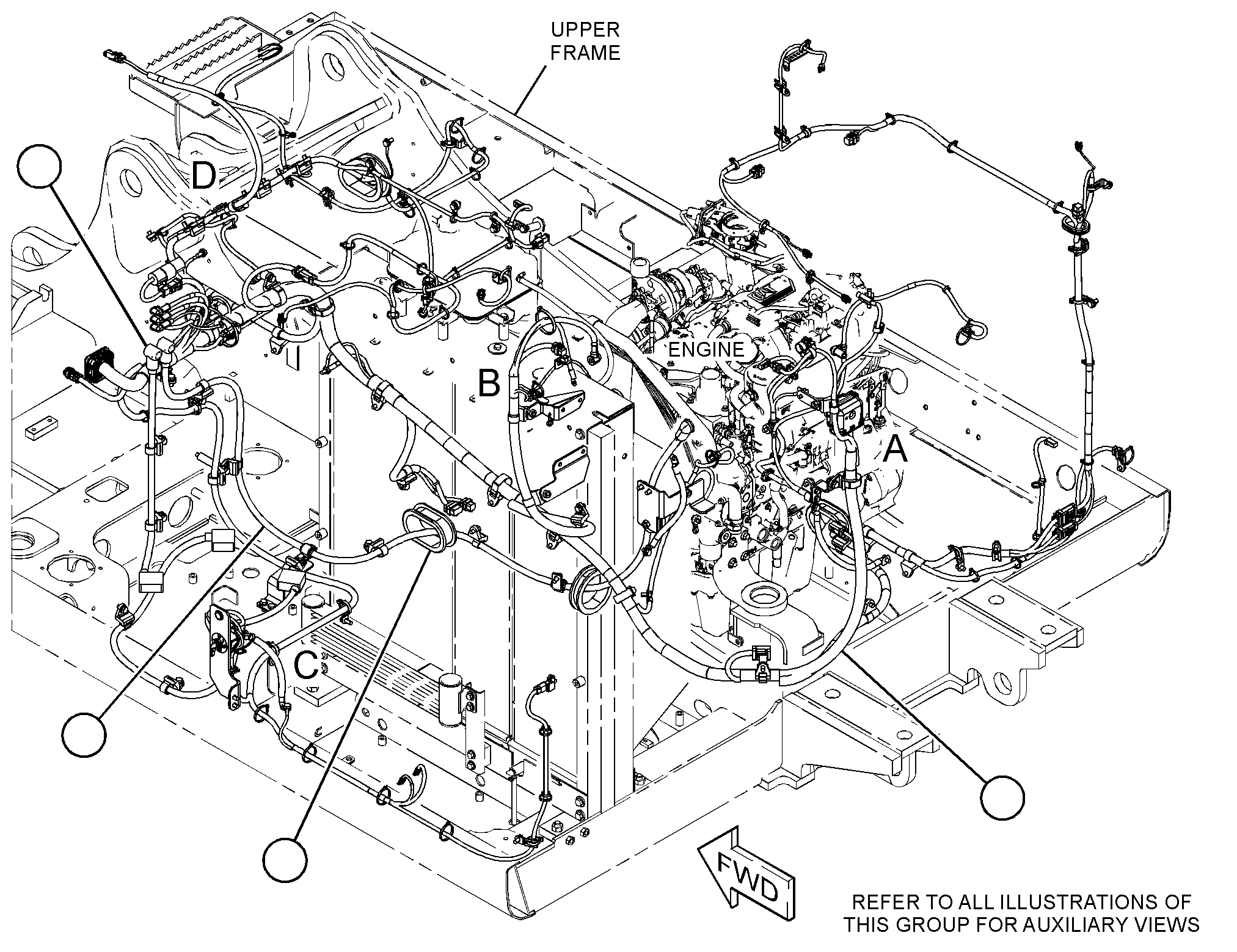

538-4095 WIRING GP-CHASSIS -BATTERYS/N RGP1-UP

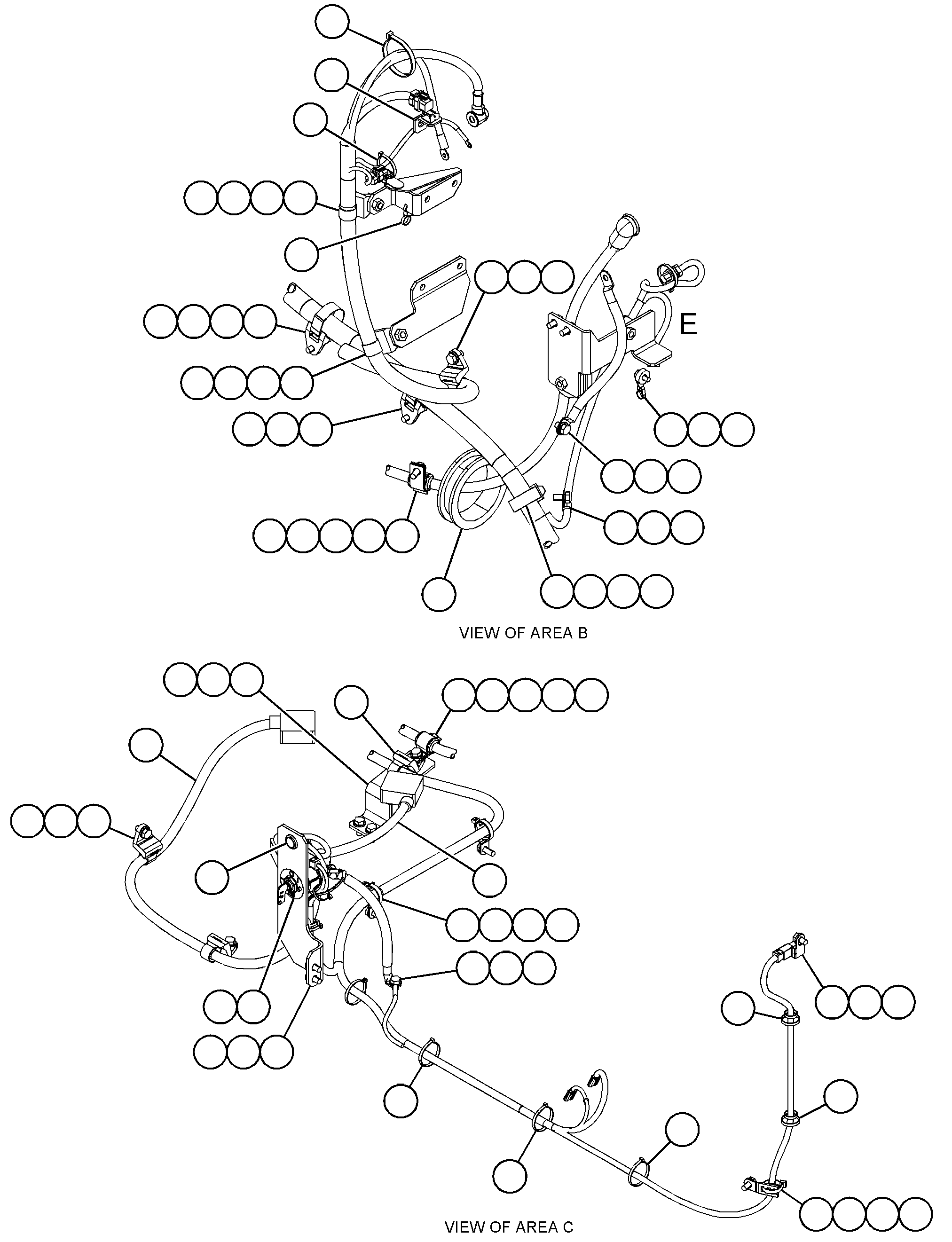

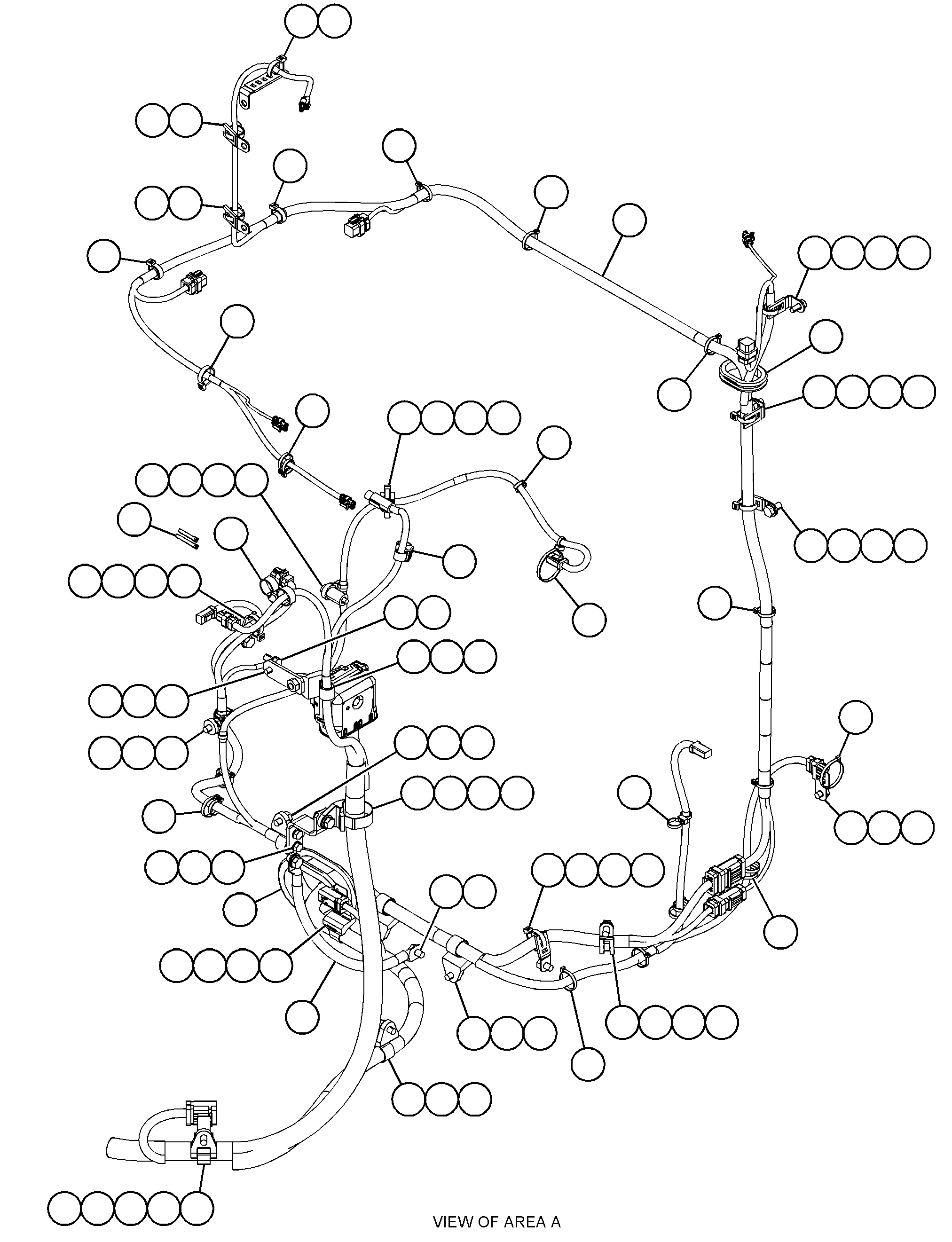

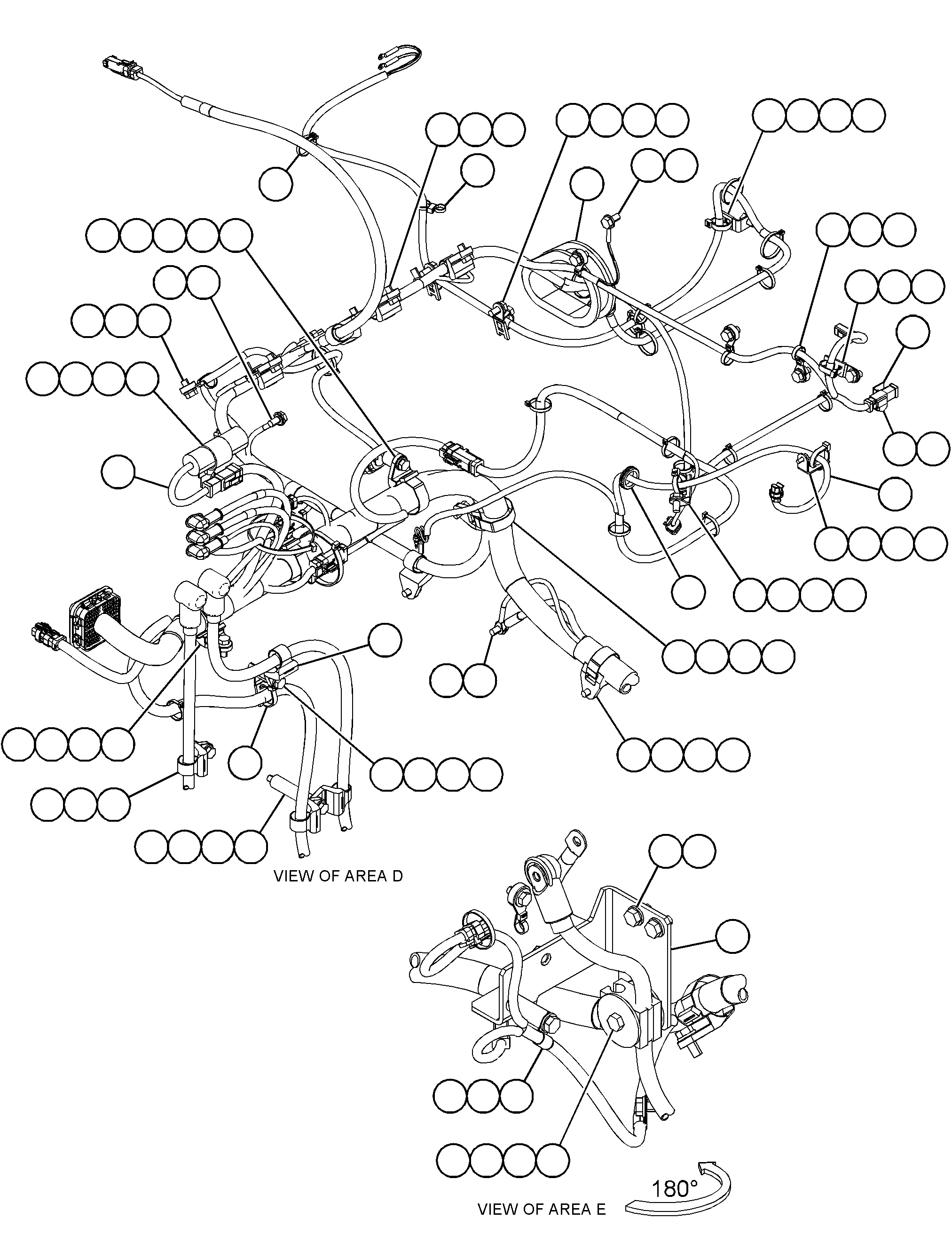

Group No: 538-4095

Part Number	Part Name	Qty
3E8320	1 PLATE-INSTRUCTION (BATTERY)	1
3S2093	2 STRAP-CABLE	55
6G2256	3 CLAMP	1
6G2263	4 SPACER (10.5X19X28.5-MM THK)	3
7K1181	5 STRAP-CABLE	26
7N0719	6 SWITCH GP-DISCONNECT (BATTERY)	1
0874587	7 GROMMET	1
0932064	8 GROMMET	1
1027886	9 SPACER (11X20X80-MM THK)	1
1114836	10 CLIP	7
1114837	11 CLIP	26
1114839	12 STRAP	10
1160118	13 CLIP	7
1321805	14 STRAP AS-GROUND	1
1321806	15 STRAP AS-GROUND	1
1496549	16 GROMMET	1
1910348	17 GROMMET	1
2024004	18 GROMMET	1
2661223	19 GROMMET	1
2980663	20 CLIP (LADDER)	1
3280132	21 CABLE AS	1
9G0002	COVER AS-TERMINAL (RED)	1
9G0005	COVER AS-TERMINAL (BLACK)	1
8L8413	STRAP-CABLE (WHITE)	1
8C5918	TERMINAL AS-BATTERY (NEGATIVE)	1
8T9756	TERMINAL AS-BATTERY (POSITIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
1598049	CABLE (00-GA, RED)(31-CM)
3423219	22 CABLE AS (BREAKER)	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
9G0002	COVER AS-TERMINAL (RED)	1
8L8413	STRAP-CABLE (WHITE)	1
8T9756	TERMINAL AS-BATTERY (POSITIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
1598049	CABLE (00-GA, RED)(75-CM)
3010091	COVER-TERMINAL (RED)	1
3423221	23 CABLE AS (DISCONNECT)	1
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
6V2722	TUBE-HEAT SHRINK (25.4-MM DIA)(0.1-M)
9G0005	COVER AS-TERMINAL (BLACK)	1
8L8413	STRAP-CABLE (WHITE)	1
9G8909	COVER-TERMINAL (BLACK)	1
8C5918	TERMINAL AS-BATTERY (NEGATIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
1598050	CABLE (00-GA, BLACK)(114-CM)
3508116	24 BRACKET AS	1
3508531	25 BRACKET AS	1
3640350	26 BRACKET AS	1
3966500	27 CONTROL GP-ELECTRONIC (VOLTAGE, LOAD PROTECTION, 24-VOLT)	1
4193911	28 LAMP GP-INDICATOR (12/24-VOLT, AMBER)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
1028802	KIT-RECEPTACLE (2-PIN)	1
4515124	29 PLATE AS	1
8T3490	NUT-WELD (M10X1.5-THD)	1
4567293	30 BRACKET AS	1
8T3490	NUT-WELD (M10X1.5-THD)	1
4567298	31 BRACKET AS	1
8T3490	NUT-WELD (M10X1.5-THD)	2
9R3761	BOSS (M10X1.5X51-MM)	1
1831051	CLIP	1
4722165	32 BRACKET AS	1
8T3490	NUT-WELD (M10X1.5-THD)	1
1211029	CLIP	1
4881254	33 HARNESS AS-CHASSIS (CLEAN EMISSIONS MODULE)	1
4881255	34 CABLE AS-STARTER	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
6V2722	TUBE-HEAT SHRINK (25.4-MM DIA)(0.1-M)
8N0869	COVER-TERMINAL (RED)	1
1598049	CABLE (00-GA, RED)(268-CM)
3010091	COVER-TERMINAL (RED)	1
4881256	35 CABLE AS-GROUND	1
1598050	CABLE (00-GA, BLACK)(28-CM)
2167790	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
3150180	TERMINAL-RING (00-GA, 3/8-IN SCREW)	1
5105277	36 BRACKET AS	1
7T1099	LINK	1
1831051	CLIP	1
5191520	37 HARNESS AS-CHASSIS (INLET AIR)	1
5235759	38 HARNESS AS-CHASSIS (MAIN)	1
0919035	39 SPACER (11X25X20-MM THK)	2
1114838	40 CLIP	10
1325789	41 CLIP (LADDER)	4
1566175	42 CLIP (LADDER)	1
1772215	43 STRAP-DUAL CLAMP	2
2041611	44 STRAP-CABLE (DUAL)	2
2G8767	45 WASHER (10.5X60X3-MM THK)	2
3068526	46 GROMMET	2
3474734	47 CLIP	1
4D7388	48 CLIP	1
4D7794	49 CLIP	2
4P7581	50 CLIP (LADDER)	14
5P4116	51 WASHER-HARD (8.8X20.5X2-MM THK)	2
7I2673	52 STRAP-CABLE	3
7X0818	53 BOLT (M8X1.25X45-MM)	1
7X2621	54 BOLT (M10X1.5X12-MM)	1
8T1889	55 CLIP (SLOT)	2
8T1890	56 CLIP (TAB)	2
8T4121	57 WASHER-HARD (11X21X2.5-MM THK)	78
8T4136	58 BOLT (M10X1.5X25-MM)	12
8T4137	59 BOLT (M10X1.5X20-MM)	48
8T4185	60 BOLT (M10X1.5X50-MM)	1
8T4186	61 BOLT (M10X1.5X40-MM)	2
8T4189	62 BOLT (M8X1.25X20-MM)	4
8T4191	63 BOLT (M10X1.5X16-MM)	10
8T4195	64 BOLT (M10X1.5X30-MM)	2
8T4196	65 BOLT (M10X1.5X35-MM)	1
8T4200	66 BOLT (M8X1.25X16-MM)	1
8T4224	67 WASHER-HARD (8.8X16X2-MM THK)	4
8T4970	68 BOLT (M6X1X14-MM)	1
8T6466	69 BOLT (M10X1.5X60-MM)	1
8T6685	70 BOLT (M10X1.5X110-MM)	1
9X8256	71 WASHER (6.6X12X2-MM THK)	1
