System And Components

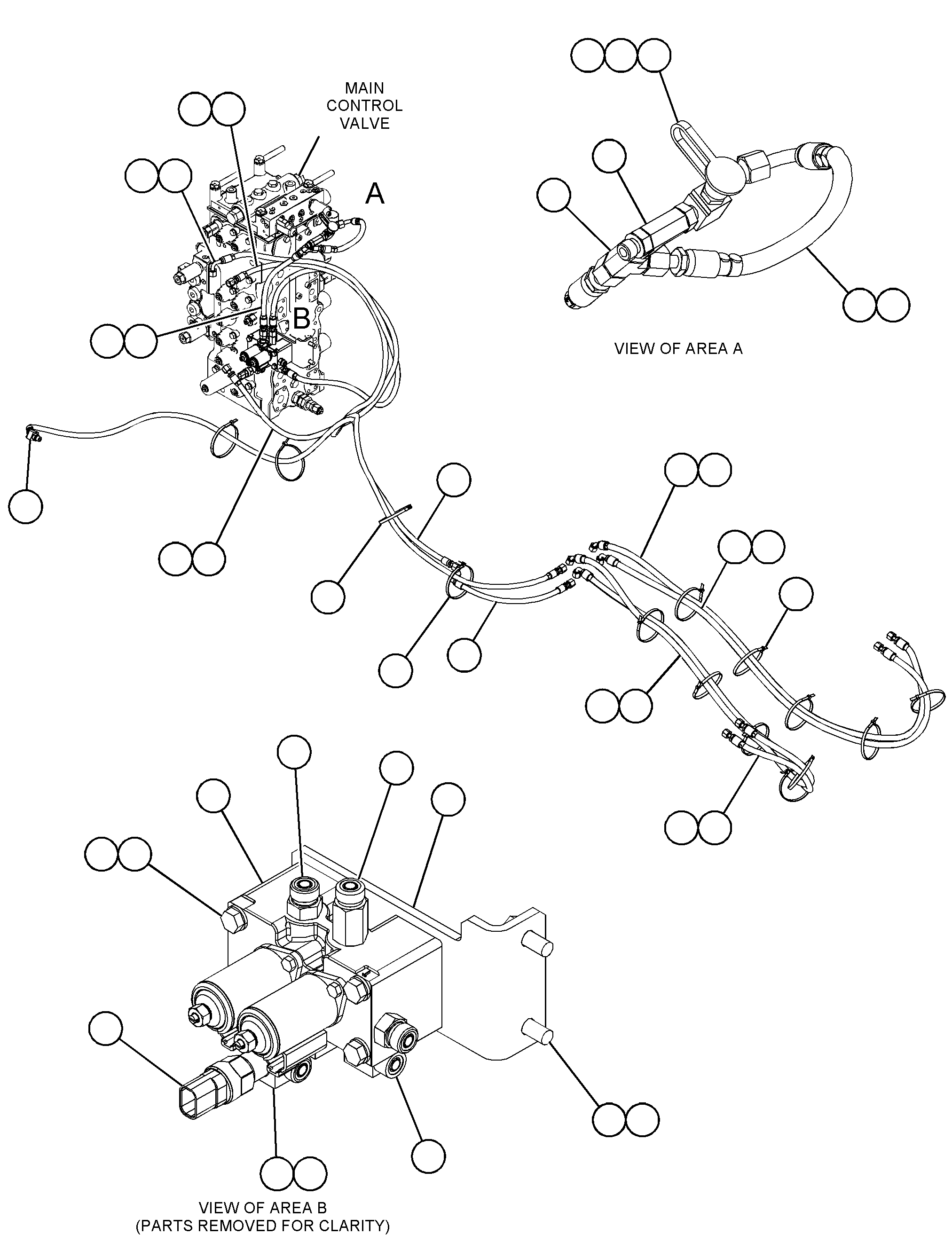

505-9122 LINES GP-PILOT -COMBINED FUNCTION, SMARTBOOMS/N RGP1-UP
Group No: 505-9122
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I1704 | 1 HOSE AS | 1 | |
| 4I1754 | 2 HOSE AS | 1 | |
| 4I6136 | 3 HOSE AS | 1 | |
| 4I9521 | 4 BAND-MARKER (RED, L1) | 2 | |
| 4I9522 | 5 BAND-MARKER (YELLOW, L2) | 2 | |
| 4I9523 | 6 BAND-MARKER (BLUE, L3) | 6 | |
| 4I9525 | 7 BAND-MARKER (ORANGE, R1) | 2 | |
| 4I9526 | 8 BAND-MARKER (WHITE, R2) | 6 | |
| 7K1181 | 9 STRAP-CABLE | 14 | |
| 1031361 | 10 HOSE AS | 1 | |
| 1048783 | 11 HOSE AS | 1 | |
| 1335813 | 12 BAND-MARKER (GRAY, P) | 2 | |
| 1488336 | 13 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488338 | 14 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T0075 | CONNECTOR | 1 | |
| 1488435 | 15 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1645546 | 16 TEE AS | 1 | |
| 3E7410 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1926775 | 17 HOSE AS | 1 | |
| 2866731 | 18 HOSE AS | 2 | |
| 3200013 | 19 HOSE AS | 2 | |
| 3350223 | 20 VALVE GP-SOLENOID (BOOM/STICK REGENERATION) | 1 | |
| 3424178 | 21 SUPPORT AS | 1 | |
| 3471233 | 22 HOSE AS | 1 | |
| 4545075 | 23 SENSOR GP-PRESSURE | 1 | |
| 5036542 | 24 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 5036541 | TEE | 1 | |
| 1488353 | 25 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488378 | 26 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1645567 | 27 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1646874 | 28 FITTING AS-ELBOW (QUICK DISCONNECT, MALE) | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0857356 | FITTING | 1 | |
| 6V0852 | 29 CAP-DUST | 1 | |
| 8T3647 | 30 BOLT (M8X1.25X80-MM) | 4 | |
| 8T4121 | 31 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4136 | 32 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4224 | 33 WASHER-HARD (8.8X16X2-MM THK) | 4 |
