System And Components

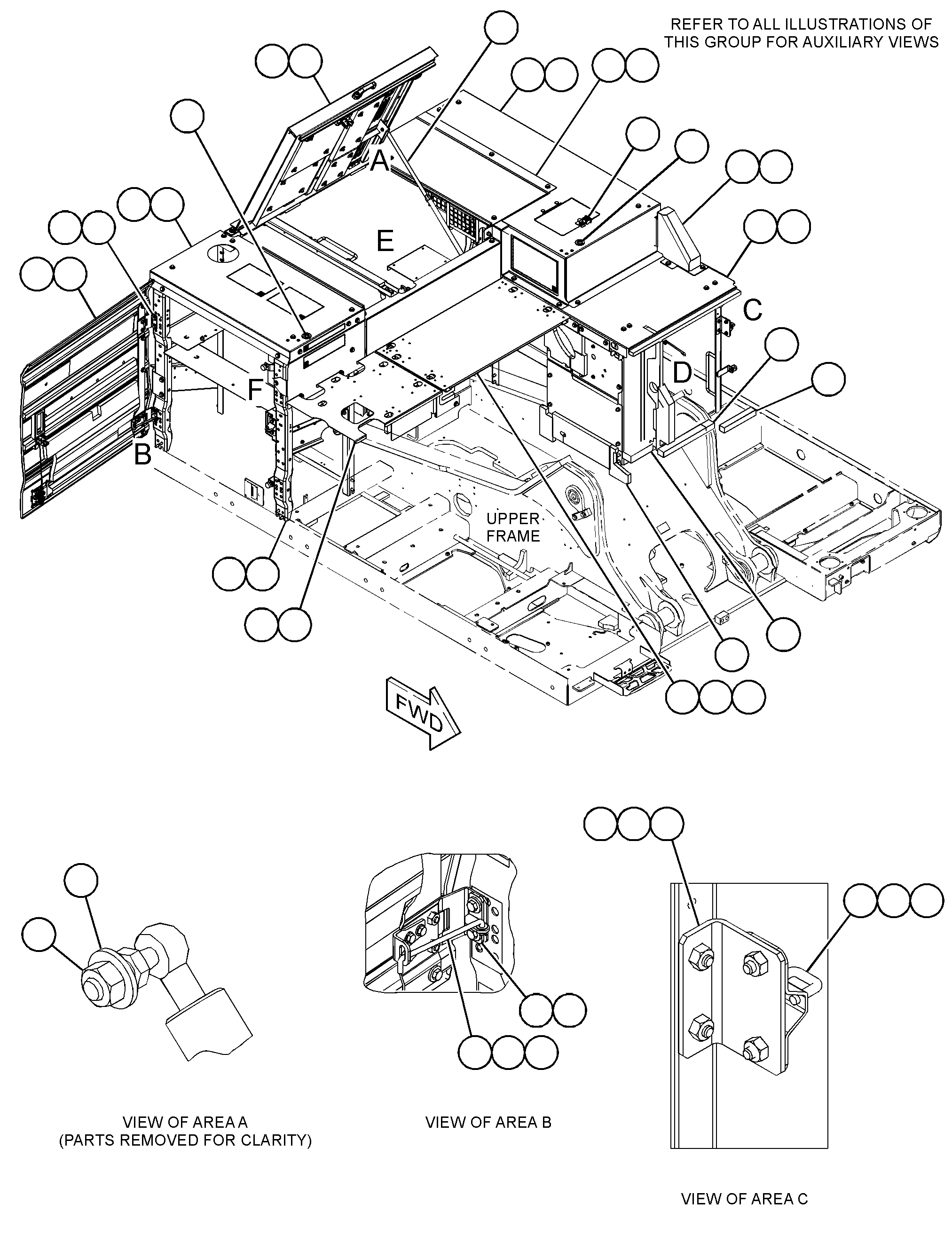

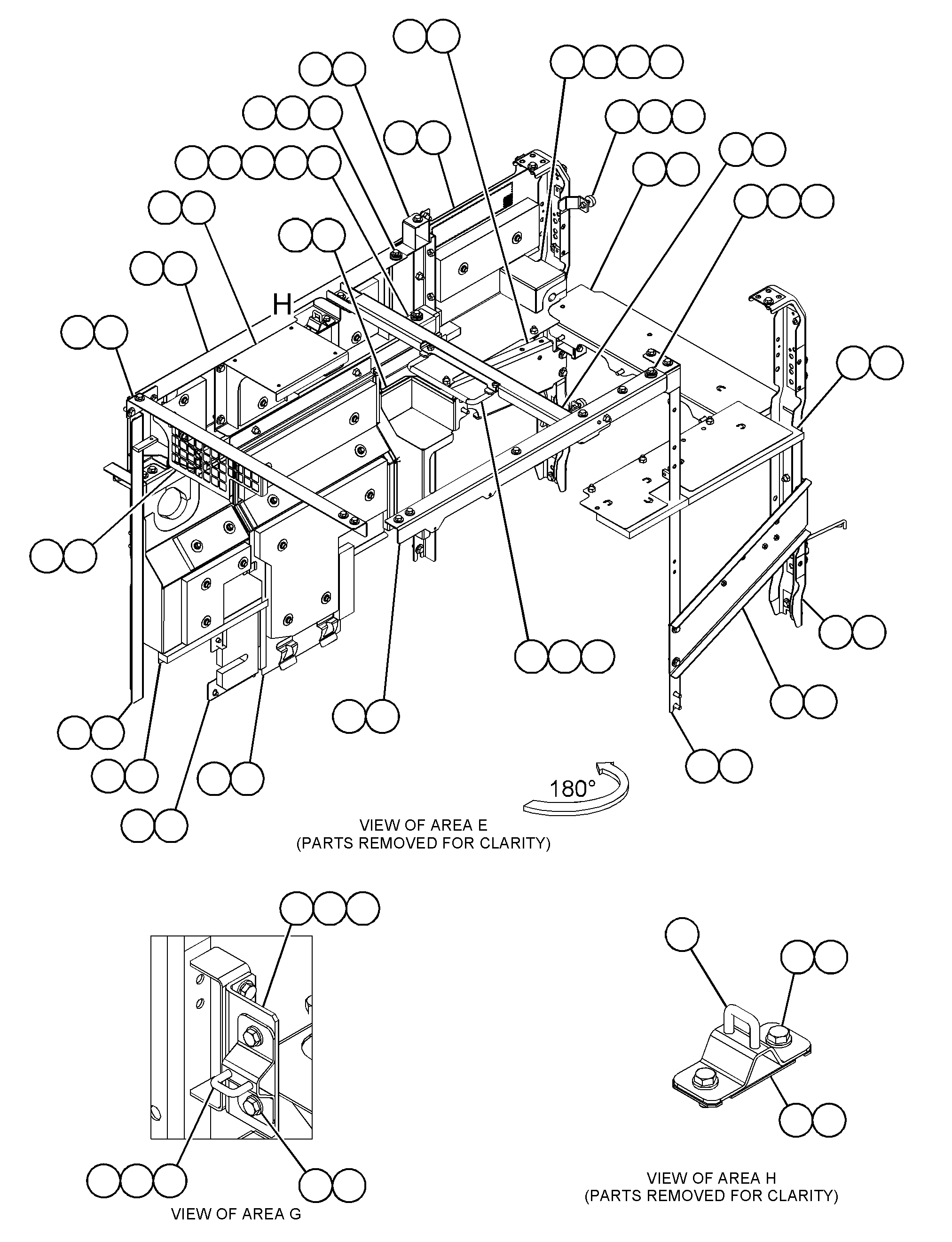

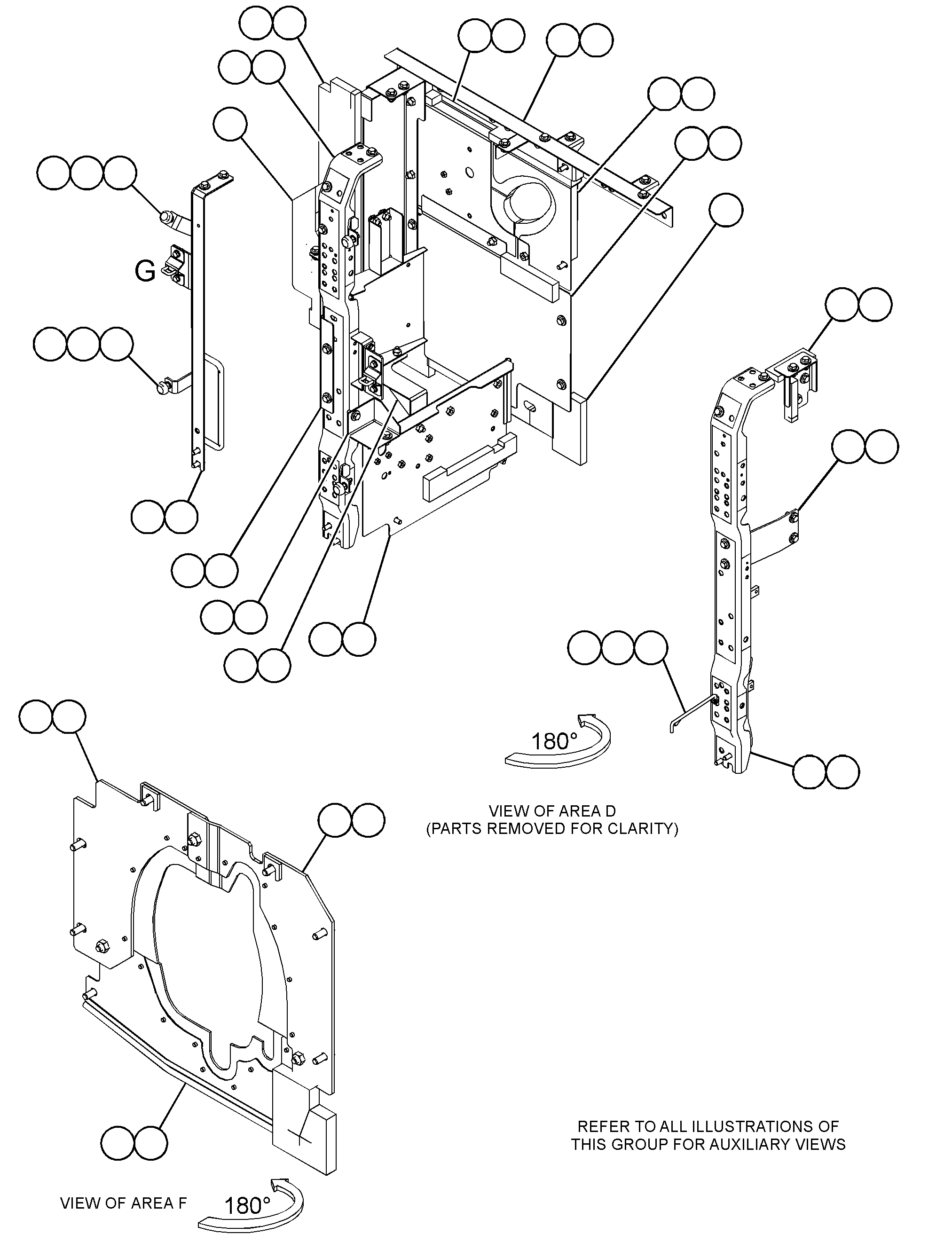

498-7496 HOOD & GUARD GPS/N JHD1-UP
Group No: 498-7496
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I1978 | 1 SPACER (24X38X4-MM THK) | 2 | |
| 5C7261 | 2 NUT (M8X1.25-THD) | 2 | |
| 5P4116 | 3 WASHER-HARD (8.8X20.5X2-MM THK) | 2 | |
| 2462641 | 4 PADLOCK GP | 1 | |
| 5P8500 | KEY | 1 | |
| 7Y2853 | 5 SPACER (13X38X5-MM THK) | 5 | |
| 7Y2854 | 6 SPACER (24X38X3-MM THK) | 1 | |
| 7Y8990 | 7 SPACER (24X38X1.5-MM THK) | 2 | |
| 8T4121 | 8 WASHER-HARD (11X21X2.5-MM THK) | 25 | |
| 8T4133 | 9 NUT (M10X1.5-THD) | 6 | |
| 8T4136 | 10 BOLT (M10X1.5X25-MM) | 16 | |
| 3B4611 | 11 PIN-COTTER | 3 | |
| 1358573 | 12 BOLT AS | 7 | |
| 1358575 | 13 BOLT AS | 146 | |
| 1358577 | 14 BOLT AS | 10 | |
| 1358579 | 15 BOLT AS | 2 | |
| 1703016 | 16 SPACER (19X32X2-MM THK) | 8 | |
| 1709360 | 17 GROMMET | 2 | |
| 3272886 | 18 STRIKER AS | 4 | |
| 3432465 | 19 BUMPER | 6 | |
| 5089583 | 20 BRACKET AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 5089584 | 21 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 5089685 | 22 LINER | 1 | |
| 5102391 | 23 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 3 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 8 | |
| 5102420 | 24 SUPPORT AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 8 | |
| 5103106 | 25 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5103140 | 26 SHEET AS | 1 | |
| 3485409 | SEAL (4-DM) | ||
| 5103164 | 27 LINER | 1 | |
| 5761793 | 28 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 11 | |
| 5167469 | 29 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 5167545 | 30 LINER | 1 | |
| 5167546 | 31 LINER | 1 | |
| 5761769 | 32 SUPPORT AS | 1 | |
| 5228605 | SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 5 | |
| 5228630 | 33 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 4 | |
| 5773753 | 34 SUPPORT AS | 1 | |
| 5259771 | 35 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 7 | |
| 5259782 | 36 SHEET AS | 1 | |
| 4K9429 | RIVET-POP | 4 | |
| 9X6165 | WASHER (6.5X22X2.5-MM THK) | 4 | |
| 5103370 | SHEET-RUBBER | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 5259784 | 37 SHEET AS | 1 | |
| 4K9429 | RIVET-POP | 6 | |
| 9X6165 | WASHER (6.5X22X2.5-MM THK) | 6 | |
| 5103372 | SHEET-RUBBER | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5277804 | 38 SHIM (1-MM THK) | 1 | |
| 5277805 | 39 SHIM (2-MM THK) | 1 | |
| 5283558 | 40 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 5283561 | 41 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 5283563 | 42 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5283564 | 43 SUPPORT AS | 1 | |
| 5283651 | LINER | 1 | |
| 5283565 | SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 5283566 | 44 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5761781 | 45 COVER AS-SOUND SUPPRESSION | 1 | |
| 5283665 | LINER | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5761771 | 46 COVER GP-ACCESS | 1 | |
| 5283583 | 47 COVER AS-SOUND SUPPRESSION | 1 | |
| 4I7924 | WASHER (4.5X40X1.2-MM THK) | 3 | |
| 6P2216 | CAP (PUSH ON) | 3 | |
| 5103280 | SILENCER | 1 | |
| 1019848 | SEAL (1-M) | ||
| 5773751 | 48 SUPPORT | 1 | |
| 5359171 | 49 SHEET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 5359190 | 50 COVER AS | 1 | |
| 3485409 | SEAL (3-DM) | ||
| 5359211 | 51 SUPPORT AS-SOUND SUPPRESSION | 1 | |
| 5360278 | 52 PLATE | 1 | |
| 5432338 | 53 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 10 | |
| 5462598 | 54 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5464979 | 55 ROD AS | 3 | |
| 5474722 | 56 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 6 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5474745 | 57 DOOR GP-ACCESS | 1 | |
| 5480152 | 58 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 14 | |
| 5480191 | 59 SHEET AS | 1 | |
| 4I7924 | WASHER (4.5X40X1.2-MM THK) | 2 | |
| 6P2216 | CAP (PUSH ON) | 2 | |
| 5103399 | SILENCER | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5480194 | 60 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5480208 | 61 COVER AS | 1 | |
| 5489976 | INSULATION | 2 | |
| 5283572 | 62 SHEET AS | 1 | |
| 5283661 | INSULATION | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 5432337 | 63 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 9 | |
| 5432339 | 64 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 9 | |
| 5773722 | 65 PLATE AS | 1 | |
| 3485409 | SEAL (5-DM) | ||
| 5192384 | LINER | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 6 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 5 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 5 | |
| 5480189 | 66 COVER AS | 1 | |
| 1019848 | SEAL (1-M) | ||
| 5480197 | 67 PLATE AS | 1 | |
| 5480299 | 68 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 5480300 | 69 HANDLE AS | 1 | |
| 5480316 | 70 COVER AS | 1 | |
| 4I7924 | WASHER (4.5X40X1.2-MM THK) | 6 | |
| 6P2216 | CAP (PUSH ON) | 6 | |
| 5103263 | SILENCER | 3 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 6 | |
| 5480331 | 71 HOOD GP-ENGINE | 1 | |
| 5480376 | 72 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 6 | |
| 5761767 | 73 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5480379 | 74 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5480381 | 75 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5480389 | 76 COVER AS | 1 | |
| 5480413 | 77 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5480420 | 78 SHEET AS | 1 | |
| 5480452 | 79 SPRING AS-GAS (ENGINE HOOD) | 1 | |
| 2658463 | STUD-BALL (M8X1.25X16-MM) | 2 | |
| 5494357 | FILM-WARNING (HIGH PRESSURE, READ OMM) | 1 | |
| 5761765 | 80 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5359273 | LINER | 1 | |
| 5761766 | LINER | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 5 | |
| 5512612 | 81 LINER | 1 | |
| 5761764 | 82 LINER | 1 |
