System And Components

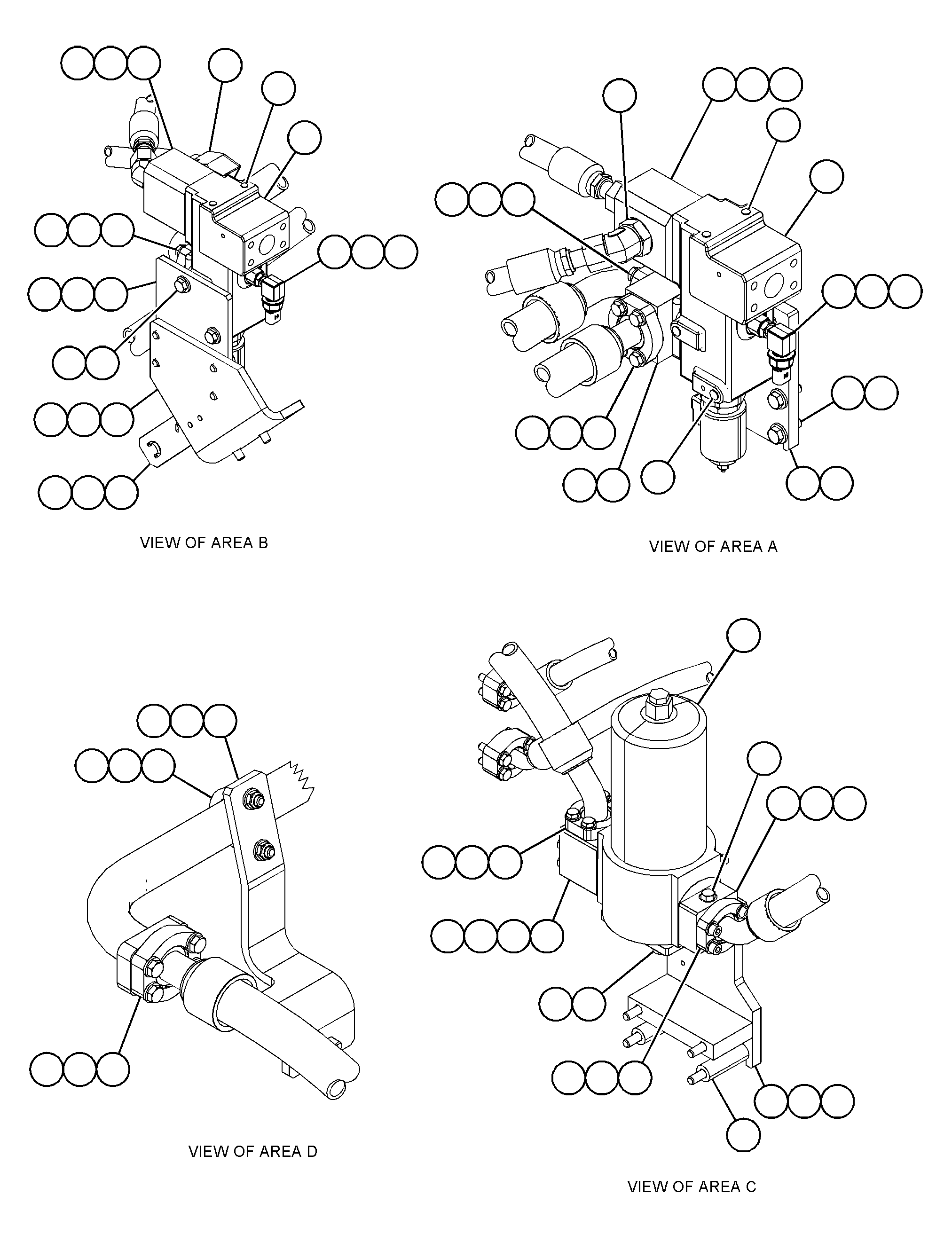

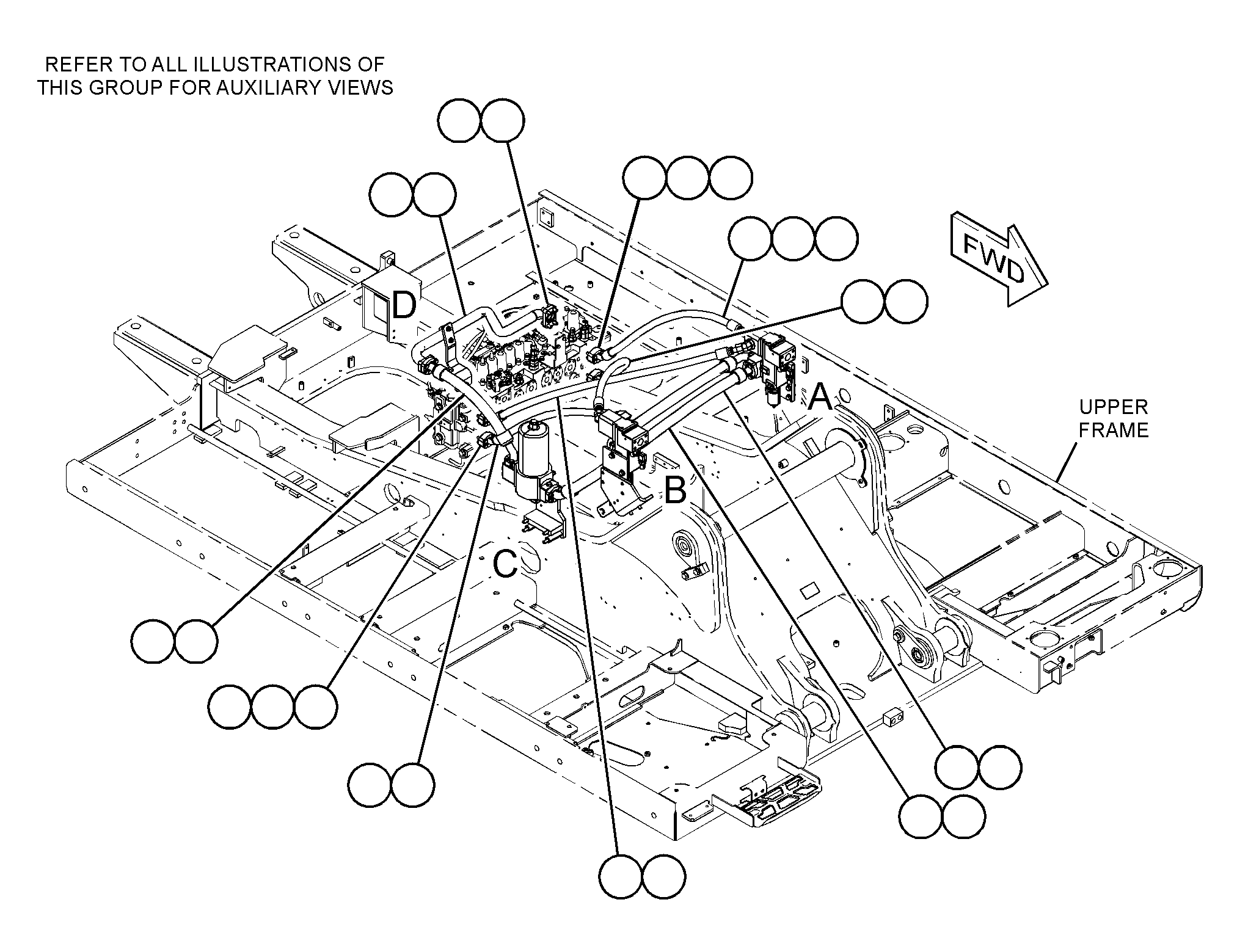

538-8827 LINES GP-FRONT -CMB FCTN, ELEC CONT, ELEC RLFS/N JHD1-UP
Group No: 538-8827
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1P3704 | 1 SEAL-RECTANGULAR | 2 | |
| 4J0524 | 2 SEAL-O-RING | 1 | |
| 8T4182 | 3 BOLT (M10X1.5X45-MM) | 16 | |
| 8T4196 | 4 BOLT (M10X1.5X35-MM) | 16 | |
| 8T4192 | 5 BOLT (M12X1.75X25-MM) | 2 | |
| 8T5041 | 6 BOLT (M12X1.75X120-MM) | 4 | |
| 1P3702 | 7 SEAL-RECTANGULAR | 4 | |
| 1P4578 | 8 FLANGE-HALF | 12 | |
| 4J0522 | 9 SEAL-O-RING | 9 | |
| 7X0584 | 10 WASHER-HARD (13.5X20.5X2-MM THK) | 4 | |
| 7Y5237 | 11 U-BOLT | 1 | |
| 8T4121 | 12 WASHER-HARD (11X21X2.5-MM THK) | 50 | |
| 8T4136 | 13 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4137 | 14 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4139 | 15 BOLT (M12X1.75X30-MM) | 10 | |
| 8T4178 | 16 BOLT (M10X1.5X90-MM) | 8 | |
| 8T4223 | 17 WASHER-HARD (13.5X25.5X3-MM THK) | 20 | |
| 8T4956 | 18 BOLT (M12X1.75X35-MM) | 4 | |
| 8T9403 | 19 FLANGE-HALF | 8 | |
| 0964883 | 20 LOCKNUT (M10X1.5-THD) | 2 | |
| 1072723 | 21 BOLT-SOCKET HEAD (M12X1.75X20-MM) | 2 | |
| 1081782 | 22 BOLT-SOCKET HEAD (M12X1.75X90-MM) | 8 | |
| 1488313 | 23 ADAPTER AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 5P6944 | ADAPTER | 1 | |
| 1488339 | 24 CONNECTOR AS | 1 | |
| 6V8716 | CONNECTOR (STRAIGHT) | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488360 | 25 ELBOW AS | 1 | |
| 6V9182 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488407 | 26 PLUG AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488411 | 27 PLUG AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 1504049 | 28 ELBOW AS | 2 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T4149 | ELBOW | 1 | |
| 1646874 | 29 FITTING AS-ELBOW (QUICK DISCONNECT, MALE) | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0857356 | FITTING | 1 | |
| 1708553 | 30 BOLT-SOCKET HEAD (M12X1.75X40-MM) | 4 | |
| 2270722 | 31 BLOCK | 1 | |
| 2551826 | 32 SPACER (13.5X25X75.8-MM THK) | 2 | |
| 2667913 | 33 FILTER GP-OIL (HYDRAULIC) | 1 | |
| 2970265 | 34 VALVE GP-SOLENOID & RELIEF (1-WAY, 2-WAY FLOW)(EXTEND) | 1 | |
| 2970265 | 34A VALVE GP-SOLENOID & RELIEF (1-WAY, 2-WAY FLOW)(RETRACT) | 1 | |
| 3259267 | 35 SUPPORT | 1 | |
| 3259268 | 36 SUPPORT | 1 | |
| 3302470 | 37 BLOCK | 2 | |
| 3386971 | 38 SENSOR GP-PRESSURE (HYDRAULIC OIL)(EXTEND) | 1 | |
| 3386971 | 38A SENSOR GP-PRESSURE (HYDRAULIC OIL)(RETRACT) | 1 | |
| 3507308 | 39 BLOCK | 1 | |
| 3527063 | 40 CAP | 4 | |
| 3527064 | 41 CAP | 4 | |
| 5122635 | 42 PLATE | 1 | |
| 5283383 | 43 PIPE AS | 1 | |
| 5391611 | 44 SUPPORT | 1 | |
| 5413419 | 45 SUPPORT AS | 1 | |
| 1053483 | 46 BOLT-SOCKET HEAD (M10X1.5X70-MM) | 4 | |
| 5147112 | 47 HOSE AS | 1 | |
| 5147115 | 48 HOSE AS | 1 | |
| 5147118 | 49 HOSE AS | 1 | |
| 5285518 | 50 HOSE AS | 1 | |
| 5413423 | 51 HOSE AS | 1 | |
| 5600338 | 52 HOSE AS | 1 | |
| 5413429 | 53 HOSE AS | 1 | |
| 5473926 | 54 BLOCK | 1 | |
| 5536344 | 55 SUPPORT | 1 |
