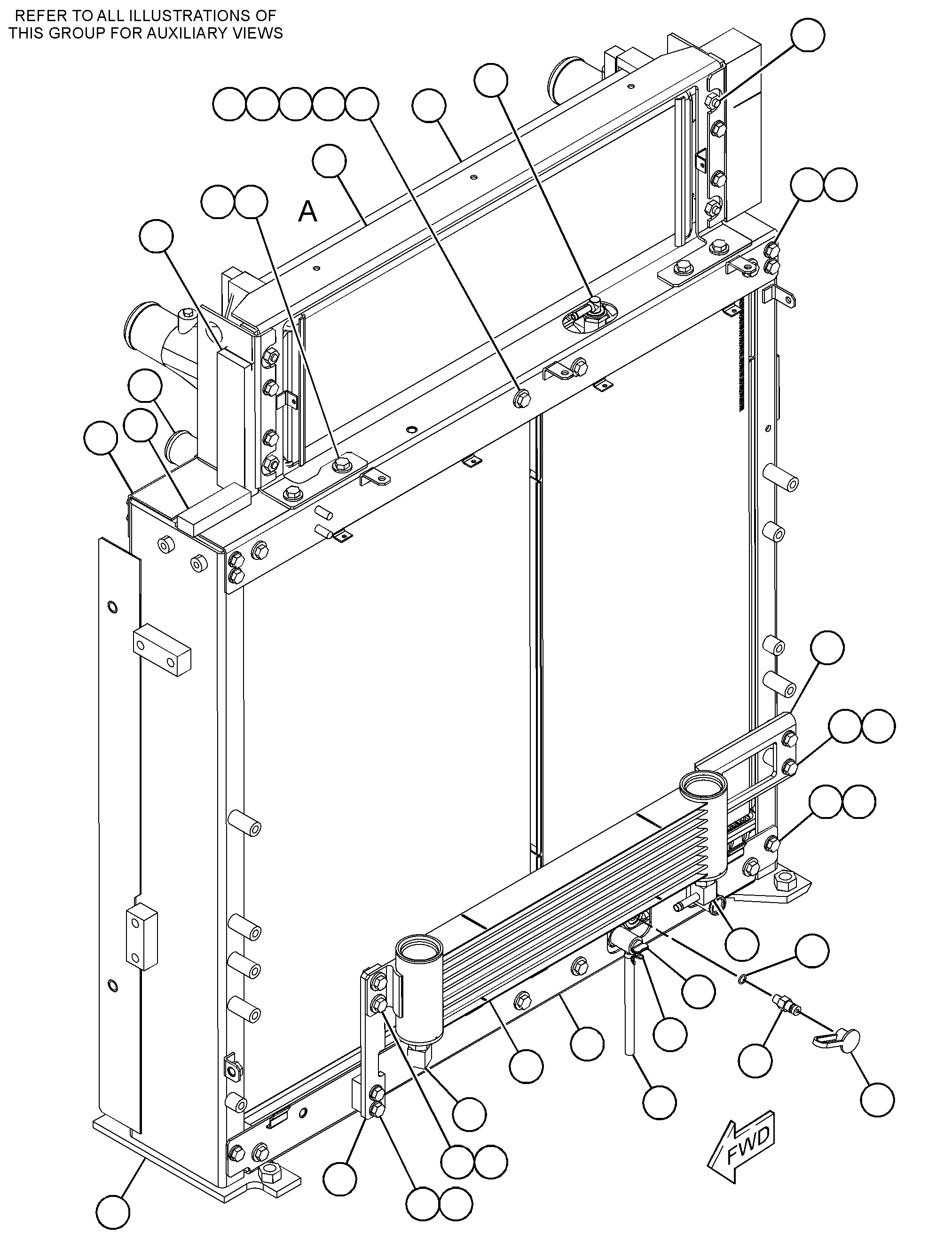

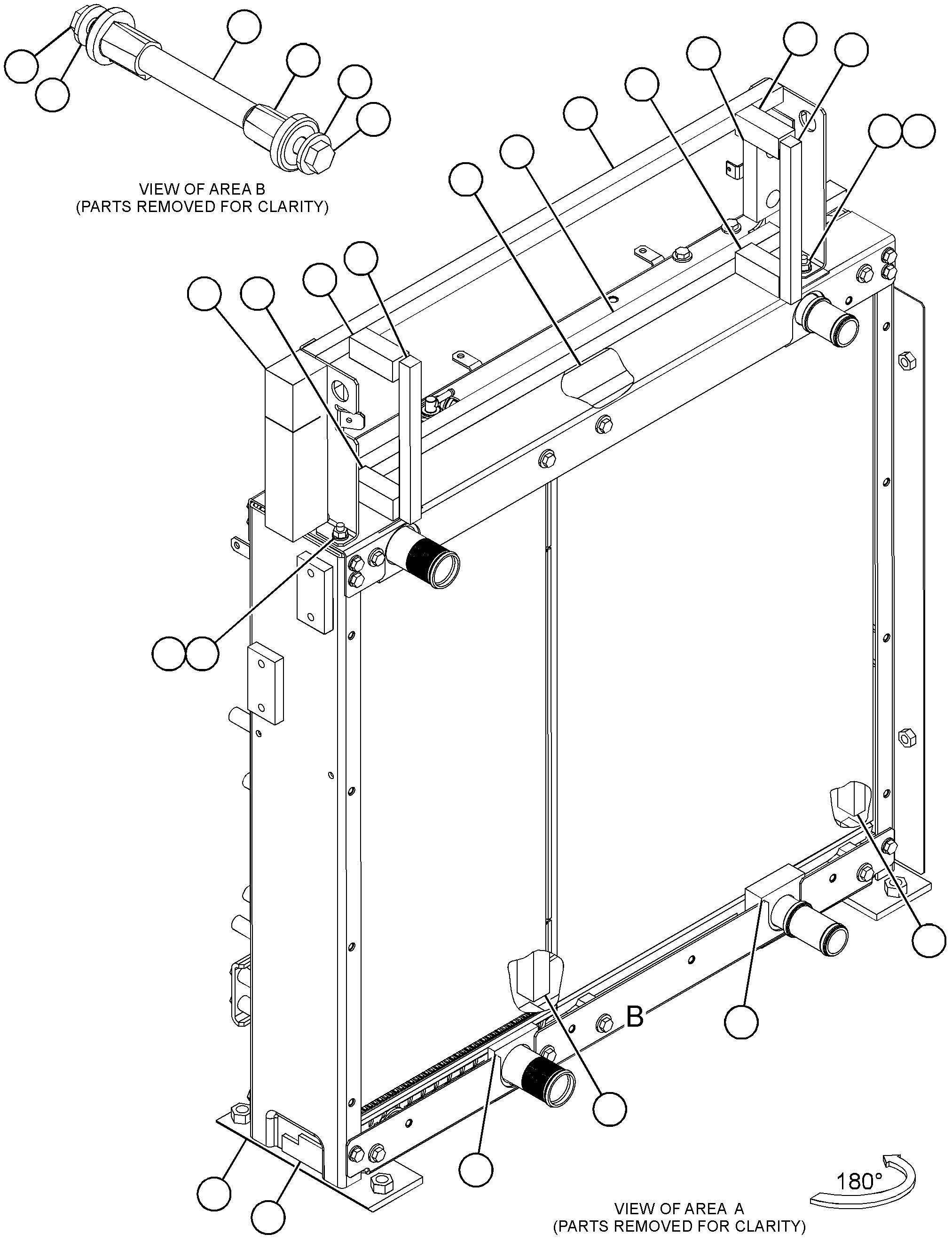

508-6285 RADIATOR & HYD OIL COOLER GPS/N XBJ1-UP; YCP1-UP

Group No: 508-6285
Part NumberPart NameQty
09640351 CLIP1
36997932 SEAL-AIR4
38579223 SEAL-AIR2
38760684 SEAL-AIR2
42340305 CORE AS-FUEL COOLER1
44684786 SEAL-AIR1
50862867 FRAME AS-RADIATOR1
50862878 FRAME AS-RADIATOR1
50862889 FRAME AS1
508628910 FRAME AS-RADIATOR1
508629011 CORE AS-RADIATOR1
547615011A DRAIN AS1
3550468PLUG-DRAIN (RADIATOR)1
3324192SEAL-O-RING1
508629112 CORE AS-OIL COOLER1
508629213 CORE AS-AFTERCOOLER1
5M6214PLUG (1/8-27 PTF)2
508629314 BRACKET AS1
508629415 PIN8
508629516 PIN8
508630317 SEAL-AIR2
508630418 SEAL-AIR2
508630519 SEAL-AIR1
508630620 SEAL-AIR2
508630721 SEAL-AIR2
508630822 SEAL-AIR2
508630923 PLATE AS1
508631024 PLATE AS1
508631525 SEAL-AIR1
521521426 SEAL-AIR1
154902327 VALVE-SAMPLING1
157067028 CAP-DUST1
6V902729 SEAL-O-RING1
7X772930 WASHER (11X25X3-MM THK)26
8T412131 WASHER-HARD (11X21X2.5-MM THK)23
8T413332 NUT (M10X1.5-THD)7
8T413633 BOLT (M10X1.5X25-MM)10
8T413734 BOLT (M10X1.5X20-MM)16
8T419535 BOLT (M10X1.5X30-MM)10
8T500536 BOLT (M10X1.5X70-MM)8
7Y197637 HOSE-WATER (16-CM)
439188738 ELBOW AS2
1849114ELBOW1
2385081SEAL-O-RING1
