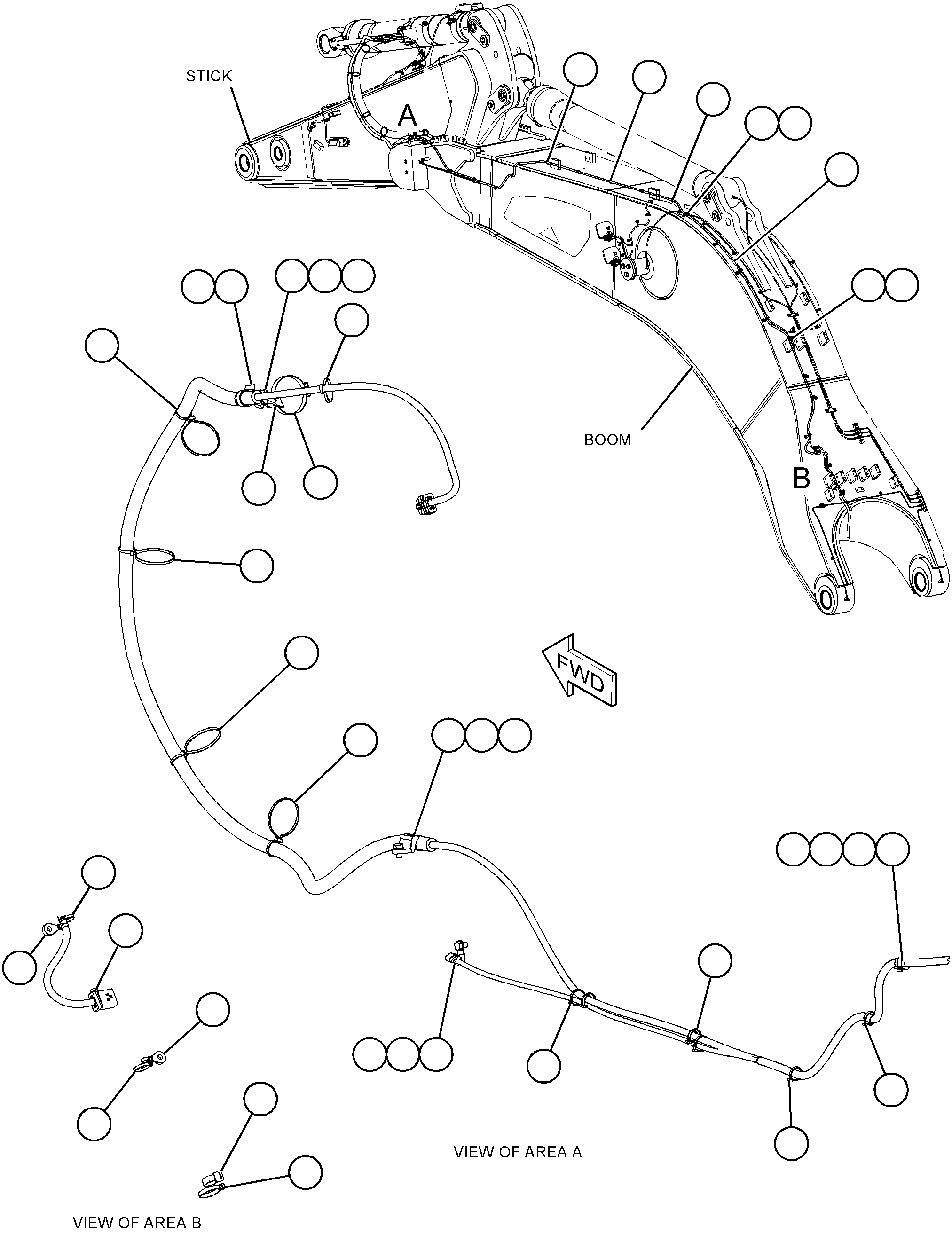

504-1047 WIRING GP-FRONT -BOOMS/N YHT1-UP
Group No: 504-1047 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 22 | |
| 7K1181 | 2 STRAP-CABLE | 2 | |
| 1114836 | 3 CLIP | 9 | |
| 1114837 | 4 CLIP | 1 | |
| 1160118 | 5 CLIP | 2 | |
| 5041051 | 6 HARNESS AS-FRONT (BOOM) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 1 | |
| 8T8737 | PLUG-SEAL | 5 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 11 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 11 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 9 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 9 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 2304009 | PLUG AS-CONNECTOR (12-PIN) | 1 | |
| 4550709 | SEAL-CONNECTOR | 1 | |
| 2434510 | RECEPTACLE AS-CONNECTOR (12-PIN) | 1 | |
| 2628088 | HOSE (237-CM) | ||
| 9M7959 | 7 CLAMP-HOSE | 1 | |
| 1114838 | 8 CLIP | 1 | |
| 2041611 | 9 STRAP-CABLE (DUAL) | 5 | |
| 2042281 | 10 STRAP-CABLE | 2 | |
| 2048000 | 11 MOUNTING-CABLE TIE | 1 | |
| 4P7581 | 12 CLIP (LADDER) | 1 | |
| 8T4121 | 13 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4133 | 14 NUT (M10X1.5-THD) | 2 | |
| 8T4137 | 15 BOLT (M10X1.5X20-MM) | 1 | |
| 8T4191 | 16 BOLT (M10X1.5X16-MM) | 1 | |
| 8T4195 | 17 BOLT (M10X1.5X30-MM) | 1 |
