System And Components

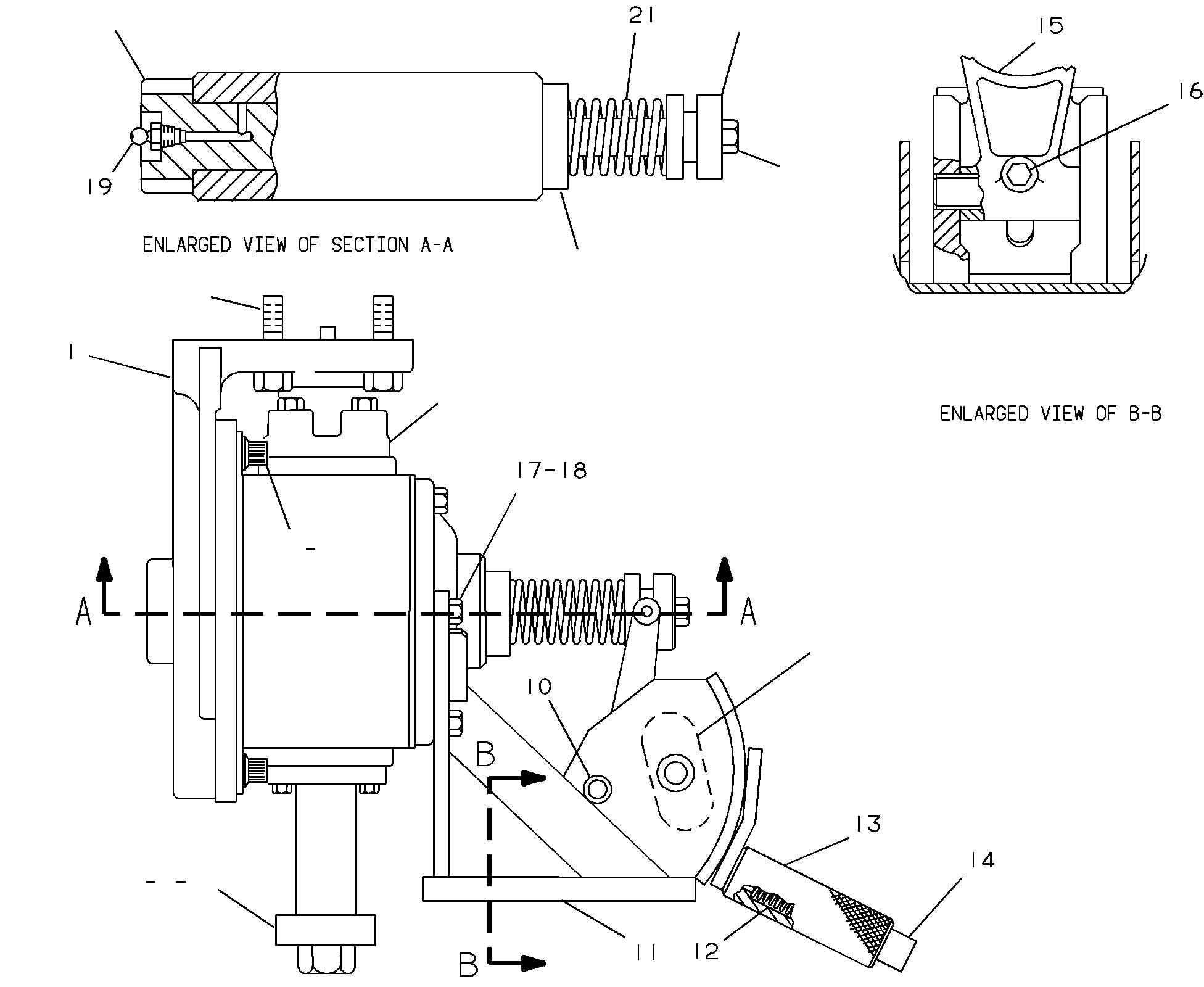

7C-7913 BARRING & MOUNTING GP (CHG -00 THRU -04)MANUAL 50:1 REDUCTION
Group No: 7C-7913
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7W8540 | 1 BRACKET AS | 1 | |
| 6V3538 | DOWEL | 4 | |
| 0S1585 | 2 BOLT (1/2-13X1.5-IN) | 6 | |
| 7C7822 | 3 REDUCER GP-SPEED | 1 | |
| 5F1678 | 4 SEAL-O-RING | 2 | |
| 2B7947 | 5 KEY (SQUARE) | 1 | |
| 4K5175 | 6 BOLT-12 POINT HEAD (1/2-13X1.5-IN) | 4 | |
| 5P8245 | 7 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 7C7807 | 8 ADAPTER | 1 | |
| 4B9808 | 9 SETSCREW (1/4-20X0.5-IN) | 2 | |
| 7C7668 | 10 SUPPORT AS (ENG BARRING) | 1 | |
| 7C7669 | SUPPORT AS | 1 | |
| 1W8974 | BUSHING-TERMINAL | 2 | |
| 7C7801 | 11 SHAFT | 1 | |
| 4W2542 | 12 SPRING | 1 | |
| 7C7821 | 13 HANDLE AS | 1 | |
| 6V3536 | DOWEL | 1 | |
| 7W3976 | 14 SHAFT | 1 | |
| 7C7701 | 15 LEVER AS | 1 | |
| 6V3536 | DOWEL | 2 | |
| 0S1616 | 16 BOLT (1/4-20X1-IN) | 1 | |
| 0S1618 | 17 BOLT (5/16-18X1-IN) | 4 | |
| 9M1974 | 18 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 3B8489 | 19 FITTING-GREASE (1/8-27 PTF) | 1 | |
| 7C7716 | 20 SHAFT-PINION | 1 | |
| 3S8652 | 21 SPRING | 1 | |
| 7C7802 | 22 RETAINER | 1 | |
| 0S1590 | 23 BOLT (3/8-16X2-IN) | 1 | |
| 7C7882 | 24 PLATE | 1 |
