System And Components

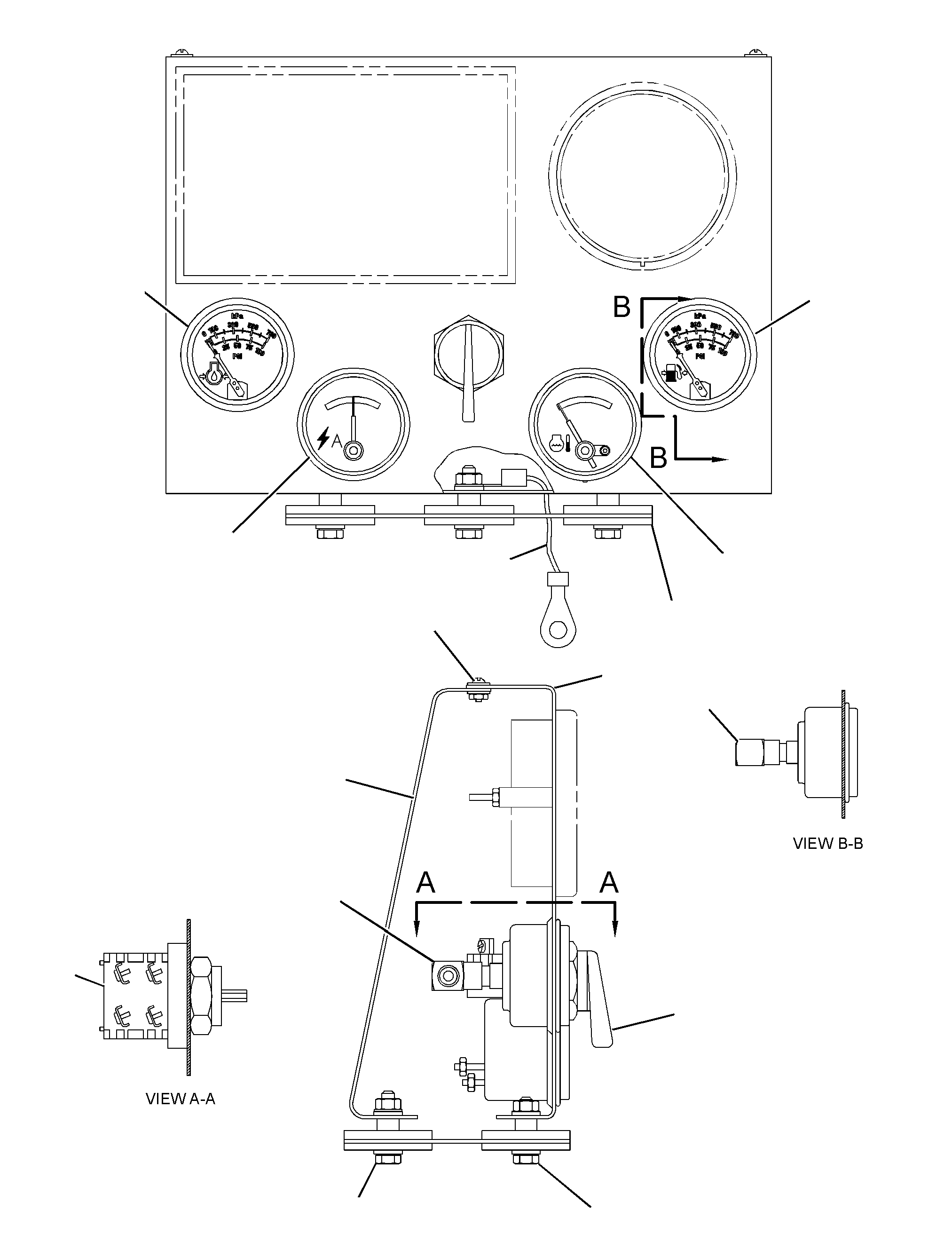

9Y-9387 PANEL GP-INSTRUMENTPART OF 394-8292 PANEL GP-INSTRUMENT
Group No: 9Y-9387
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7W3582 | 1 PANEL-INSTRUMENT | 1 | |
| 5S7348 | 2 SCREW-MACHINE (6-32X0.375-IN) | 2 | |
| 4B4863 | 3 WASHER (4.7X11X1.2-MM THK) | 4 | |
| 4B2041 | 4 NUT (6-32-THD) | 2 | |
| 2N5848 | 5 BASE AS | 1 | |
| 9F6580 | 6 BOLT (1/4-20X1.125-IN) | 2 | |
| 5P0537 | 7 WASHER-HARD (7.2X14.5X2-MM THK) | 6 | |
| 9S8750 | 8 NUT-FULL (1/4-20-THD) | 3 | |
| 2W8799 | 9 BLOCK-CONTACT (2-POLE) | 1 | |
| 7W6614 | 10 SWITCH-ROTARY (ENGINE CONTROL) | 1 | |
| 0343664 | 11 WIRE AS (12-GA, BLACK) | 1 | |
| 2950758 | 12 GAUGE GP-FUEL PRESSURE | 1 | |
| 6V3507 | 13 SEAL-RECTANGULAR | 4 | |
| 7W2731 | 14 RETAINER | 4 | |
| 3S1099 | 15 ELBOW-FLARED | 2 | |
| 2005235 | 16 GAUGE GP-COOLANT TEMPERATURE | 1 | |
| 4B2049 | NUT (10-32-THD) | 2 | |
| 8F1434 | LOCKWASHER | 2 | |
| 2W5111 | 17 AMMETER AS | 1 | |
| 6V3507 | SEAL-RECTANGULAR | 1 | |
| 7W2731 | RETAINER | 1 | |
| 7B2742 | 18 BOLT (1/4-20X1.25-IN) | 1 | |
| 2W8436 | 19 INDICATOR AS-PRESSURE (ENGINE OIL) | 1 | |
| 7W3583 | 20 COVER-PANEL | 1 |
