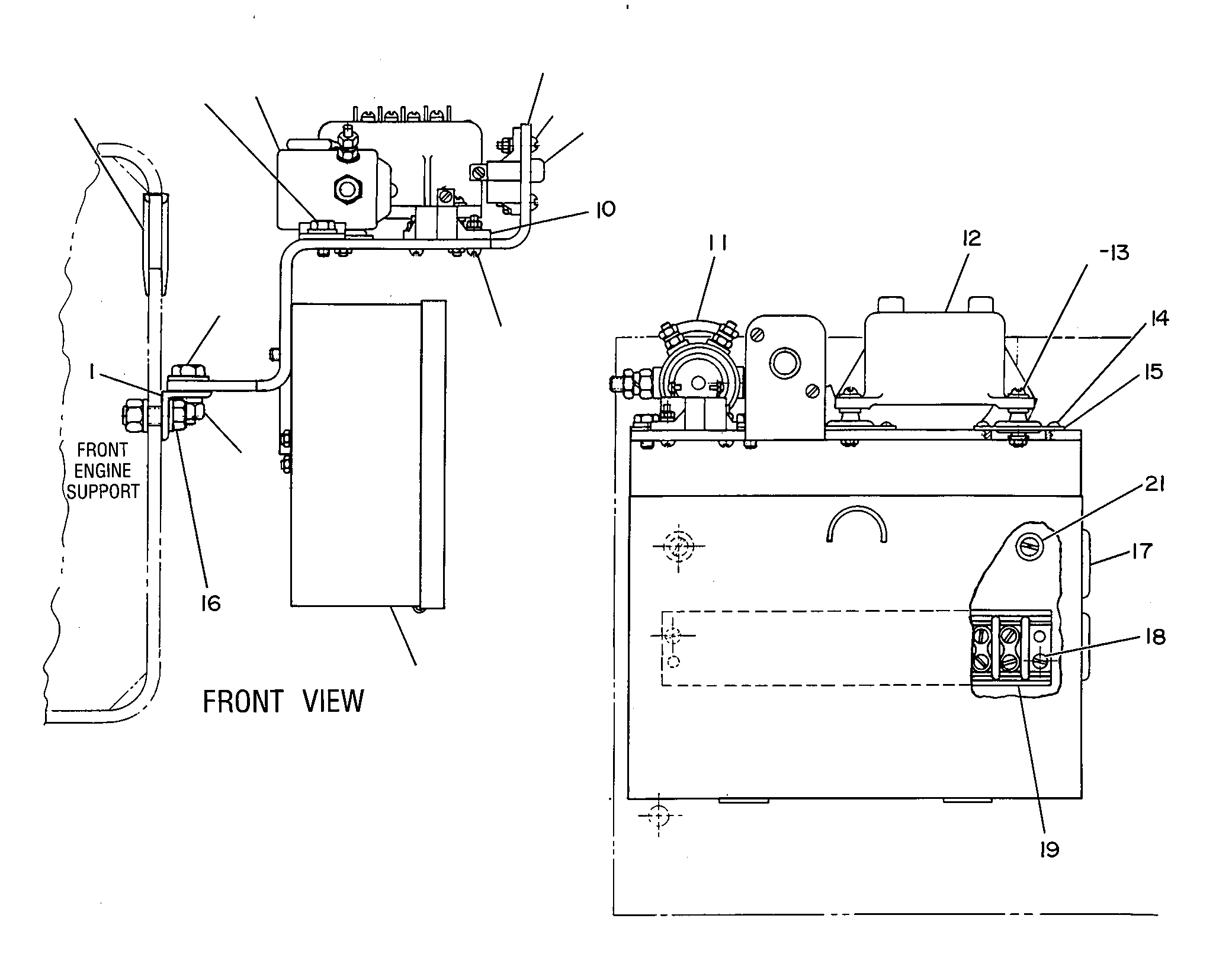

7W-1223 JUNCTION BOX & CONTACTOR GPFOR USE WITH FIRE PUMP ENGINE

Group No: 7W-1223
Part NumberPart NameQty
4W93491 BRACKET1
5P58162 SEAL
2B26953 BOLT (5/16-18X0.875-IN)2
5P4116WASHER-HARD (8.8X20.5X2-MM THK)2
1D47164 NUT-FULL (5/16-18-THD)2
9M1974WASHER-HARD (8.8X16X2-MM THK)2
0S16145 BOLT (1/4-20X0.5-IN)2
5P0537WASHER-HARD (7.2X14.5X2-MM THK)2
9F30996 SWITCH GP-MAGNETIC (24-VOLT)(STARTING MOTOR)1
4B2043NUT (8-32-THD)2
4F2294NUT-JAM (5/16-24-THD)2
2W09707 BRACKET1
3K81068 SCREW-MACHINE (8-32X1-IN)8
6T36449 CIRCUIT BREAKER AS (20-AMPERE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
1N977010 CIRCUIT BREAKER AS (12.5-AMPERE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
1W907011 DIODE AS1
7N9194RING-TERMINAL (18-GA TO 22-GA)2
4W847112 RELAY-TIME DELAY1
4B486313 WASHER (4.7X11X1.2-MM THK)12
4B2043NUT (8-32-THD)4
4S826414 RIVET-POP8
8N930015 MOUNT AS (RESILIENT)4
0S159416 BOLT (3/8-16X1-IN)2
5M2894WASHER-HARD (10.2X18.5X2.5-MM THK)4
1D4717NUT (3/8-16-THD)2
1H431817 GROMMET2
9B715518 SCREW-MACHINE (10-24X0.75-IN)2
3B4502LOCKWASHER2
4B2047NUT (10-24-THD)2
4D126019 STRIP AS-TERMINAL (21.4CM LG)1
5L8546FILM-IDENTIFICATION (TERMINAL MARKER)(22.4CM LG)1
8L423620 BOX-CONNECTION1
4B132021 SCREW-MACHINE (1/4-20X0.625-IN)2
4B4276WASHER (7X16X1.6-MM THK)2
