System And Components

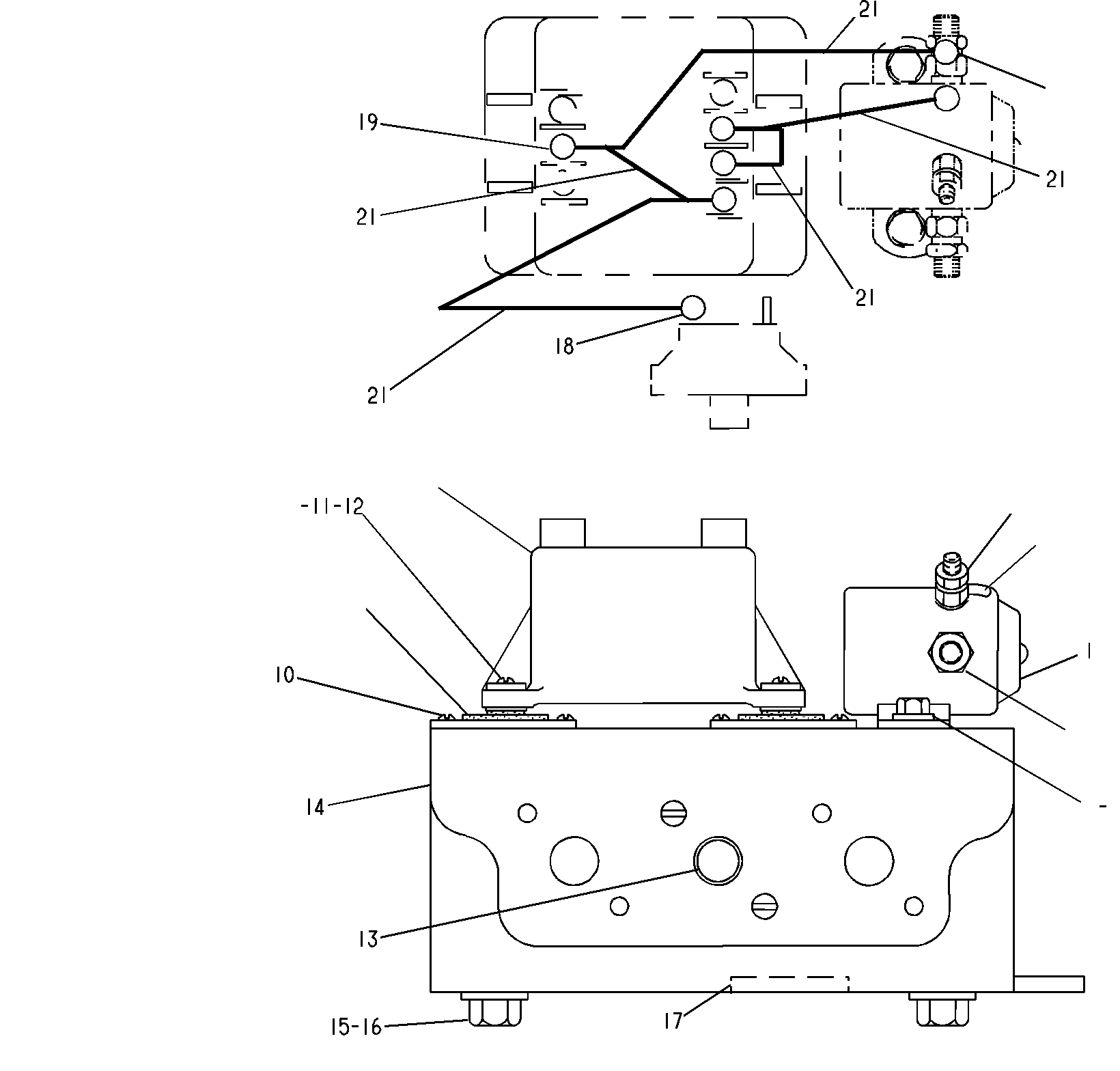

2W-6387 RELAY GPPART OF 2W-6386 CONVERSION GP-TIME DELAY
Group No: 2W-6387
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9F3099 | 1 SWITCH GP-MAGNETIC (24-VOLT)(ENGINE SPEED CONTROL) | 1 | |
| 4B2043 | 2 NUT (8-32-THD) | 2 | |
| 4F2294 | 3 NUT-JAM (5/16-24-THD) | 2 | |
| 1W9070 | 4 DIODE AS | 1 | |
| 8N9300 | 5 MOUNT AS | 4 | |
| 4W8471 | 6 RELAY-TIME DELAY | 1 | |
| 0S1614 | 7 BOLT (1/4-20X0.5-IN) | 2 | |
| 5P0537 | 8 WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 3K8106 | 9 SCREW-MACHINE (8-32X1-IN) | 6 | |
| 4S8264 | 10 RIVET-POP | 8 | |
| 4B2043 | 11 NUT (8-32-THD) | 4 | |
| 4B4863 | 12 WASHER (4.7X11X1.2-MM THK) | 12 | |
| 6N9349 | 13 CIRCUIT BREAKER AS (30-AMPERE) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 5N8022 | 14 BRACKET | 1 | |
| 0S1591 | 15 BOLT (3/8-16X1.5-IN) | 1 | |
| 5M2894 | 16 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 8M7145 | 17 WASHER (10.2X28.5X5-MM THK) | 1 | |
| 2L8075 | 18 TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 3 | |
| 2L8064 | 19 TERMINAL-RING (10-GA TO 12-GA, NO. 6 SCREW) | 3 | |
| 2L8078 | 20 TERMINAL-RING (14-GA TO 16-GA, 5/16-IN SCREW) | 1 | |
| 5P5624 | 21 WIRE (14-GA, BLACK) |
