System And Components

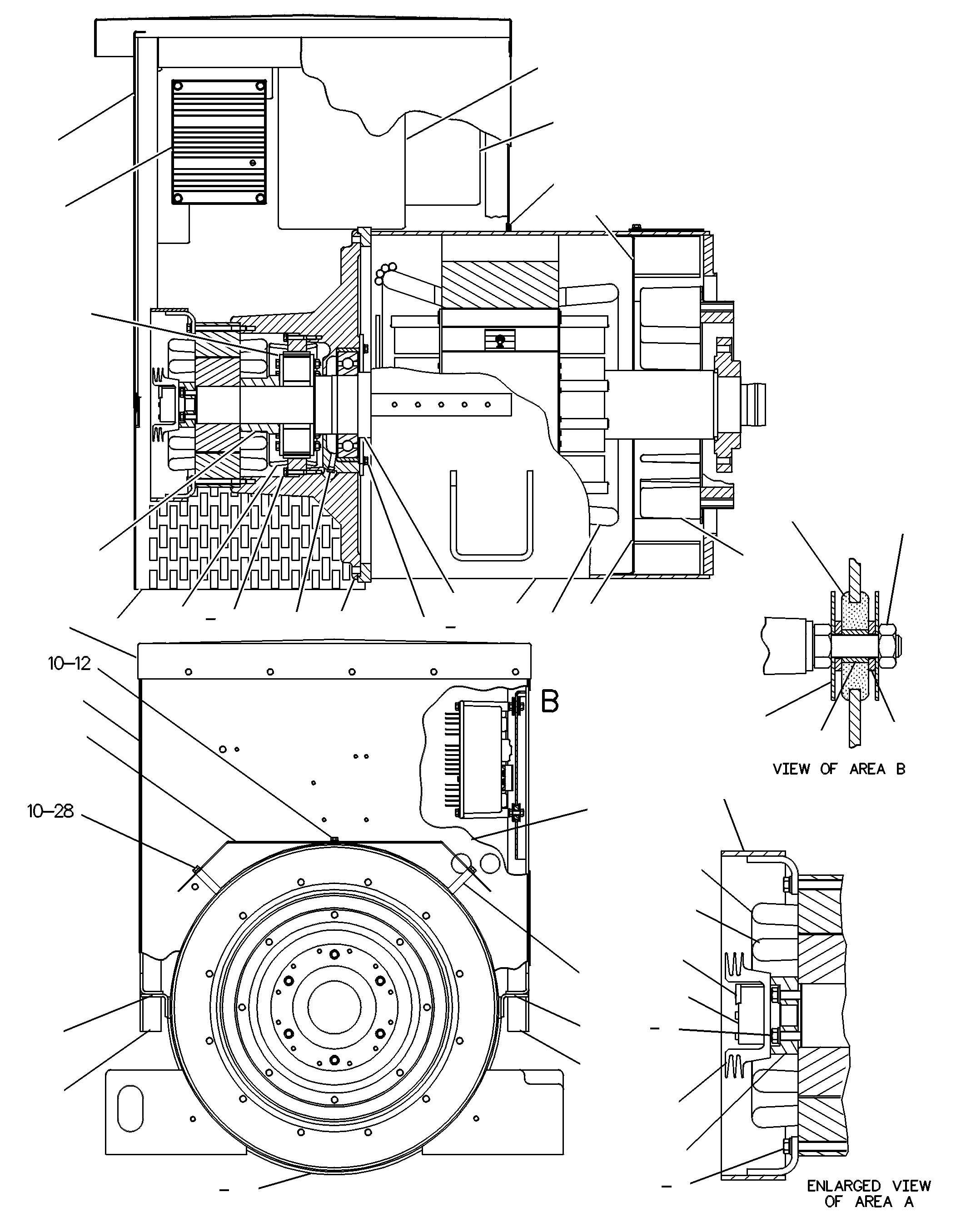

109-3794 GENERATOR GPS/N 3KJ1-UP
Group No: 109-3794
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4P3154 | 1 HEAT SINK | 1 | |
| 4P3153 | 2 SPACER (20.6X77X27.8-MM THK) | 1 | |
| 1A9579 | 3 BOLT (5/16-18X1.5-IN) | 4 | |
| 4P3468 | 4 ROTOR-EXCITER | 1 | |
| 9Y0916 | 5 RECTIFIER AS | 1 | |
| 4B0831 | 6 BOLT (5/16-18X3.75-IN) | 4 | |
| 9M1974 | 7 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 9Y5817 | 8 STATOR-EXCITER | 1 | |
| 6I0088 | 9 COVER AS-EXCITER | 1 | |
| 5P0537 | 10 WASHER-HARD (7.2X14.5X2-MM THK) | 19 | |
| 9S8750 | 11 NUT-FULL (1/4-20-THD) | 3 | |
| 0S1614 | 12 BOLT (1/4-20X0.5-IN) | 1 | |
| 7E6577 | 13 COVER-RECTIFIER | 1 | |
| 7C5709 | 14 SLEEVE | 3 | |
| 7C5708 | 15 GROMMET | 3 | |
| 0332075 | 16 WASHER (0.266X1.25X0.06-IN THK) | 6 | |
| 1N7219 | 17 CHANNEL-RUBBER | 1 | |
| 7E6578 | 18 PANEL | 2 | |
| 7E5940 | 19 FILM-INFORMATION (GENERATOR WIRING DIAGRAM) | 1 | |
| 7C5711 | 20 FILM-INSTRUCTION (VOLTAGE CONTROL ADJUSTMENT) | 1 | |
| 7E6575 | 21 PANEL AS | 1 | |
| 4F8711 | PLUG-BUTTON | 2 | |
| 5N3174 | PLUG-BUTTON | 8 | |
| 5N3175 | PLUG-BUTTON | 1 | |
| 6K9593 | PLUG-BUTTON | 1 | |
| 7E6568 | 22 FRAME AS (RH) | 1 | |
| 1004891 | 23 STATOR AS | 1 | |
| 7E6567 | 24 FRAME AS (LH) | 1 | |
| 4P3150 | 25 COVER AS | 1 | |
| 5N3167 | SEAL-RING | 3 | |
| 5N3176 | PLUG-BUTTON | 3 | |
| 6D7128 | SEAL-O-RING | 4 | |
| 8P7065 | PLUG-BUTTON | 2 | |
| 8T9587 | SEAL-O-RING | 2 | |
| 0302284 | PLUG-BUTTON | 4 | |
| 7E1257 | 26 DEFLECTOR-LOWER | 1 | |
| 5L2087 | 27 SPACER (9.25X13.72X50.8-MM THK) | 4 | |
| 1B2714 | 28 BOLT (1/4-20X2.5-IN) | 4 | |
| 7E1256 | 29 COVER-DRIP | 1 | |
| 4P3420 | 30 BRACKET (RH) | 1 | |
| 4P3419 | 31 BRACKET (LH) | 1 | |
| 0S1615 | 32 BOLT (1/4-20X0.75-IN) | 8 | |
| 6I2737 | 33 RETAINER-BEARING | 2 | |
| 1106174 | 34 PANEL-REAR | 1 | |
| 1145510 | 35 REGULATOR AS-VOLTAGE (VR3 PERMANENT MAGNET) | 1 | |
| 1106175 | 36 COVER AS-AIR (INLET) | 1 | |
| 1103406 | 37 ROTOR AS | 1 | |
| 1116217 | 38 FAN-GENERATOR | 1 | |
| 1104325 | 39 BRACKET-BEARING | 1 | |
| 8T6764 | 40 PLUG-PIPE (1/8-27-THD) | 2 | |
| 8B2377 | 41 BOLT (1/4-20X2-IN) | 4 | |
| 1104874 | 42 ROTOR AS (PERMANENT MAGNET) | 1 | |
| 1110887 | 43 SCREEN AS | 2 | |
| 1104875 | 44 STATOR AS (PERMANENT MAGNET) | 1 | |
| 9Y5821 | 45 DEFLECTOR | 1 | |
| 1129430 | 46 SPACER (63.6X101.6X69.2-MM THK) | 1 | |
| 4W3901 | KIT-ROTOR BALANCE WEIGHT (GENERATOR) | 1 | |
| 7E7233 | KIT-GENERATOR HARDWARE | 1 | |
| 1004892 | KIT-STATOR REWIND | 1 | |
| 4C6715 | KIT-RECTIFIER SILICONE | 1 |
