System And Components

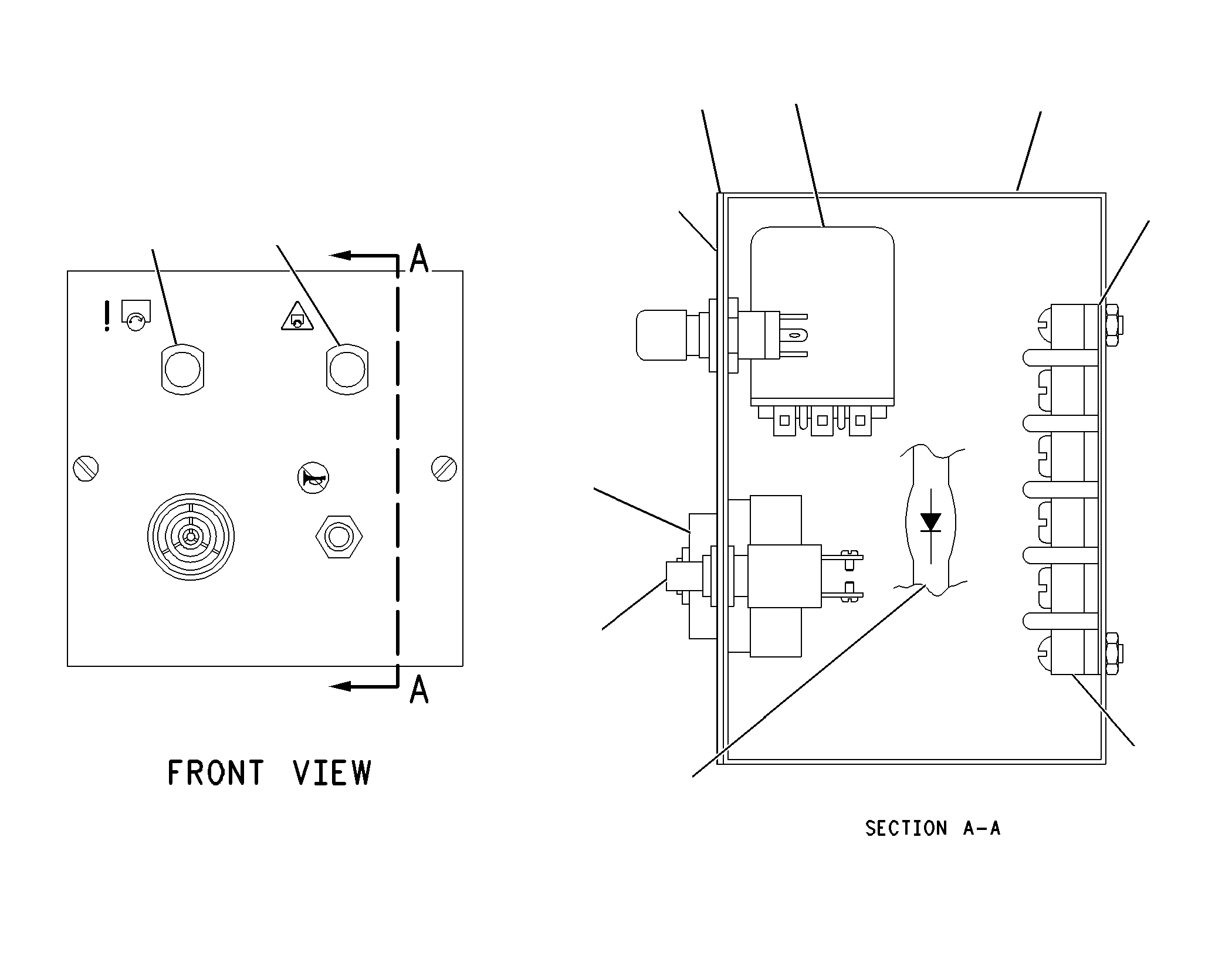

7E-8270 PANEL GP-INSTRUMENTS/N BAK1-UP
Group No: 7E-8270
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7C3521 | 1 JUNCTION BOX | 1 | |
| 7E8255 | 2 COVER-JUNCTION BOX | 1 | |
| 3N5762 | 3 HORN | 1 | |
| 3N5716 | 4 SWITCH (PUSH BUTTON)(ALARM SILENCE) | 1 | |
| 5N5499 | 5 LAMP AS (RED) | 1 | |
| 5N5501 | 6 LAMP AS (GREEN) | 1 | |
| 3N5719 | 7 LAMP (24-VOLT)(CLEAR) | 2 | |
| 1181265 | 8 FILM-PANEL (INSTRUMENT) | 1 | |
| 3N5714 | 9 RELAY AS (24-VOLT)(ALARM DISCONNECT) | 1 | |
| 4D6066 | 10 STRIP-TERMINAL | 1 | |
| 7C4925 | 11 FILM-IDENTIFICATION (TERMINAL MARKER) | 1 | |
| 2W4899 | 12 DIODE AS | 1 |
