System And Components

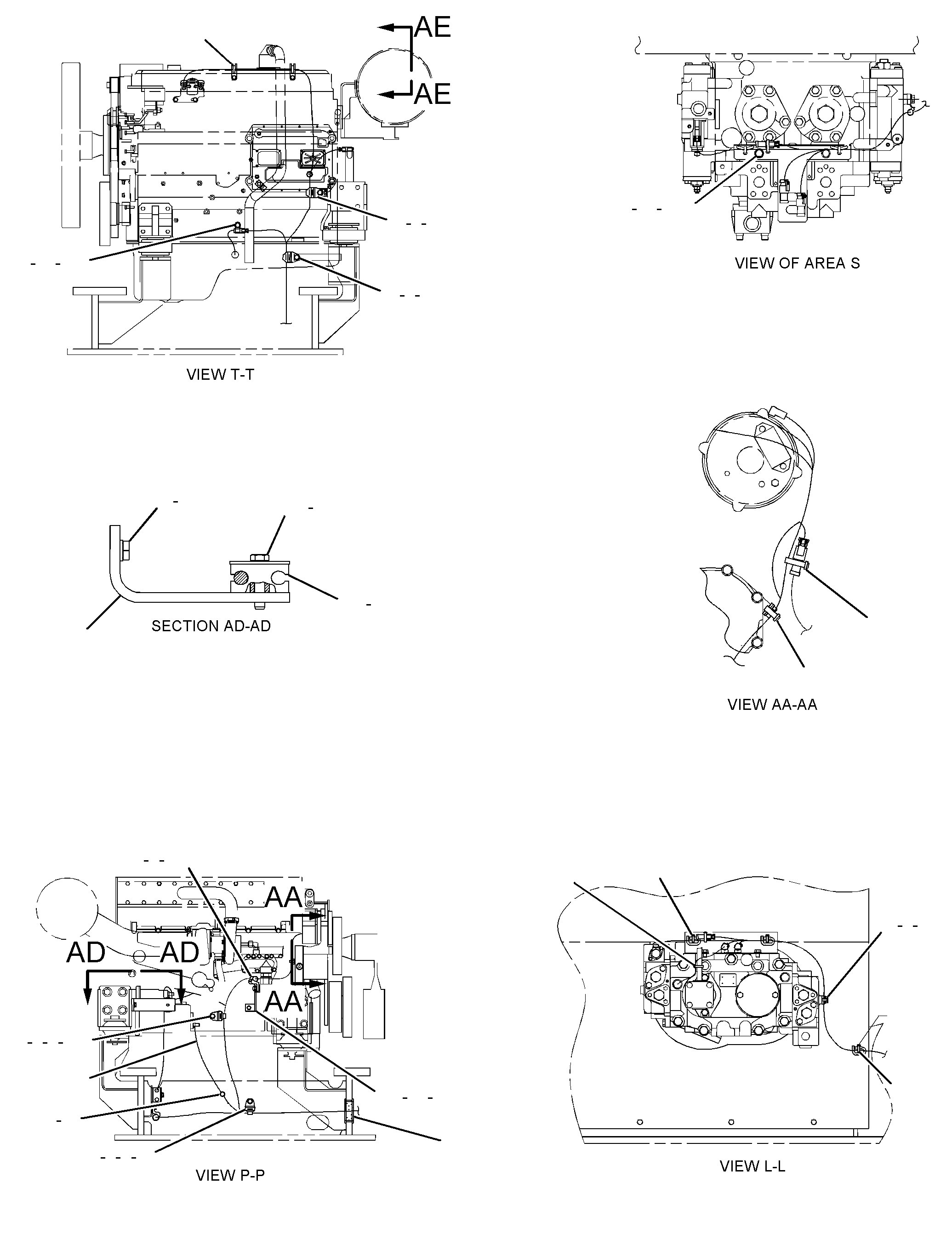

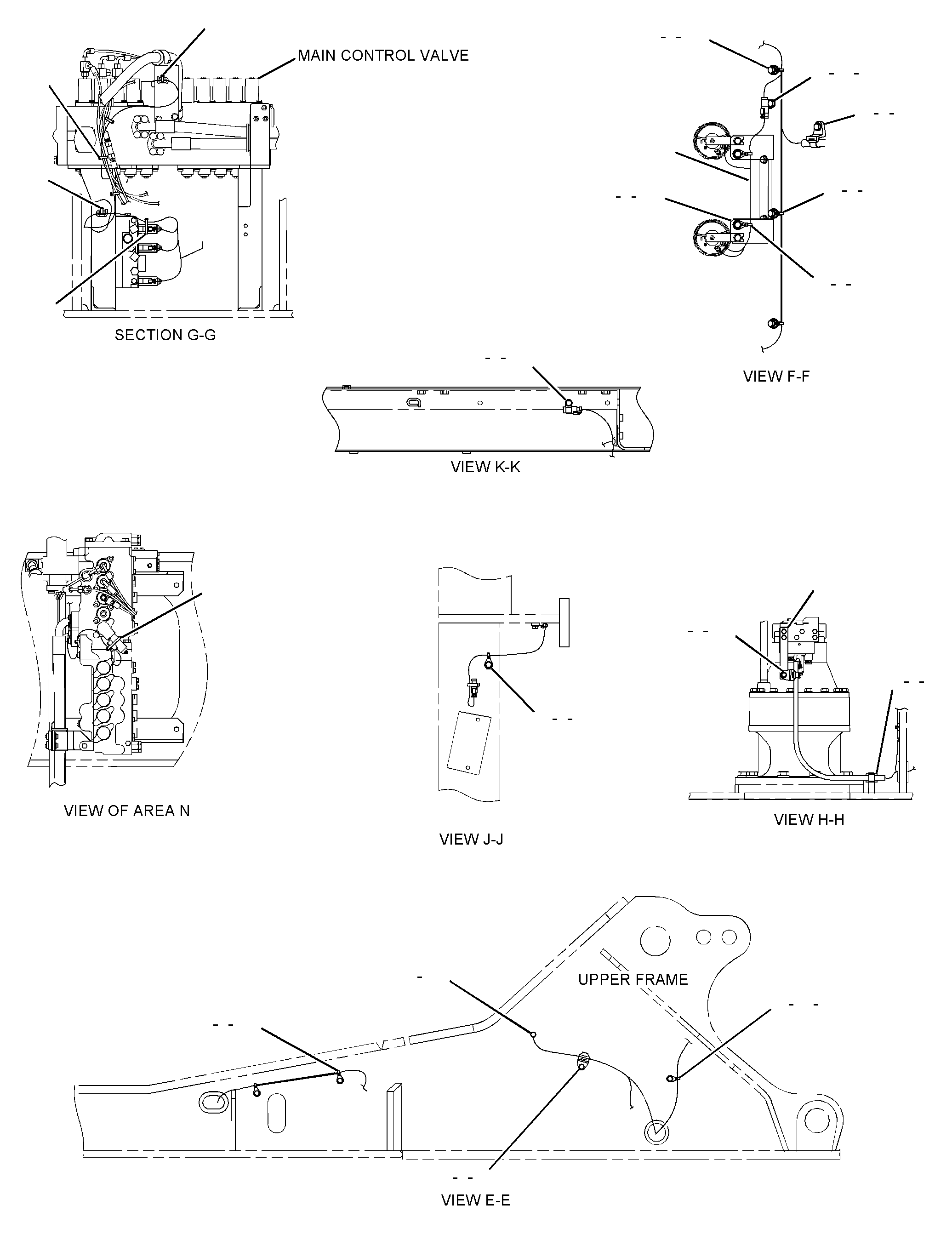

202-8745 BATTERY & WIRING GPS/N BYL1-UP
Group No: 202-8745
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1114837 | 1 CLIP | 12 | |
| 8T4137 | 2 BOLT (M10X1.5X20-MM) | 36 | |
| 8T4121 | 3 WASHER-HARD (11X21X2.5-MM THK) | 81 | |
| 2371014 | 4 PANEL GP-CIRCUIT BREAKER (MAIN) | 1 | |
| 1673583 | 5 STRAP AS-GROUND | 1 | |
| 1114838 | 6 CLIP | 17 | |
| 1114839 | 7 STRAP | 17 | |
| 3S2093 | 8 STRAP-CABLE | 27 | |
| 2041788 | 9 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 5P0761 | CABLE (00-GA, RED)(375CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 3S6049 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 8T4191 | 10 BOLT (M10X1.5X16-MM) | 11 | |
| 1160080 | 11 CABLE AS (JUMPER) | 1 | |
| 5P0761 | CABLE (00-GA, RED)(31CM) | ||
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 3S6050 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1288928 | 12 BRACKET AS | 1 | |
| 2G8767 | 13 WASHER (10.5X60X3-MM THK) | 3 | |
| 1288886 | 14 STRAP AS-GROUND | 1 | |
| 8T4182 | 15 BOLT (M10X1.5X45-MM) | 1 | |
| 7Y8167 | 16 GROMMET (50-MM ID) | 1 | |
| 3T5760 | 17 BATTERY GP (12-VOLT, 750-CCA) | 2 | |
| 6W6005 | 18 HOLD-DOWN-BATTERY | 1 | |
| 5I8270 | 19 COVER-BATTERY | 1 | |
| 6G2256 | 20 CLAMP | 2 | |
| 1974435 | 21 CABLE AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(115CM) | ||
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 3S6050 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 6K8178 | 22 CLIP | 7 | |
| 2130646 | 23 STRIP AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T4136 | 24 BOLT (M10X1.5X25-MM) | 15 | |
| 2315237 | 25 HARNESS AS | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 4 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 2 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 4 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 2 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 14 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 3 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 2 | |
| 7Y8165 | 26 GROMMET | 3 | |
| 7C4354 | 27 CLIP | 1 | |
| 7X2621 | 28 BOLT (M10X1.5X12-MM) | 1 | |
| 1160118 | 29 CLIP | 6 | |
| 1114836 | 30 CLIP | 14 | |
| 2368772 | 31 HARNESS AS-PANEL | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 7G1060 | 32 STRAP AS-GROUND | 1 | |
| 0876598 | 33 GROMMET | 1 | |
| 1933564 | 34 BRACKET AS | 1 | |
| 8T4195 | 35 BOLT (M10X1.5X30-MM) | 14 | |
| 1636786 | 36 BRACKET | 1 | |
| 6V5683 | 37 BOLT (M6X1X16-MM) | 4 | |
| 9X8256 | 38 WASHER (6.6X12X2-MM THK) | 4 | |
| 8T4189 | 39 BOLT (M8X1.25X20-MM) | 1 | |
| 7K1181 | 40 STRAP-CABLE | 3 | |
| 5C7261 | 41 NUT (M8X1.25-THD) | 1 | |
| 8T4226 | 42 WASHER-PLATED (10.5X45X3-MM THK) | 1 | |
| 8T4133 | 43 NUT (M10X1.5-THD) | 2 | |
| 5I8304 | 44 ROD | 1 | |
| 6G2263 | 45 SPACER (10.5X19X28.5-MM THK) | 3 | |
| 2242898 | 46 BRACKET | 1 | |
| 1636750 | 47 HARNESS AS-ALARM (HORN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 5P4116 | 48 WASHER-HARD (8.8X20.5X2-MM THK) | 1 | |
| 1864623 | 49 BRACKET | 1 | |
| 1709336 | 50 BRACKET AS | 1 | |
| 7I2673 | 51 STRAP-CABLE | 3 | |
| 0816344 | 52 SPACER (13.3X21.3X25-MM THK) | 1 | |
| 0932065 | 53 GROMMET | 1 | |
| 4K8864 | 54 CLIP | 2 | |
| 1974328 | 55 HARNESS AS-CONTROL (ENGINE, PUMP) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 3 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 7 | |
| 8T6466 | 57 BOLT (M10X1.5X60-MM) | 1 | |
| 4I7889 | 58 SPACER (11X25X45-MM THK) | 2 | |
| 8T5005 | 60 BOLT (M10X1.5X70-MM) | 1 | |
| 8T4172 | 61 BOLT (M10X1.5X80-MM) | 2 | |
| 1864548 | 66 CABLE AS | 1 | |
| 6V9023 | TUBE-HEAT SHRINK (12.7-MM DIA) | 3 | |
| 7Y8109 | 67 BRACKET AS | 1 | |
| 1709360 | 69 GROMMET | 1 | |
| 2161595 | 70 BRACKET | 1 | |
| 1392118 | 71 SWITCH AS-TOGGLE (GROUND LEVEL SHUTDOWN) | 1 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 2314502 | 72 GUARD | 1 |
