System And Components

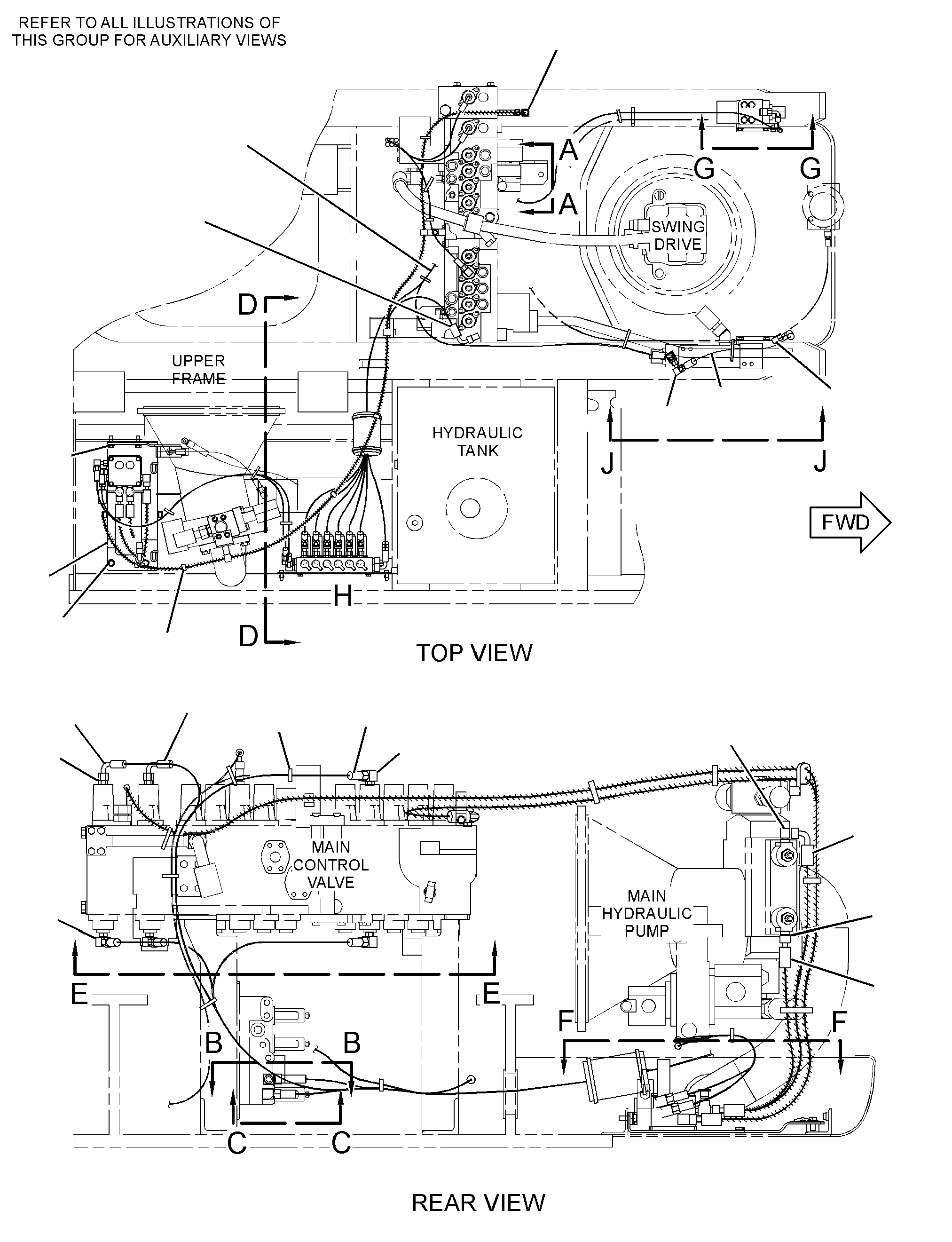

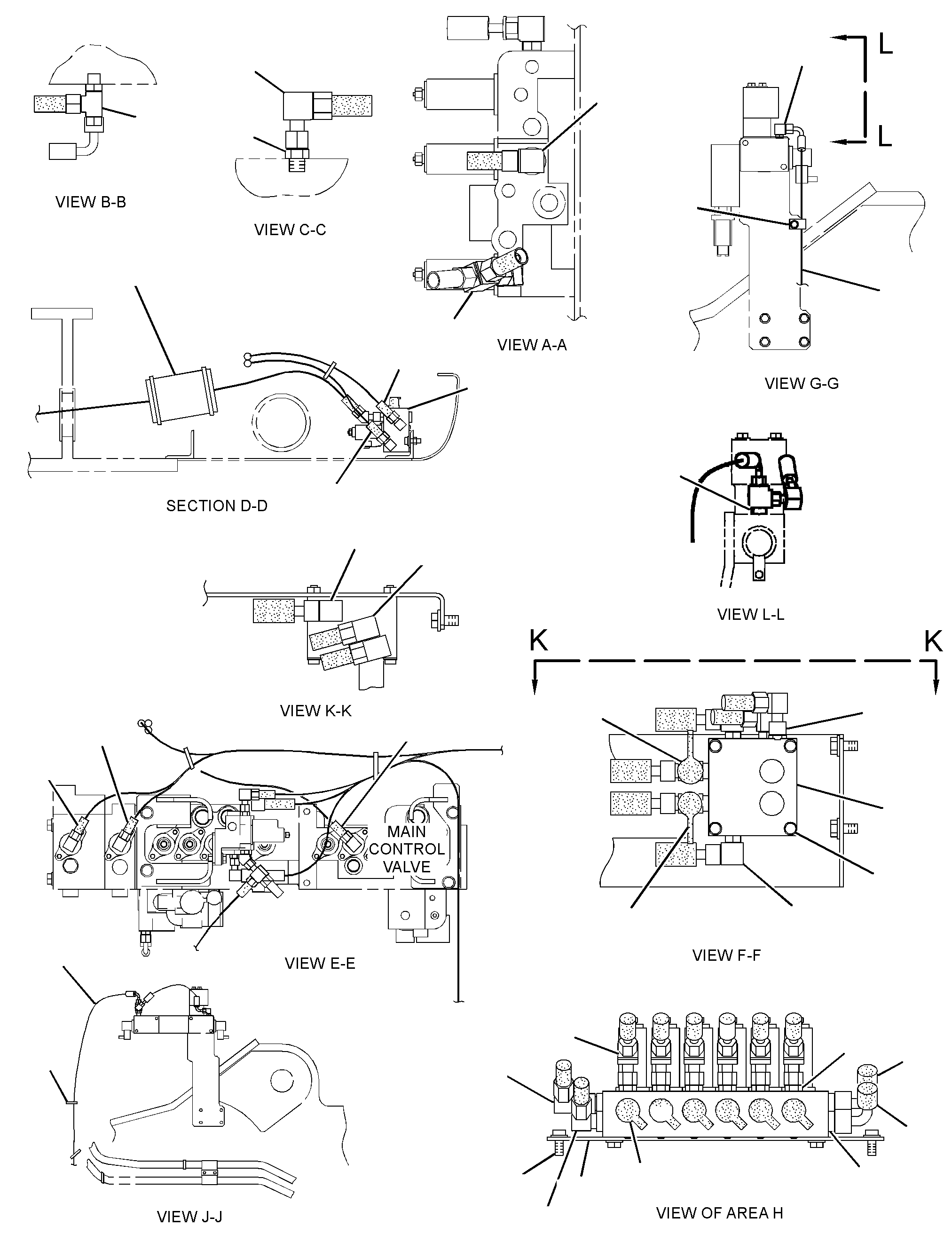

192-6887 LINES GP-PILOT -SYSTEM 14, COMBINED FUNCTIONS/N JCD1-UP; JNK1-UP
Group No: 192-6887
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2125472 | 1 HOSE AS | 1 | |
| 7Y4398 | 2 HOSE AS | 1 | |
| 1087203 | 3 HOSE AS | 1 | |
| 1960690 | 4 HOSE AS | 1 | |
| 0874405 | 5 HOSE AS | 1 | |
| 0875780 | 6 HOSE AS | 1 | |
| 4I3991 | 7 HOSE AS | 1 | |
| 1087357 | 8 HOSE AS | 1 | |
| 1048777 | 9 HOSE AS | 1 | |
| 1875608 | 10 HOSE AS | 1 | |
| 1960640 | 11 HOSE AS | 1 | |
| 1645589 | 12 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C0597 | CONNECTOR | 1 | |
| 1110988 | 13 HOSE AS | 1 | |
| 6V0852 | 14 CAP-DUST | 8 | |
| 1241008 | 15 GUARD | 1 | |
| 1240864 | 16 HOSE AS | 1 | |
| 0875762 | 17 HOSE AS | 1 | |
| 1504043 | 18 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 1087313 | 20 HOSE AS | 1 | |
| 1488370 | 21 ELBOW AS | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9851 | ELBOW | 1 | |
| 1488371 | 22 ELBOW AS | 6 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C8988 | ELBOW | 1 | |
| 1850497 | 23 MANIFOLD GP-CONTROL (PILOT OIL) | 1 | |
| 1488336 | 24 CONNECTOR AS | 11 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488433 | 25 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1488378 | 26 ELBOW AS | 10 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488367 | 27 ELBOW AS | 5 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9850 | ELBOW | 1 | |
| 1360207 | 28 STRAP-CABLE (BLACK) | 5 | |
| 0875761 | 29 HOSE AS | 2 | |
| 8T4195 | 30 BOLT (M10X1.5X30-MM) | 2 | |
| 1488428 | 31 TEE AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V8782 | TEE | 1 | |
| 1488340 | 32 CONNECTOR AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 8T4192 | 33 BOLT (M12X1.75X25-MM) | 2 | |
| 7K1181 | 34 STRAP-CABLE | 16 | |
| 6D3479 | 35 CLIP (LOOP) | 1 | |
| 8T4121 | 36 WASHER-HARD (11X21X2.5-MM THK) | 5 | |
| 8T4191 | 37 BOLT (M10X1.5X16-MM) | 1 | |
| 1645567 | 38 COUPLER AS-QUICK DISCONNECT (MALE) | 8 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 1710188 | 39 VALVE GP-SOLENOID (NEG FLOW CONT, PROPN RED VALVE) | 1 | |
| 8T4177 | 40 BOLT (M8X1.25X90-MM) | 4 | |
| 8T4224 | 41 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 1504027 | 42 TEE AS | 2 | |
| 3E2310 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T4223 | 43 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 1960656 | 44 SUPPORT AS | 1 | |
| 8T4956 | 45 BOLT (M12X1.75X35-MM) | 2 | |
| 2402897 | 46 PLATE | 1 | |
| 8T4137 | 47 BOLT (M10X1.5X20-MM) | 2 | |
| 1488374 | 48 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8723 | ELBOW | 1 | |
| 1488318 | 49 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8634 | CONNECTOR | 1 | |
| 4I9521 | 50 BAND-MARKER (RED, L1) | 2 | |
| 4I9522 | 51 BAND-MARKER (YELLOW, L2) | 2 | |
| 4I9523 | 52 BAND-MARKER (BLUE, L3) | 2 | |
| 4I9524 | 53 BAND-MARKER (BROWN, L4) | 2 | |
| 4I9525 | 54 BAND-MARKER (ORANGE, R1) | 2 | |
| 4I9526 | 55 BAND-MARKER (WHITE, R2) | 2 | |
| 1488435 | 56 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 |
