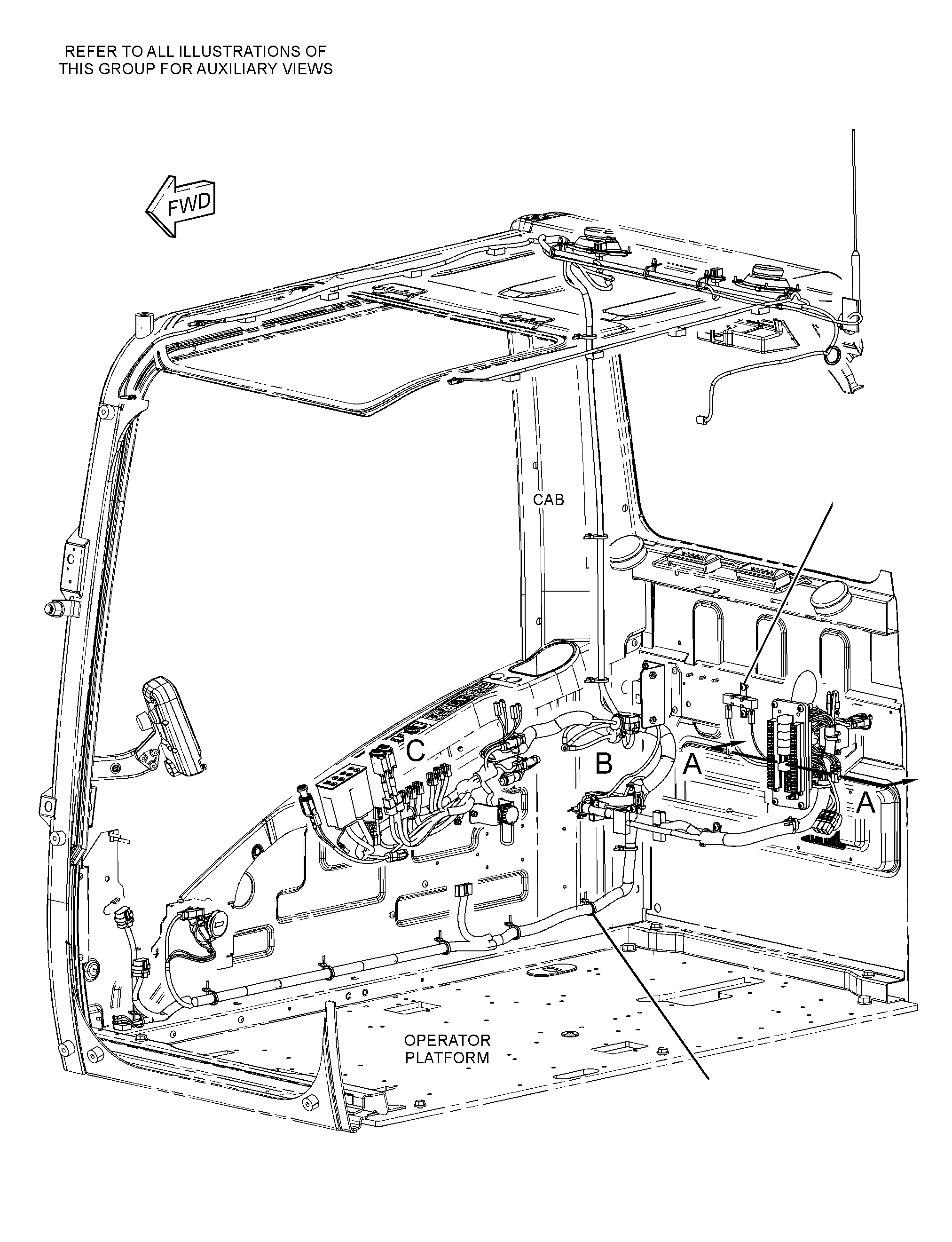

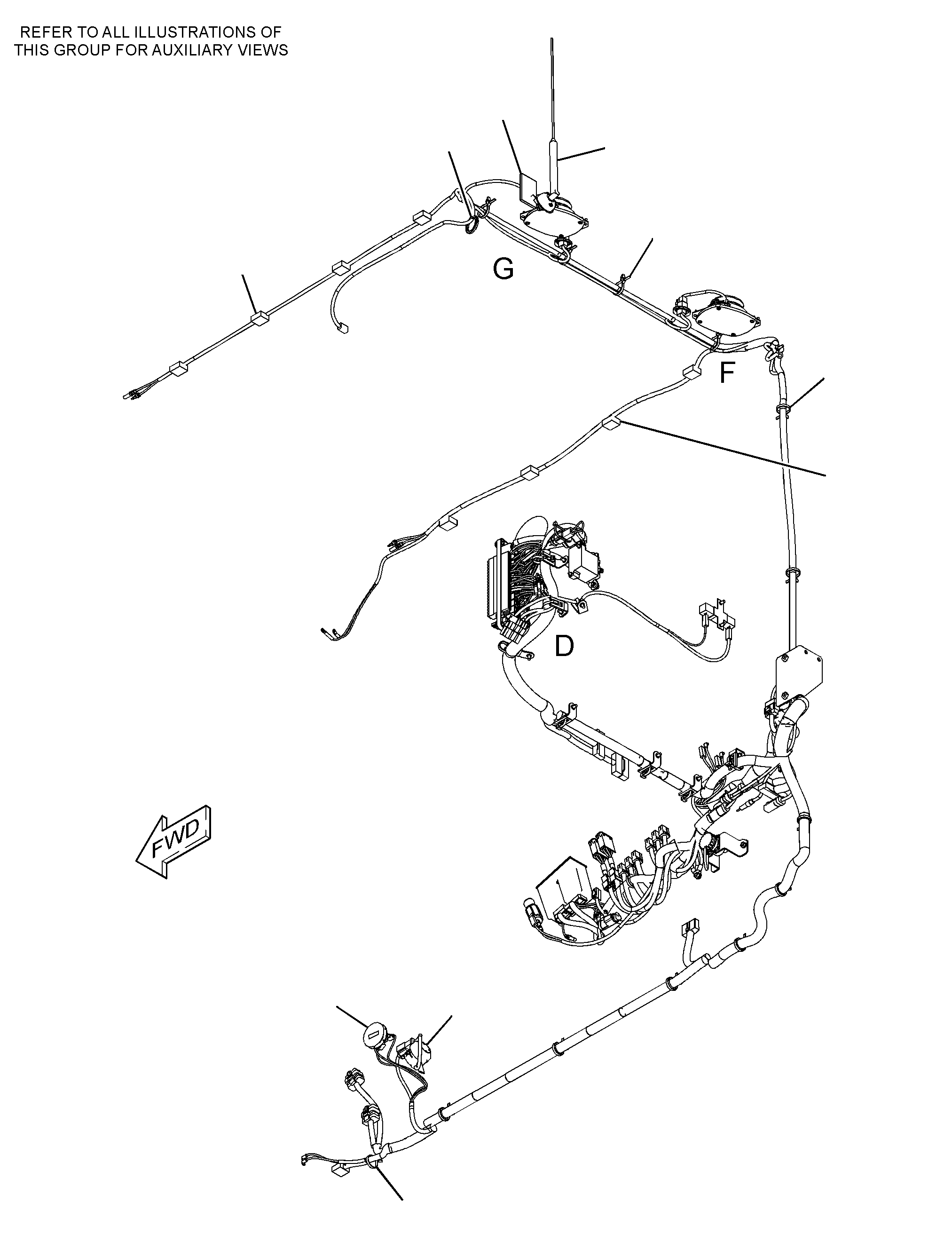

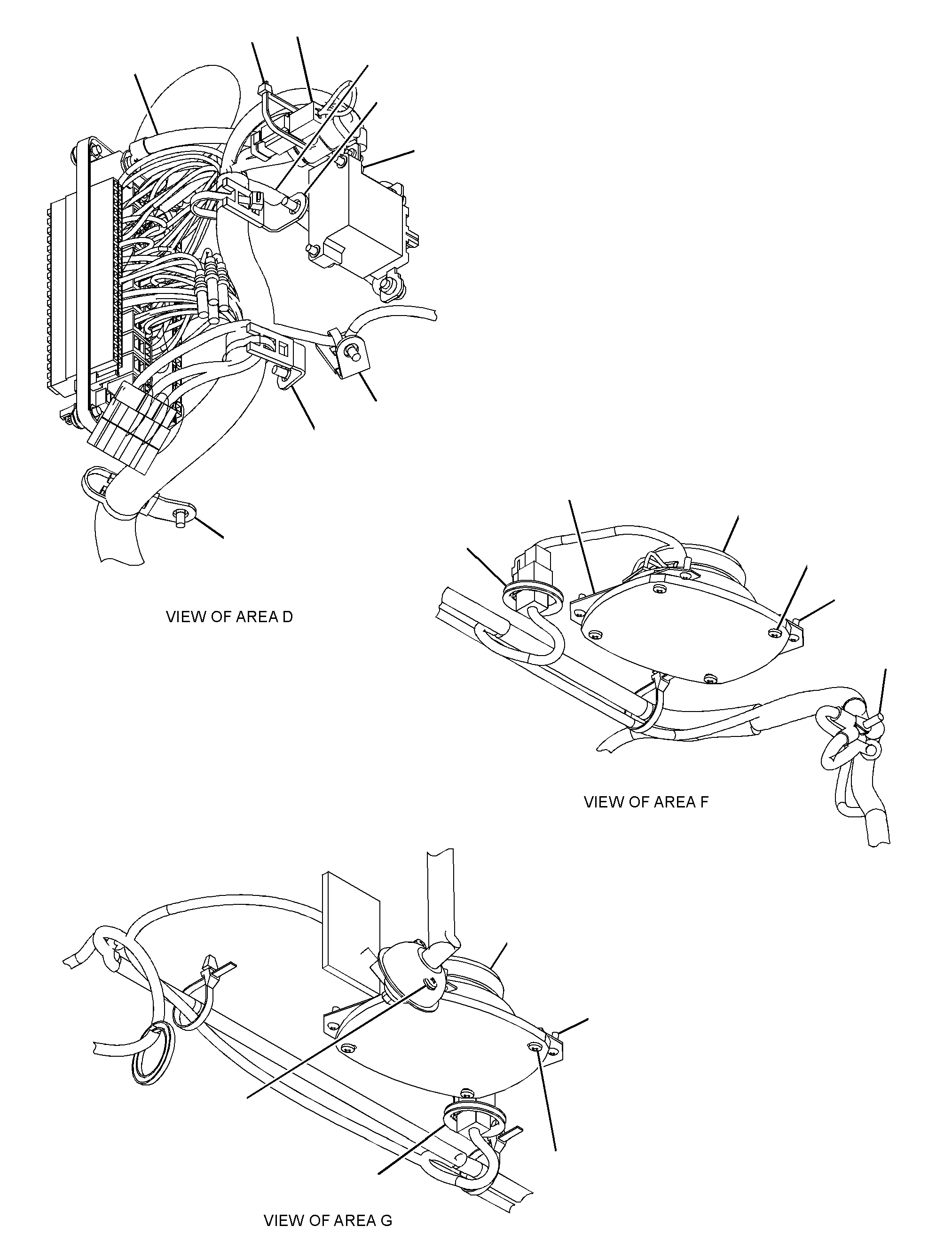

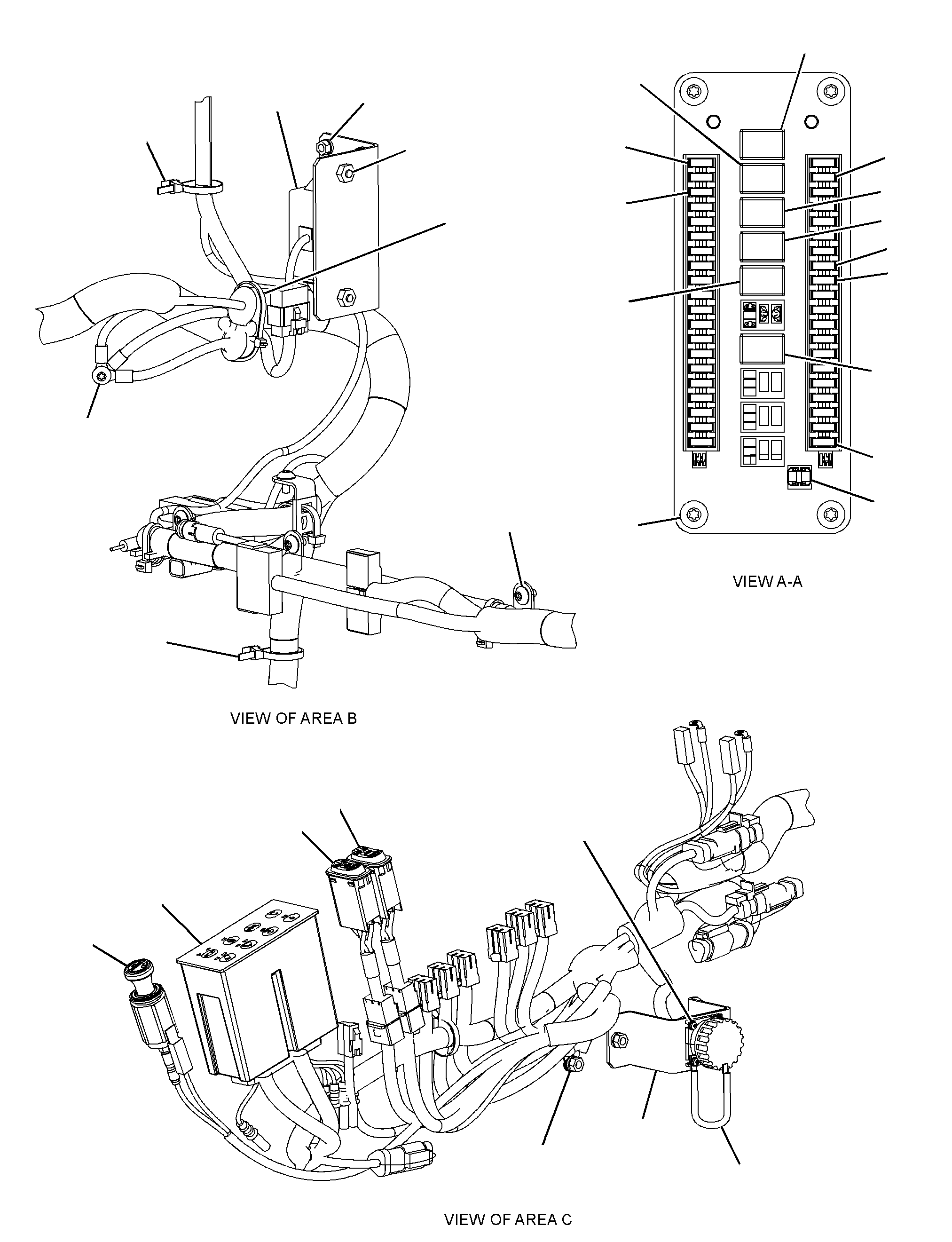

259-5161 WIRING GP-CABS/N JZA1-589

Group No: 259-5161
Part NumberPart NameQty
3S20931 STRAP-CABLE2
7Y55052 SPEAKER AS2
7Y3951TERMINAL-BLADE (14-GA)2
7Y3954CONNECTOR-PLUG (3-PIN)1
9W03353 LIGHTER AS-CIGAR (24-VOLT)1
09420804 SWITCH-MAGNETIC (24-VOLT)(START RELAY)1
09971275 SCREW-MACHINE (M4X0.7X12-MM)8
10280166 RESISTOR AS (BACKUP)1
11384907 FUSE (10-AMPERE)20
11384918 FUSE (15-AMPERE)5
11384929 FUSE (20-AMPERE)3
113849310 FUSE (25-AMPERE)3
116021011 BRACKET AS4
124354812 FUSE (30-AMPERE)2
132182913 ALARM GP (24-VOLT)(FAULT)1
141275914 FUSE (5-AMPERE)7
161312815 RELAY (24-VOLT)(BOOM FLOODLIGHT)1
161312815A RELAY (24-VOLT)(CHASSIS LIGHT)1
161312815B RELAY (24-VOLT)(CAB FLOODLIGHT)1
161312815C RELAY (24-VOLT)(HORN)1
161312815D RELAY (24-VOLT)(NEUTRAL START)1
161312815E RELAY (24-VOLT)(TRAVEL ALARM)1
366462216 KIT-SERVICE METER (32-VOLT DC)1
163675817 WIRE AS1
163679518 STRAP-CABLE15
167359319 STRAP1
170688820 PULLER-FUSE1
213077221 SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY)1
227757522 PANEL-CONTROL (SWITCH)1
234109723 BRACKET1
238221224 SWITCH AS-ROCKER (FINE SWING)1
1673542RECEPTACLE-CONNECTOR (5-PIN)1
1673543TERMINAL (MALE)5
238239026 CABLE AS (RED)1
3T4004TERMINAL-SOLDER1
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM)
238239127 CABLE AS (PURPLE)1
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)1
1257876TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM)
245776028 INSULATION8
251063729 INSULATION1
259488330 ANTENNA AS1
259529031 BRACKET AS1
350825332 HARNESS AS-CAB1
1028803KIT-RECEPTACLE (3-PIN)3
8T8729PIN-CONNECTOR (16-GA TO 20-GA)3
8T8730SOCKET-CONNECTOR (16-GA TO 18-GA)5
3S2093STRAP-CABLE113
7Y3950TERMINAL-BLADE (14-GA TO 20-GA)4
7Y3951TERMINAL-BLADE (14-GA)18
7Y3952PLUG-CONNECTOR (2-PIN)4
7Y3955CONNECTOR-RECEPTACLE2
7Y3958CONNECTOR-PLUG (6-PIN)2
7Y3962TERMINAL-BULLET (MALE)2
7Y3964TUBE2
7Y3963TERMINAL-BULLET (FEMALE)11
7Y3965TUBE11
8C6354CAP-RECEPTACLE (ET CONNECTOR)1
8T8737PLUG-SEAL22
5P6271CONNECTOR AS1
9W1951RECEPTACLE AS-CONNECTOR (9-PIN)1
1027964PLUG-CONNECTOR (16-PIN)2
1027965TERMINAL (14-GA TO 20-GA)80
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)4
1114816PLUG-CONNECTOR (13-PIN)1
1160255TERMINAL-BLADE (10-GA TO 20-GA)1
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(33-CM)
1211022DIODE3
1211168CONNECTOR-RECEPTACLE1
1211173TERMINAL (MALE)15
1254840WEDGE-PLUG LOCK (13-PIN)1
1254841WEDGE-PLUG LOCK (21-PIN)2
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(65-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(25-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)15
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)15
2L8065TERMINAL-RING (10-GA TO 12-GA, NO. 8 SCREW)3
2L8066TERMINAL-RING (10-GA TO 12-GA, NO. 10 SCREW)2
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)6
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)3
2L8076TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW)2
1288950CONNECTOR-RECEPTACLE1
5P2321TERMINAL-FORK (14-GA TO 16-GA, NO. 6 SCREW)1
1769299KIT-RECEPTACLE (3-PIN)2
1343296HOUSING-PLUG1
1343297SEAL1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)12
1261767PIN-CONNECTOR (14-GA TO 16-GA)12
1495069TERMINAL-BLADE (14-GA TO 20-GA)7
1495070TERMINAL-BLADE (16-GA TO 20-GA)14
1495071TERMINAL-BLADE (12-GA TO 14-GA)7
1532602RECEPTACLE-CONNECTOR (1-PIN)5
1532631TERMINAL (14-GA TO 20-GA)5
1552270KIT-CONNECTING PLUG (2-PIN)2
1552260KIT-CONNECTING PLUG (3-PIN)1
1636659CONNECTOR-PLUG (12-PIN)1
1636699CONNECTOR-PLUG (18-PIN)1
1636790TERMINAL (FEMALE)23
1636803PLUG-CONNECTOR (5-PIN)9
1673487WEDGE-PLUG LOCK (5-PIN)9
1673630CONNECTOR-PLUG1
1673631TERMINAL (FEMALE)2
1706890TERMINAL-BLADE (14-GA)6
1706891TERMINAL-BLADE (16-GA TO 18-GA)22
1743016PLUG AS-RESISTOR (3-PIN, 120 OHM)2
2304009PLUG AS-CONNECTOR (12-PIN)1
2647034SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)1
2647029SEAL-CONNECTOR1
2304013PLUG AS-CONNECTOR (3-PIN)1
2647030SEAL-CONNECTOR1
2382319BASE AS (FUSE, RELAY PANEL)1
9X8256WASHER (6.6X12X2-MM THK)2
0950742SCREW-MACHINE (M6X1X16-MM)2
1709394TERMINAL40
2382363TERMINAL (FEMALE)6
2382366TERMINAL (MALE)10
2397356PLUG AS-CONNECTOR (12-PIN)1
2647034SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)2
2434506RECEPTACLE AS-CONNECTOR (3-PIN)1
3495084TERMINAL-BLADE3
3495085RECEPTACLE AS-CONNECTOR3
267763933 SWITCH AS-ROCKER (LEVELING)1
1673542RECEPTACLE-CONNECTOR (5-PIN)1
1673543TERMINAL (MALE)5
095072334 SCREW-SPECIAL (M3X0.5X10-MM)3
096596235 WASHER-HARD (3.4X7X0.8-MM THK)3
096616636 WASHER-HARD (4.5X9X1-MM THK)2
132578937 CLIP (LADDER)7
4P758138 CLIP (LADDER)1
5C289039 NUT (M6X1-THD)5
6V521040 SCREW-MACHINE (M4X0.7X10-MM)8
6V967241 SCREW-MACHINE (M4X0.7X16-MM)2
8T032842 WASHER-HARD (5.5X10X1-MM THK)3
8T412743 SCREW-MACHINE (M5X0.8X20-MM)2
8T669344 SCREW-MACHINE (M5X0.8X16-MM)1
9X204245 SCREW-TRUSS HEAD (M6X1X12-MM)13
9X204446 SCREW-TRUSS HEAD (M6X1X16-MM)5
9X825647 WASHER (6.6X12X2-MM THK)5
101284648 GUARD (9.5-CM)
101284648A GUARD (9-CM EACH)
7K118149 STRAP-CABLE8
