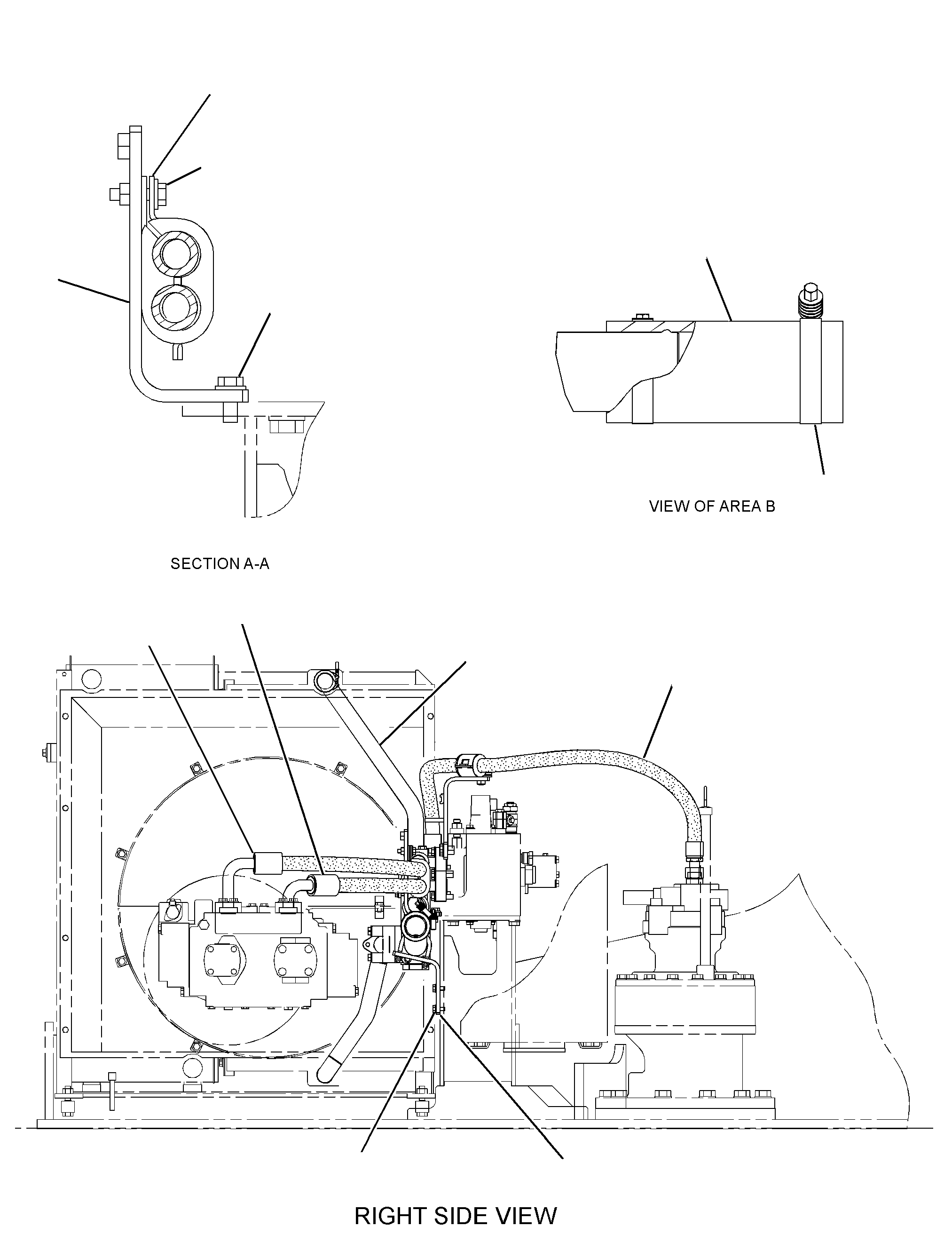

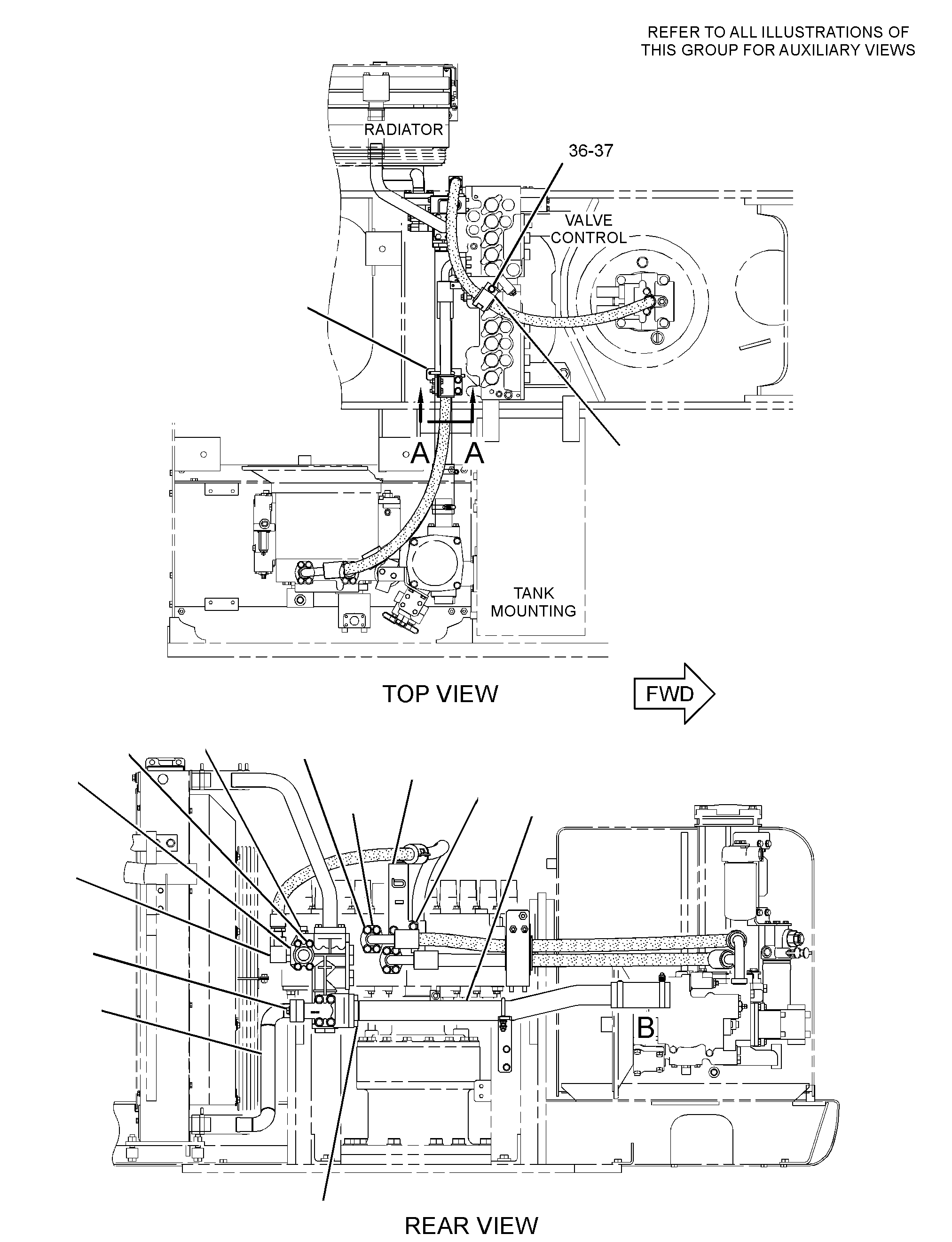

248-9846 LINES GP-HYDRAULIC OIL COOLER -CONTROL VALVE, PUMPS/N MDE1-UP; JGZ1-UP
Group No: 248-9846
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1440367 | 1 CLAMP-HOSE | 2 | |
| 1734816 | 2 SUPPORT AS | 1 | |
| 1797863 | 3 HOSE AS | 1 | |
| 1797867 | 4 HOSE AS | 1 | |
| 1960807 | 5 PLATE | 1 | |
| 1997394 | 6 PIPE AS | 1 | |
| 1997403 | 7 HOSE AS | 1 | |
| 2270581 | 8 HOSE | 1 | |
| 2661037 | 9 TUBE AS | 1 | |
| 2661045 | 10 TUBE AS | 1 | |
| 2661055 | 11 SUPPORT AS | 1 | |
| 2970462 | 12 VALVE GP-CHECK | 1 | |
| 0964883 | 13 LOCKNUT (M10X1.5-THD) | 2 | |
| 1017402 | 14 BOLT-SOCKET HEAD (M12X1.75X30-MM) | 4 | |
| 1488340 | 15 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1488357 | 16 ELBOW AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9008 | ELBOW | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1P3703 | 17 SEAL-RECTANGULAR | 4 | |
| 4J0524 | 18 SEAL-O-RING | 3 | |
| 4J0527 | 19 SEAL-O-RING | 1 | |
| 5P7468 | 20 CLIP (SLOT) | 1 | |
| 5P7469 | 21 CLIP (TAB) | 1 | |
| 5P8444 | 22 GROMMET (37-MM ID) | 1 | |
| 8T7087 | GROMMET (34-MM ID) | 1 | |
| 6V0400 | 23 FLANGE-HALF | 4 | |
| 7G5984 | 24 CLIP (TAB) | 1 | |
| 7G5985 | 25 CLIP (SLOT) | 1 | |
| 7G5986 | 26 GROMMET | 1 | |
| 7X2544 | 27 BOLT (M10X1.5X140-MM) | 4 | |
| 7X7729 | 28 WASHER (11X25X3-MM THK) | 2 | |
| 7Y5247 | 29 U-BOLT (M10X1.5-THD) | 1 | |
| 8T4121 | 30 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4136 | 31 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4139 | 32 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4183 | 33 BOLT (M12X1.75X40-MM) | 2 | |
| 8T4186 | 34 BOLT (M10X1.5X40-MM) | 2 | |
| 8T4194 | 35 BOLT (M12X1.75X50-MM) | 8 | |
| 8T4223 | 36 WASHER-HARD (13.5X25.5X3-MM THK) | 15 | |
| 8T4956 | 37 BOLT (M12X1.75X35-MM) | 5 |
