System And Components

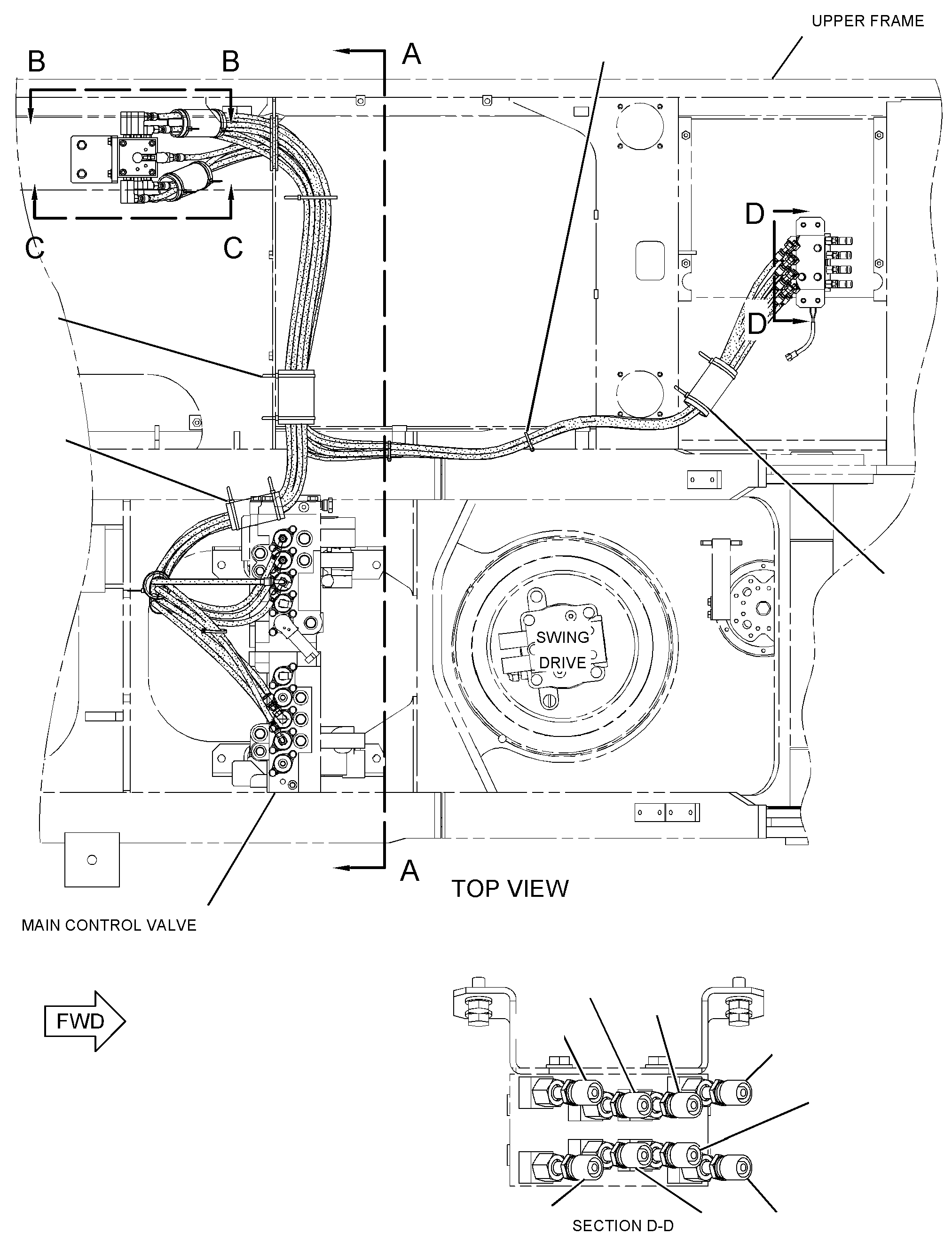

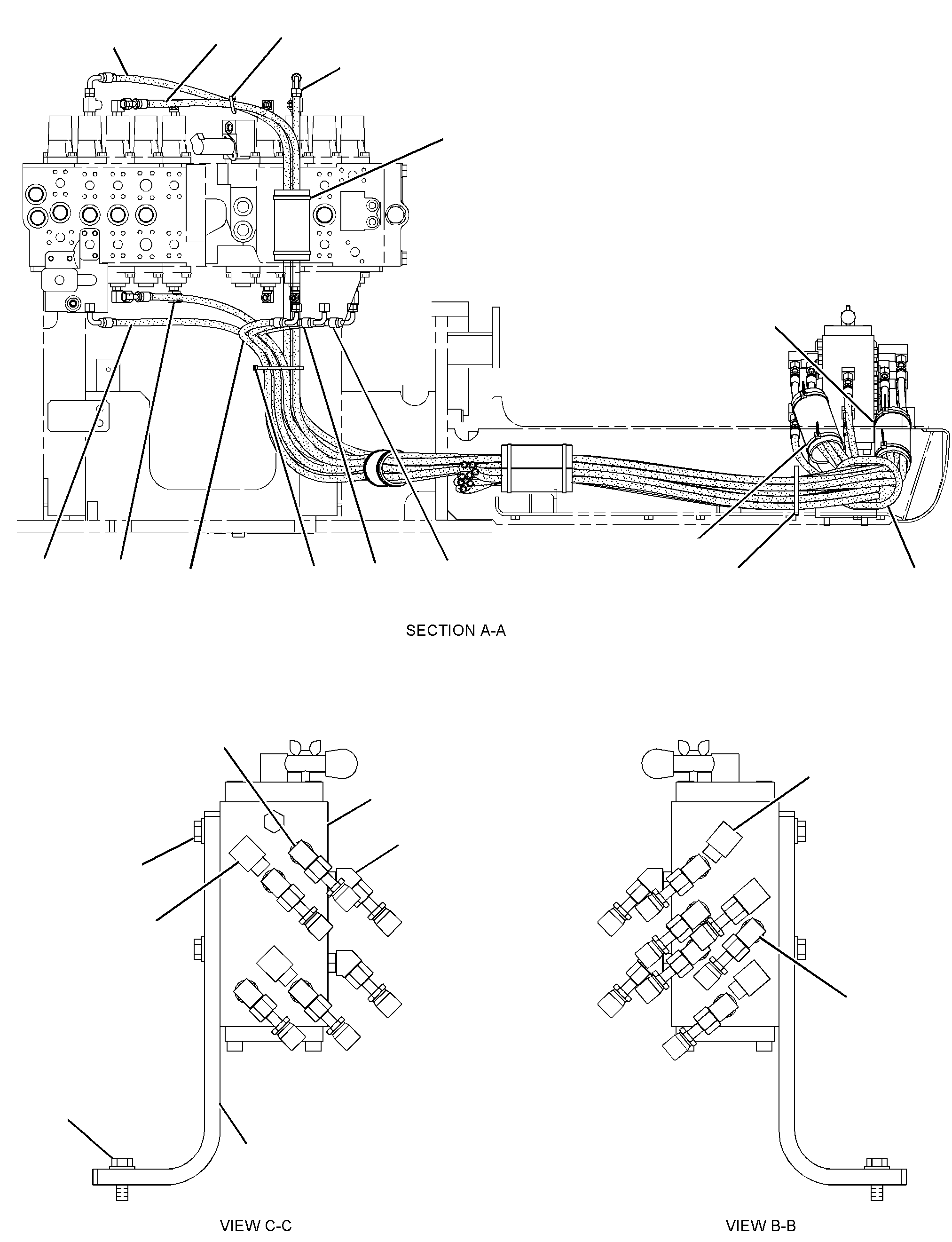

255-1849 LINES GP-PILOT -4-WAY PATTERNS/N PRF1-UP; KKT1-UP
Group No: 255-1849
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I6027 | 1 HOSE AS | 1 | |
| 4I8799 | 2 HOSE AS | 1 | |
| 4I9521 | 3 BAND-MARKER (RED, L1) | 4 | |
| 4I9522 | 4 BAND-MARKER (YELLOW, L2) | 4 | |
| 4I9523 | 5 BAND-MARKER (BLUE, L3) | 4 | |
| 4I9524 | 6 BAND-MARKER (BROWN, L4) | 4 | |
| 4I9525 | 7 BAND-MARKER (ORANGE, R1) | 4 | |
| 4I9526 | 8 BAND-MARKER (WHITE, R2) | 4 | |
| 4I9527 | 9 BAND-MARKER (GREEN, R3) | 4 | |
| 4I9528 | 10 BAND-MARKER (PURPLE, R4) | 4 | |
| 5I8853 | 11 HOSE AS | 1 | |
| 7K1181 | 12 STRAP-CABLE | 18 | |
| 7Y4387 | 13 HOSE AS | 1 | |
| 0856455 | 14 VALVE GP-PILOT | 1 | |
| 0875780 | 15 HOSE AS | 1 | |
| 1027685 | 16 HOSE AS | 2 | |
| 1087203 | 17 HOSE AS | 1 | |
| 1136738 | 18 HOSE AS | 3 | |
| 1720907 | 19 HOSE AS | 1 | |
| 1241008 | 20 GUARD | 1 | |
| 1797616 | 21 HOSE AS | 1 | |
| 2181059 | 22 HOSE AS | 3 | |
| 2551671 | 23 GROMMET | 1 | |
| 2551850 | 24 SUPPORT | 1 | |
| 1158645 | 25 GUARD | 5 | |
| 1488353 | 26 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488378 | 27 ELBOW AS | 9 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1503036 | 28 ELBOW AS | 5 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1905 | ELBOW | 1 | |
| 8T4223 | 29 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 8T4956 | 30 BOLT (M12X1.75X35-MM) | 6 |
