System And Components

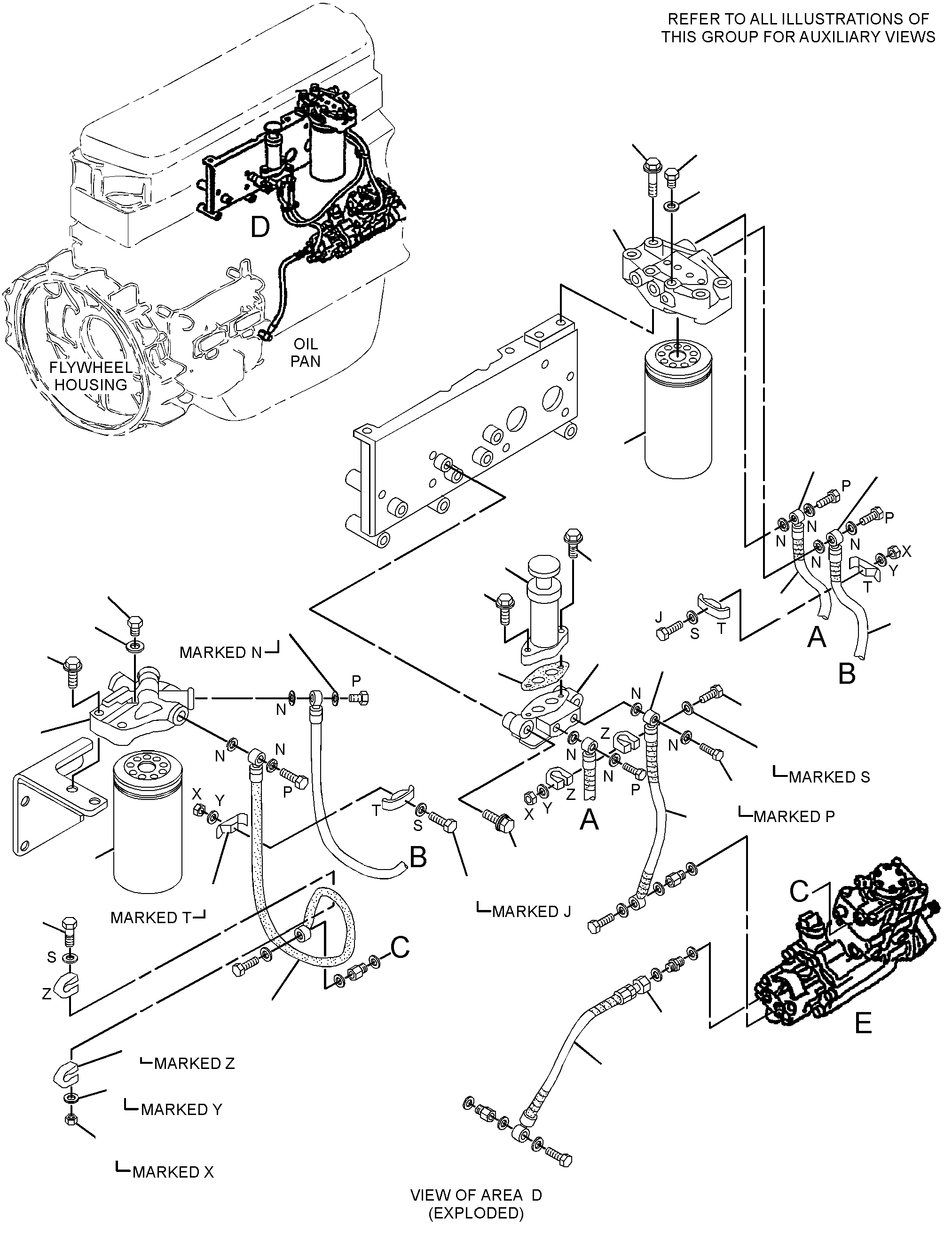

297-7818 FILTER GP-FUELS/N GDC7002-UP
Group No: 297-7818
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0994437 | 1 GASKET | 17 | |
| 0995041 | 2 BOLT (M14X1.5X27-MM) | 7 | |
| 2941811 | 3 WASHER (13.5-MM OD) | 1 | |
| 2941819 | 4 HOSE | 1 | |
| 1375541 | 5 PUMP GP-FUEL PRIMING | 1 | |
| 2293218 | VALVE AS | 2 | |
| 2941820 | 6 GASKET (FUEL PRIMING PUMP) | 1 | |
| 1992241 | 7 BOLT | 1 | |
| 2941821 | 8 BOLT (M8X1.25X35.5-MM) | 1 | |
| 2941822 | 9 BASE | 1 | |
| 2889297 | 10 BOLT | 4 | |
| 1R0751 | 11 FILTER-FUEL (ADVANCED EFFICIENCY) | 2 | |
| 2941825 | 12 HOSE | 1 | |
| 2941826 | 13 HOSE | 1 | |
| 2941827 | 14 BRACKET | 1 | |
| 2941828 | 15 BOLT (M10X1.5X62-MM) | 2 | |
| 1838224 | 16 TUBE | 1 | |
| 1968217 | 17 TUBE | 1 | |
| 3054888 | 18 HOSE | 1 | |
| 1905830 | 19 TUBE | 1 | |
| 2941830 | 20 TUBE | 1 | |
| 0949725 | 21 PLUG | 2 | |
| 5C2890 | 22 NUT (M6X1-THD) | 4 | |
| 9X8256 | 23 WASHER (6.6X12X2-MM THK) | 4 | |
| 2941831 | 24 CLAMP | 4 | |
| 2941833 | 25 CLAMP | 2 | |
| 2977822 | 26 BOLT (M6X1X44-MM) | 2 | |
| 3B4504 | 27 LOCKWASHER | 4 | |
| 2977706 | 28 BOLT (M6X1X64-MM) | 2 | |
| 3109534 | 29 CONNECTOR | 1 | |
| 3054886 | 30 HOSE | 1 | |
| 2139433 | 31 BOLT (M10X1.5X45-MM) | 2 | |
| 0952038 | 32 WASHER (7.8X13.5X2-MM THK) | 1 | |
| 3109536 | 33 BASE-FILTER | 1 | |
| 2941837 | 38 BRACKET | 1 | |
| 2941838 | 39 BRACKET | 1 | |
| 3054901 | 41 SEAL-O-RING | 1 | |
| 2941804 | 42 SEAL-O-RING | 2 | |
| 2941844 | 47 BOLT (M12X1.75X28-MM) | 1 | |
| 2941845 | 48 BOLT (M12X1.25X38-MM) | 1 | |
| 3054902 | 49 CONNECTOR | 1 | |
| 5I8058 | 50 CONNECTOR | 1 | |
| 6V5215 | 52 BOLT (M8X1.25X16-MM) | 2 | |
| 3054900 | 54 PIPE | 1 | |
| 2941848 | 55 CONNECTOR | 1 | |
| 2941849 | 56 SEAL-O-RING | 1 | |
| 2977660 | 57 NUT (M8-THD) | 1 | |
| 3109533 | 58 ADAPTER | 1 |
