System And Components

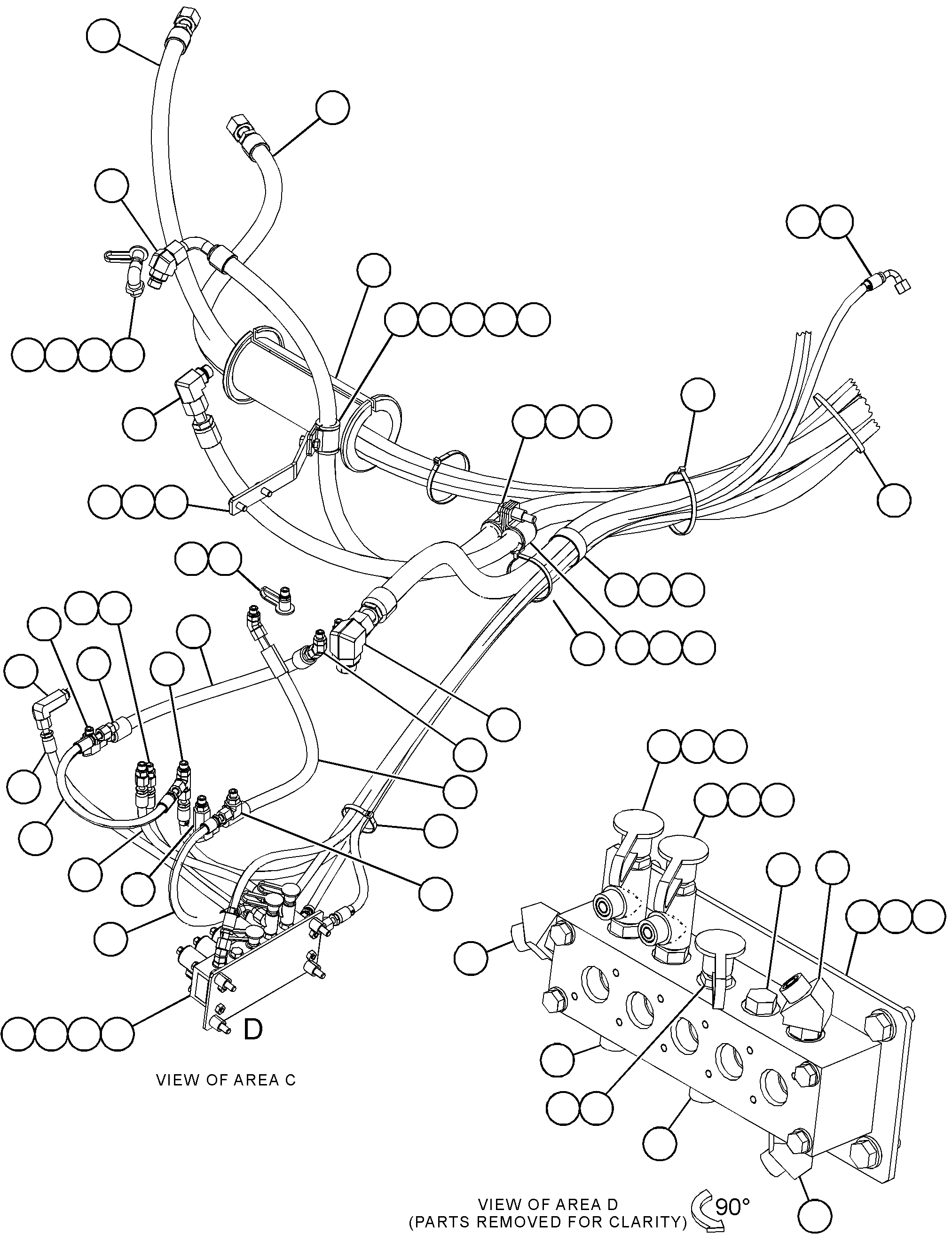

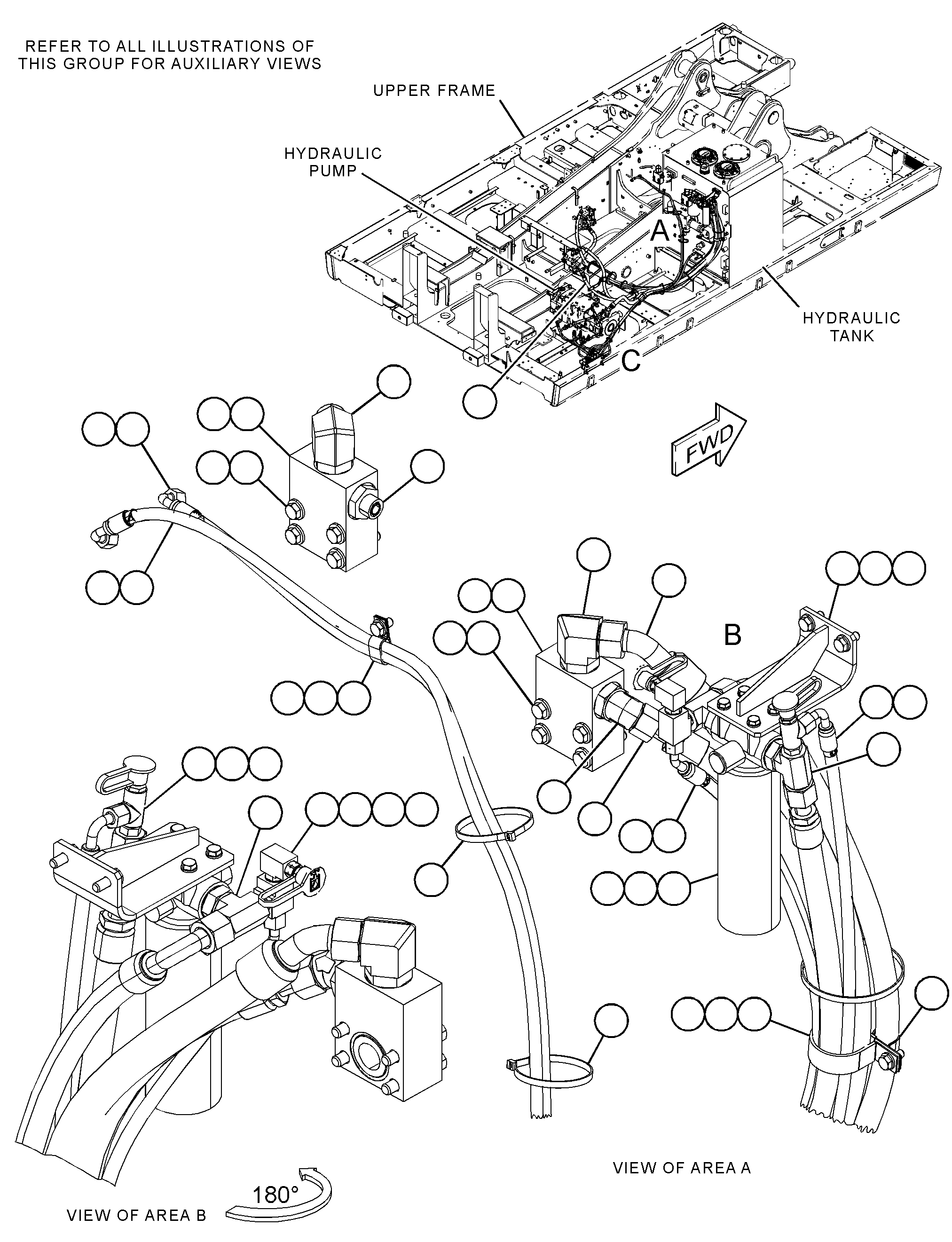

396-3698 LINES GP-PILOT -PUMPS/N HNG1-UP
Group No: 396-3698
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I1880 | 1 HOSE AS | 1 | |
| 4I6030 | 2 HOSE AS | 1 | |
| 5I4381 | 3 HOSE AS | 1 | |
| 0875767 | 4 HOSE AS | 1 | |
| 1087363 | 5 HOSE AS | 1 | |
| 1385659 | 6 HOSE AS | 1 | |
| 1434308 | 7 HOSE AS | 1 | |
| 1496547 | 8 BLOCK | 2 | |
| 1681968 | 9 TEE AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1266872 | TEE | 1 | |
| 1809286 | 10 TEE AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 3E2345 | ADAPTER-TEE | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1850336 | 11 FILTER GP-OIL (HYDRAULIC) | 1 | |
| 2270727 | 12 HOSE AS | 1 | |
| 2650093 | 13 HOSE AS | 1 | |
| 2786867 | 14 HOSE AS | 1 | |
| 3023178 | 15 GROMMET | 1 | |
| 3302417 | 16 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1421585 | CONNECTOR | 1 | |
| 3471233 | 17 HOSE AS | 1 | |
| 3660984 | 18 HOSE AS | 1 | |
| 3839191 | 19 HOSE AS | 1 | |
| 3839195 | 20 SUPPORT AS | 1 | |
| 3975582 | 21 PLATE AS | 1 | |
| 3975586 | 22 HOSE AS | 1 | |
| 4800576 | 23 HOSE AS | 1 | |
| 3983955 | 24 HOSE AS | 1 | |
| 4544230 | 25 PLATE AS | 1 | |
| 4470969 | 26 HOSE AS | 1 | |
| 4471041 | 27 VALVE GP-SOLENOID (PUMP) | 1 | |
| 1155411 | 28 ELBOW | 1 | |
| 1488336 | 29 CONNECTOR AS | 6 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488353 | 30 ELBOW AS | 5 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488357 | 31 ELBOW AS | 3 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 2353575 | 32 CONNECTOR AS | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1387538 | CONNECTOR | 1 | |
| 1488378 | 33 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488388 | 34 ELBOW AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8629 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488407 | 35 PLUG AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488435 | 37 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1488443 | 38 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 7X2459 | ADAPTER-TEE | 1 | |
| 1503036 | 39 ELBOW AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1905 | ELBOW | 1 | |
| 1504049 | 40 ELBOW AS | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 8T4149 | ELBOW | 1 | |
| 1536244 | 41 ELBOW AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8T5389 | ELBOW | 1 | |
| 1645567 | 42 COUPLER AS-QUICK DISCONNECT (MALE) | 7 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 1645590 | 43 VALVE AS-FLUID SAMPLING (PILOT OIL) | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 8C3446 | VALVE-SAMPLING (PILOT OIL) | 1 | |
| 1695862 | 44 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 8C6712 | ELBOW | 1 | |
| 3K0360 | 45 SEAL-O-RING | 1 | |
| 3P9847 | 46 CLIP | 1 | |
| 4D6466 | 47 CLIP | 1 | |
| 4J0524 | 48 SEAL-O-RING | 2 | |
| 6V0852 | 50 CAP-DUST | 7 | |
| 6V1889 | 51 CLIP (LOOP) | 1 | |
| 6V3378 | 52 CLIP | 1 | |
| 7K1181 | 53 STRAP-CABLE | 9 | |
| 8C3451 | 54 CAP-DUST (HYDRAULIC OIL) | 1 | |
| 8T4121 | 55 WASHER-HARD (11X21X2.5-MM THK) | 12 | |
| 8T4136 | 56 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4137 | 57 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4910 | 58 BOLT (M12X1.75X60-MM) | 1 | |
| 8T4200 | 59 BOLT (M8X1.25X16-MM) | 4 | |
| 8T4223 | 60 WASHER-HARD (13.5X25.5X3-MM THK) | 9 | |
| 8T4224 | 61 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 8T4648 | 62 BOLT (M12X1.75X70-MM) | 8 | |
| 8T6870 | 63 BOLT (M8X1.25X70-MM) | 4 | |
| 8T4182 | 64 BOLT (M10X1.5X45-MM) | 4 | |
| 4I9521 | 65 BAND-MARKER (RED, L1) | 2 | |
| 4I9522 | 66 BAND-MARKER (YELLOW, L2) | 2 | |
| 4I9523 | 67 BAND-MARKER (BLUE, L3) | 2 | |
| 4I9524 | 68 BAND-MARKER (BROWN, L4) | 2 | |
| 4I9525 | 69 BAND-MARKER (ORANGE, R1) | 2 | |
| 1712637 | 70 BOSS | 1 | |
| 5P7464 | 71 CLIP (SLOT) | 3 | |
| 5P7465 | 72 CLIP (TAB) | 3 | |
| 8T2920 | 73 GROMMET (27-MM ID) | 3 |
