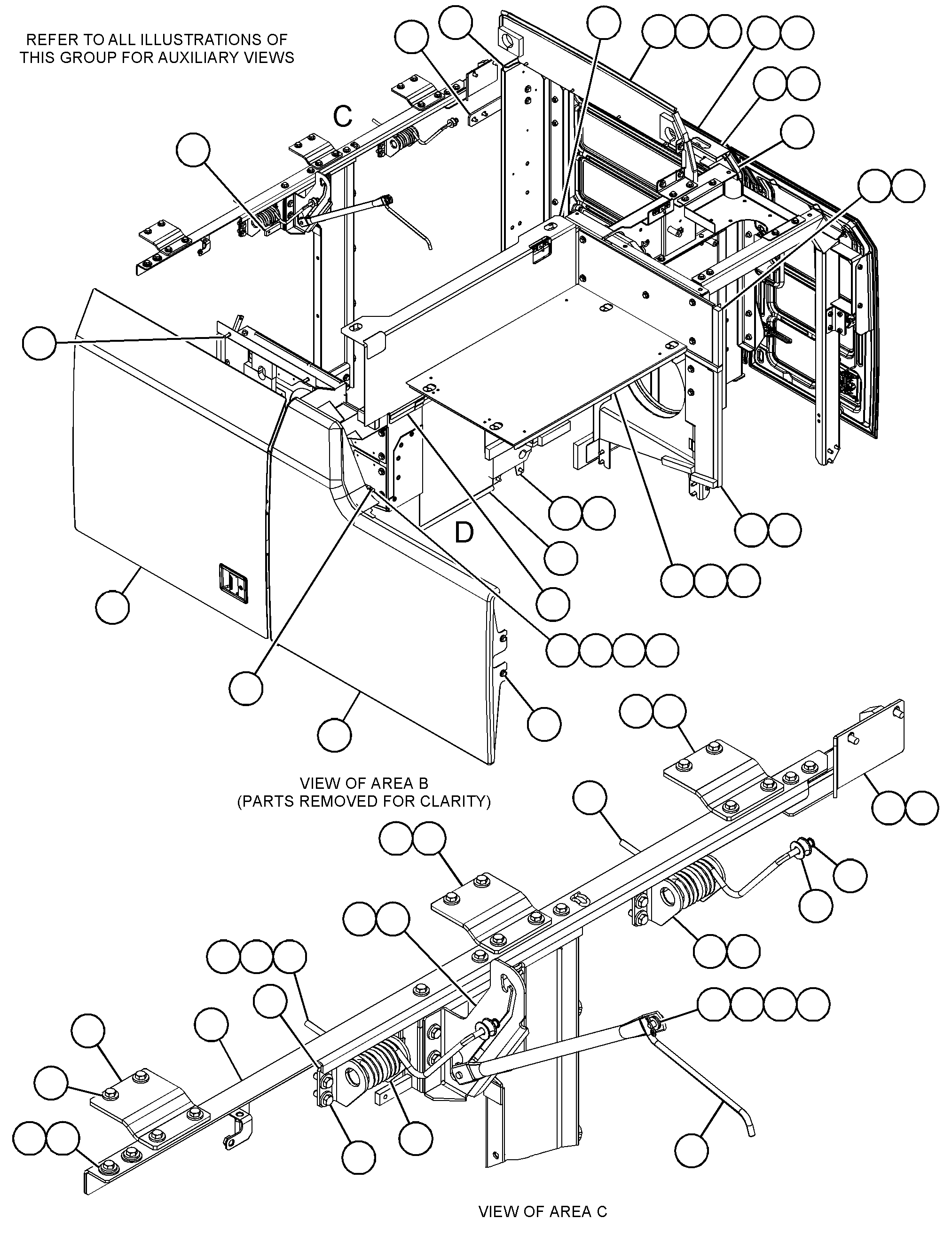

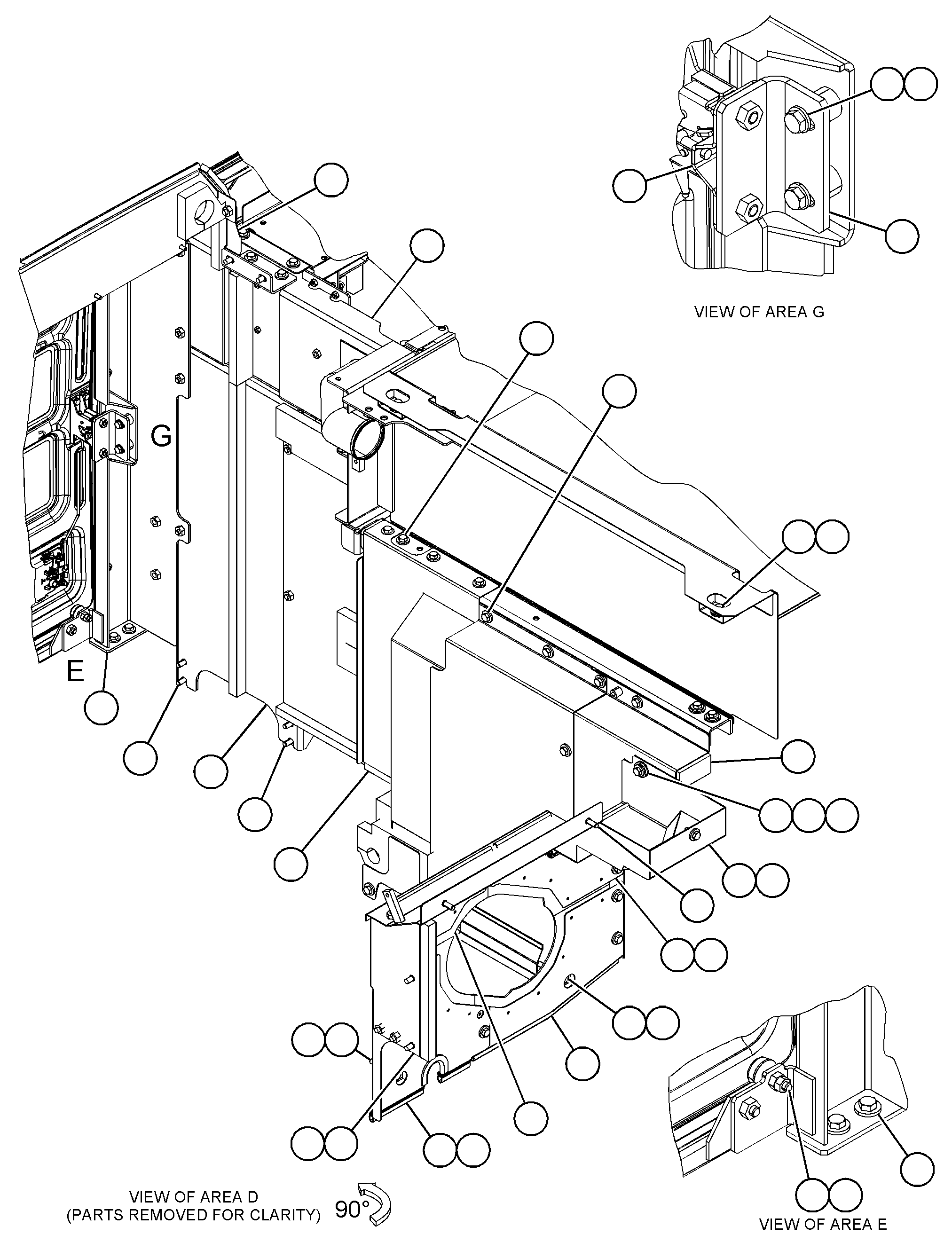

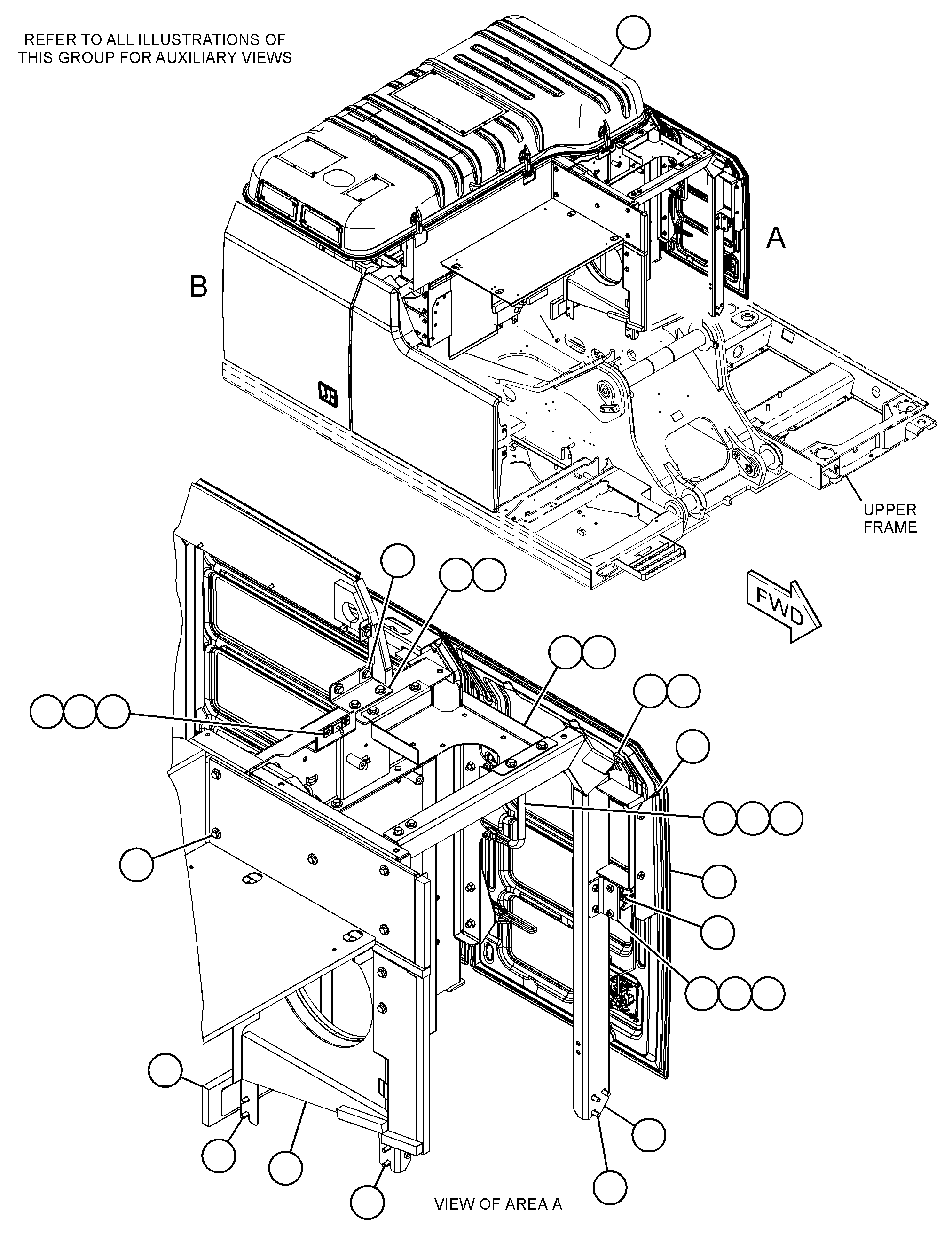

533-2741 HOOD & GUARD GPS/N KFA1-UP; JHF1-UP
Group No: 533-2741 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I0118 | 1 HOOK AS | 2 | |
| 5P0372 | 2 LOCK PIN | 1 | |
| 5P1076 | 3 WASHER-HARD (13.5X30X4-MM THK) | 1 | |
| 5P4116 | 4 WASHER-HARD (8.8X20.5X2-MM THK) | 4 | |
| 7Y2853 | 5 SPACER (13X38X5-MM THK) | 7 | |
| 7Y2854 | 6 SPACER (24X38X3-MM THK) | 7 | |
| 8T4121 | 7 WASHER-HARD (11X21X2.5-MM THK) | 17 | |
| 8T4136 | 8 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4137 | 9 BOLT (M10X1.5X20-MM) | 9 | |
| 8T4189 | 10 BOLT (M8X1.25X20-MM) | 8 | |
| 8T4196 | 11 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4223 | 12 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4224 | 13 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 8T6868 | 14 BOLT (M12X1.75X80-MM) | 2 | |
| 1358575 | 15 BOLT AS | 106 | |
| 1358577 | 16 BOLT AS | 2 | |
| 1703016 | 17 SPACER (19X32X2-MM THK) | 14 | |
| 2447789 | 18 SPACER (19X38X3-MM THK) | 8 | |
| 2983112 | 19 HANDRAIL | 2 | |
| 3272884 | 20 BRACKET AS | 1 | |
| 3272886 | 21 STRIKER AS | 2 | |
| 3272889 | 22 SHEET AS | 1 | |
| 3485409 | SEAL (13-DM) | ||
| 3384068 | 23 SUPPORT AS | 1 | |
| 3384364 | LINER | 1 | |
| 3384093 | 24 SUPPORT | 1 | |
| 3384094 | 25 SUPPORT AS | 1 | |
| 3384371 | LINER | 1 | |
| 3485409 | SEAL (10-DM) | ||
| 3384115 | 26 BRACKET AS | 3 | |
| 3384202 | 27 SUPPORT AS | 1 | |
| 3384205 | LINER | 1 | |
| 3485409 | SEAL (10-DM) | ||
| 3384209 | 28 SHEET | 1 | |
| 3384210 | 29 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384220 | 30 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384233 | 31 SHEET AS | 1 | |
| 3384236 | LINER | 1 | |
| 3384286 | 32 PLATE AS | 1 | |
| 3384288 | LINER | 1 | |
| 3384328 | 33 COVER AS-SOUND SUPPRESSION | 1 | |
| 3384336 | 34 SHEET | 1 | |
| 3397383 | 35 SUPPORT AS | 2 | |
| 3397384 | 36 SUPPORT AS | 2 | |
| 3432465 | 37 BUMPER | 4 | |
| 3490020 | 38 SUPPORT AS | 1 | |
| 3504649 | 39 BRACKET AS | 1 | |
| 3504655 | 40 SHEET AS | 1 | |
| 3485409 | SEAL (4-DM) | ||
| 3504816 | 41 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384341 | LINER | 1 | |
| 3568961 | 42 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3568963 | LINER | 1 | |
| 3597996 | 43 SUPPORT AS | 1 | |
| 0543788 | WASHER (13.5X30X3-MM THK) | 2 | |
| 3719994 | 44 SUPPORT AS-ENCLOSURE | 1 | |
| 3719996 | 45 SUPPORT AS | 1 | |
| 3828630 | 46 ROLLER | 2 | |
| 3852335 | 47 SPRING | 2 | |
| 3988104 | 48 SUPPORT AS | 1 | |
| 3988110 | 49 SUPPORT AS | 1 | |
| 5624119 | 50 HOOD GP-ENGINE | 1 | |
| 4250003 | 51 SUPPORT AS | 1 | |
| 4309415 | 52 RETAINER | 2 | |
| 4310086 | 53 SUPPORT AS-ENCLOSURE | 1 | |
| 4310088 | 54 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4458141 | 55 SUPPORT AS-SOUND SUPPRESSION | 1 | |
| 4511591 | 56 COVER AS-SOUND SUPPRESSION (FUEL, HYDRAULIC TANKS) | 1 | |
| 4595087 | 57 COVER AS-SOUND SUPPRESSION | 1 | |
| 3384301 | INSULATION | 2 | |
| 4610397 | 58 SHEET | 1 | |
| 4625824 | 59 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4625826 | 60 SHEET AS | 1 | |
| 4625827 | 61 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4642255 | 62 COVER AS | 1 | |
| 5267561 | 63 DOOR GP-ACCESS (AIR CLEANER, BATTERY) | 1 | |
| 5267562 | 64 DOOR GP-ACCESS (RADIATOR) | 1 | |
| 5267563 | 65 DOOR GP-ACCESS | 1 | |
| 5277651 | 66 SUPPORT AS | 1 | |
| 5332742 | 67 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5395231 | 68 SHEET AS | 1 | |
| 9M5732 | RIVET-POP | 6 | |
| 9X6165 | WASHER (6.5X22X2.5-MM THK) | 6 | |
| 1019848 | SEAL (0.5-M) | ||
| 5410514 | SHEET-RUBBER | 1 | |
| 5395233 | 69 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5395235 | 70 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5395237 | 71 SHEET AS-SOUND SUPPRESSION | 1 | |
| 1358573 | 72 BOLT AS | 42 | |
| 7Y2916 | 73 PIN-CLEVIS | 1 | |
| 8T4133 | 74 NUT (M10X1.5-THD) | 4 |
