System And Components

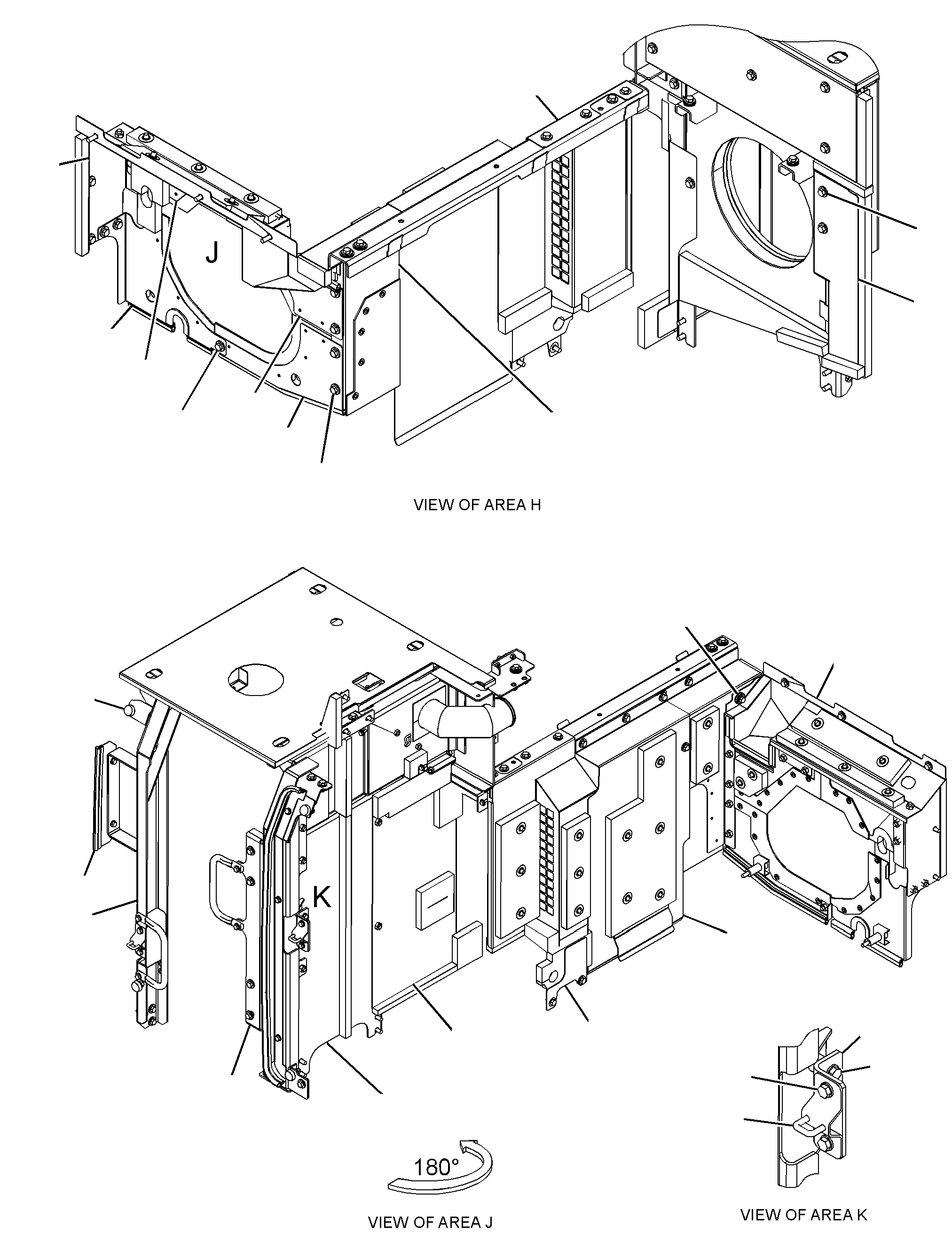

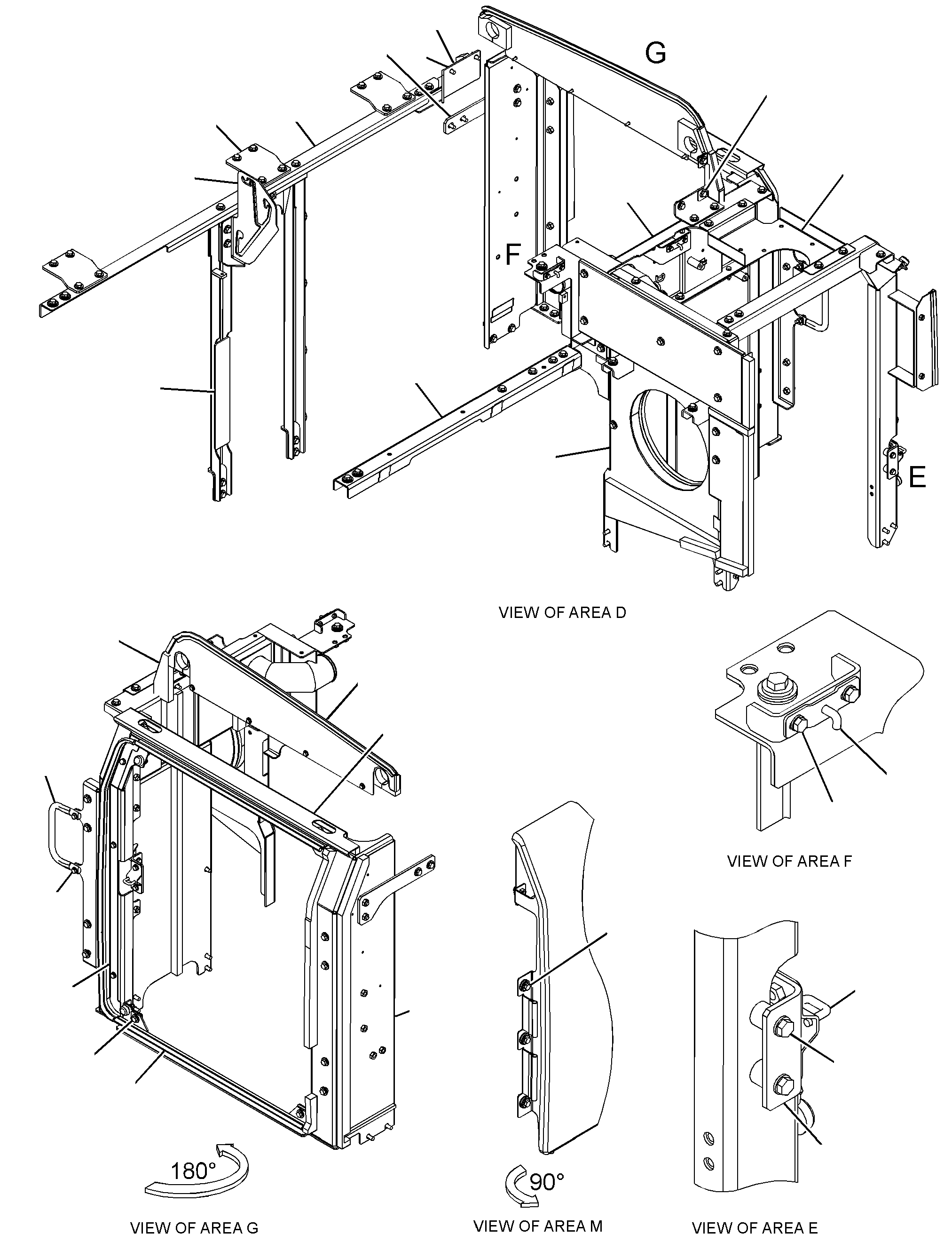

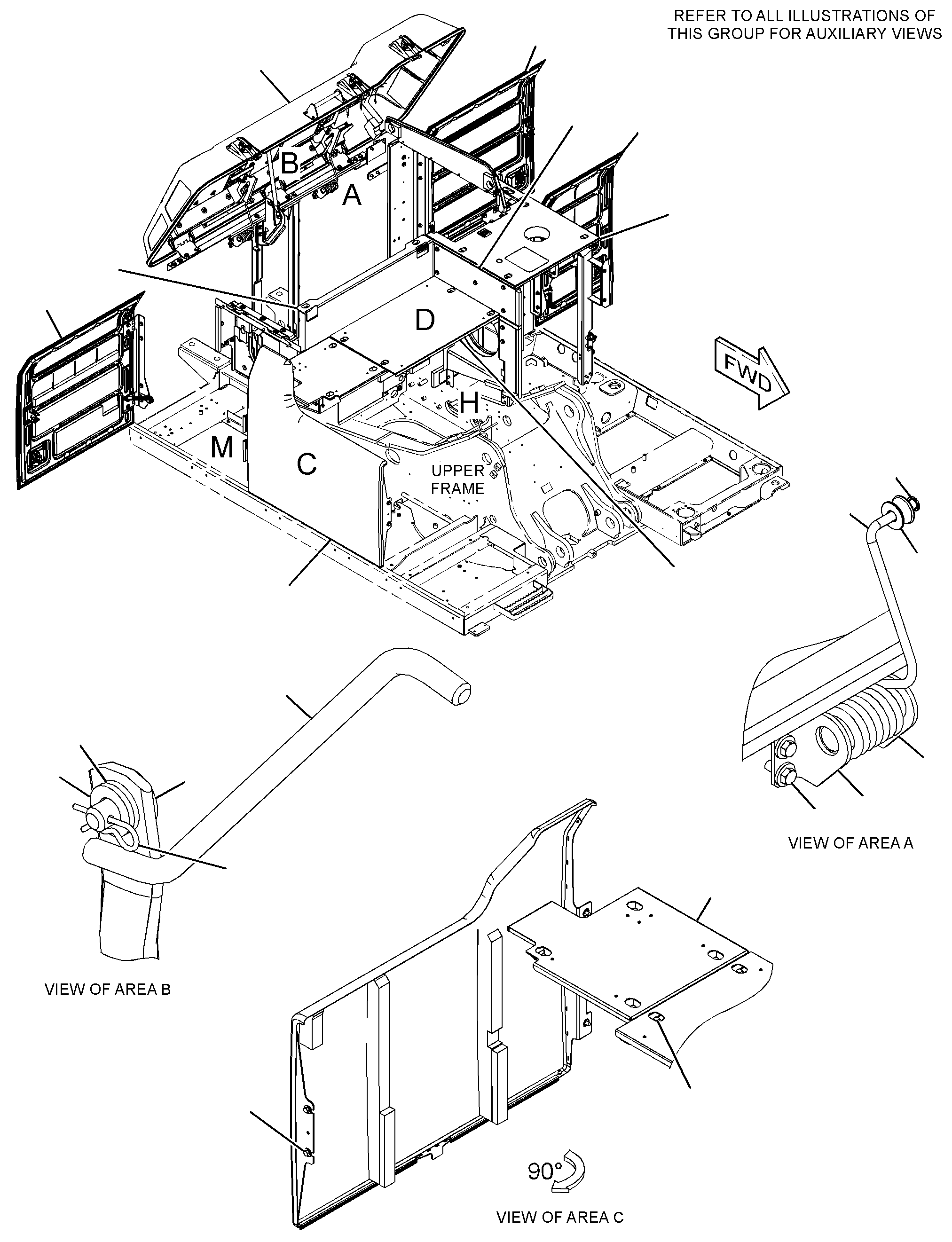

338-4379 HOOD & GUARD GPS/N PNW900-1390
Group No: 338-4379 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I0118 | 1 HOOK AS | 2 | |
| 3432465 | 2 BUMPER | 4 | |
| 5P0372 | 3 LOCK PIN | 1 | |
| 7Y2853 | 4 SPACER (13X38X5-MM THK) | 4 | |
| 1358573 | 5 BOLT AS | 49 | |
| 1358575 | 6 BOLT AS | 102 | |
| 1358577 | 7 BOLT AS | 2 | |
| 1703016 | 8 SPACER (19X32X2-MM THK) | 14 | |
| 2447789 | 9 SPACER (19X38X3-MM THK) | 8 | |
| 2983112 | 10 HANDRAIL | 2 | |
| 3272884 | 11 BRACKET AS | 1 | |
| 3272886 | 12 STRIKER AS | 2 | |
| 3272889 | 13 SHEET AS | 1 | |
| 3485409 | SEAL (13-DM) | ||
| 3301304 | 14 DOOR GP-ACCESS (AIR CLEANER, BATTERY) | 1 | |
| 3384008 | 15 DOOR GP-ACCESS (RADIATOR) | 1 | |
| 3384009 | 16 DOOR GP-ACCESS (PUMP COMPARTMENT) | 1 | |
| 3384034 | 17 SUPPORT AS | 1 | |
| 3384043 | 18 SUPPORT AS-ENCLOSURE | 1 | |
| 3384068 | 19 SUPPORT AS | 1 | |
| 3384364 | LINER | 1 | |
| 3852297 | 20 SUPPORT AS-ENCLOSURE | 1 | |
| 3384093 | 21 SUPPORT | 1 | |
| 3384094 | 22 SUPPORT AS | 1 | |
| 3485409 | SEAL (10-DM) | ||
| 3384371 | LINER | 1 | |
| 3384111 | 23 SUPPORT AS | 1 | |
| 3384115 | 24 BRACKET AS | 3 | |
| 3384118 | 25 SUPPORT AS | 1 | |
| 3384184 | 26 BRACKET AS | 1 | |
| 3852295 | 27 SUPPORT AS | 1 | |
| 3384202 | 28 SUPPORT AS | 1 | |
| 3485409 | SEAL (10-DM) | ||
| 3384205 | LINER | 1 | |
| 3384209 | 29 SHEET | 1 | |
| 3384210 | 30 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384215 | 31 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384220 | 32 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3852301 | 33 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384233 | 34 SHEET AS | 1 | |
| 3384236 | LINER | 1 | |
| 3384237 | 35 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384242 | 36 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384247 | 37 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384254 | 38 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3852304 | 39 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384286 | 40 PLATE AS | 1 | |
| 3384288 | LINER | 1 | |
| 3384294 | 41 COVER AS-SOUND SUPPRESSION | 1 | |
| 3384301 | INSULATION | 2 | |
| 4308492 | 42 COVER AS | 1 | |
| 3384315 | 43 COVER AS-SOUND SUPPRESSION | 1 | |
| 3384323 | 44 COVER AS | 1 | |
| 4I7924 | WASHER (4.5X40X1.2-MM THK) | 5 | |
| 6P2216 | CAP (PUSH ON) | 5 | |
| 3384327 | SILENCER | 1 | |
| 3384328 | 45 COVER AS-SOUND SUPPRESSION | 1 | |
| 4308490 | 47 COVER AS-SOUND SUPPRESSION | 1 | |
| 3384344 | 48 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3852335 | 49 SPRING | 2 | |
| 3397383 | 50 SUPPORT AS | 2 | |
| 3397384 | 51 SUPPORT AS | 2 | |
| 3432466 | 52 SHEET AS | 1 | |
| 3485409 | SEAL (4-DM) | ||
| 3490020 | 53 SUPPORT AS | 1 | |
| 4165121 | 54 HOOD GP-ENGINE | 1 | |
| 3504816 | 55 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384341 | LINER | 1 | |
| 3568908 | 56 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3568961 | 57 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3568963 | LINER | 1 | |
| 3597995 | 58 SHEET | 1 | |
| 3597996 | 59 SUPPORT AS | 1 | |
| 0543788 | WASHER (13.5X30X3-MM THK) | 1 | |
| 3719994 | 60 SUPPORT AS-ENCLOSURE | 1 | |
| 3719996 | 61 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 7 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 13 | |
| 9R5271 | BOSS (M10X1.5X25-MM) | 2 | |
| 5P1076 | 62 WASHER-HARD (13.5X30X4-MM THK) | 1 | |
| 5P4116 | 63 WASHER-HARD (8.8X20.5X2-MM THK) | 4 | |
| 7Y2854 | 64 SPACER (24X38X3-MM THK) | 4 | |
| 7Y2916 | 65 PIN-CLEVIS | 1 | |
| 8T4121 | 66 WASHER-HARD (11X21X2.5-MM THK) | 17 | |
| 8T4133 | 67 NUT (M10X1.5-THD) | 4 | |
| 8T4136 | 68 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4137 | 69 BOLT (M10X1.5X20-MM) | 9 | |
| 8T4189 | 70 BOLT (M8X1.25X20-MM) | 8 | |
| 8T4196 | 71 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4223 | 72 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4224 | 73 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 8T6868 | 74 BOLT (M12X1.75X80-MM) | 2 | |
| 3828630 | 75 ROLLER | 2 | |
| 4309415 | 76 RETAINER | 2 |
