System And Components

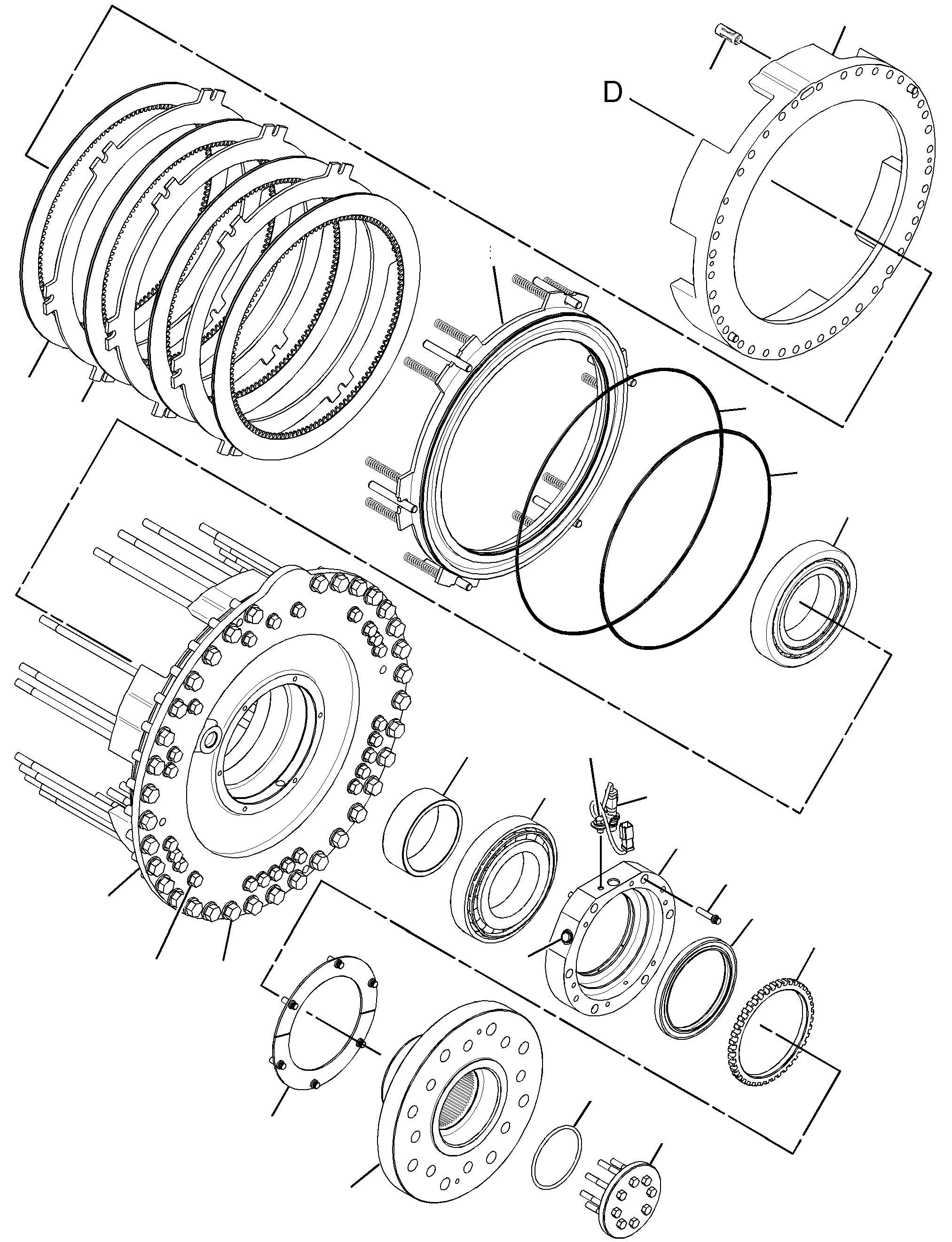

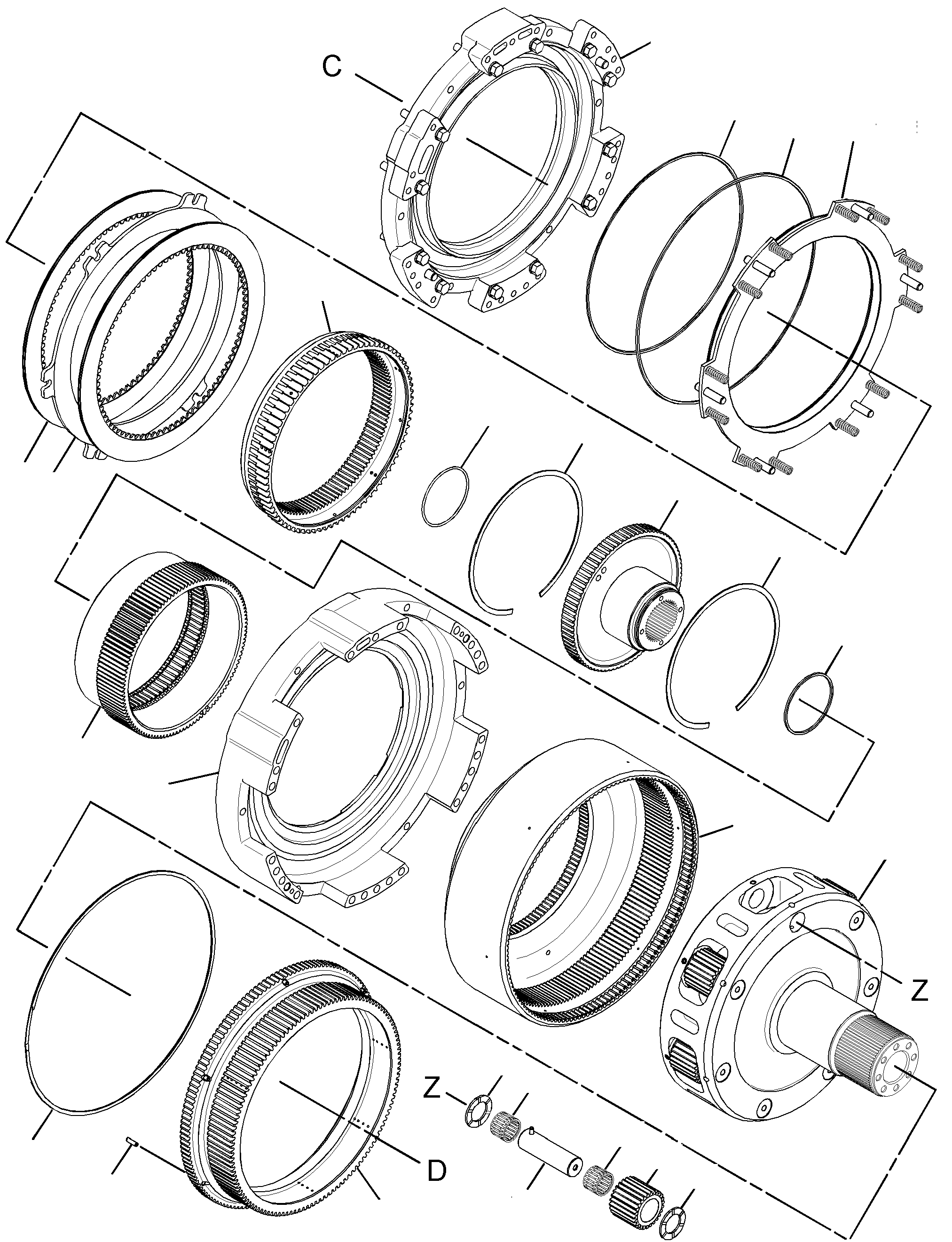

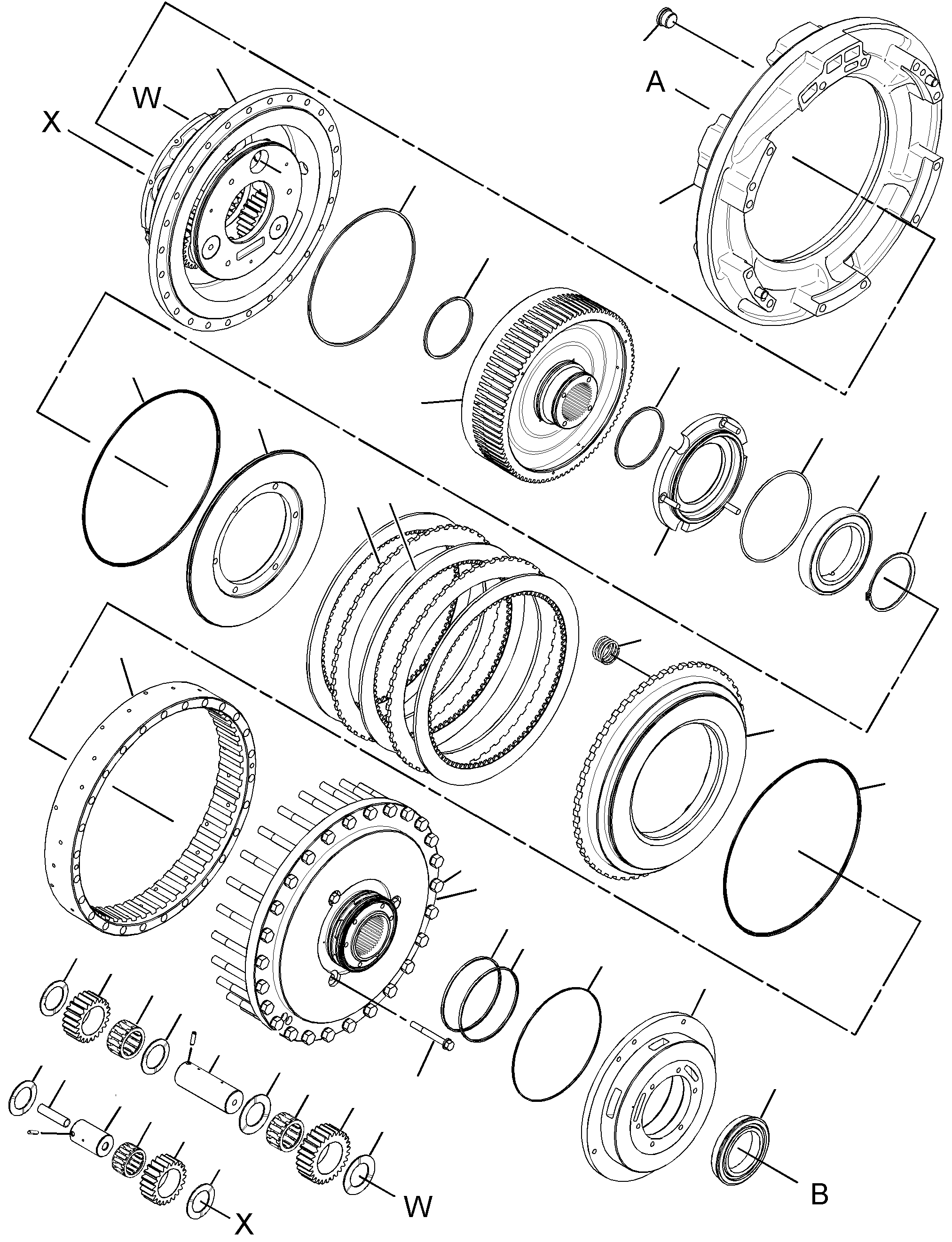

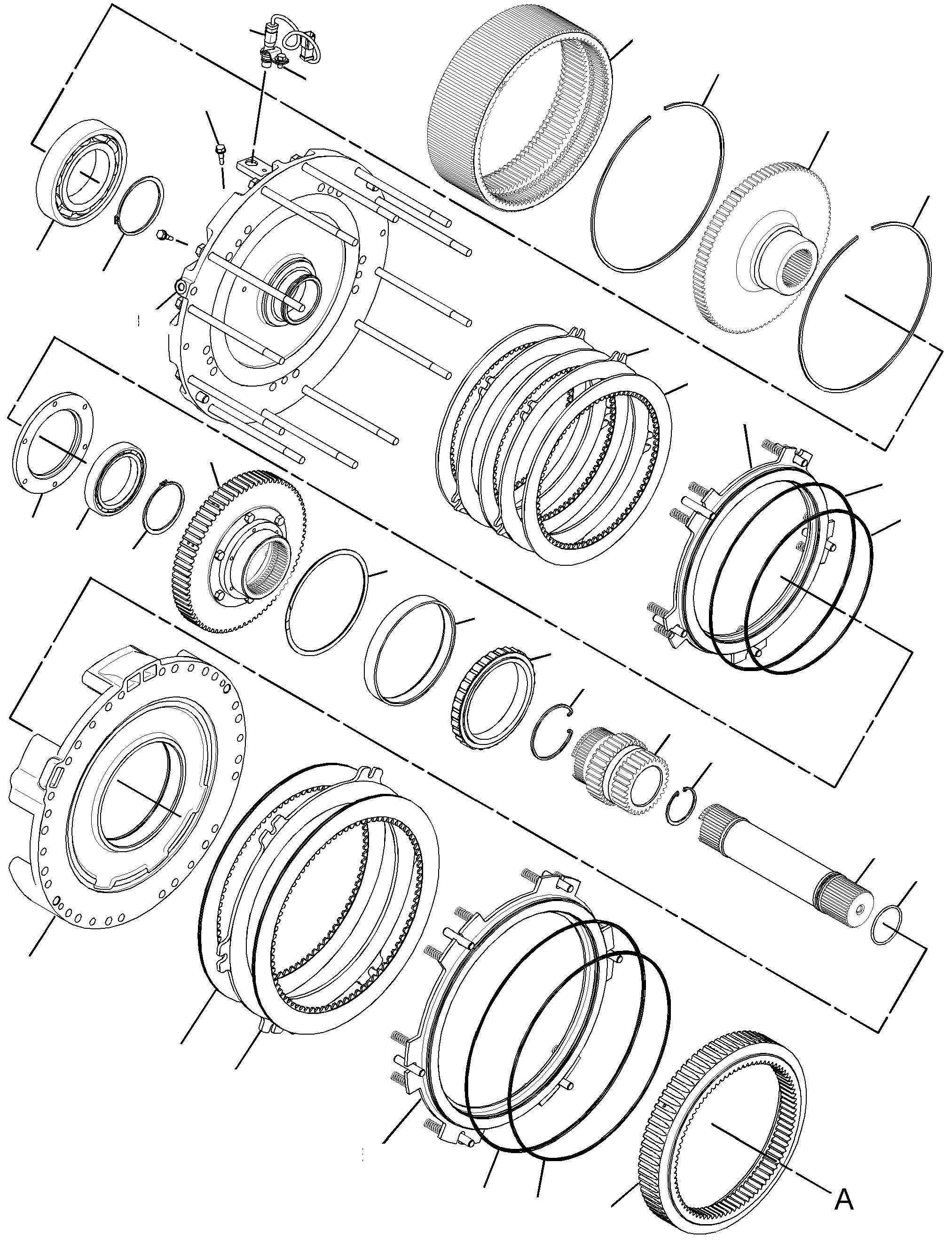

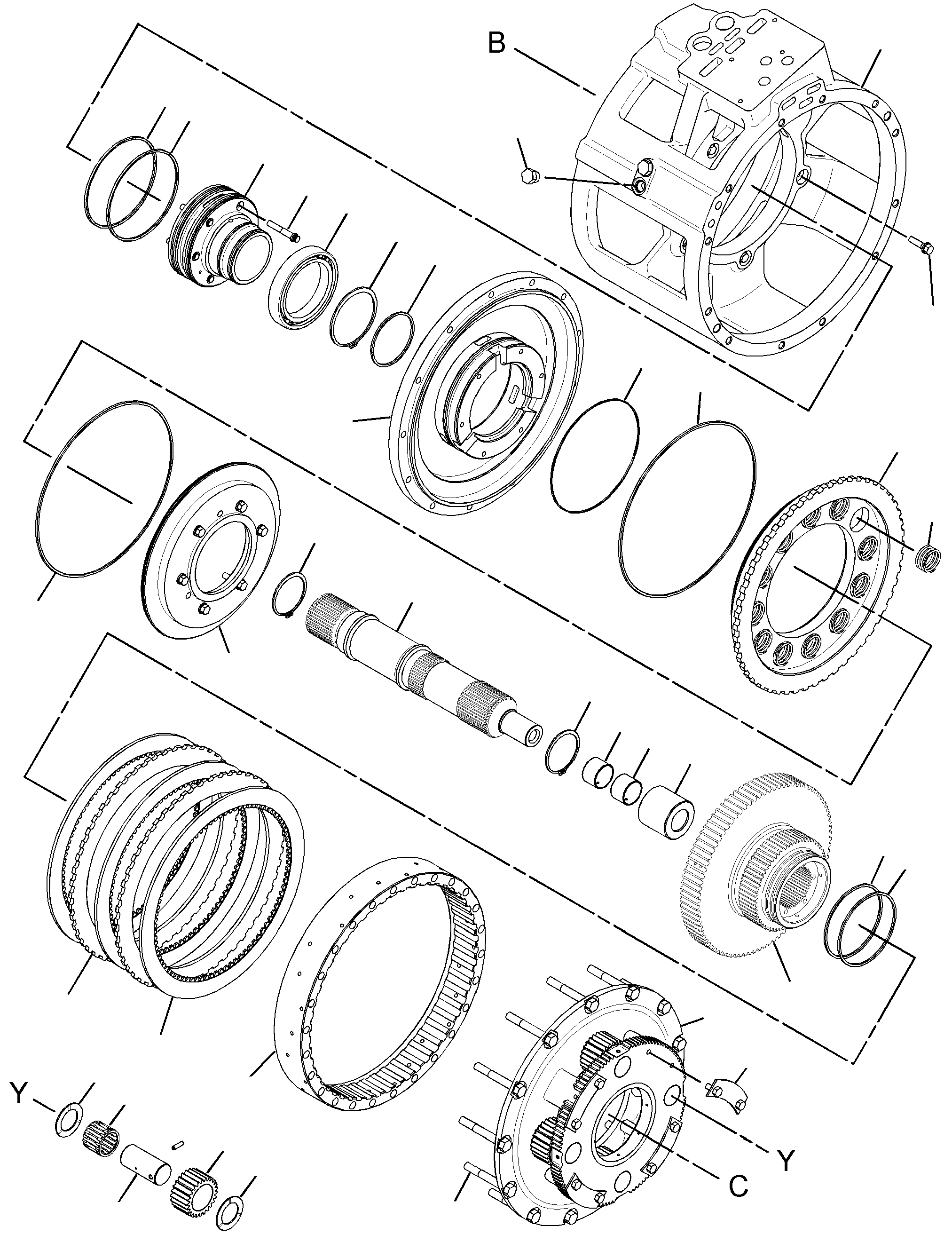

258-8742 PLANETARY GP-TRANSMISSIONS/N KJS134-262; FRT134-262
Group No: 258-8742
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1S5623 | 1 PLATE-LOCK | 4 | |
| 1S8480 | 2 SPRING | 12 | |
| 2P1294 | 3 PLUG-SEAL | 1 | |
| 3P7447 | 4 PLATE-CLUTCH | 2 | |
| 3S8035 | 5 RING-SEAL | 2 | |
| 3T2637 | 6 PISTON-CLUTCH | 1 | |
| 3T2695 | 7 MANIFOLD-CENTER | 1 | |
| 3T3057 | 8 PISTON-CLUTCH | 2 | |
| 3T3062 | 9 MANIFOLD | 1 | |
| 3T3064 | 10 PISTON-BALANCE | 1 | |
| 3T3065 | 11 PLATE-CLUTCH | 4 | |
| 3T3066 | 12 HOUSING | 1 | |
| 3T3067 | 13 HOUSING | 2 | |
| 3T9408 | 14 HOUSING AS-CLUTCH | 1 | |
| 7M8480 | DOWEL | 4 | |
| 3T9410 | 15 HOUSING AS-CLUTCH | 1 | |
| 7M8480 | DOWEL | 4 | |
| 3T9414 | 16 GEAR-RING (83-TEETH) | 1 | |
| 3T9417 | 17 SHAFT-PLANETARY | 3 | |
| 3T9425 | 18 PISTON-BALANCE | 1 | |
| 3T9431 | 19 SHAFT AS | 4 | |
| 3T3175 | ORIFICE | 1 | |
| 3T9432 | 20 GEAR-RING (116-TEETH) | 1 | |
| 4M9592 | 21 SPRING | 24 | |
| 5M6212 | 22 TUBE | 3 | |
| 5P9345 | 23 BEARING | 3 | |
| 6T7880 | 24 GEAR-SUN (64-TEETH) | 1 | |
| 6T7881 | 25 CARRIER-PLANETARY | 1 | |
| 6T7882 | 26 GEAR-PLANETARY (25-TEETH) | 4 | |
| 6T8863 | 27 HOUSING AS-ROTATION | 1 | |
| 6B6863 | PIN-SPRING | 1 | |
| 6P7705 | CARRIER-RING | 1 | |
| 6V5837 | 28 RING-RETAINING | 1 | |
| 6Y1222 | 29 DISC-THRUST | 6 | |
| 6Y1223 | 30 DISC-THRUST | 6 | |
| 6Y5793 | 31 RING-SEAL | 2 | |
| 6Y7219 | 32 DISC-FRICTION | 4 | |
| 7G0897 | 33 DISC-THRUST | 6 | |
| 7G5749 | 34 PISTON-CLUTCH | 1 | |
| 7M5813 | 35 SPRING | 10 | |
| 8E3838 | 36 RING-SEAL | 2 | |
| 8E8305 | 37 DISC-THRUST | 8 | |
| 8E9294 | 38 CARRIER AS-RING | 1 | |
| 4S8537 | DOWEL | 1 | |
| 8P2051 | 39 PLATE-CLUTCH | 2 | |
| 8P6949 | 40 PLATE-RETAINER | 1 | |
| 8P7780 | 41 RING-SEAL | 1 | |
| 9F3823 | 42 RING-SEAL | 1 | |
| 9F8477 | 43 RING-METAL SEAL | 3 | |
| 9M4355 | 44 DAMPER-BOLT | 24 | |
| 9N4333 | 45 PLATE-CLUTCH | 3 | |
| 9N4660 | 46 BEARING-ROLLER | 4 | |
| 9P7390 | 47 DISC AS-FRICTION | 3 | |
| 9S8597 | 48 SPRING | 24 | |
| 9W3084 | 49 SHAFT-PLANETARY | 3 | |
| 9W6415 | 50 PISTON-CLUTCH | 1 | |
| 9W8534 | 51 HUB-CLUTCH | 1 | |
| 9W9815 | 52 GEAR AS-RING (84-TEETH) | 1 | |
| 4S8541 | DOWEL | 1 | |
| 9W9816 | 53 RETAINER-BEARING | 1 | |
| 1028671 | 54 DISC-FRICTION | 6 | |
| 1082736 | 55 RING-LOCK | 2 | |
| 1733270 | 56 DISC AS-FRICTION | 4 | |
| 2016615 | 57 SENSOR GP-SPEED (TRANSMISSION INPUT) | 1 | |
| 2016615 | 57A SENSOR GP-SPEED (LOW OUTPUT) | 1 | |
| 2478618 | 58 GEAR (22-TEETH) | 3 | |
| 2478619 | 59 GEAR (22-TEETH) | 3 | |
| 2478620 | 60 GEAR (27-TEETH) | 3 | |
| 2613096 | 61 RING | 1 | |
| 2613098 | 62 SHAFT-INPUT | 1 | |
| 2613101 | 63 SHAFT-CENTER | 1 | |
| 2613105 | 64 GEAR-RING (166-TEETH) | 1 | |
| 2613107 | 65 HUB | 1 | |
| 2613108 | 66 HOUSING-CLUTCH | 1 | |
| 2613113 | 67 COVER | 1 | |
| 2613120 | 68 BUSHING | 2 | |
| 2613126 | 69 CARRIER-PLANETARY | 1 | |
| 2613128 | 70 GEAR (26-TEETH) | 7 | |
| 2613129 | 71 DISC-THRUST | 14 | |
| 2613130 | 72 BEARING AS-ROLLER | 14 | |
| 2663759 | 73 HOUSING-CLUTCH | 1 | |
| 2714855 | 74 BEARING AS-SPECIAL | 2 | |
| 2767294 | 75 FLANGE | 1 | |
| 2824960 | 76 GEAR-RING (92-TEETH) | 1 | |
| 2825045 | 77 SHAFT AS | 7 | |
| 2A3746 | PLUG-CUP | 1 | |
| 2826871 | 78 CARRIER AS | 1 | |
| 5B9318 | BALL | 2 | |
| 2867073 | 79 HOUSING-CLUTCH | 1 | |
| 2867077 | 80 HOUSING AS | 1 | |
| 1A2223 | DOWEL | 4 | |
| 2613110 | PLATE | 1 | |
| 2613124 | PLUG-PIPE | 1 | |
| 2935856 | 81 BOLT-SPECIAL | 2 | |
| 2935858 | 82 CAGE AS-BEARING | 1 | |
| 4B9784 | BALL | 1 | |
| 7M8480 | DOWEL | 2 | |
| 0653758 | 83 BALL BEARING | 1 | |
| 0950940 | 84 RING-RETAINING (INTERNAL) | 1 | |
| 0L1352 | 85 BOLT (3/8-16X3.25-IN) | 3 | |
| 0S0509 | 86 BOLT (3/8-16X0.75-IN) | 8 | |
| 0S1589 | 87 BOLT (5/8-11X1.75-IN) | 34 | |
| 0S1591 | 88 BOLT (3/8-16X1.5-IN) | 14 | |
| 0S1594 | 89 BOLT (3/8-16X1-IN) | 6 | |
| 0S1619 | 90 BOLT (3/8-16X3-IN) | 8 | |
| 1143392 | 91 BEARING | 1 | |
| 1171385 | 92 SEAL-O-RING | 2 | |
| 1B2886 | 93 BOLT (1/2-13X3.75-IN) | 13 | |
| 1D4566 | 94 BOLT (1/2-13X3.5-IN) | 12 | |
| 1D4569 | 95 BOLT (1/2-13X4.25-IN) | 26 | |
| 1H5728 | 96 SEAL-O-RING | 1 | |
| 1H6227 | 97 SEAL-O-RING | 1 | |
| 1J2859 | 98 SEAL-O-RING | 1 | |
| 1M3151 | 99 DOWEL-REACTION | 5 | |
| 1T0822 | 100 BOLT-12 POINT HEAD (3/8-16X0.75-IN) | 6 | |
| 2213337 | 101 GEAR-SUN (35, 30-TEETH) | 1 | |
| 2613102 | 102 ADAPTER | 1 | |
| 2613103 | 103 HUB | 1 | |
| 2613104 | 104 GEAR-SUN (114-TEETH) | 1 | |
| 2613109 | 105 DOWEL-REACTION | 6 | |
| 2613112 | 106 SPACER (120.09X139.7X47.688-MM THK) | 1 | |
| 2613115 | 107 SENSOR-SPEED (TRANSMISSION) | 1 | |
| 2613116 | 108 PLATE | 1 | |
| 2613121 | 109 RING-RETAINING | 2 | |
| 2613123 | 110 SEAL-LIP TYPE | 1 | |
| 2613125 | 111 GUARD | 2 | |
| 2663760 | 112 PISTON | 1 | |
| 2H3755 | 113 BOLT (5/16-18X0.43-IN) | 2 | |
| 2K4472 | 114 SEAL-O-RING | 1 | |
| 3D2824 | 115 SEAL-O-RING | 1 | |
| 3E4352 | 116 WASHER-HARD (8.8X20.5X2.5-MM THK) | 2 | |
| 3H7654 | 117 WASHER-HARD (13.5X22.5X3-MM THK) | 24 | |
| 3K0159 | 118 RING-RETAINING | 1 | |
| 3K0360 | 119 SEAL-O-RING | 2 | |
| 3P2582 | 120 BALL BEARING | 1 | |
| 3P2793 | 121 SEAL-RING | 2 | |
| 3P2794 | 122 SEAL-RING | 1 | |
| 3P3743 | 123 RING-RETAINING | 2 | |
| 3S0127 | 124 BOLT-12 POINT HEAD (3/8-16X2.25-IN) | 6 | |
| 3S2708 | 125 PIN-SPRING | 23 | |
| 3T2508 | 126 RING-SEAL | 4 | |
| 3T2509 | 127 RING-SEAL | 1 | |
| 4M8871 | 128 DOWEL | 12 | |
| 4S5816 | 129 RING-SEAL | 2 | |
| 5L4753 | 130 RING-RETAINING | 1 | |
| 5M2051 | 131 BEARING-CAGED | 3 | |
| 5M2894 | 132 WASHER-HARD (10.2X18.5X2.5-MM THK) | 17 | |
| 5M7900 | 133 BOLT (1/2-13X14-IN) | 24 | |
| 5M7925 | 134 BEARING AS-ROLLER | 3 | |
| 5P0076 | 135 BOLT-12 POINT HEAD (3/8-16X1.5-IN) | 6 | |
| 5P3414 | 136 RING-RETAINING | 1 | |
| 5P5044 | 137 RACE-BEARING OUTER | 1 | |
| 5P7213 | 138 WASHER-HARD (13.5X20.5X2-MM THK) | 39 | |
| 5P8245 | 139 WASHER-HARD (13.5X25.5X3-MM THK) | 24 | |
| 5P8247 | 140 WASHER-HARD (17X32X3.5-MM THK) | 34 | |
| 5Y1138 | 141 RING-RETAINING | 1 | |
| 6I9808 | 142 BALL BEARING | 1 | |
| 6M9613 | 143 BOLT (1/2-13X9-IN) | 12 | |
| 7G4817 | 144 RING-SEAL | 1 | |
| 7X2627 | 145 RING-RETAINING | 1 | |
| 8F1959 | 146 RING-RETAINING | 1 | |
| 8P2019 | 147 RING-SEAL | 1 | |
| 8P2022 | 148 RING-SEAL | 1 | |
| 8S3517 | 149 BALL BEARING | 1 | |
| 9G9126 | 150 RING-SEAL | 1 | |
| 9M1974 | 151 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 9S4185 | 152 PLUG (3/4-16-THD) | 2 | |
| 9S8008 | 153 PLUG (1-1/16-12-THD)(STRAIGHT THREAD O-RING) | 1 | |
| 1067799 | 154 BALL BEARING | 1 |
