System And Components

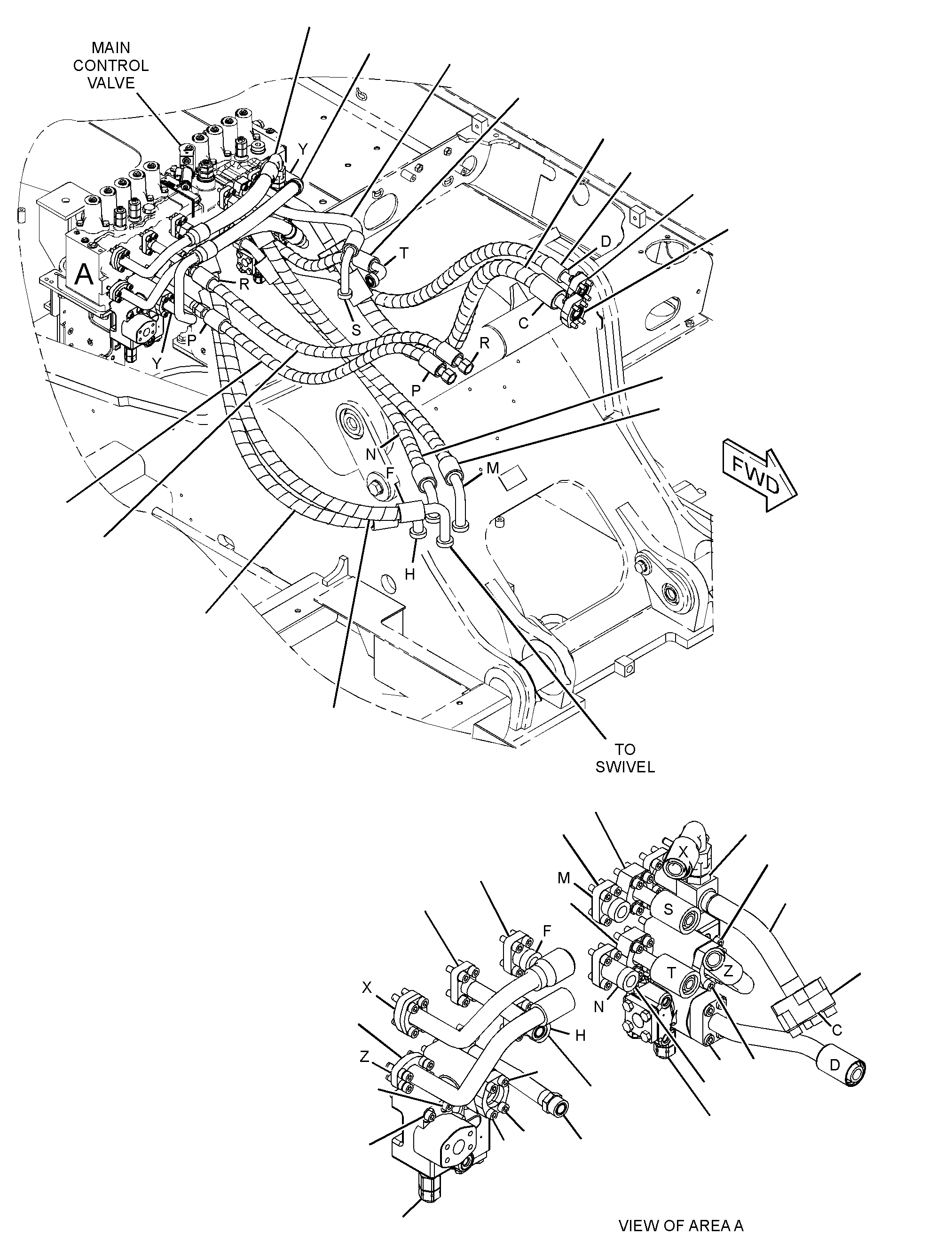

245-5179 LINES GP-FRONT -CONTROL VALVES/N FEX1-UP
Group No: 245-5179
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7Y3721 | 1 TUBE AS | 1 | |
| 7Y3730 | 2 FLANGE-SPECIAL | 2 | |
| 1017403 | 3 BOLT-SOCKET HEAD (M10X1.5X80-MM) | 2 | |
| 1053477 | 4 BOLT-SOCKET HEAD (M10X1.5X45-MM) | 8 | |
| 1053483 | 5 BOLT-SOCKET HEAD (M10X1.5X70-MM) | 2 | |
| 1081781 | 6 BOLT-SOCKET HEAD (M12X1.75X35-MM) | 4 | |
| 1136479 | 7 FLANGE-SPECIAL | 2 | |
| 1370856 | 8 TUBE AS | 1 | |
| 1875994 | 10 HOSE AS | 1 | |
| 3636200 | 11 HOSE GP-HYDRAULIC (CONTROL VALVE, STICK) | 1 | |
| 3636203 | 12 HOSE GP-HYDRAULIC (CONTROL VALVE, STICK) | 1 | |
| 3636206 | 13 HOSE GP-HYDRAULIC (CONTROL VALVE, BOOM) | 1 | |
| 1991620 | 14 HOSE AS | 2 | |
| 2023994 | 15 HOSE AS | 1 | |
| 2024038 | 16 HOSE AS | 1 | |
| 2181127 | 17 TUBE AS | 1 | |
| 2489866 | 18 HOSE AS | 1 | |
| 2489870 | 19 HOSE AS | 1 | |
| 2489874 | 20 HOSE AS | 1 | |
| 2489878 | 21 HOSE AS | 1 | |
| 4168441 | 22 HOSE AS | 1 | |
| 2555680 | 23 VALVE GP-LOAD CONTROL (STICK DRIFT RED, LINE RELIEF) | 1 | |
| 2555683 | 24 VALVE GP-LOAD CONTROL (BOOM DRIFT RED, LINE RELIEF) | 1 | |
| 1017397 | 25 BOLT-SOCKET HEAD (M12X1.75X50-MM) | 4 | |
| 1017404 | 26 BOLT-SOCKET HEAD (M10X1.5X30-MM) | 30 | |
| 1488335 | 28 CONNECTOR AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8635 | CONNECTOR | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1991286 | 30 BOLT-SOCKET HEAD (M10X1.5X150-MM) | 6 | |
| 1P3702 | 31 SEAL-RECTANGULAR | 4 | |
| 1P3703 | 32 SEAL-RECTANGULAR | 9 | |
| 1P3704 | 33 SEAL-RECTANGULAR | 2 | |
| 1P5767 | 34 FLANGE-HALF | 4 | |
| 4J5267 | 35 SEAL-O-RING | 10 | |
| 4J5268 | 36 SEAL-O-RING | 1 | |
| 5K9090 | 37 SEAL-O-RING | 4 | |
| 6V0400 | 38 FLANGE-HALF | 2 | |
| 6V9746 | 39 SEAL-O-RING | 2 | |
| 8T4121 | 40 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4194 | 41 BOLT (M12X1.75X50-MM) | 8 | |
| 8T4223 | 42 WASHER-HARD (13.5X25.5X3-MM THK) | 12 | |
| 8T9403 | 43 FLANGE-HALF | 4 |
