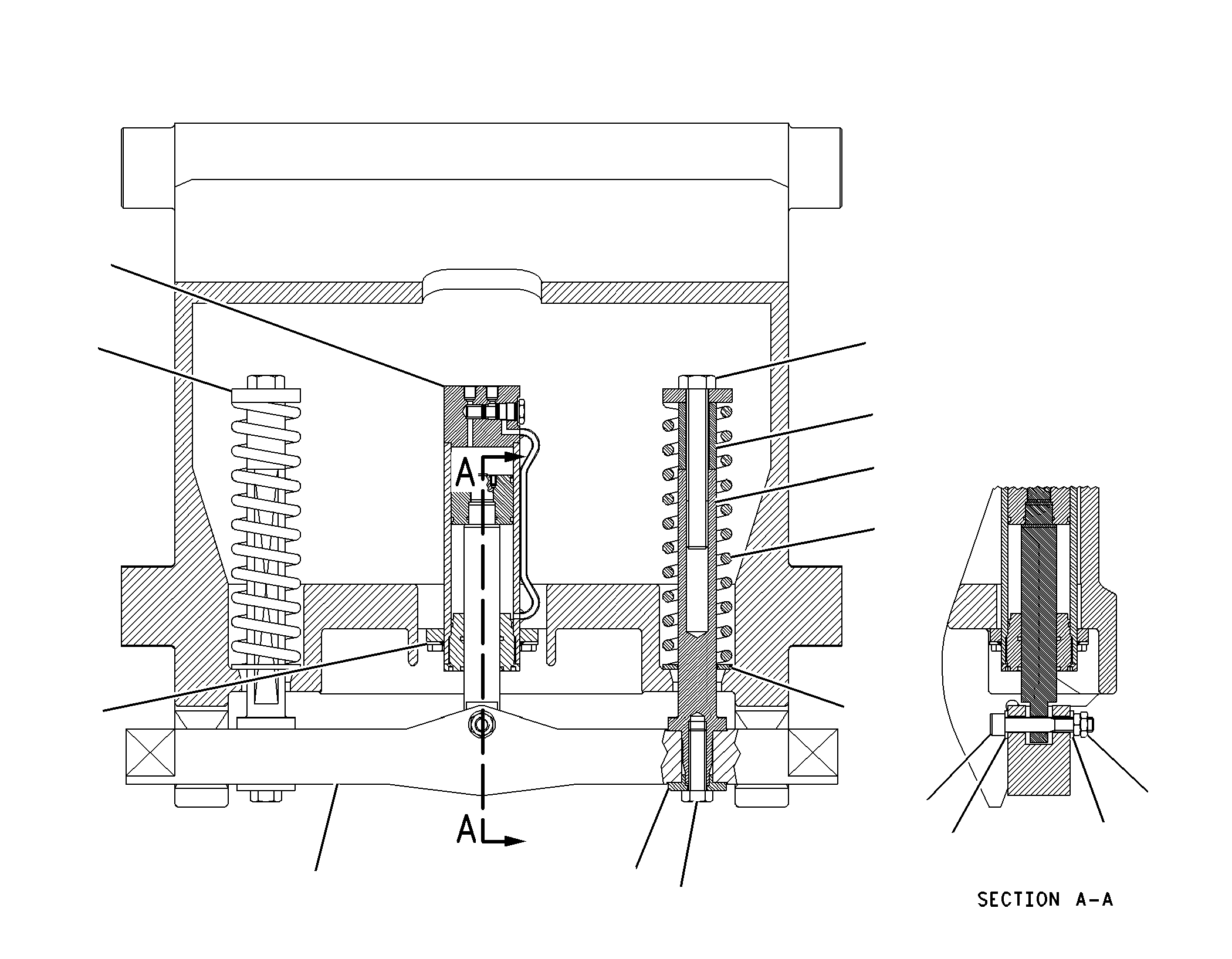

Assembly
100%

209-3464 LOCK GP-QUICK COUPLER -HYDRAULIC, CB-FAMILYS/N XBE1-UP

Group No: 209-3464
Part NumberPart NameQty
16907531 CYLINDER GP-COUPLER1
8T41832 BOLT (M12X1.75X40-MM)4
8T42233 WASHER-HARD (13.5X25.5X3-MM THK)4
09507054 BOLT-SOCKET HEAD (M16X2X100-MM)1
09857475 NUT (M16X2-THD)2
9X82576 WASHER (17.5X30X3.5-MM THK)2
16907567 SPACER (26.4X42.4X75-MM THK)2
51495378 SHAFT AS2
16907389 SPRING2
169073910 RING2
169074011 RING2
209346612 WEDGE1
169074513 PLATE (LOCK)2
8T414114 BOLT (M20X2.5X70-MM)2
169251915 BOLT (M24X3X180-MM)2
1693923VALVE AS-CHECK (QUICK COUPLER)(LOCK)1
2191322KIT-SEAL (QUICK COUPLER LOCK)1
