System And Components

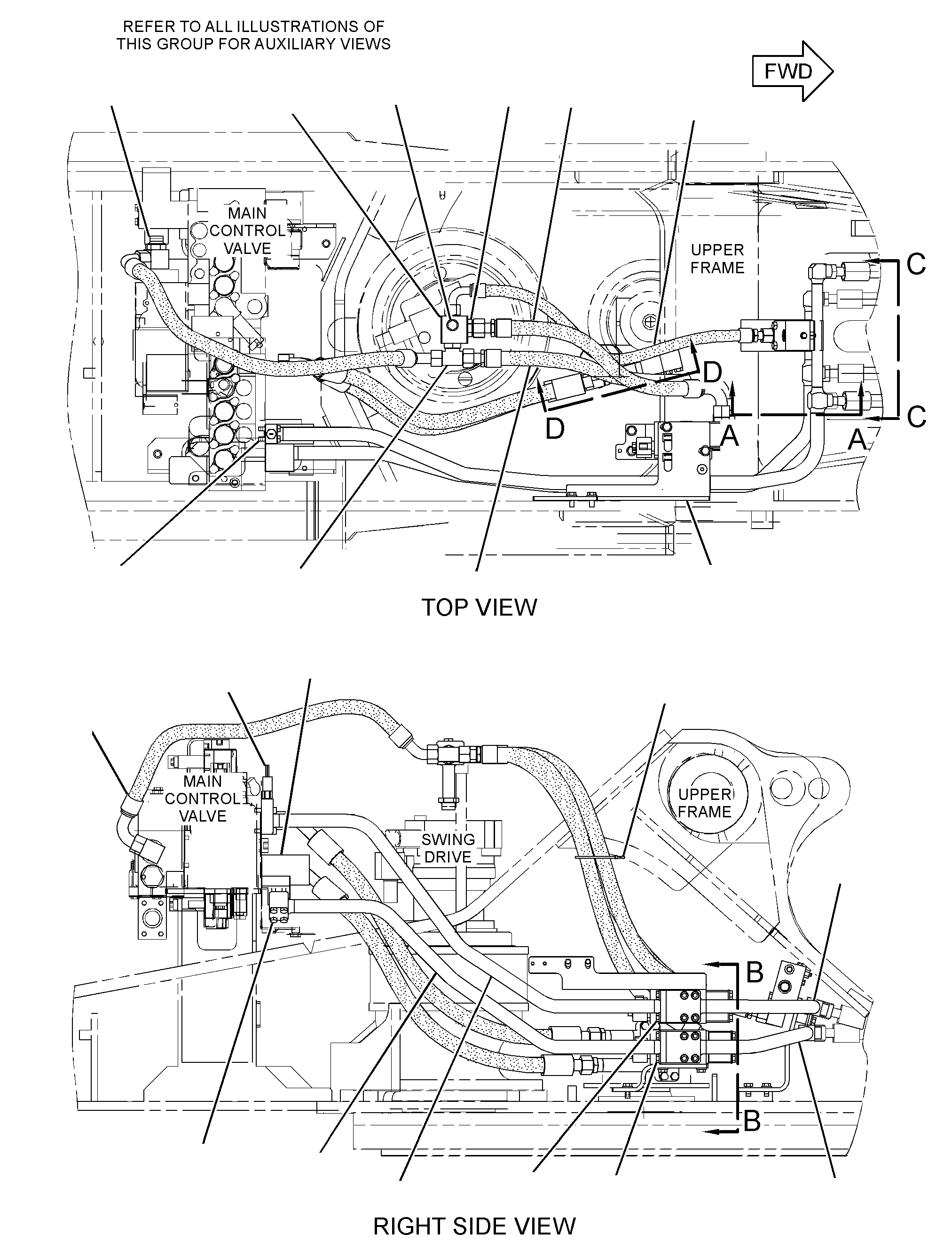

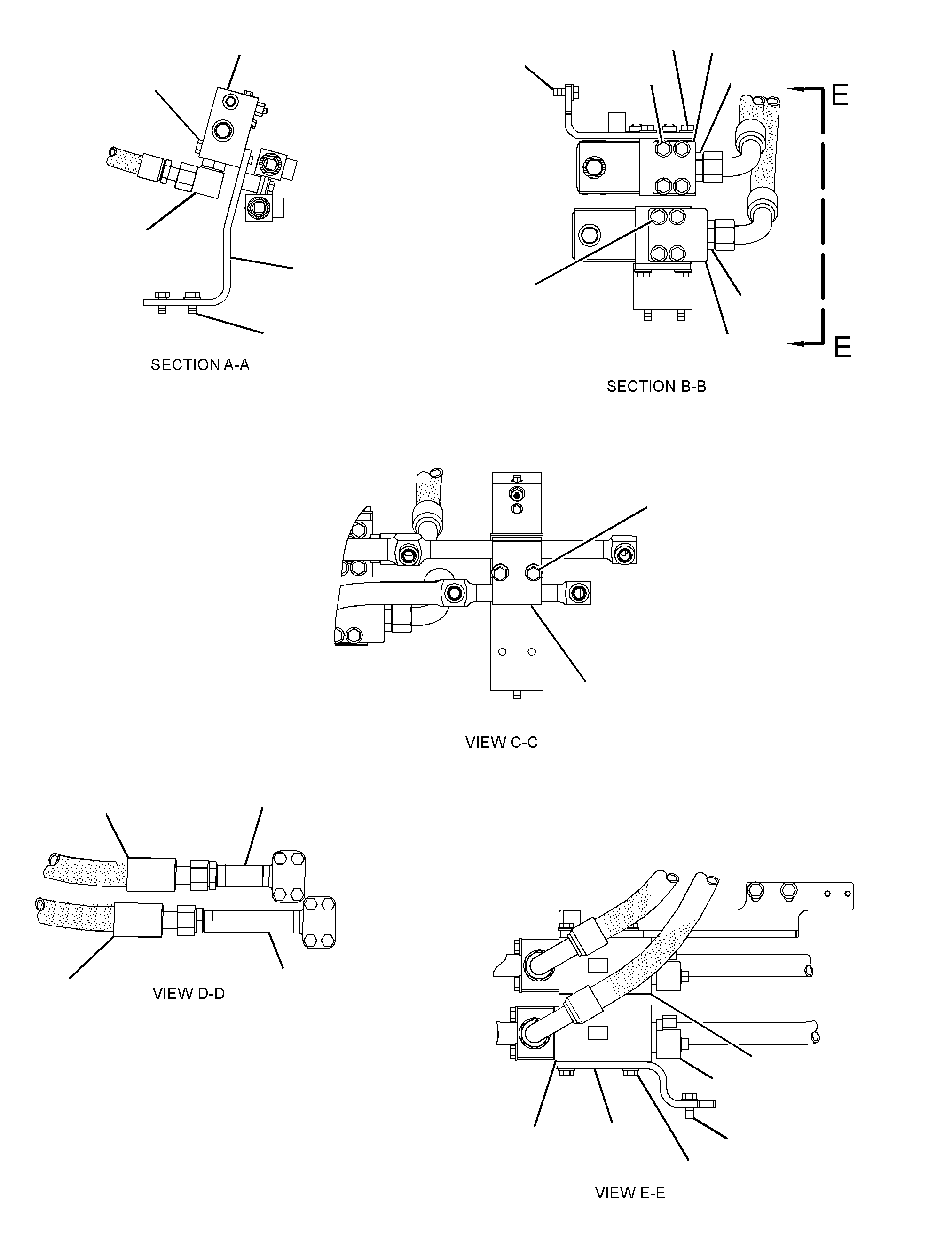

237-5100 LINES GP-RETURN -SMARTBOOM, BOOM LOAD CONTROLS/N JLC283-288; JLD314-UP
Group No: 237-5100
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1053477 | 1 BOLT-SOCKET HEAD (M10X1.5X45-MM) | 4 | |
| 1850488 | 2 BLOCK | 1 | |
| 1875870 | 3 HOSE AS | 1 | |
| 1960910 | 4 HOSE AS | 1 | |
| 1992012 | 5 PLATE | 1 | |
| 2023998 | 6 HOSE AS | 1 | |
| 2029002 | 7 SWITCH AS-PRESSURE (BOOM LOWERING) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 1 | |
| 2048428 | 8 HOSE AS | 1 | |
| 2181125 | 9 BLOCK | 1 | |
| 2181126 | 10 BLOCK | 1 | |
| 2181130 | 11 BLOCK | 1 | |
| 2181145 | 12 TUBE AS | 1 | |
| 2181146 | 13 TUBE AS | 1 | |
| 2181147 | 14 TUBE AS | 1 | |
| 2181148 | 15 TUBE AS | 1 | |
| 2255807 | 16 VALVE GP-CHECK (BOOM FLOAT) | 2 | |
| 2270322 | 17 HOSE AS | 1 | |
| 2270337 | 18 HOSE AS | 1 | |
| 2327304 | 19 VALVE GP-MANUAL (BOOM LOWER) | 1 | |
| 2361945 | 20 SUPPORT AS | 1 | |
| 2380909 | 21 SUPPORT AS | 1 | |
| 1081782 | 22 BOLT-SOCKET HEAD (M12X1.75X90-MM) | 8 | |
| 1488335 | 23 CONNECTOR AS | 3 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V8635 | CONNECTOR | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488347 | 24 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9007 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488357 | 25 ELBOW AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9008 | ELBOW (90-DEG) | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488411 | 26 PLUG AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 1646858 | 27 TEE AS | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 6V8778 | TEE-FACE SEAL | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1P3703 | 28 SEAL-RECTANGULAR | 5 | |
| 1P3704 | 29 SEAL-RECTANGULAR | 7 | |
| 2125586 | 30 SUPPORT | 1 | |
| 2125602 | 31 TUBE AS | 1 | |
| 2125603 | 32 TUBE AS | 1 | |
| 3J1907 | 33 SEAL-O-RING | 1 | |
| 4I1674 | 34 CLIP | 2 | |
| 4J5268 | 35 SEAL-O-RING | 1 | |
| 5K9090 | 36 SEAL-O-RING | 2 | |
| 6V9746 | 37 SEAL-O-RING | 5 | |
| 7K1181 | 38 STRAP-CABLE | 1 | |
| 7M8485 | 39 SEAL-O-RING | 1 | |
| 8T4139 | 40 BOLT (M12X1.75X30-MM) | 10 | |
| 8T4192 | 41 BOLT (M12X1.75X25-MM) | 2 | |
| 8T4223 | 42 WASHER-HARD (13.5X25.5X3-MM THK) | 28 | |
| 8T4910 | 43 BOLT (M12X1.75X60-MM) | 8 | |
| 8T4956 | 44 BOLT (M12X1.75X35-MM) | 8 | |
| 8T6466 | 45 BOLT (M10X1.5X60-MM) | 4 | |
| 8T6868 | 46 BOLT (M12X1.75X80-MM) | 10 |
