System And Components

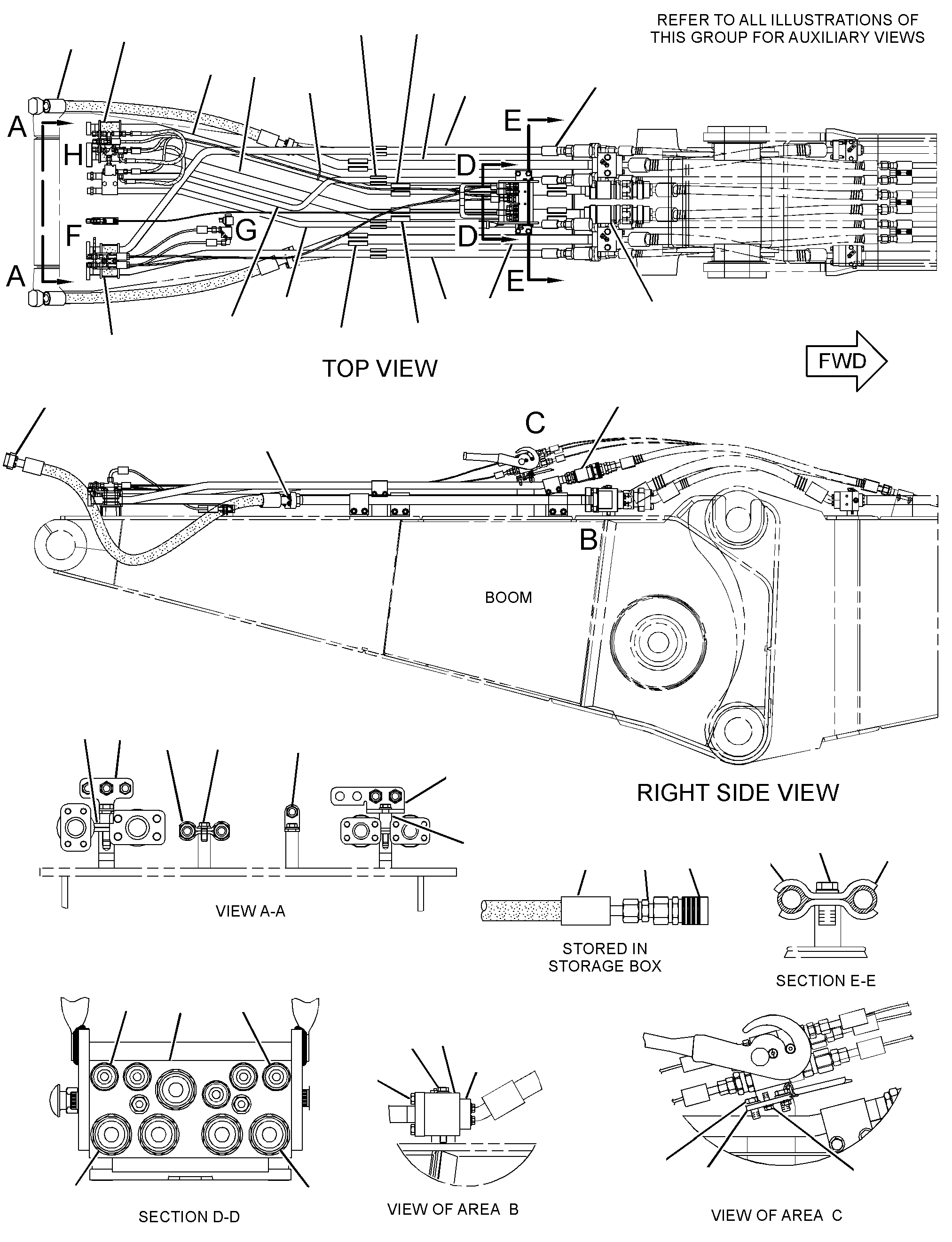

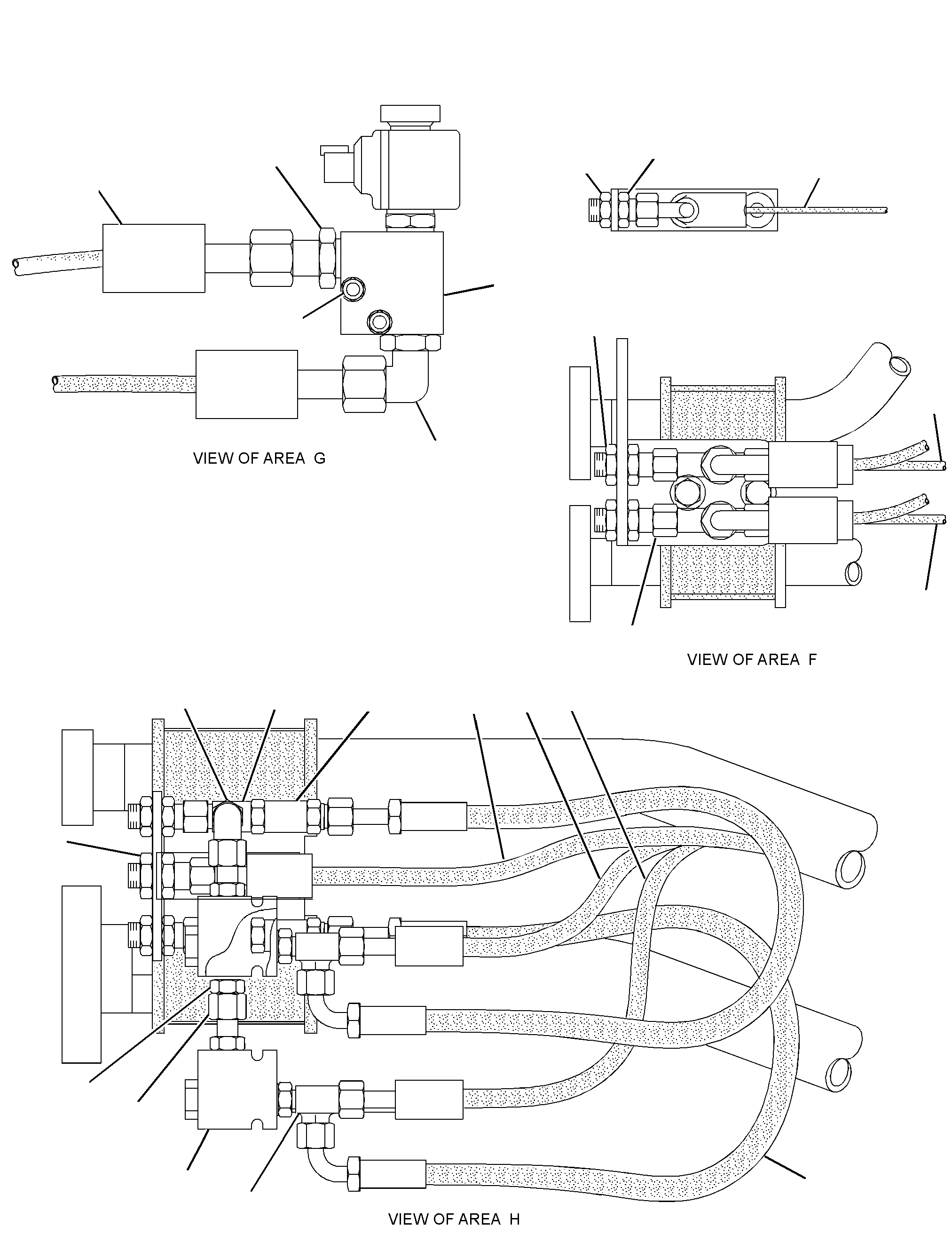

216-5075 LINES GP-BOOMS/N JNK1-UP
Group No: 216-5075
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2194543 | 1 TUBE AS | 1 | |
| 2194544 | 2 TUBE AS | 1 | |
| 2194538 | 3 TUBE AS | 1 | |
| 2194545 | 4 TUBE AS | 1 | |
| 2194539 | 5 TUBE AS | 1 | |
| 2194540 | 6 TUBE AS | 1 | |
| 2194541 | 7 TUBE AS | 1 | |
| 2194542 | 8 TUBE AS | 1 | |
| 2190551 | 9 BRACKET | 1 | |
| 2201585 | 10 BRACKET | 1 | |
| 6C6084 | 11 PLATE | 1 | |
| 2295272 | 12 VALVE GP-MANUAL (AUXILIARY, SHUTOFF) | 2 | |
| 7X2475 | 13 BOLT (M16X2X130-MM) | 4 | |
| 9X8257 | 14 WASHER (17.5X30X3.5-MM THK) | 18 | |
| 8T4193 | 15 BOLT (M16X2X50-MM) | 10 | |
| 2173024 | 16 COUPLING GP-HYDRAULIC BLOCK (BOOM FOOT LINES) | 1 | |
| 8T4192 | 17 BOLT (M12X1.75X25-MM) | 14 | |
| 8T4223 | 18 WASHER-HARD (13.5X25.5X3-MM THK) | 38 | |
| 2195643 | 19 PLATE | 1 | |
| 2026758 | 20 HOSE AS | 2 | |
| 4I1674 | 21 CLIP | 2 | |
| 8T4139 | 22 BOLT (M12X1.75X30-MM) | 6 | |
| 1241106 | 23 CLIP | 2 | |
| 1241109 | 24 CLIP | 2 | |
| 8T4648 | 25 BOLT (M12X1.75X70-MM) | 2 | |
| 1211781 | 26 CLIP | 2 | |
| 1287514 | 27 CLIP | 4 | |
| 1434157 | 28 CLIP | 4 | |
| 8T4190 | 29 BOLT (M16X2X25-MM) | 4 | |
| 7X2552 | 30 BOLT (M16X2X30-MM) | 4 | |
| 7Y3732 | 31 CLIP | 8 | |
| 7Y4868 | 32 CLIP | 4 | |
| 2612732 | 33 FITTING GP-HYDRAULIC (QUICK DISCONNECT, MALE) | 4 | |
| 2008656 | KIT-REPAIR (QUICK DISC FITTING, MALE) | 1 | |
| 1P5767 | 34 FLANGE-HALF | 12 | |
| 1P3704 | 35 SEAL-RECTANGULAR | 4 | |
| 8T4194 | 36 BOLT (M12X1.75X50-MM) | 24 | |
| 1488336 | 37 CONNECTOR AS | 4 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488328 | 38 CONNECTOR AS | 3 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8633 | CONNECTOR | 1 | |
| 9S4191 | 39 PLUG (9/16-18-THD) | 2 | |
| 9S4183 | 40 PLUG (1-1/16-12-THD) | 2 | |
| 1495452 | 41 UNION AS (STRAIGHT) | 3 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8994 | UNION (STRAIGHT) | 1 | |
| 6V9168 | 42 NUT (11/16-16-THD) | 3 | |
| 1488457 | 43 UNION AS (STRAIGHT) | 3 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V8995 | UNION (STRAIGHT) | 1 | |
| 6V9169 | 44 NUT (13/16-16-THD) | 3 | |
| 7K1181 | 45 STRAP-CABLE | 10 | |
| 1180071 | 46 HOSE AS | 3 | |
| 1083459 | 47 HOSE AS | 3 | |
| 7M8485 | 48 SEAL-O-RING | 4 | |
| 2612733 | 49 FITTING GP-HYDRAULIC (QUICK DISCONNECT, MALE) | 2 | |
| 2008657 | KIT-REPAIR (QUICK DISC FITTING, MALE) | 1 | |
| 1461461 | 50 PLATE | 1 | |
| 3V9744 | 51 SPACER | 1 | |
| 1488444 | 52 TEE AS-SWIVEL | 2 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 2197876 | 53 VALVE GP-SOLENOID (WORK TOOL FREE ROTATE) | 1 | |
| 2198634 | VALVE-SOLENOID | 1 | |
| 9X2480 | 54 BOLT (M6X1X45-MM) | 2 | |
| 9X8256 | 55 WASHER (6.6X12X2-MM THK) | 2 | |
| 1504043 | 56 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 1488365 | 57 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T6876 | ELBOW | 1 | |
| 2258198 | 58 HOSE AS | 2 | |
| 1385709 | 59 GROMMET | 1 | |
| 1295874 | 60 GROMMET | 2 | |
| 8T4908 | 61 BOLT (M8X1.25X25-MM) | 4 | |
| 8T4224 | 62 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 5I4376 | 63 FITTING | 2 | |
| 1645549 | 64 COUPLING AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 4I6287 | COUPLING | 1 | |
| 9T3096 | 65 VALVE GP-CHECK (FORE BOOM, STICK CYLINDERS) | 2 | |
| 3J1907 | 66 SEAL-O-RING | 3 | |
| 6V8397 | 67 SEAL-O-RING | 4 | |
| 1488435 | 68 TEE AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1501421 | 69 VALVE GP-CHECK (FORE BOOM, STICK CYLINDERS) | 2 | |
| 1501422 | 70 BLOCK | 2 | |
| 5I8825 | 71 HOSE AS | 2 | |
| 1615675 | 72 HOSE AS | 1 | |
| 6V4144 | 73 COUPLER AS-QUICK CONNECT (FLUID SAMPLING) | 1 | |
| 1645597 | 74 CONNECTOR AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C6868 | CONNECTOR | 1 | |
| 6V8724 | 75 ELBOW | 1 | |
| 1240909 | 76 CLIP | 2 | |
| 8T0375 | 77 BOLT (M16X2X45-MM) | 4 | |
| 1241107 | 78 GROMMET | 1 | |
| 2105910 | 79 CAP-DUST | 2 | |
| 2105909 | 80 CAP-DUST | 4 | |
| 1132004 | 81 BOLT-SOCKET HEAD (M12X1.75X45-MM) | 8 | |
| 1P3703 | 82 SEAL-RECTANGULAR | 1 | |
| 1P3706 | 83 SEAL-RECTANGULAR | 1 |
