System And Components

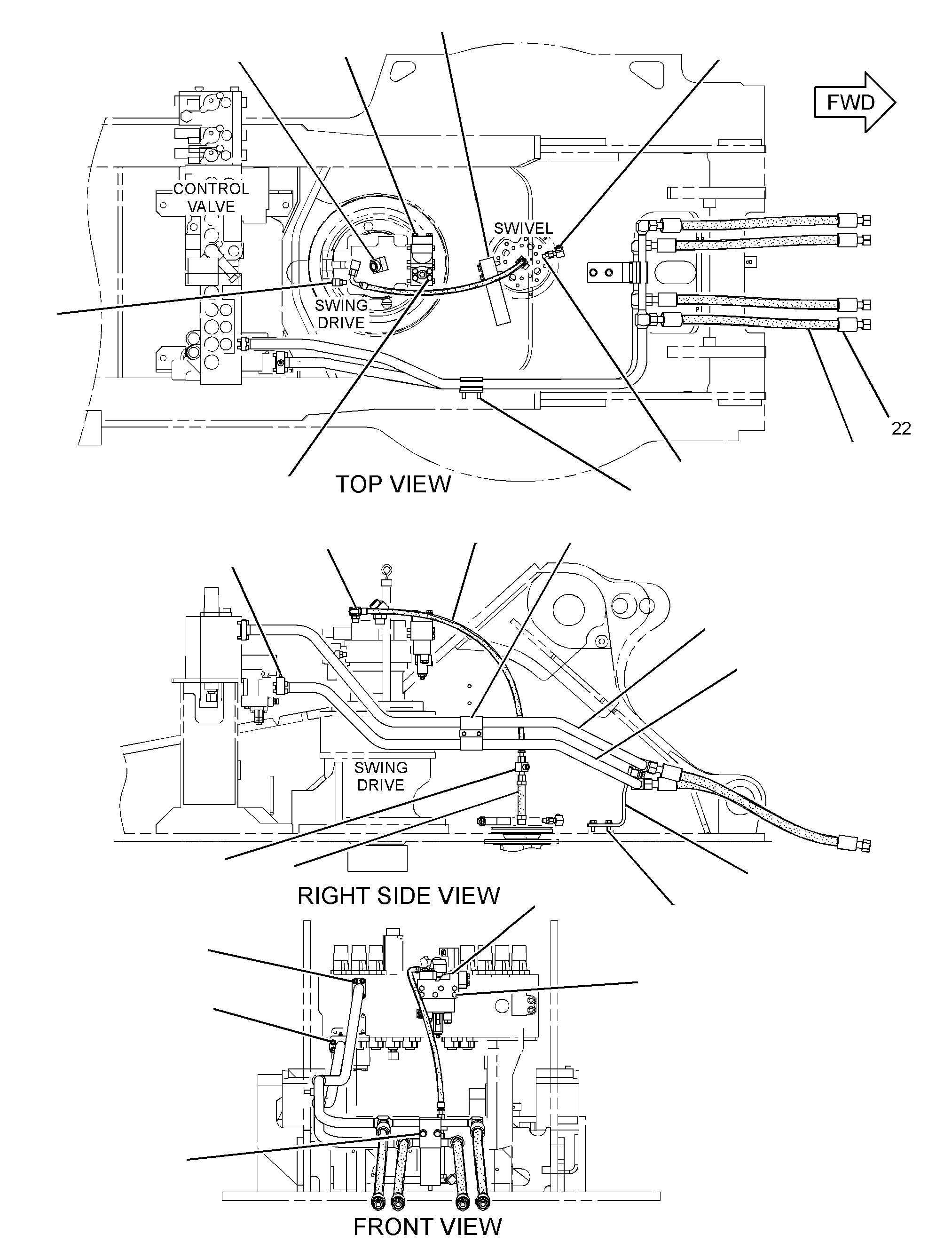

245-5178 LINES GP-FRONT -BOOM CYLINDERS/N DTG1-UP
Group No: 245-5178
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I1674 | 1 CLIP | 2 | |
| 7Y7904 | 2 HOSE AS | 4 | |
| 9F2167 | 3 SCREW-PURGE (3/8-24X1.164-IN) | 1 | |
| 1017398 | 4 BOLT-SOCKET HEAD (M10X1.5X40-MM) | 4 | |
| 1087550 | 5 CLIP | 1 | |
| 3228716 | 6 VALVE GP-SWING CUSHION (FINE SWING) | 1 | |
| 1645552 | 7 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 4I7745 | CONNECTOR | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1875676 | 8 HOSE AS | 1 | |
| 2344492 | 9 SUPPORT | 1 | |
| 2551785 | 10 TUBE AS | 1 | |
| 2551786 | 11 TUBE AS | 1 | |
| 2551787 | 12 SUPPORT AS | 1 | |
| 1017404 | 13 BOLT-SOCKET HEAD (M10X1.5X30-MM) | 4 | |
| 1335828 | 14 SUPPORT AS | 1 | |
| 1488353 | 15 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488355 | 16 ELBOW AS | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 6V9005 | ELBOW | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488364 | 17 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8625 | ELBOW | 1 | |
| 1488444 | 18 TEE AS-SWIVEL | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 1488367 | 19 ELBOW AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9850 | ELBOW | 1 | |
| 1P3703 | 20 SEAL-RECTANGULAR | 2 | |
| 5P1076 | 21 WASHER-HARD (13.5X30X4-MM THK) | 2 | |
| 6V9746 | 22 SEAL-O-RING | 8 | |
| 8T4121 | 23 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4139 | 24 BOLT (M12X1.75X30-MM) | 4 | |
| 8T4178 | 25 BOLT (M10X1.5X90-MM) | 6 | |
| 8T4182 | 26 BOLT (M10X1.5X45-MM) | 8 | |
| 8T4223 | 27 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 8T4648 | 28 BOLT (M12X1.75X70-MM) | 2 | |
| 8T4910 | 29 BOLT (M12X1.75X60-MM) | 2 | |
| 8T9403 | 30 FLANGE-HALF | 4 | |
| 1488336 | 31 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 6H3615 | 32 PLUG-PROTECTION | 1 |
