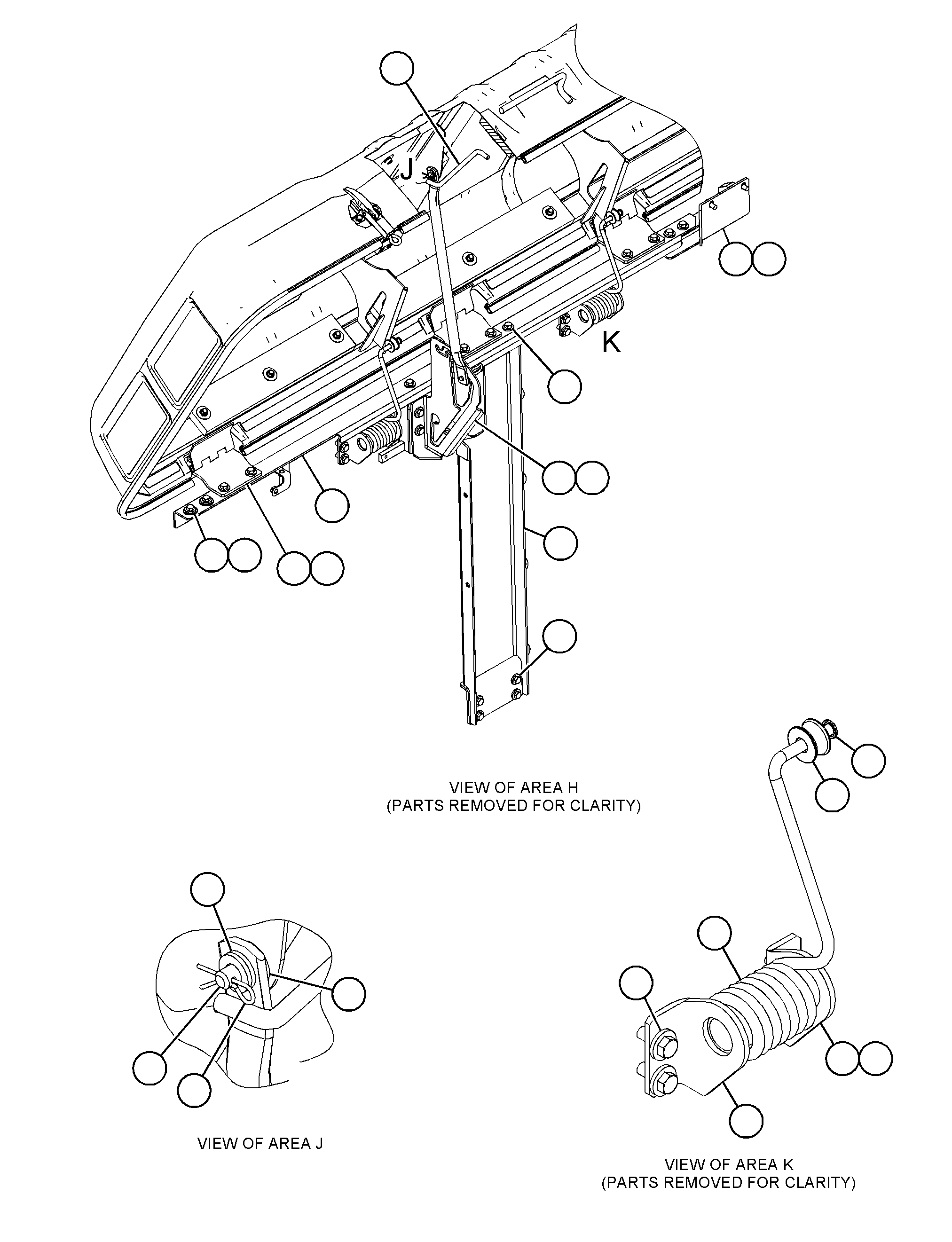

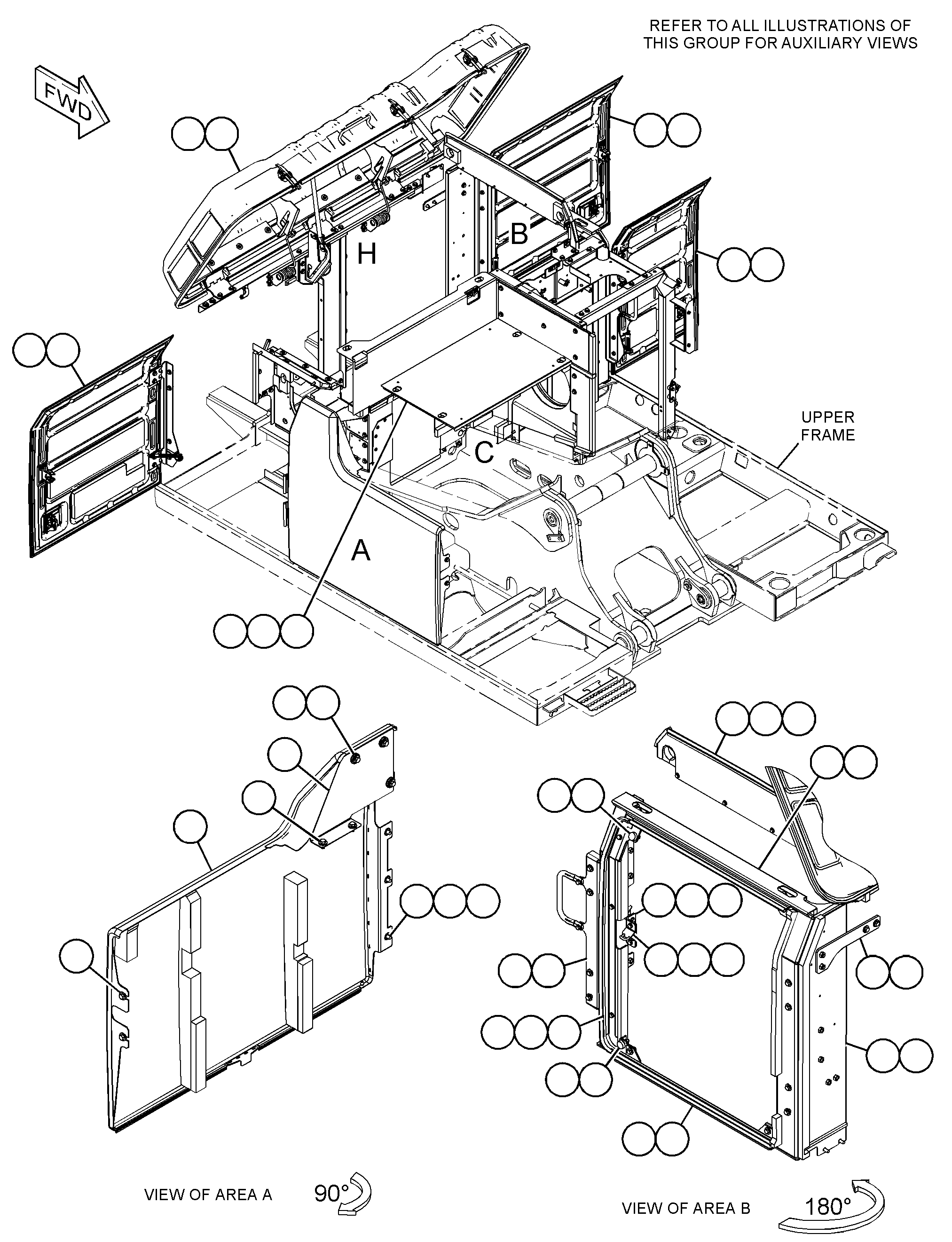

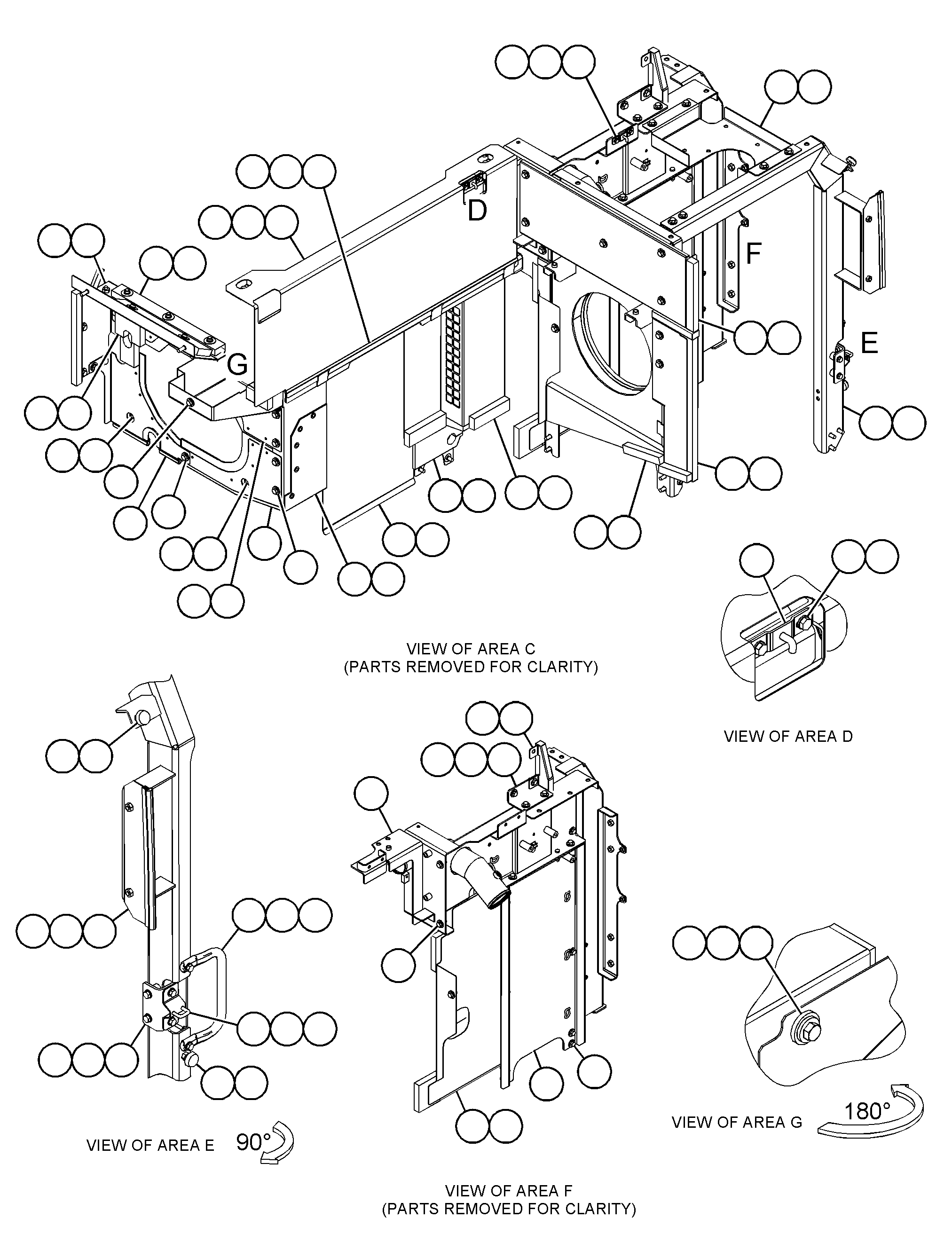

394-9270 HOOD & GUARD GPS/N LNX1-UP
Group No: 394-9270
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I0118 | 1 HOOK AS | 2 | |
| 7Y2853 | 2 SPACER (13X38X5-MM THK) | 7 | |
| 2983112 | 3 HANDRAIL | 2 | |
| 3272884 | 4 BRACKET AS | 1 | |
| 3272886 | 5 STRIKER AS | 2 | |
| 3272889 | 6 SHEET AS | 1 | |
| 3485409 | SEAL (13-DM) | ||
| 3301304 | 7 DOOR GP-ACCESS (AIR CLEANER, BATTERY) | 1 | |
| 3384008 | 8 DOOR GP-ACCESS (RADIATOR) | 1 | |
| 4458141 | 9 SUPPORT AS-SOUND SUPPRESSION | 1 | |
| 3384068 | 10 SUPPORT AS | 1 | |
| 3384364 | LINER | 1 | |
| 3384093 | 11 SUPPORT | 1 | |
| 3384094 | 12 SUPPORT AS | 1 | |
| 3384371 | LINER | 1 | |
| 3485409 | SEAL (10-DM) | ||
| 3384115 | 13 BRACKET AS | 3 | |
| 3384184 | 14 BRACKET AS | 1 | |
| 3384202 | 15 SUPPORT AS | 1 | |
| 3384205 | LINER | 1 | |
| 3485409 | SEAL (10-DM) | ||
| 3384209 | 16 SHEET | 1 | |
| 3384210 | 17 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384220 | 18 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384233 | 19 SHEET AS | 1 | |
| 3384236 | LINER | 1 | |
| 3384242 | 20 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384247 | 21 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384286 | 22 PLATE AS | 1 | |
| 3384288 | LINER | 1 | |
| 4595088 | 23 COVER AS | 1 | |
| 3384328 | 24 COVER AS-SOUND SUPPRESSION | 1 | |
| 3384336 | 25 SHEET | 1 | |
| 3384344 | 26 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3397383 | 27 SUPPORT AS | 2 | |
| 3397384 | 28 SUPPORT AS | 2 | |
| 3432465 | 29 BUMPER | 4 | |
| 3432466 | 30 SHEET AS | 1 | |
| 3485409 | SEAL (4-DM) | ||
| 3490020 | 31 SUPPORT AS | 1 | |
| 3504816 | 32 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3384341 | LINER | 1 | |
| 3568961 | 33 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3568963 | LINER | 1 | |
| 4610397 | 34 SHEET | 1 | |
| 3597996 | 35 SUPPORT AS | 1 | |
| 3719994 | 36 SUPPORT AS-ENCLOSURE | 1 | |
| 3719996 | 37 SUPPORT AS | 1 | |
| 3828630 | 38 ROLLER | 2 | |
| 4625827 | 39 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3852335 | 40 SPRING | 2 | |
| 3949258 | 41 DOOR GP-ACCESS (PUMP COMPARTMENT) | 1 | |
| 4610417 | 42 SHEET AS | 1 | |
| 4610418 | 43 SHEET & MOUNTING GP | 1 | |
| 3988104 | 44 SUPPORT AS | 1 | |
| 3988110 | 45 SUPPORT AS | 1 | |
| 4625824 | 46 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3988112 | 47 SUPPORT AS | 1 | |
| 3988131 | 48 HOOD GP-ENGINE | 1 | |
| 4250003 | 49 SUPPORT AS | 1 | |
| 4625826 | 50 SHEET AS | 1 | |
| 4309415 | 51 RETAINER | 2 | |
| 4310086 | 52 SUPPORT AS-ENCLOSURE | 1 | |
| 4310088 | 53 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4642255 | 54 COVER AS | 1 | |
| 4511591 | 55 COVER AS-SOUND SUPPRESSION (FUEL, HYDRAULIC TANKS) | 1 | |
| 1358573 | 56 BOLT AS | 42 | |
| 1358575 | 57 BOLT AS | 106 | |
| 1358577 | 58 BOLT AS | 2 | |
| 1703016 | 59 SPACER (19X32X2-MM THK) | 14 | |
| 2447789 | 60 SPACER (19X38X3-MM THK) | 8 | |
| 5P0372 | 61 LOCK PIN | 1 | |
| 5P1076 | 62 WASHER-HARD (13.5X30X4-MM THK) | 1 | |
| 5P4116 | 63 WASHER-HARD (8.8X20.5X2-MM THK) | 4 | |
| 7Y2854 | 64 SPACER (24X38X3-MM THK) | 7 | |
| 7Y2916 | 65 PIN-CLEVIS | 1 | |
| 8T4121 | 66 WASHER-HARD (11X21X2.5-MM THK) | 17 | |
| 8T4133 | 67 NUT (M10X1.5-THD) | 4 | |
| 8T4136 | 68 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4137 | 69 BOLT (M10X1.5X20-MM) | 9 | |
| 8T4189 | 70 BOLT (M8X1.25X20-MM) | 8 | |
| 8T4196 | 71 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4223 | 72 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4224 | 73 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 8T6868 | 74 BOLT (M12X1.75X80-MM) | 2 |
